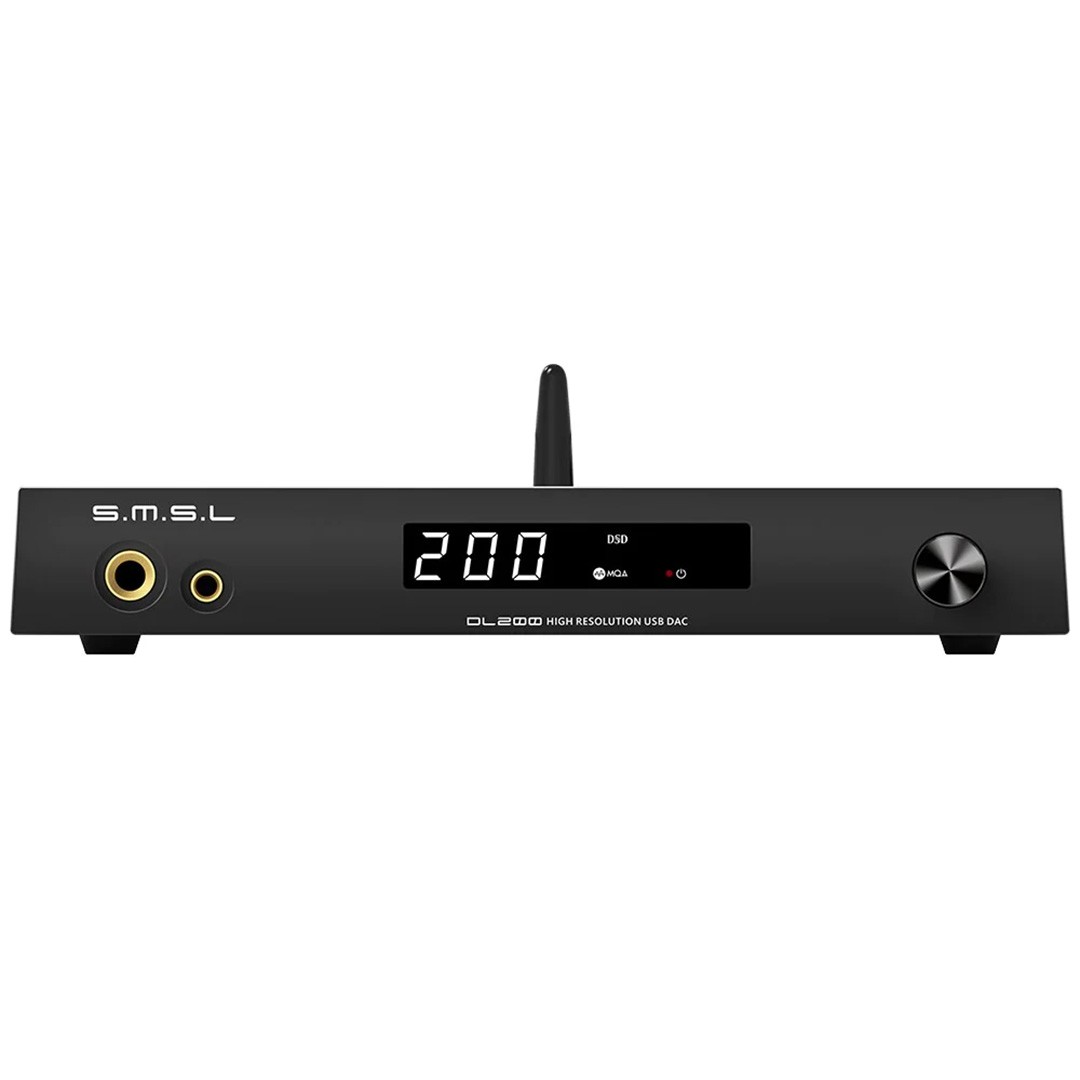

[GRADE A] SMSL DL200 DAC ES9039Q2M Headphone Amplifier XMOS XU316 Bluetooth 5.1 LDAC 32bit 768kHz DSD512 MQA-CD
The SMSL DL200 is a high-performance DAC featuring high-quality components such as an ES9039Q2M chip, a USB XMOS XU316 interface and a Qualcomm Bluetooth receiver chip. The DL200 can decode high sampling rates, up to PCM 32bit 768kHz, DSD512 and DoP64. It can also decode MQA files up to MQA-CD.
By buying this product you get 20 loyalty points
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.
Produit reconditionné - Grade A
Produit en très bon état. Boite d'emballage abîmée.

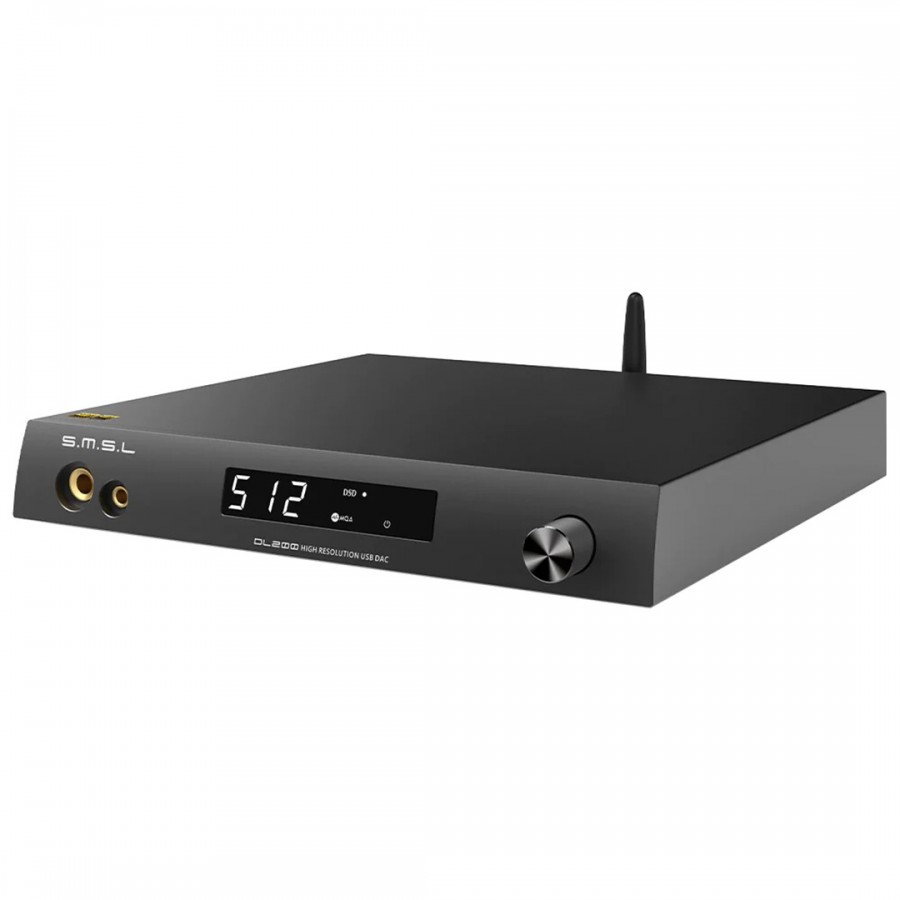

SMSL DL200
DAC ES9039Q2M Headphone Amplifier XMOS XU316 Bluetooth 5.1 LDAC 32bit 768kHz DSD512 MQA-CD
The SMSL DL200 is a high-performance DAC featuring high-quality components such as an ES9039Q2M chip, a USB XMOS XU316 interface and a Qualcomm Bluetooth receiver chip. The DL200 can decode high sampling rates, up to PCM 32bit 768kHz, DSD512 and DoP64. It can also decode MQA files up to MQA-CD. But that's not all: the DL200 also acts as a headphone amplifier with its two heaphones outputs (6.35mm and 4.4mm balanced). Overall, it features a wide range of connectors, including a USB-C input, a Toslink optical input, a coaxial input, as well as an RCA output and a balanced output on a 6.35mm TRS jack.
A high-performance DAC
SMSL with its DL200 offers a device capable of decoding up to PCM 32bit 768kHz, DSD512 and DoP64 thanks to its ES9039Q2M 32bit stereo DAC chip using Hyperstream® IV Dual Dac™ technology and advanced SABRE HiFi® architecture. It also benefits from an MQA decoder enabling it to receive MQA-CD streams.
XMOS XU316 USB input
The USB XMOS XU316 interface on a USB-C port can operate in 2.0 or 1.1 mode. The 2.0 interface requires a driver and supports 32bit 768kHz and DSD512. The 1.1 interface supports up to 24bits 96kHz without a driver, enabling you to connect a wide range of sources such as consoles (PS5, XBOX, Switch, etc.), your TV or Android devices.
Bluetooth 5.1 functionality
A Qualcomm Bluetooth receiver chip enables transmission of LDAC 24bit/96kHz, aptX HD, adaptive aptX, SBC and ACC formats.
Headphone amplifier
On the front of the DL200 are two headphone outputs. One 6.35mm jack and one 4.4mm balanced jack. Output power enables the SMSL DL200 to drive a wide range of headphones and earphones from 16Ω to 300Ω.

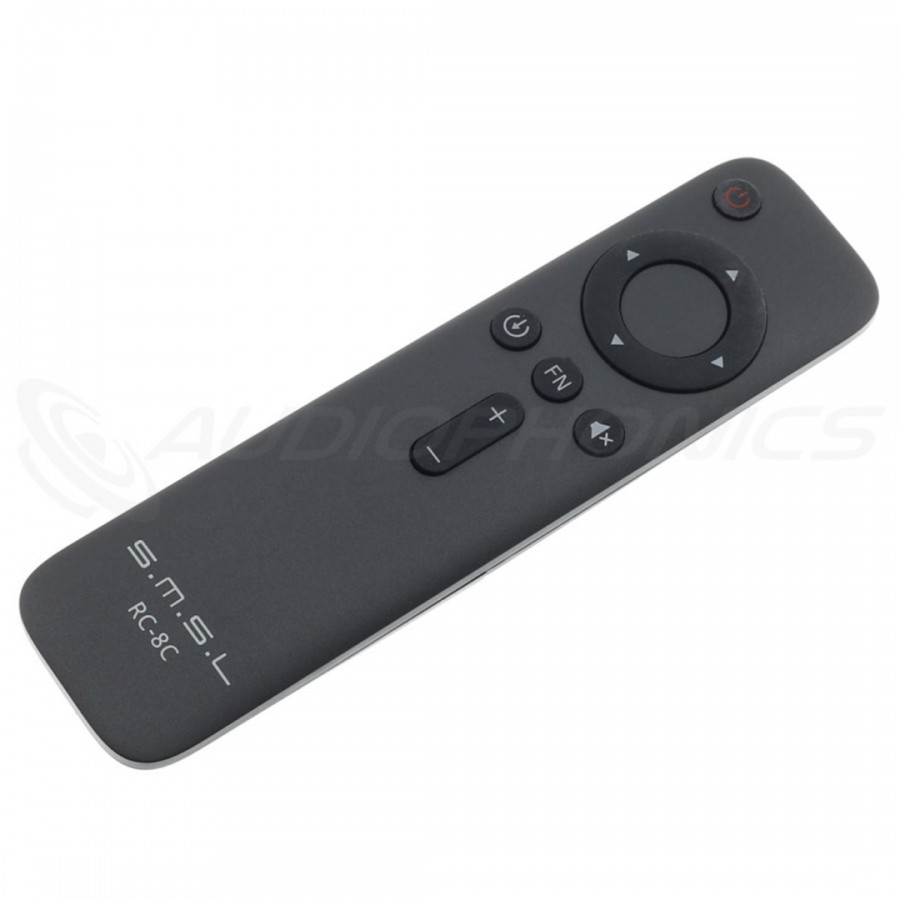

Infrared remote control
An infrared remote control lets you operate the DL200 remotely, for a more pleasant listening experience. You can adjust all the settings available in the DL200 menu.
PCM filters with DPLL
The DL200 incorporates 7 PCM filters and DPLL (Digital Phase Locked Loop) to significantly improve the input signal clock when required.
SMSL DL200 connectivity
| 1 | 6.35mm jack headphone output |
| 2 | Balanced 4.4mm jack headphone output |
| 3 | Bluetooth antenna |
| 4 | Display |
| 5 | Multifunction knob |
| 6 | power supply IEC |
| 7 | USB-C input |
| 8 | Toslink optical input |
| 9 | Bluetooth antenna connector |
| 10 | Coaxial SPDIF input |
| 11 | Stereo RCA output |
| 12 | Balanced 6.35mm TRS jack output |
Technical characteristics
| Specifications | |
|---|---|
| Product type | DAC Headphone amplifier |
| DAC chip | ES9039Q2M |
| OPA | 4x OPA1632 |
| Inputs | 1x USB-C 1x Optical Toslink 1x Coaxial SPDIF Bluetooth |
| Outputs | 1x RCA stereo 1x TRS stereo balanced 6.35mm headphone output Headphone output 4.4mm jack |
| Output level | RCA: 2.5Vrms TRS: 5Vrms |
| Headphone output power | 2x 3W @16Ω 2x 1.5W @32Ω |
| Headphone gain | Low : 0dB High : 11dB |
| THD+N | Line outputs: 0.00006% (-123dB) Headphone outputs: 0.00009% (-120dB) |
| Dynamic range | TRS: 130dB RCA: 127dB Headphone outputs: 125dB |
| SNR | TRS: 130dB RCA: 127dB Headphone outputs: 125dB |
| Output impedance | Line outputs: 100Ω Headphone outputs: close to 0dB |
| USB transmission protocol | 1.1 and 2.0 (Asynchronous) |
| USB compatibility | Windows 7/8/9/10/11 (with driver) Android Max OSX 10.6 and higher Linux (without driver) |
| Bit depth | USB: 16-32bit Optical / SPDIF: 16-24bit |
| Supported sample rates | USB: PCM 32bit 768kHz, native DSD up to DSD512 Optical and coaxial: PCM 24bit 192kHz and DoP64 |
| Bluetooth | 5.1 |
| Supported Bluetooth codecs | LDAC, aptx HD, aptX adaptative, AAC, SBC |
| General | |
|---|---|
| Power consumption | < 30W |
| Standby power consumption | < 0.5W |
| Dimensions | 221.9 x 31 x 206.7 |
| Weight | 1.390kg |
| Color | Black |
| Package | 1x SMSL DL200 DAC 1x Remote control |
| Input | Bluetooth |
| Input | USB |
| Input | Optical |
| Input | SPDIF |
| Output | Jack 6.35mm |
| Output | RCA |
| Output | Jack 4.4mm |
| DAC / ADC Chip | ES9039Q2M |
| Max sampling rate | MQA |
| Max sampling rate | 768kHz |
| Max sampling rate | DSD512 |
| Color | Black |
| Class | N/A |
| Networking | No |
| Remote Control | Yes |
| Refurbished Grade | Grade A |
