[GRADE A] SMSL VMV D2R DAC ROHM BD34301 XMOS XU316 Bluetooth 5.1 aptX HD LDAC 32bit 768kHz DSD512 MQA
The SMSL VMV D2R is a top-of-the-range DAC, offering very high performance thanks to its meticulous design and carefully selected components. In particular, it is equipped with an excellent ROHM BD34301 conversion chip and a XMOS XU316 USB interface, guaranteeing rich, precise sound reproduction.
![[GRADE A] SMSL VMV D2R DAC ROHM BD34301 XMOS XU316 Bluetooth 5.1 aptX HD LDAC 32bit 768kHz DSD512 MQA](https://www.audiophonics.fr/60187-thickbox_default/smsl-vmv-d2r-dac-rohm-bd34301-xmos-xu316-bluetooth-51-aptx-hd-ldac-32bit-768khz-dsd512-mqa.jpg "[GRADE A] SMSL VMV D2R DAC ROHM BD34301 XMOS XU316 Bluetooth 5.1 aptX HD LDAC 32bit 768kHz DSD512 MQA")
![[GRADE A] SMSL VMV D2R DAC ROHM BD34301 XMOS XU316 Bluetooth 5.1 aptX HD LDAC 32bit 768kHz DSD512 MQA](https://www.audiophonics.fr/60188-thickbox_default/smsl-vmv-d2r-dac-rohm-bd34301-xmos-xu316-bluetooth-51-aptx-hd-ldac-32bit-768khz-dsd512-mqa.jpg "[GRADE A] SMSL VMV D2R DAC ROHM BD34301 XMOS XU316 Bluetooth 5.1 aptX HD LDAC 32bit 768kHz DSD512 MQA")
![[GRADE A] SMSL VMV D2R DAC ROHM BD34301 XMOS XU316 Bluetooth 5.1 aptX HD LDAC 32bit 768kHz DSD512 MQA](https://www.audiophonics.fr/60189-thickbox_default/smsl-vmv-d2r-dac-rohm-bd34301-xmos-xu316-bluetooth-51-aptx-hd-ldac-32bit-768khz-dsd512-mqa.jpg "[GRADE A] SMSL VMV D2R DAC ROHM BD34301 XMOS XU316 Bluetooth 5.1 aptX HD LDAC 32bit 768kHz DSD512 MQA")
![[GRADE A] SMSL VMV D2R DAC ROHM BD34301 XMOS XU316 Bluetooth 5.1 aptX HD LDAC 32bit 768kHz DSD512 MQA](https://www.audiophonics.fr/60190-thickbox_default/smsl-vmv-d2r-dac-rohm-bd34301-xmos-xu316-bluetooth-51-aptx-hd-ldac-32bit-768khz-dsd512-mqa.jpg "[GRADE A] SMSL VMV D2R DAC ROHM BD34301 XMOS XU316 Bluetooth 5.1 aptX HD LDAC 32bit 768kHz DSD512 MQA")
![[GRADE S] MOGAMI W3103 Speaker Cable OFC Copper 2x4.mm² Ø12mm 2.9m](https://www.audiophonics.fr/60807-thumb_default/mogami-w3103-speaker-cable-ofc-copper-2x4mm-o12mm.jpg)
![[GRADE S] FURUTECH FP-S55N LIMITED EDITION Power Cable OFC Copper Silver Gold Nano Liquid Alpha Treatment 5.26mm² Ø18mm 2.65m](https://www.audiophonics.fr/60802-thumb_default/furutech-fp-s55n-limited-edition-power-cable-ofc-copper-silver-gold-nano-liquid-alpha-treatment-526mm-o18mm.jpg)
![[GRADE B] IFI AUDIO ZEN STREAM Hi-Res Audio Streamer WiFi DLNA 32bit 384kHz DSD256 MQA](https://www.audiophonics.fr/60791-thumb_default/ifi-audio-zen-stream-hi-res-audio-streamer-wifi-dlna-32bit-384khz-dsd256-mqa.jpg)
![[GRADE B] IFI AUDIO ZEN STREAM Hi-Res Audio Streamer WiFi DLNA 32bit 384kHz DSD256 MQA](https://www.audiophonics.fr/60786-thumb_default/ifi-audio-zen-stream-hi-res-audio-streamer-wifi-dlna-32bit-384khz-dsd256-mqa.jpg)
![[GRADE B] IFI AUDIO ZEN CAN Class A Balanced Headphone Amplifier 15.2V](https://www.audiophonics.fr/60782-thumb_default/ifi-audio-zen-can-class-a-balanced-headphone-amplifier-152v.jpg)
Refurbished product - Grade A
Product in perfect condition. Cardboard packaging damaged.
SMSL VMV D2R
DAC ROHM BD34301 XMOS XU316 Bluetooth 5.1 aptX HD LDAC 32bit 768kHz DSD512 MQA
The SMSL VMV D2R is a top-of-the-range DAC, offering very high performance thanks to its meticulous design and carefully selected components. In particular, it is equipped with an excellent ROHM BD34301 conversion chip and a XMOS XU316 USB interface, guaranteeing rich, precise sound reproduction. It's also a particularly versatile model that will fit in with the vast majority of audio systems thanks to its complete connectivity, and even wireless connectivity with an on-board Bluetooth 5.1 receiver.
ROHM BD34301 DAC
The ROHM BD34301 digital-to-analog conversion chip is the brand's most powerful model, with THD+N measured at -117dB! It ensures efficient decoding for rich, precise and clear sound reproduction. It also supports high-resolution audio signals, both PCM and DSD.
XMOS XU-316 USB interface
The SMSL VMV D2R's USB-B input uses a 3rd-generation XMOS XU-316 interface. Capable of high-performance decoding and in association with the device's ROHM BD34301 DAC chip, this USB input lets you enjoy high-resolution audio streams up to PCM 32bit 768kHz and DSD512.
High-end components
In addition to its excellent DAC and USB interface, the VMV D2R benefits from an overall design featuring numerous high-end, high-performance components. These include a proprietary CK-03 clock circuit with Accusilicon oscillators for minimal jitter, an ultra-low-noise on-board linear power supply with multiple voltage regulators and a Noratel toroidal transformer, as well as a host of discrete components.
MQA
The SMSL VMV D2R benefits from an MQA (Master Quality Authenticated) decoder, enabling it to read this type of file, guaranteeing sound quality as close as possible to that of a studio recording. These files are approved directly by the artist, the record company or the rights holders, and offer a particularly faithful reproduction.
Bluetooth 5.0
In addition to its comprehensive and versatile connectivity, the VMV D2R features a Bluetooth 5.1 receiver using a Qualcomm chip. This makes it possible to stream music wirelessly from a smartphone, for example. What's more, the device supports high-resolution aptX, aptX HD and LDAC codecs for high quality wireless sound.
| 1 | Screen |
| 2 | LED indicator |
| 3 | IR receiver |
| 4 | Multifunction button |
| 5 | Balanced XLR output |
| 6 | Single-ended RCA output |
| 7 | AES/EBU input |
| 8 | Coaxial input |
| 9 | Optical input |
| 10 | USB-B input |
| 11 | I2S input |
| 12 | Bluetooth antenna |
| 13 | Power connector and power button |

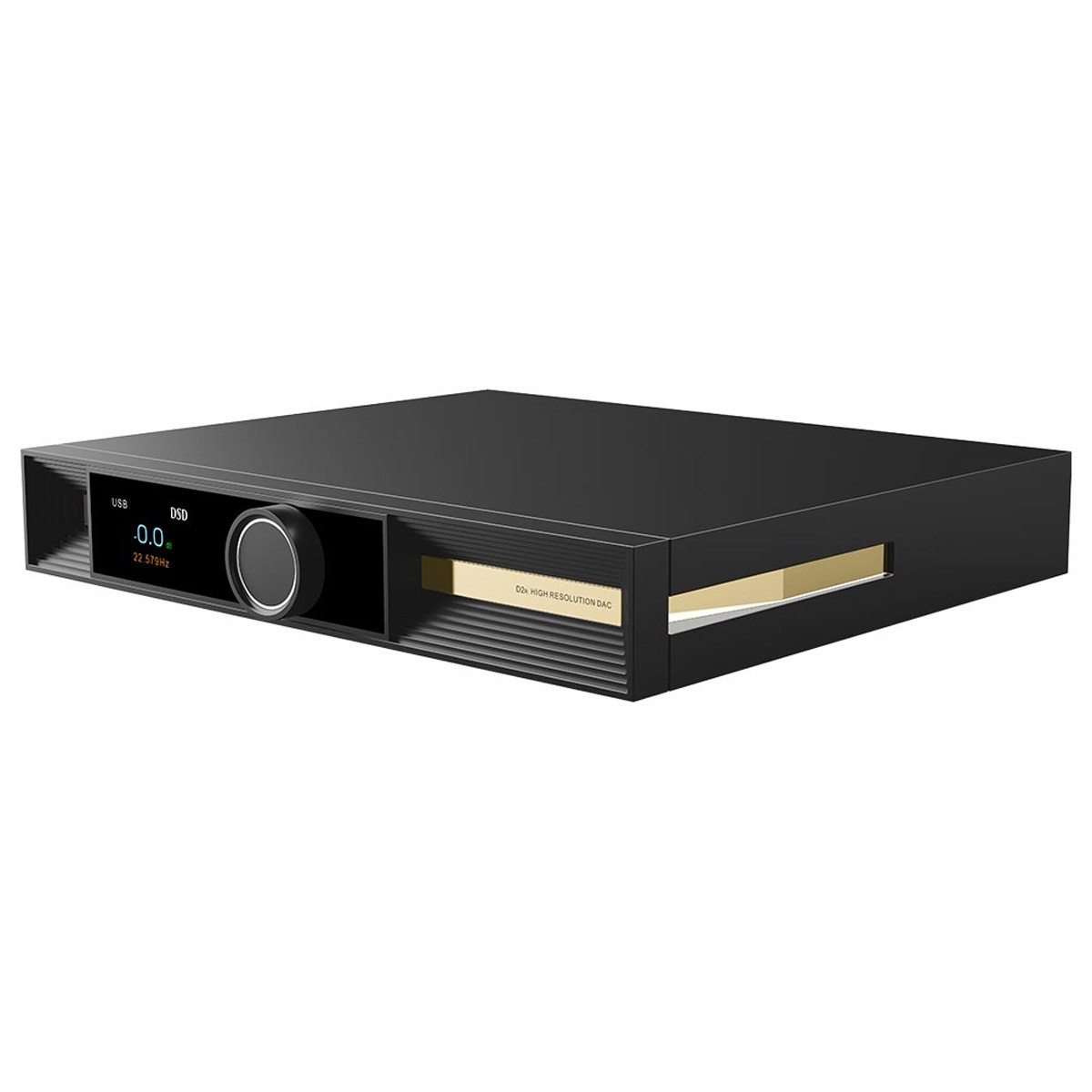

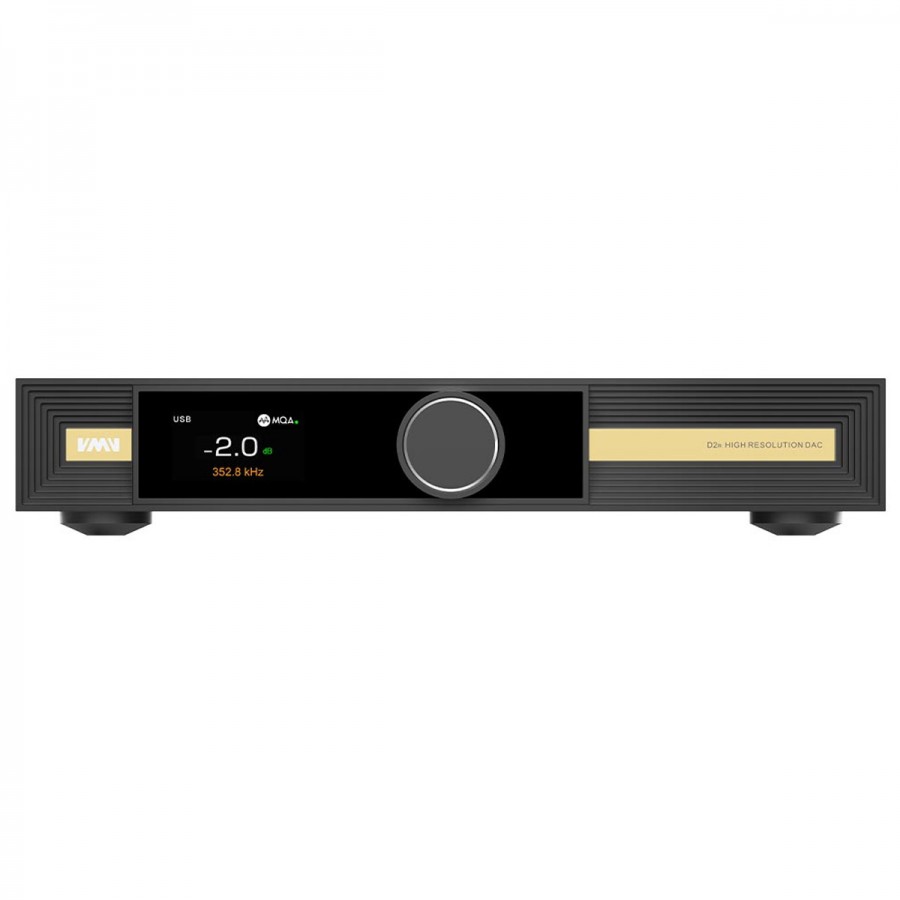

Modern, luxurious design
The SMSL VMV D2R boasts a sublime CNC-machined aluminum enclosure, giving it a modern yet luxurious aesthetic. Its front panel features a beautiful color display, protected by a sturdy tempered glass pane. The D2R also comes with an all-aluminum remote control for convenient remote control.
Technical characteristics
| Specifications | |
|---|---|
| Product type | DAC |
| DAC chip | ROHM BD34301 |
| Inputs | Bluetooth 5.1 1* USB-B 1* Optical 1* Coaxial 1* AES/EBU 1* I2S via HDMI |
| Outputs | 1* Single-ended stereo RCA 1* Balanced stereo XLR |
| Output level | RCA : 2Vrms (fixed volume) / 2.6Vrms (variable volume) XLR : 4Vrms (fixed volume) / 5.1Vrms (variable volume) |
| Output impedance | RCA : 100 Ohm XLR : 200 Ohm |
| THD+N | RCA : 0.00014% (-117dB) |
| Dynamic range | RCA : 125dB XLR : 129dB |
| SNR | RCA : 124dB XLR : 129dB |
| USB transmission | Asynchrone |
| USB compatibility | Windows 7 / 8 / 8.1 / 10 / 11 Mac OSX Linux |
| Supported sampling rates | USB / I2S : PCM up to 32bit 768kHz, DSD up to DSD512 Optical / Coaxial : PCM up to 24bit 192kHz |
| Supported Bluetooth codecs | SBC, AAC, aptX, aptX HD, LDAC |
| General | |
|---|---|
| Consumption | 5W |
| Standby consumption | < 0.5W |
| Dimensions | 280*235.5*43mm |
| Weight | 3.2kg |
| Color | Black |
| Package | 1* SMSL VMV D2R 1* Power supply 1* Antenna 1* Remote control |
| Input | I2S via HDMI |
| Input | SPDIF |
| Input | Bluetooth |
| Input | AES/EBU |
| Input | USB |
| Input | Optical |
| Output | RCA |
| Output | XLR |
| DAC / ADC Chip | ROHM BD34301EKV |
| Max sampling rate | DSD512 |
| Max sampling rate | MQA |
| Max sampling rate | 768kHz |
| Color | Black |
| Networking | No |
| Remote Control | Yes |
| Refurbished Grade | Grade A |
