Refurbished product - Grade S
Cable drop of 1.7m.
Silver Plated UP-OCC Copper Shielded Power Cable 1.7m
The CIP power cable series uses high quality copper/silver conductors and excellent internal insulation in PVC CL3. This cable provides a clean electrical signal for high-end audio systems, for accurate sound reproduction and improved dynamics.

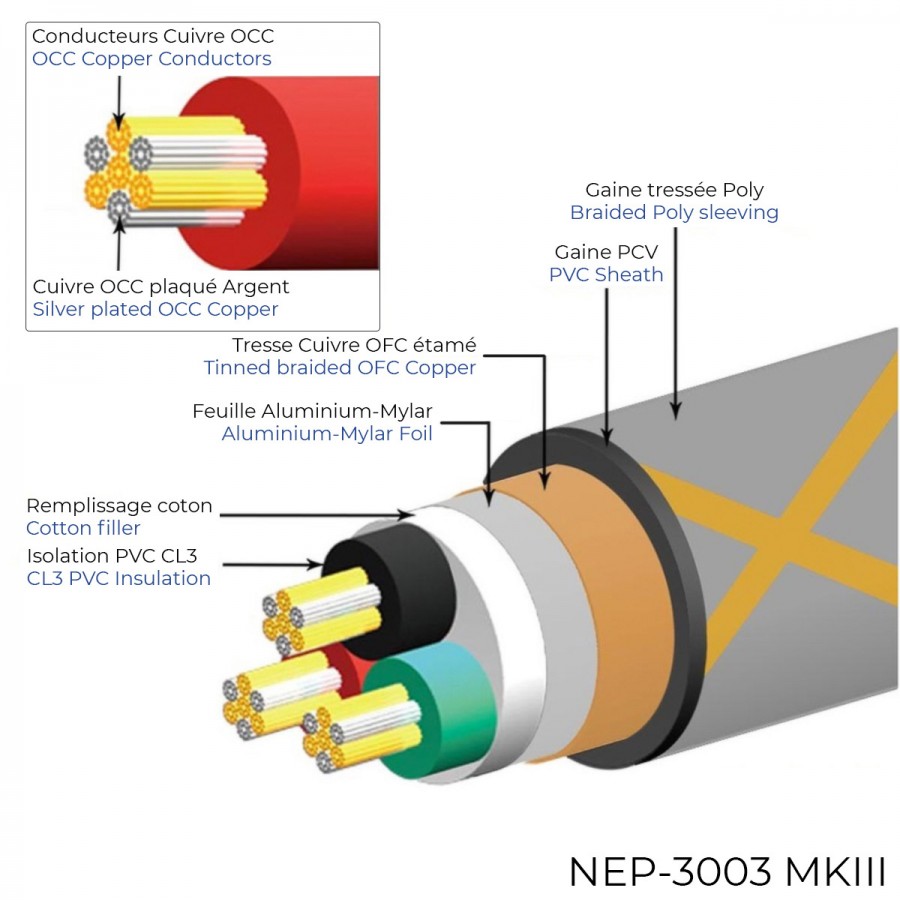

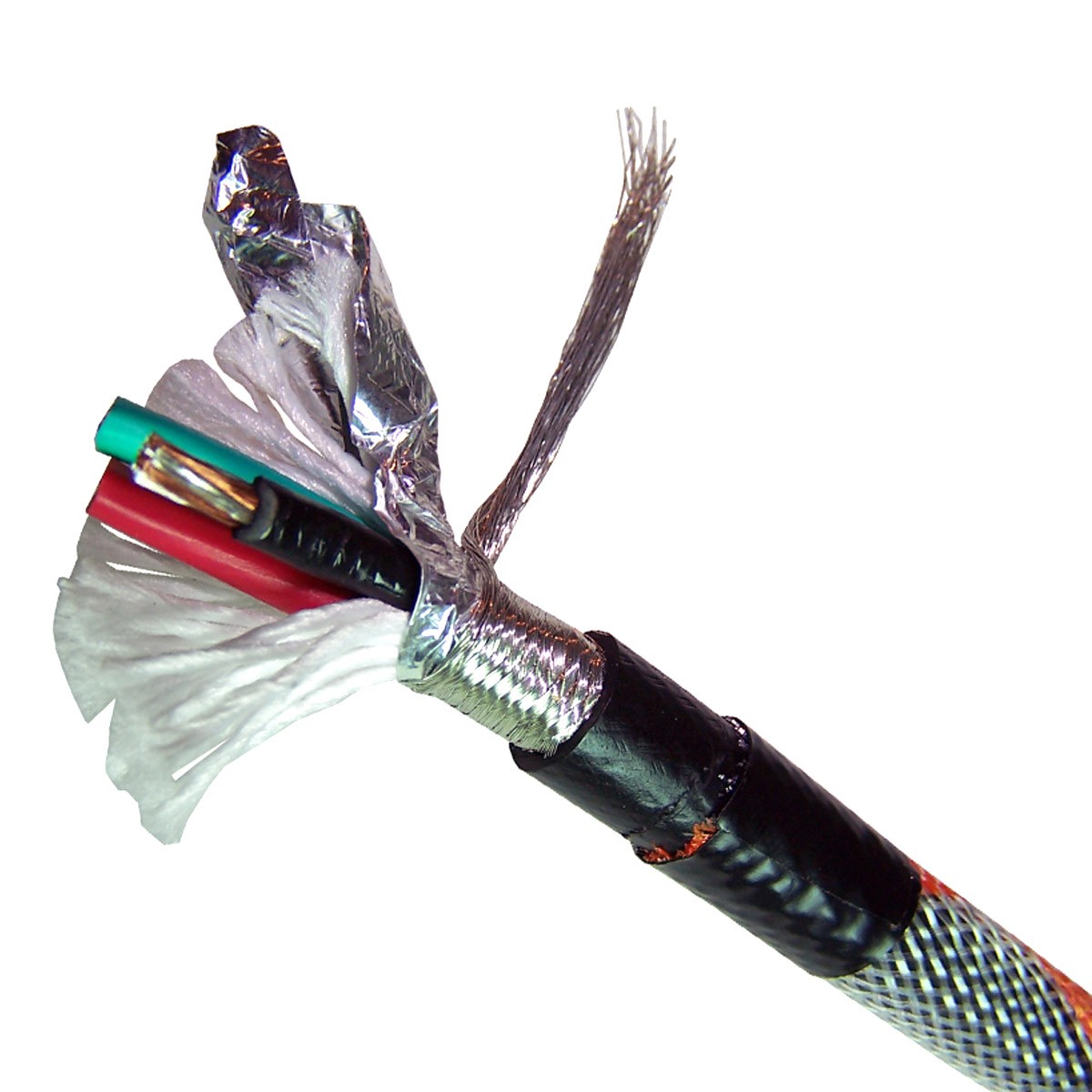

The NEP-3003 MKIII thus integrates 3 conductors, each insulated by a PVC CL3 sheath. The conductors are made of several strands of UP-OCC Copper and UP-OCC Silver plated Copper to ensure excellent conductivity of the electrical signal. In addition, the cable has a double shielding with braided OFC Copper Mylar foil for a significant reduction in interference. Finally, the cable is covered with a final insulating PVC sheath and then a grey and orange braided sheath.
Specifications | |
---|---|
Product type | Power cable |
Number of conductors | 3 |
Conductors material | UP-OCC Copper + Silver plated UP-OCCCopper |
Conductor material | 2mm (3.5mm with insulation) |
Conductor section | 13AWG (2.62mm²) |
Cable diameter | 11.4mm |
Insulation material | PVC |
Shielding | Mylar Foil + Braided OFC Copper |
Color | Gray and orange |
Length | 1.7m |
Diameter (mm) | 11.4 |
Length (m) | 1.7 |
Plating | Silver |
Separated conductors | Yes |
Number of conductors | 3 |
Insulation material | PVC |
Shielding | Yes |
Section (mm²) | 2.62 |
Connector | N/A |
Conductors material (Cable) | Copper |
Refurbished Grade | Grade S |
