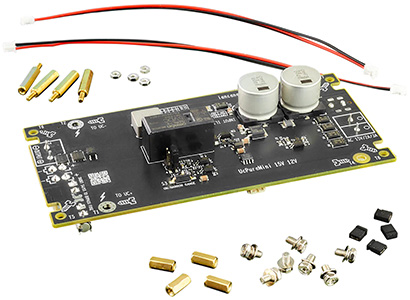

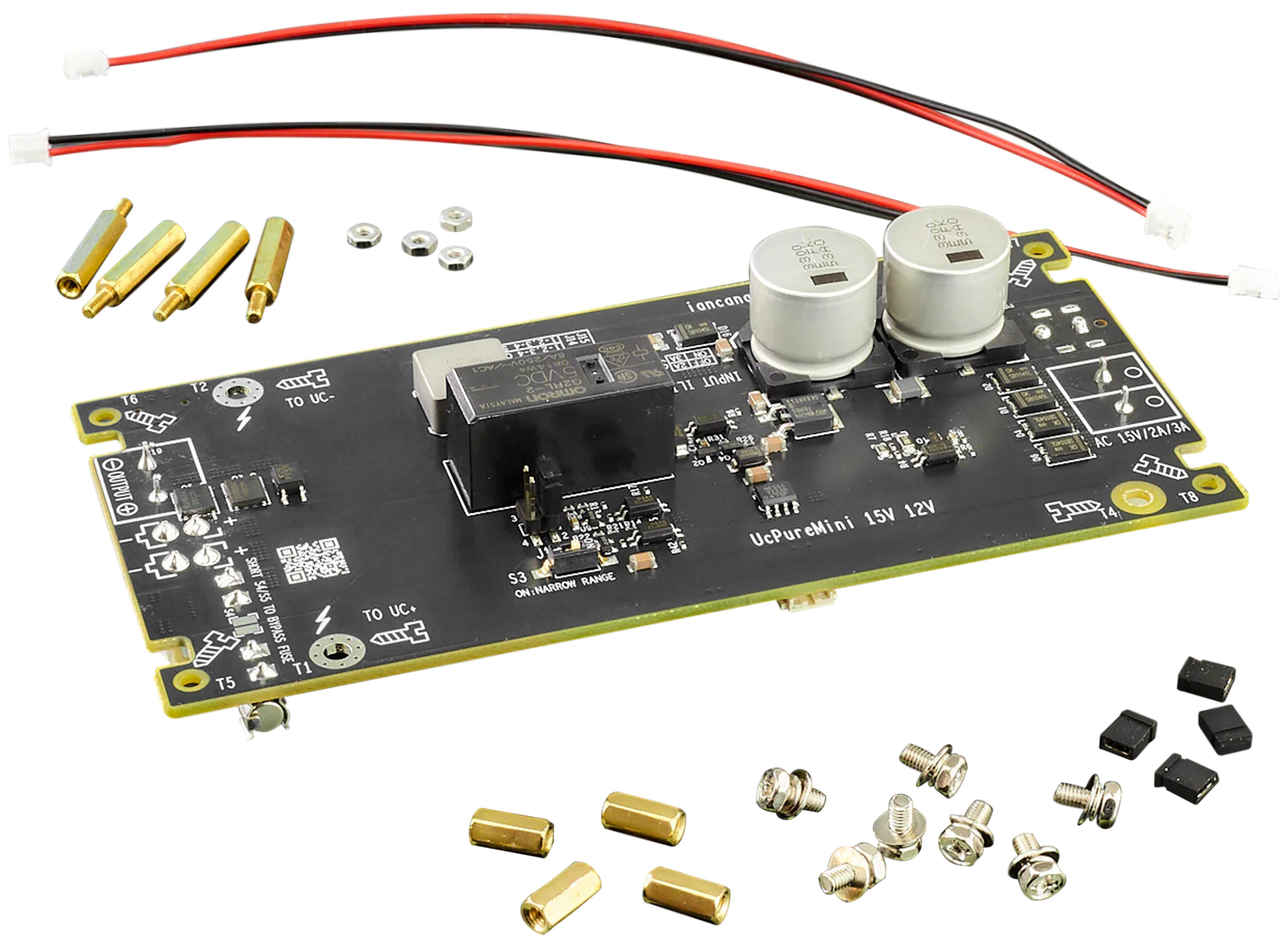

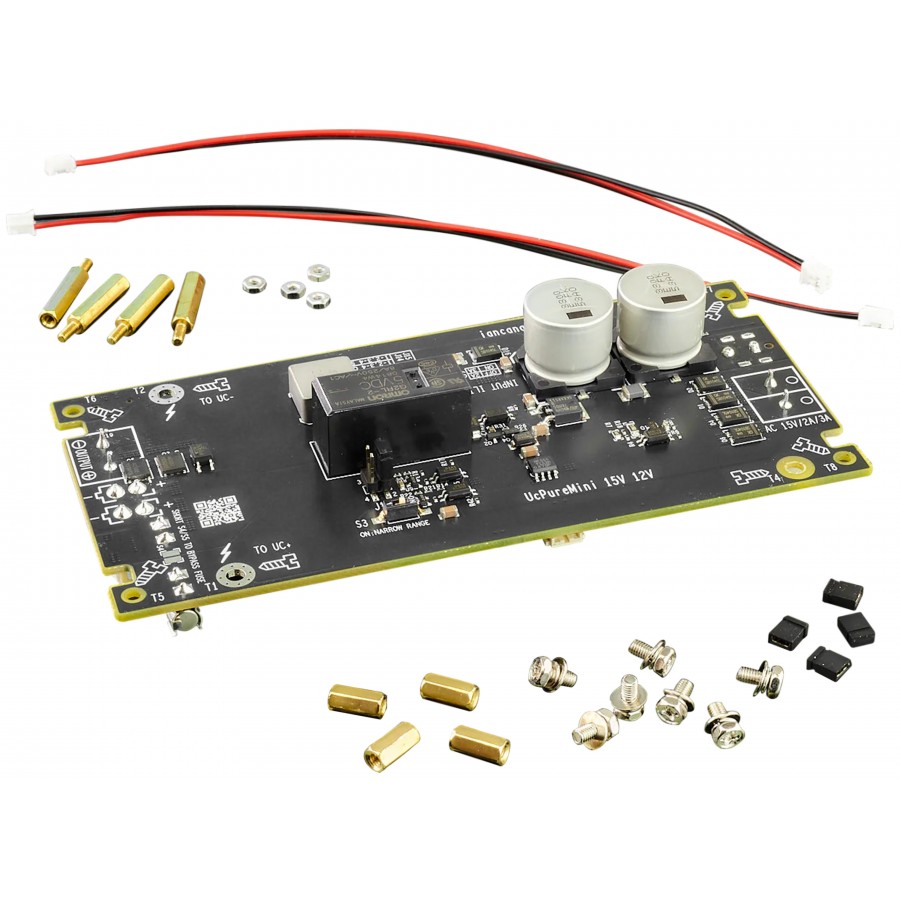

IAN CANADA UCPURE MINI SOLO Supercapacitor Power Supply Module Kit

Ian Canada UcPure Mini Solo : Key points

• High-performance supercapacitor power supply.
• Supercapacitors operate in class A, with current flowing in only one direction..
• The outputs are isolated from the charger and power input in pure mode to eliminate 100% of common mode EMI noise.
• Supercapacitors can be installed directly on the printed circuit board using copper spacers for high-current applications.
• 15V and 12V configurations, easily adjustable to +/-15V and +/-12V.
• Features an output voltage range control mode.
• High peak charging current of 5A, very fast charging and recharging of supercapacitors.
• Optimised for a 15V AC input, the UcPures Mini can also operate with a DC input of 19V to 21V.
• Can be controlled by the integrated/external ON/OFF switch or the control chain (optically isolated) of the entire power supply unit.
• Optical isolators are used for all internal operating logic.
• Integrated protection system to prevent supercapacitor depletion and excessively low output voltage.
• With a powerful SYNC UC charging function. Can recharge supercapacitors during music breaks. This function prevents output voltage drop or protection mode activation, even if you listen to music for a very long time. The SYNC input control signal can be connected to the MUTE signal of a MonitorPi Mini or FifoPiQ7. Multiple UcPures Mini can work together with a SYNC control chain. This signal is optically isolated from the UcPure, so it does not affect the performance of the power supply.
• Robust design for 24/7 operation.
