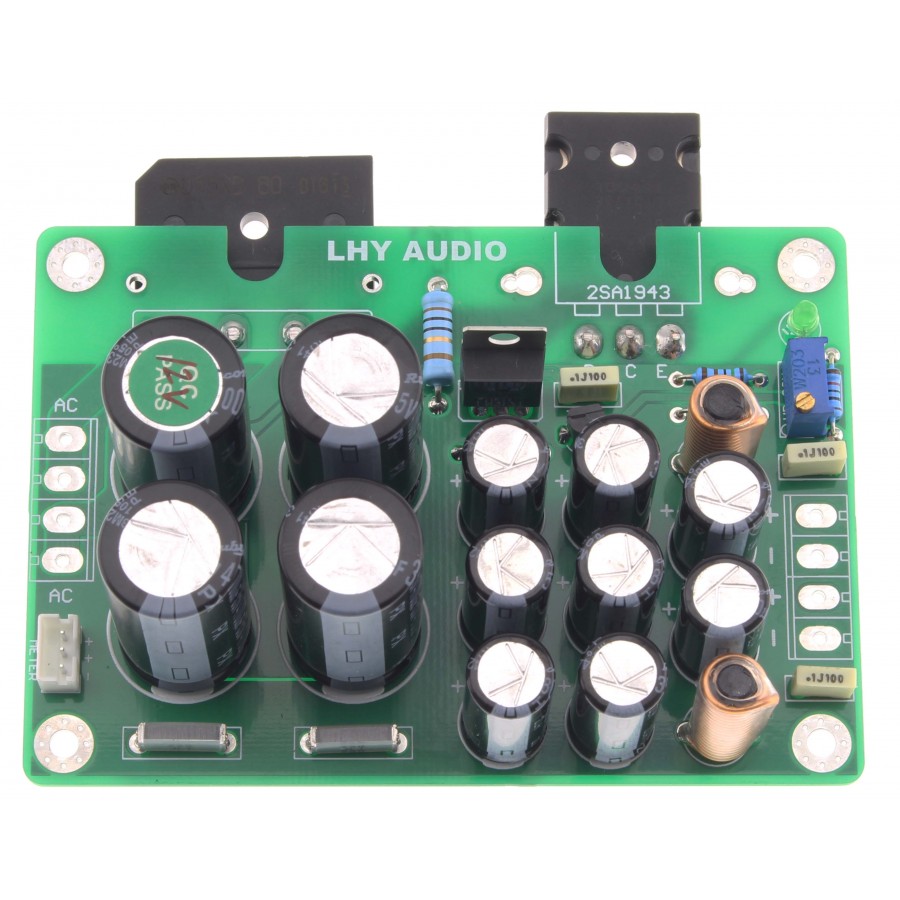

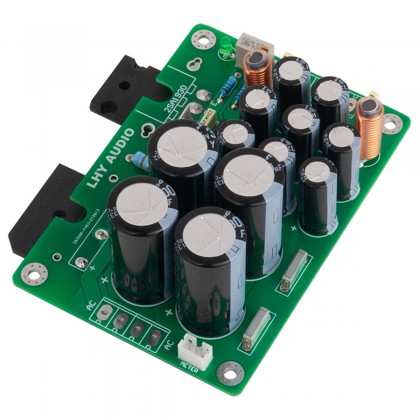

LHY Audio Linear Power supply module
Low noise 2SA1943 3.3-15V DC
This LHY Audio low noise linear power supply module offers a very good price/performance ratio. It integrates a D15XB high power diode bridge, a LM317T and TL431 voltage regulator as voltage reference and a Toshiba 2SA1943 high current PNP transistor for its output. This ensures excellent linearity and stability. The module provides a basic output voltage of 12VDC and can be adjusted over a range of 3.3V to 15V DC.
| Input voltage | Output voltage |
|---|---|
| 9VAC | 5VDC |
| 12VAC | 9VDC |
| 15VAC | 12VDC |
| 18VAC | 15VDC |
It is strongly recommended that the module be associated with a heat sink, especially from a load current of 1A.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Linear power supply module |
| Output voltage | Default: 12V DC Adjustment range: 3.3~15V DC |
| Diode bridge | D15XB |
| Voltage regulators | LM317T TL431 |
| Transistor | Toshiba 2SA1943 |
| Capacitors | 4* Nichicon 4700µV 40V 8* Rubycon 680µV 35V |
| Output current | Rated: 5A Max : 10A (large heat sink required to achieve this value) |
| General | |
|---|---|
| Dimensions | 100*70*46mm |
| Mounting holes spacing | 90*60mm |
| Input | Solder pad |
| Output | Solder pad |
| Output voltage (V) | 12.0 |
| Output voltage (V) | 15.0 |
| Output voltage (V) | 5.0 |
| Output voltage (V) | 3.3 |
| Output voltage (V) | 9.0 |
| Output current (A) | NC |
| Input voltage (V) | N/A |
| Power Supply | Regulated Linear Power Supply |
