Regulated Linear Power Supply Module Dual LME49710 / MJE15032 5-18VDC
By buying this product you get 2 loyalty points
![[GRADE A] AUNE S17 PRO Discrete Class A Balanced Headphone Amplifier / Preamplifier 7500mW @32Ω Black](https://www.audiophonics.fr/69093-thumb_default/aune-s17-pro-black.jpg)
![[GRADE S] MINIDSP FLEX HT Audio DSP Processor 2x8 Channels SHARC ADSP21489 XMOS HDMI ARC eARC](https://www.audiophonics.fr/68133-thumb_default/minidsp-flex-ht-stockb.jpg)
![[GRADE A] AUNE S9C PRO DAC 2x ES9068AS Discreet Headphone Amplifier 5W Bluetooth 32bit 768kHz DSD512 MQA Back](https://www.audiophonics.fr/64487-thumb_default/aune-s9c-pro-dac-2x-es9068as-discreet-headphone-amplifier-5w-bluetooth-32bit-768khz-dsd512-mqa-back.jpg)

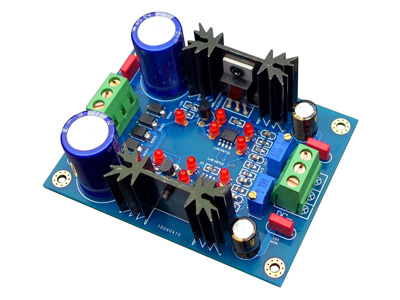

Regulated Linear Power Supply Board
Dual LME49710 / MJE15032 5-18VDC
This regulated linear power supply module takes advantage of a beautiful design quality to provide a clean electrical signal to your HiFi devices. It takes as input an electrical signal between 2x7V AC and 2x18V AC to output between 5VDC and 18VDC with a maximum output current of 2A. (non continuous)
The module integrates low noise components to ensure very good performance, including two LME49710 operational amplifiers driving two MJE15032 transistors.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Regulated linear power supply board |
| Input voltage range | 2x7V AC - 2x18V AC |
| Output voltage range | 5V - 18V |
| Max output current | 2A (Continuous recommended < 500mA) |
| Operationnal amplifier | 2x LME49710 |
| Transistors | 2x MJE15032 |
| Dimensions | 81 x 61mm |
| Input | Screw terminals |
| Output | Screw terminals |
| Output voltage (V) | 5.0 |
| Output voltage (V) | 10.0 |
| Output voltage (V) | 15.0 |
| Output voltage (V) | 18.0 |
| Output current (A) | 0.5 |
| Output current (A) | 2.0 |
| Input voltage (V) | 7.0 |
| Input voltage (V) | 15.0 |
| Input voltage (V) | 10.0 |
| Input voltage (V) | 18.0 |
| Power Supply | Regulated Linear Power Supply |
