HYPEX SMPS1200A100 Switching Power Supply Module 1200W 2x36V

HYPEX SMPS1200A180 Switching Power Supply Module 1200W 2x 46V
The Hypex SMPS1200A180 is a high performance Class 2 switched mode power supply, originally designed for UcD / NCore amplifier modules. Capable of delivering 2x36VDC at 1500W, this power supply has excellent efficiency over the entire load range and excellent resistance to EMI interference in a compact and lightweight package. It also incorporates an effective overcurrent protection system.

No customer reviews yet, login to write a review.

By buying this product you get 21 loyalty points


Reference : 14847
New product

215,00 €tax incl.

179,17 € tax excl.
Including 0,05 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Hypex SMPS1200A180

Switching Power Supply Module 1200W 2x36V

Hypex SMPS1200A180 Module d'alimentation à découpage 1200W 2x46V

The Hypex SMPS1200A180 is a high performance Class 2 switched mode power supply, originally designed for UcD / NCore amplifier modules. Capable of delivering 2x36VDC at 1500W, this power supply has excellent efficiency over the entire load range and excellent resistance to EMI interference in a compact and lightweight package. It also incorporates an effective overcurrent protection system.

Buffer electrolytic capacitors provide a comfortable headroom for the connected amplifier. The module also has a 2x 20VDC balanced auxiliary output and a control circuit that can interface directly with UcD / NCore amplifiers.

The Hypex SMPS1200 power supplies are ideal for integration into a High Fidelity audio system.

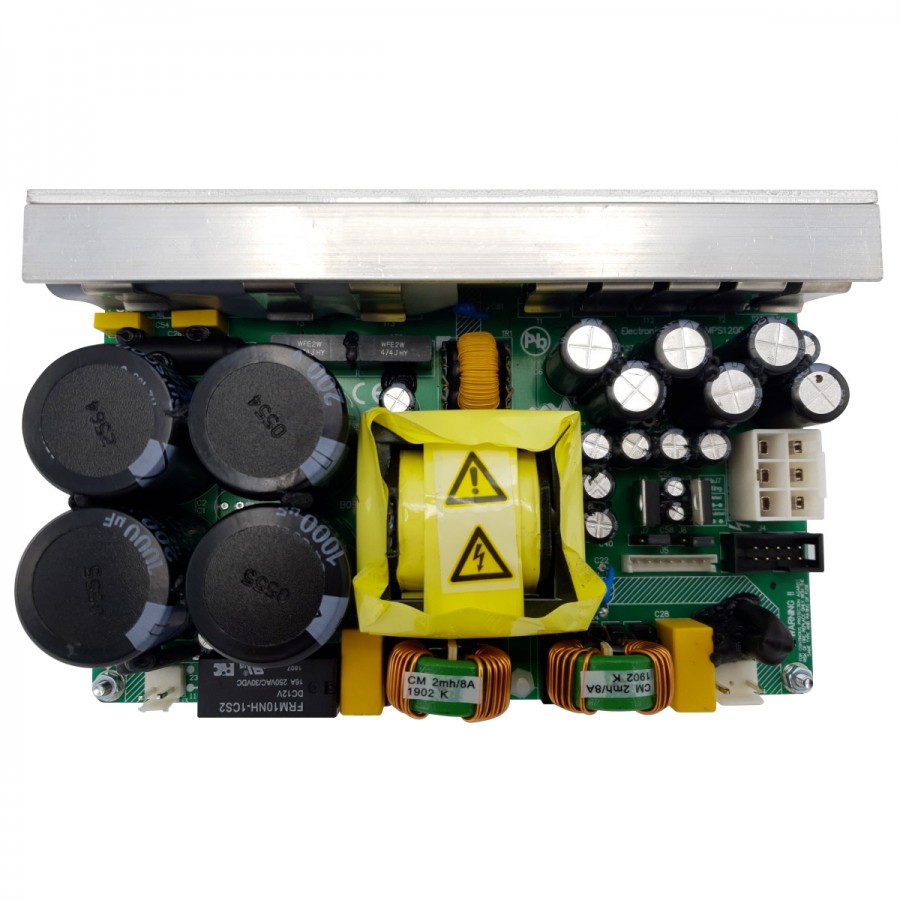

Diagram viewed from below

Hypex SMPS1200A180 Module d'alimentation à découpage 1200W 2x46V

Rear diagram

Hypex SMPS1200A180 Module d'alimentation à découpage 1200W 2x46V

Technical characteristics

Specifications
Product typeSwitching power supply module
Input voltage230VAC / 115VAC (with jumper)
Output voltage2x 36VDC
Aux output2x 20VDC 500mA
Max. output power1500W
1200W @ 20Hz
General
Dimensions165 x 105 x 55mm
Weight750g

Data sheet
Output voltage (V)2x36
Input voltage (V)115.0
Input voltage (V)230.0
Power SupplySMPS
