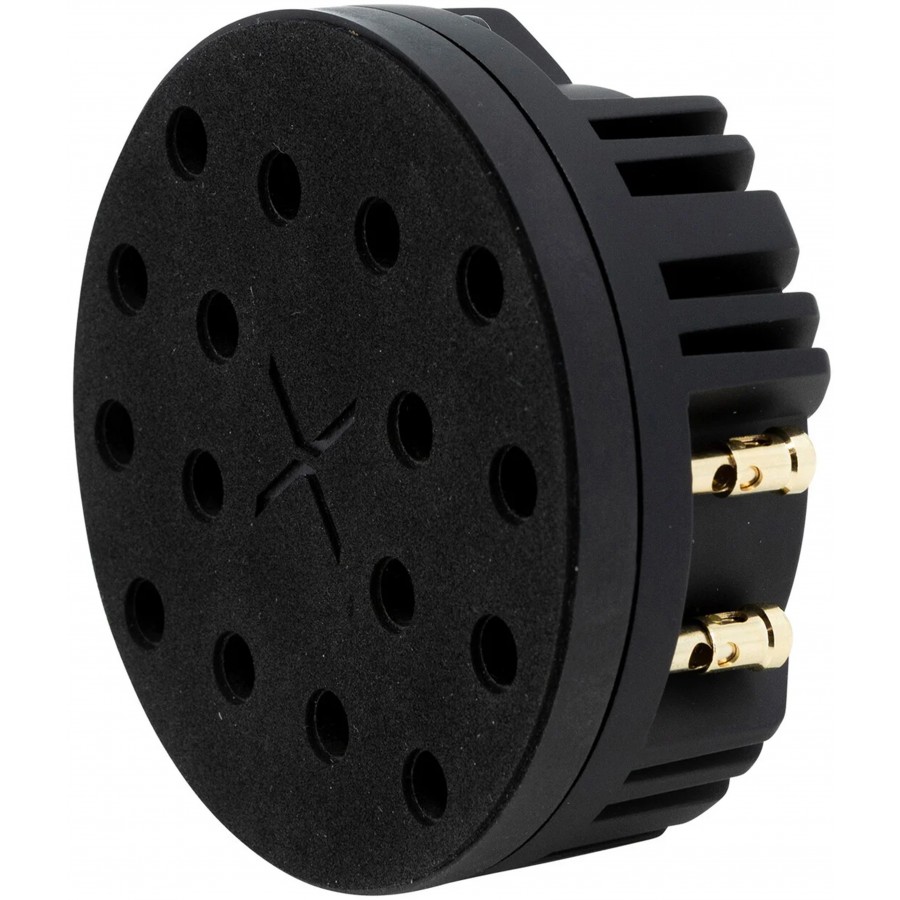

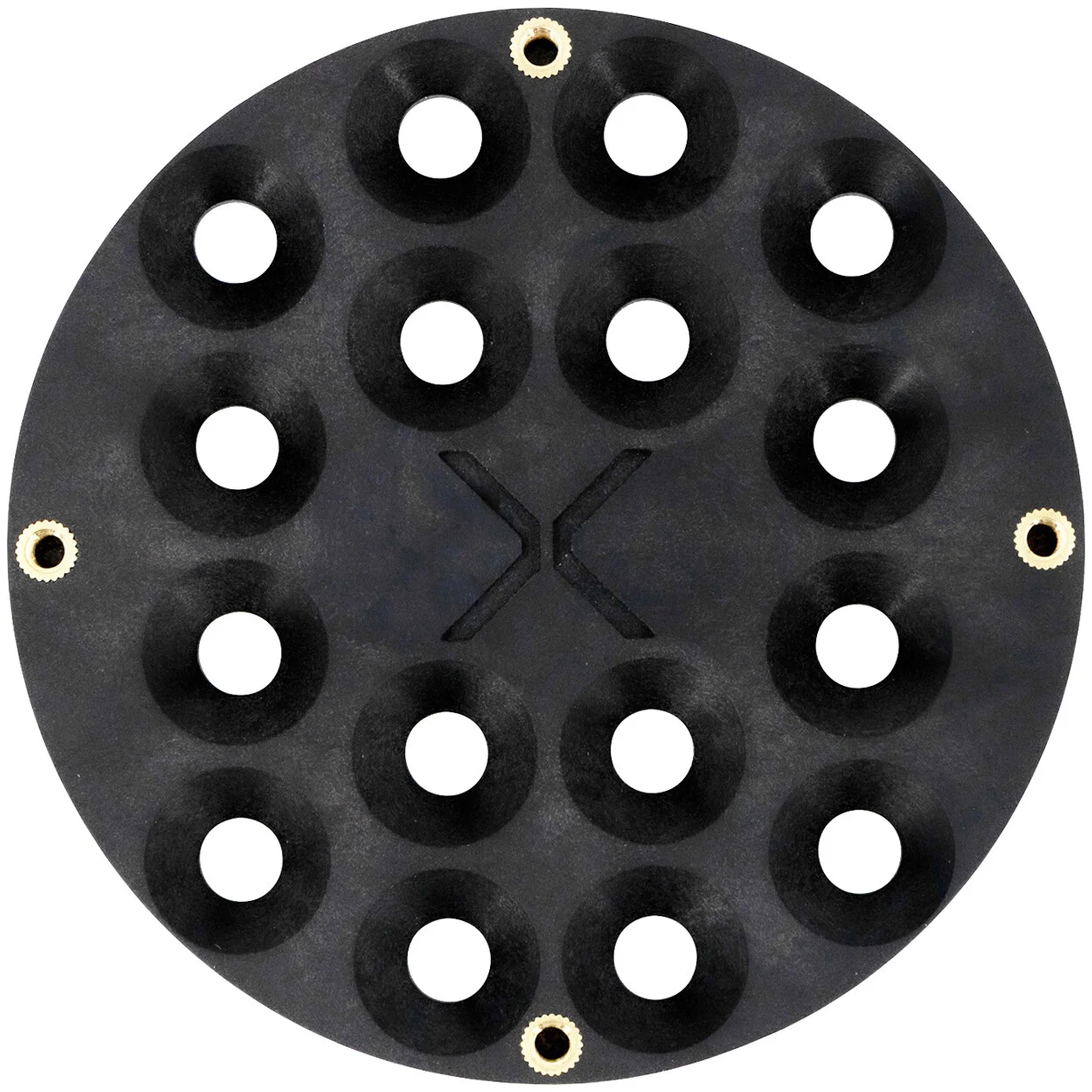

XCITE XBS50MK Mounting Kit for XBS50-4 Exciter

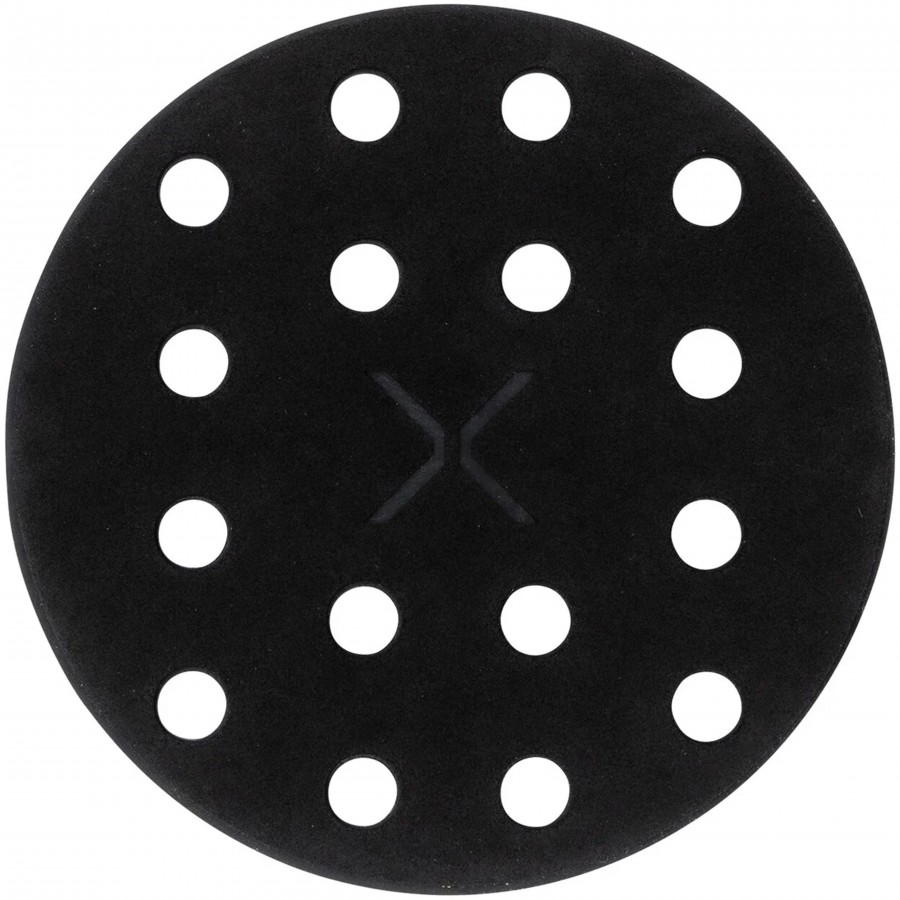

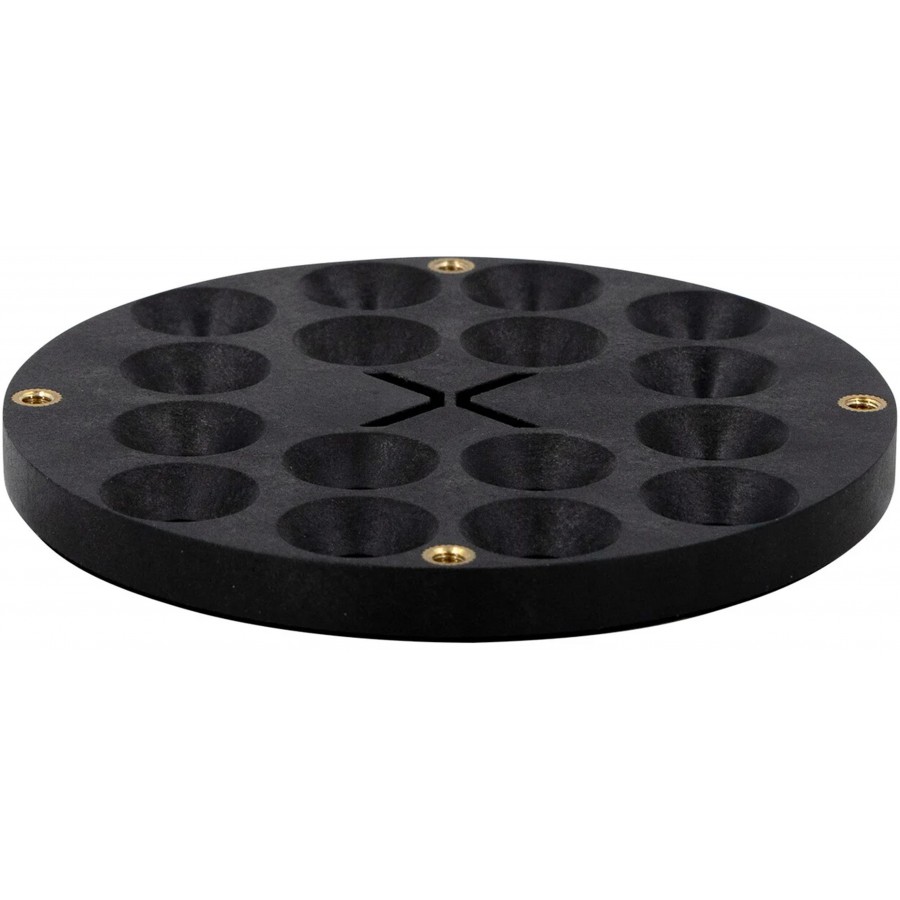

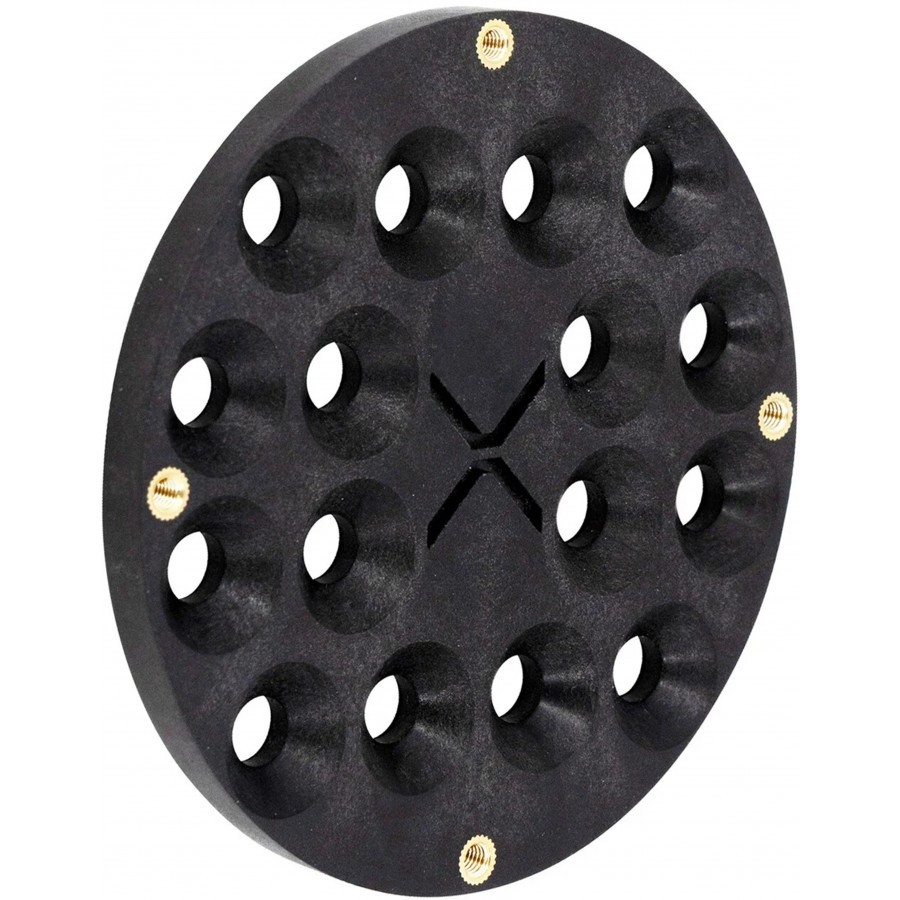

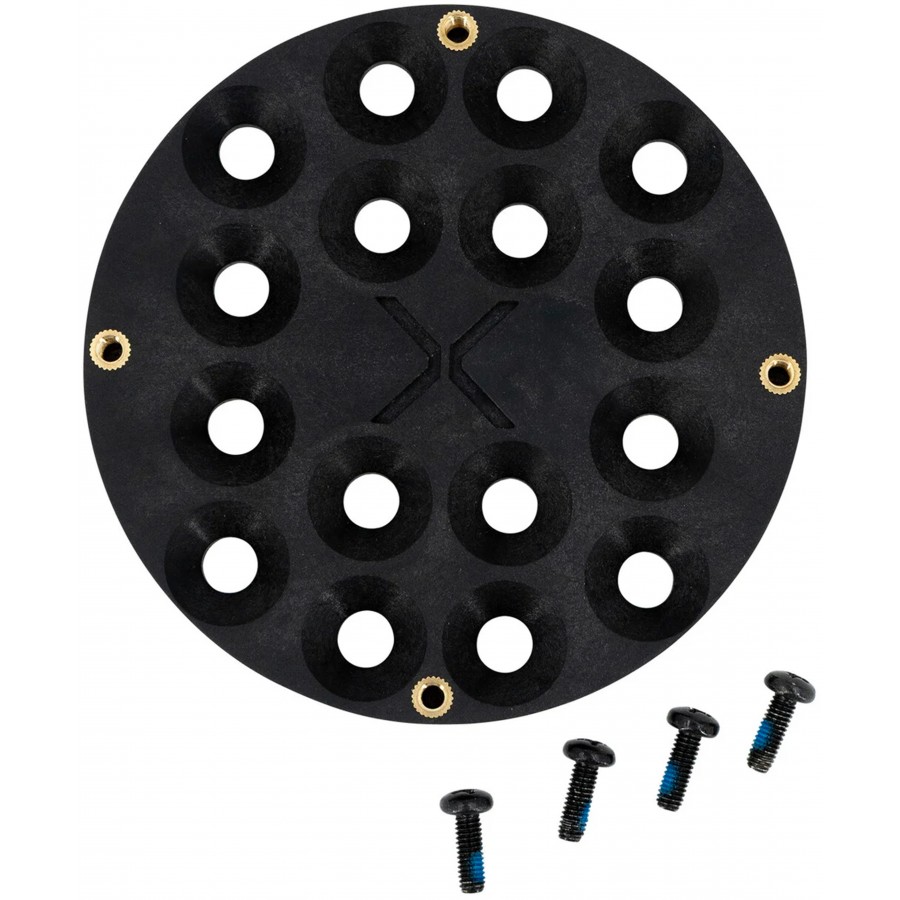

The XCITE XBS50MK is a mounting bracket designed specifically for the brand’s XBS50-4 exciter. It is designed to provide a mechanically stable mounting whilst optimising the transfer of vibrational energy to the host structure. It is built on a glass-fibre-reinforced ABS base incorporating copper inserts, which provide long-lasting protection for the threads, whilst the supplied self-locking screws ensure secure fastening under repeated stress. This structural rigidity is complemented by a uniform contact surface incorporating damping foam that distributes contact stresses whilst limiting the transmission of unwanted vibrations to the mount.

In addition to stability, this approach offers extensive mechanical compatibility thanks to multi-format drilling (40, 60 and 80 mm), allowing for direct integration onto standard profiles, whilst remaining adaptable to wooden or metal surfaces via M6 to M8 fixings. This versatility allows for flexible mounting orientation, facilitating integration into a variety of configurations.
