ATOHM S250-MK2-X ICE POWER Class D Amplifier Module Subwoofer 220W 4Ω

The Atohm S250-MK2-X Ice Power is a Class D amplifier module for subwoofers offering excellent technical performance and great musicality. It is capable of delivering a power of 220W under 4 ohm and offers many essential features.

Average votes for this product
5.0 / 5

By buying this product you get 38 loyalty points


Reference : 17394
New product

380,00 €tax incl.

316,67 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 17-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

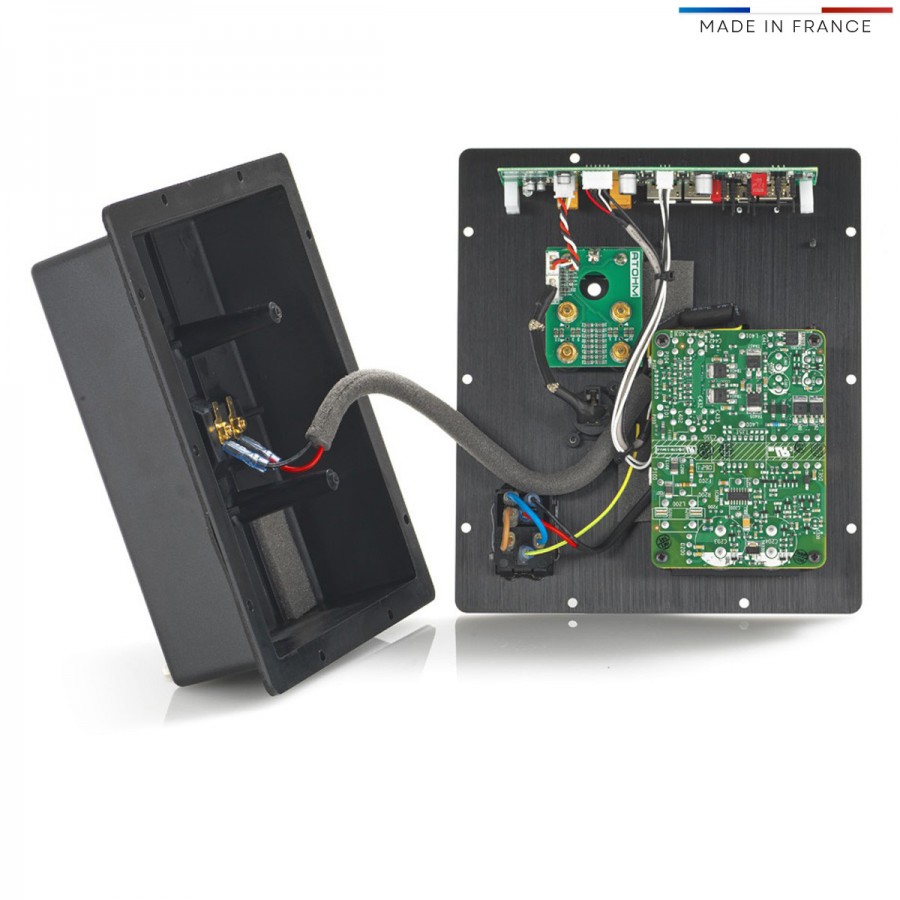

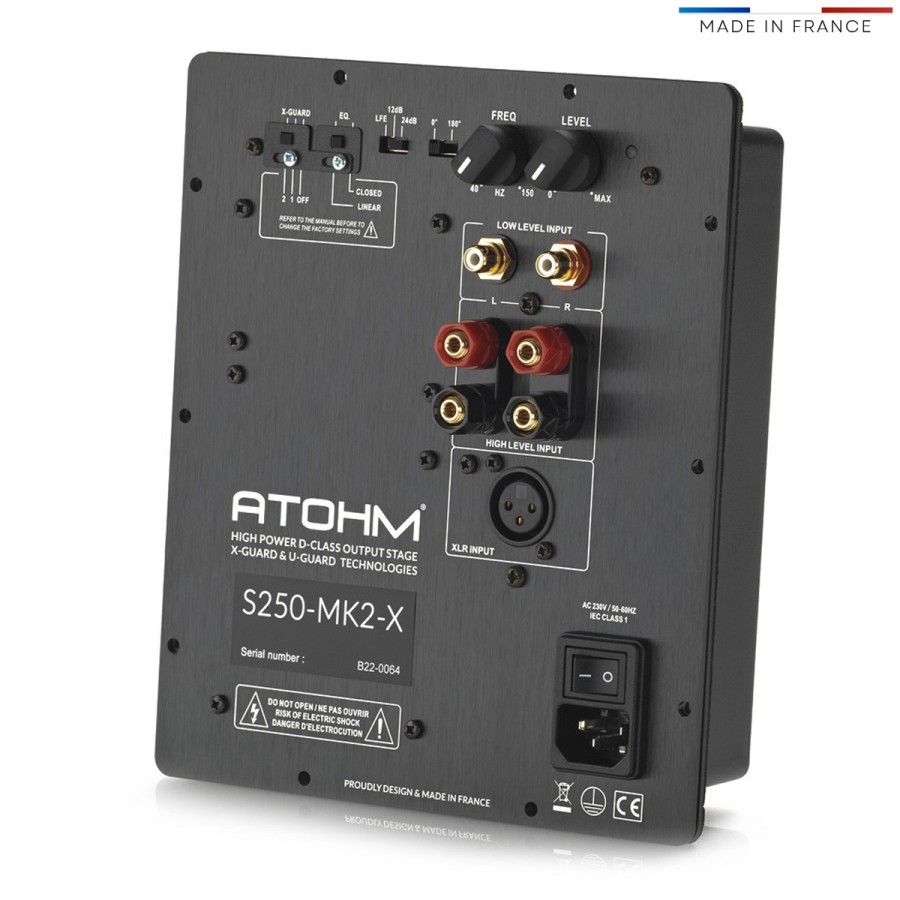

Atohm S250-MK2-X Ice Power

Class D Amplifier Module Subwoofer 220W 4Ω

Atohm S250-MK2-X Ice Power Module Amplificateur Class D Subwoofer 220W 4Ω

Specialized in the design and manufacture of high-end loudspeakers and speakers, Atohm® also designs and offers amplifier modules with a very high level of performance. Thanks to their sophisticated signal processing, Atohm® modules offer a wide range of settings and connections to meet the most demanding applications, such as active subwoofers in closed or bass-reflex loads, active loudspeakers or single-ended power supplies. All this while offering excellent technical performance and great musicality in a very small footprint.

Extensive research has been conducted by the brand on components, schematics, layout topology, power supply and overall construction to develop the best products.

The Atohm® S250-MK2-X amplifier module includes many features and specifications:

  • Ice Power™ output stage rated at 220W RMS into 4Ω. Class D technology, providing excellent 80% efficiency and a high damping factor, making the module compatible with any load impedance greater than or equal to 3Ω. Great musicality and generous power in a very small footprint.

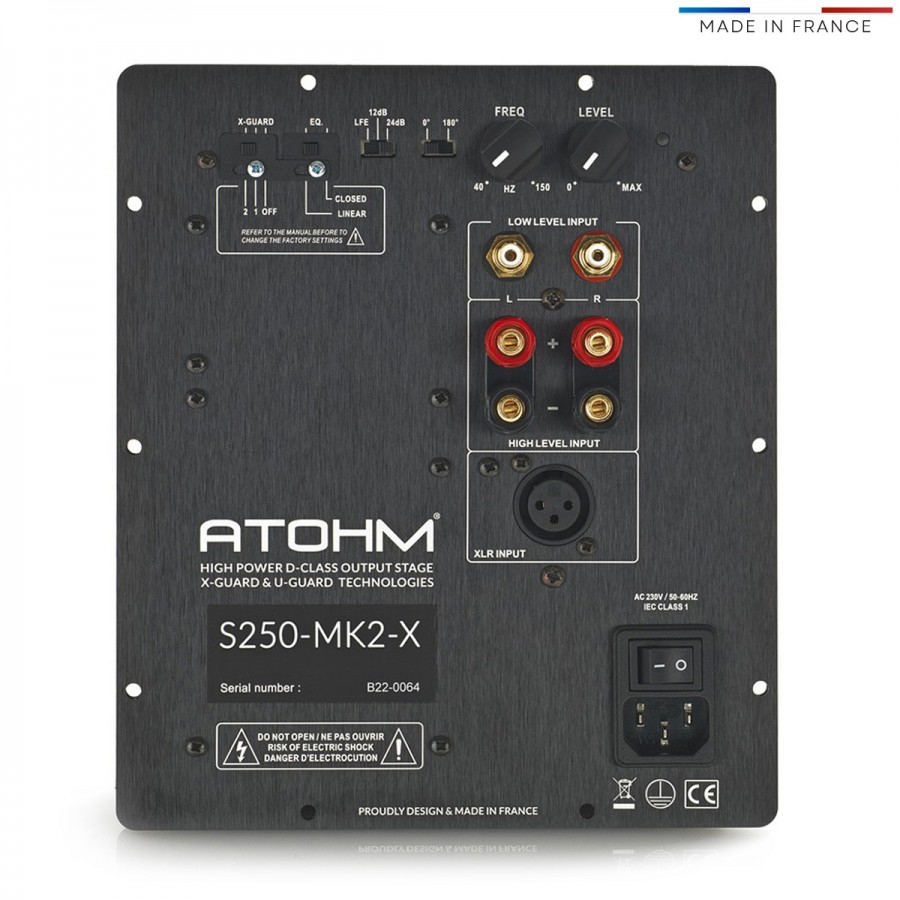

  • The X-GUARD™ technology bypasses the disadvantages of a classic subsonic filter by ensuring that the loudspeaker's excursion never exceeds an absolute limit (risk of breakage, very high distortion) whatever the amplitude of the input signal. This technology preserves the signal and its phase (unlike a subsonic filter). The extreme bass is more faithful, the connection with the main speakers more homogeneous and the loudspeaker protected. The S250-MK2-X offers 6 internal settings (X25, X30 and X35) and (AMPLITUDE1 / AMPLITUDE2) via jumpers. The activation of this function is done via two settings available on the front panel: X-GUARD1™ and X-GUARD2™.
  • In addition to a classic linear mode, the S250 module has two "CLOSED" modes designed to extend the response to very low frequencies of the speaker(s) mounted in a closed load. This is not a simple boost but a transform equalisation. The choice of mode 1 or 2 is made by internal adjustment. The activation of the "CLOSED" mode is done via a setting on the front panel.
  • The U-GUARD™ device reduces the formation of square wave signals at the output of the device and prevents saturation of the power stages. Thus, whenever the signal exceeds the defined threshold, the U-GUARD technology limits the formation of harmonics. This is an essential function, especially when using a subwoofer, as harmonics can make the subwoofer perfectly locatable. It also allows to maintain a signal shape closer to the original one.
  • Module totally assembled in France.

The module can be connected via the pre-out / subwoofer output of a preamplifier / processor or directly to the speaker outputs (in parallel) of a conventional stereo amplifier. The S250-MK2-X module can also be bypassed for high performance HiFi broadband use (mono block) via a simple internal modification. In this case, only the gain control remains active. This can be used for the realisation of monitoring loudspeakers, for example.

Atohm S250-MK2-X Ice Power Module Amplificateur Class D Subwoofer 220W 4Ω


Technical characteristics

Specifications
Product typeAmplifier module
Amplification typeClass D
Output power220W RMS @ 4Ω, 80s, LFE mode
Low level inputRCA
XLR
High level inputSpeaker terminals
OutputOn terminal block with 4.8mm lugs
Rated load impedance4-16Ω (3 min.)
Max peak current20A
Damping factor> 1000
THD< 0.1%
Subsonic filterX-Guard technology
Low pass filterAdjustable from 36Hz (-3dB) to 178Hz (-3dB)
Filter slopeAdjustable : 12dB / 24dB / LFE
Phase control0-180°
ProtectionsShort circuits
Overheating
CC
General
Supply voltage115/230V (internally switchable) 50Hz
Consumption320W Max.
Weight900g
Package1x Module Atohm S250-MK2-X
Speaker cable 80cm with fast-on lugs
Power cable
Screws

Atohm S25-MK20-X Ice Power Module Amplificateur Class D Subwoofer 220W 4Ω Atohm S250-MK2-X Ice Power Module Amplificateur Class D Subwoofer 220W 4Ω Atohm S250-MK2-X Ice Power Module Amplificateur Class D Subwoofer 220W 4Ω

Data sheet
InputXLR
InputRCA
OutputSpeaker terminal
ClassClass D / T
Amplifier chipIce Power
Power (W)220.0

Download

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Très bon produit
Utilisé en remplacement de l'ampli cramé de mon caisson de basse.

Acheté en parallèle avec sa platine d'adaptation disponible ici même sur Audiophonics, il s'avère bien complet avec ses réglages sur la platine arrière et sur le circuit imprimé (pouvant s'adapter à tout caisson de basses). La notice est claire et j'ai même demandé au support Atohm quelques conseils compte tenu des caractéristiques de mon caisson et ils sont réactifs et clairs dans leur réponse.

Au niveau du son, cet ampli Atohm est à l'aise au niveau puissance (si adapté à la taille de la salle bien sûr) et est très nuancé dans les graves, ça ne bave pas, c'est plutôt sec. Pour la musique il s'en sort bien également.

Pas déçu de mon achat ! Le caisson est reparti pour encore une décennie ;)
