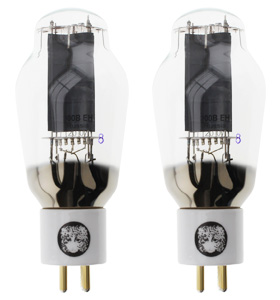

Tubes Triodes Platinum Matched (Matched pair)
The Electro-Harmonix 300B tube offers long life, high quality design and incredible sonic capabilities. Like the original Western Electric 300B, it features a direct heated 8-track filament with 40W plate dissipation and a large glass. The 300B's plate curves and DC static characteristics also match those of the original, ensuring excellent performance.
The Electro-Harmonix 300B tube is sold here as a matched pair, to ensure the best possible performance.
Specifications | |
---|---|
Product type | Tubes |
Tube type | Triode |
Number of pins | 4 |
Dimensions | Ø61.5 x 152mm |
Electrical parameters | |||
---|---|---|---|
Parameter | Condition | Min. | Max. |
Heater current | - | 1.1A | 1.4A |
Grid reverse current | Filament voltage = 5V Plate voltage = 450V Grid voltage minus = 97V Resistance in grid circuit = 0.51MΩ | - | 1µA |
Plate current | Filament voltage = 5V Plate voltage = 303V Grid voltage minus = 58V | 45mA | 90mA |
Amplification factor | Filament voltage = 5V Plate voltage = 303V Grid voltage minus = 58V | 3 | - |
Dissipation factor | Filament voltage = 5V Plate voltage = 303V Grid voltage minus = 58V Plate circuit resistance = 2.4kΩ | - | 10% |
Output power | Filament voltage = 5V Plate voltage = 303V Grid voltage minus = 58V Plate circuit resistance = 2.4kΩ | 5.5W | - |
Limit values | ||
---|---|---|
Parameter | Min. | Max. |
Filament voltage | 4.5V | 5.5V |
Plate voltage | - | 450V |
Cathode current | - | 100V |
Power dissipation at the plate of each triode | - | 40W |
Grid voltage, negative | - | 220V |
Grid circuit resistance | - | Fixed bias : 0.51MΩ Self bias : 1MΩ |
Temperature at the most heated part of the envelope | - | 473K° |
