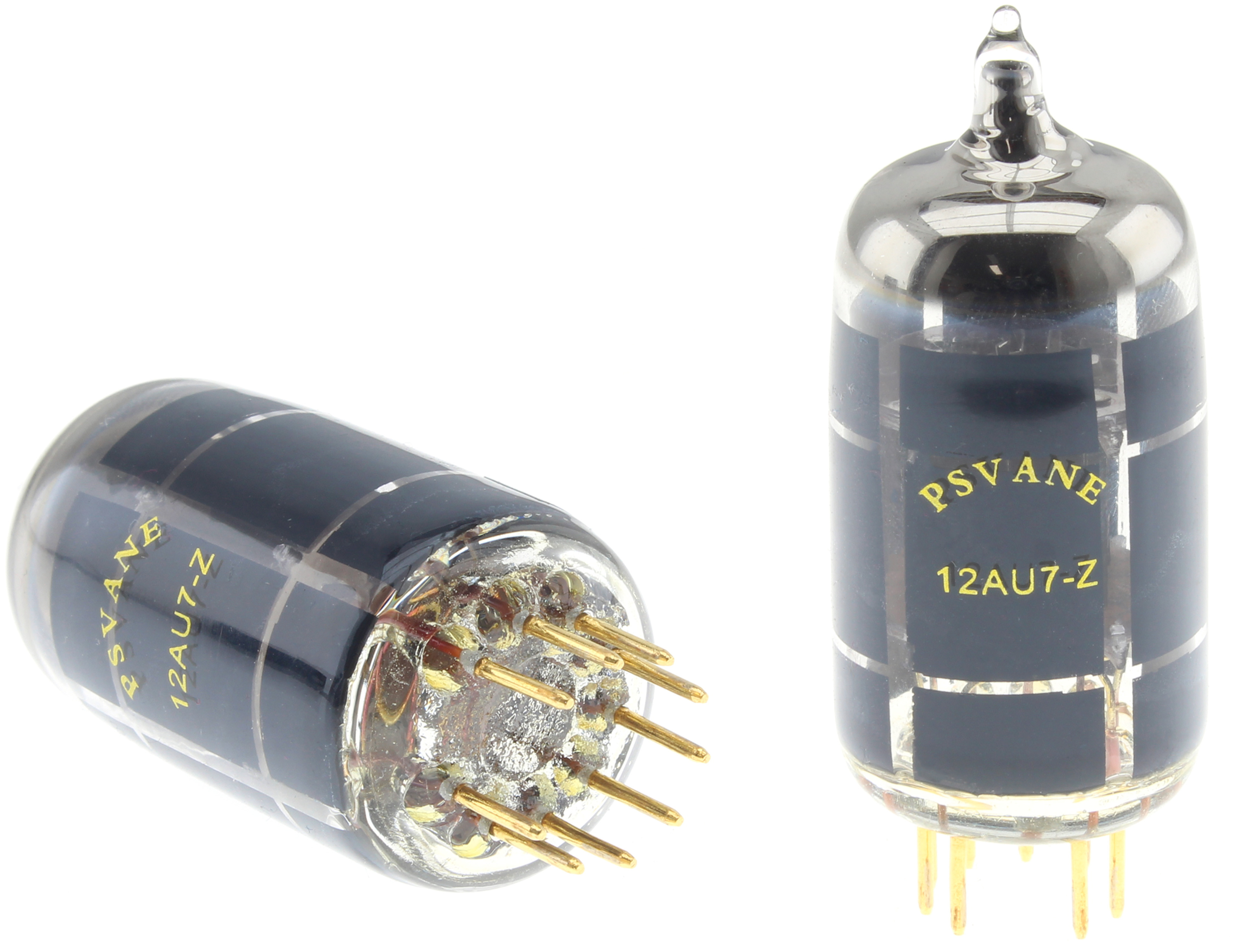

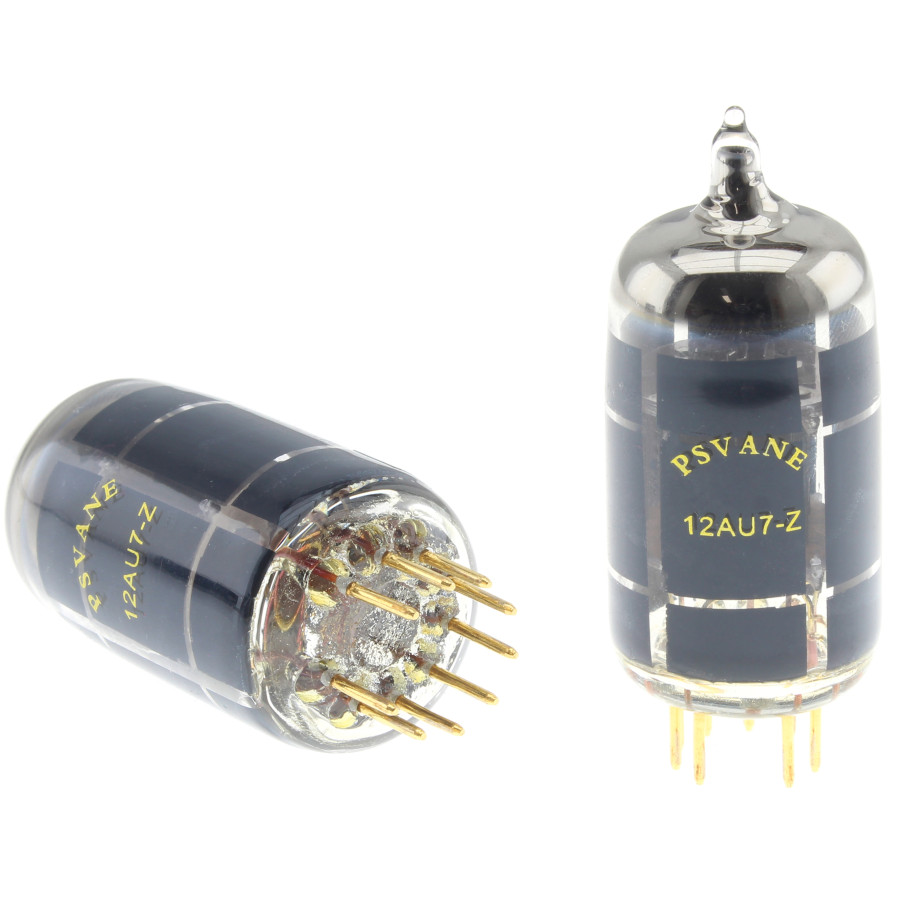

PSVANE 12AU7-Z Double Triode Tube (Pair)
The PSVANE 12AU7-Z power tube offers a warm and smooth sound, ample and natural, with a fine balance and no background noise. PSVANE gives us here a tube with a more pronounced analog texture than classic tubes, with vocals more forward than usual and an overall sound reminiscent of the texture specific to vinyl.
No customer reviews yet, login to write a review.
By buying this product you get 9 loyalty points
Reference : 22332
New product
Viewed products
![[GRADE B] DAYTON AUDIO MKSX4 Low Profil Subwoofer Speaker 160W Ø20cm](https://www.audiophonics.fr/72897-thumb_default/dayton-audio-mksx4-low-profil-subwoofer-speaker-160w-o20cm.jpg)
PSVANE 12AU7-Z Double Triode Tube (Pair)
The PSVANE 12AU7-Z power tube offers a warm and smooth sound, ample and natural, with a fine balance and no background noise. PSVANE gives us here a tube with a more pronounced analog texture than classic tubes, with vocals more forward than usual and an overall sound reminiscent of the texture specific to vinyl.
Technical specifications
| Specifications | |
|---|---|
| Product type | Power tube |
| Tube type | Double Triode |
| Number of pins | 9 |
| Filament heating | |
|---|---|
| Filament heating voltage (Uh) | 6.3 (parallel) / 12.6 (series) V |
| Filament heating current (Ih) | 0.30 / 0.15A |
| Limit values | |
|---|---|
| Anode voltage | 300V |
| Negative anode voltage | -50V |
| Maximum cathode current | 20mA |
| Anode dissipation power | 2.75W |
| Filament-cathode voltage (pk) | ±200V |
| Grid resistance | Automatic bias: 1MΩ Fixed bias: 0.25MΩ |
| Inter-electrode capacitances | |
|---|---|
| Input capacitance | No.1: 1.6PF No.2: 1.6PF |
| Output capacitance | No.1: 0.4 F No.2: 0.32PF |
| Transfer capacitance | No.1: 1.5PF No.2: 1.5PF |
| Static parameters | |
|---|---|
| Anode voltage (Ua) | 100 / 250V |
| Grid voltage (Ug) | 0 / -8.5V |
| Anode current (Ia) | 11.8 / 10.5mA |
| Transconductance (Gm) | 3.1 / 2.2mA/V |
| Amplification factor (μ) | 20 / 17 |
| Internal resistance (Ri) | 80 / 62.5KΩ |
| General | |
|---|---|
| Dimensions | 57 x 23mm |
| Package | Sold as a pair |
