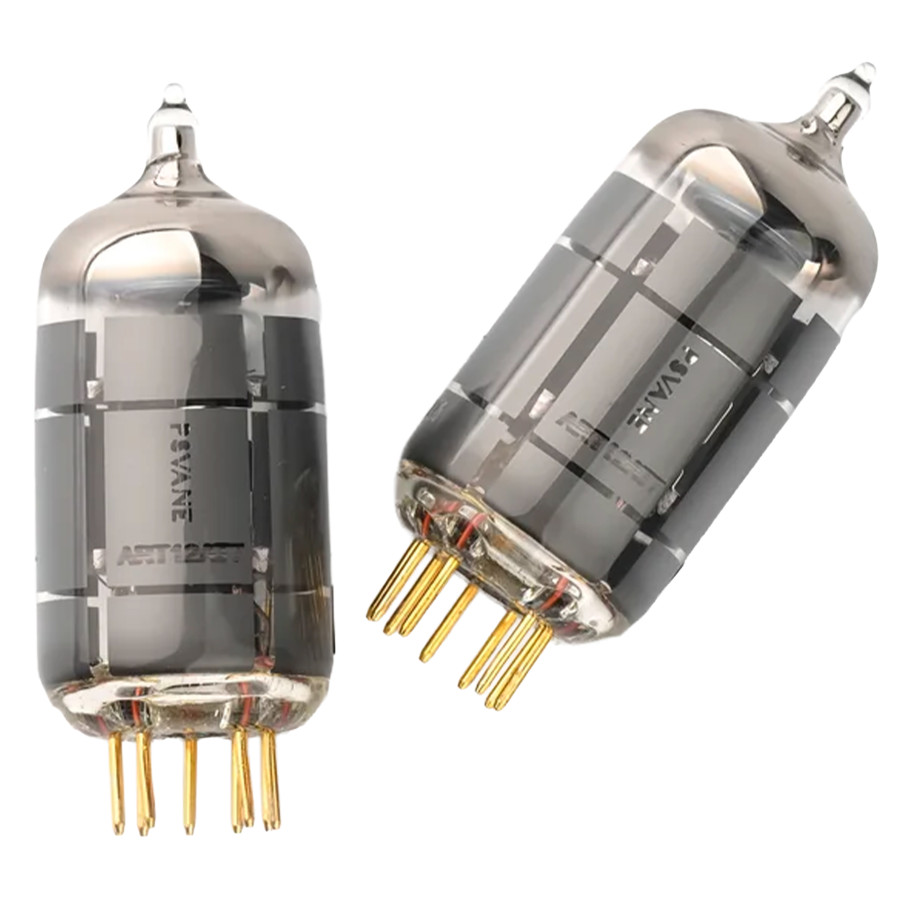

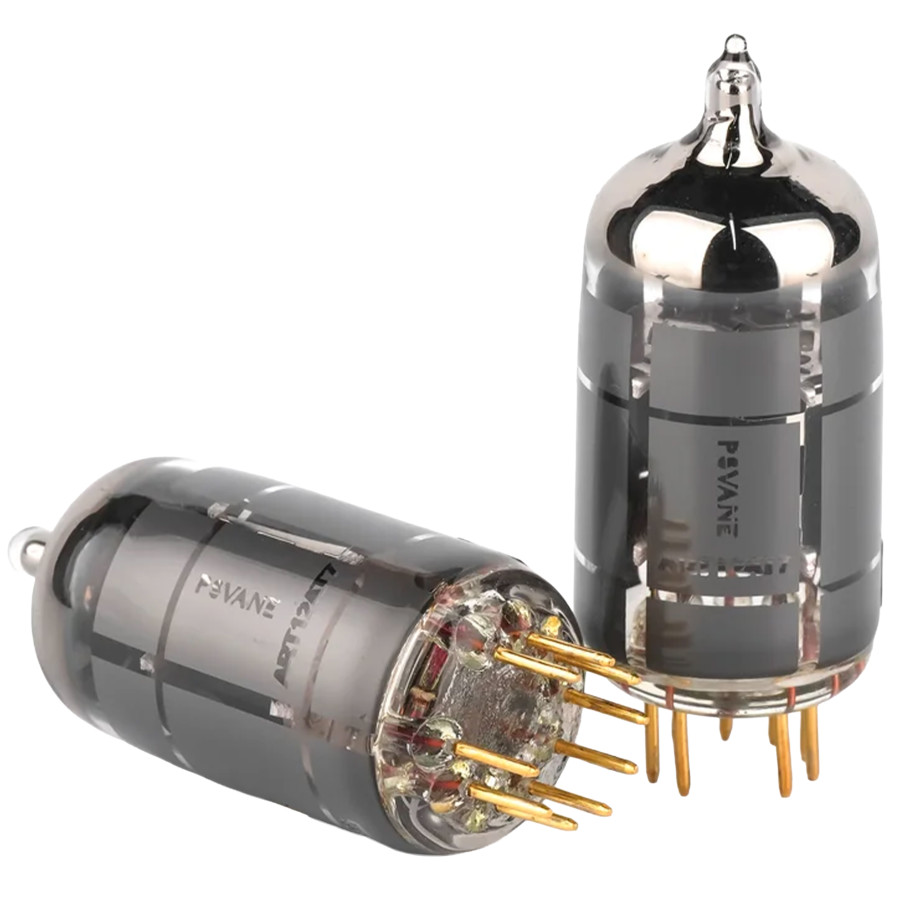

PSVANE ART TIII 12AT7 Double Triode Tube (Matched Pair)

New
The Psvane ART TIII 12AT7 are high-end double triode power tubes offering exceptional audio performance with a typically analog sound. This version of the 12AT7 tubes features a grey composite functional coating on its internal structure for more stable operation. In addition, they undergo careful burn-in by Psvane.

No customer reviews yet, login to write a review.

By buying this product you get 15 loyalty points


Yes, notify me when available !
Reference : 22606
New product

154,90 €tax incl.

129,08 € tax excl.

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

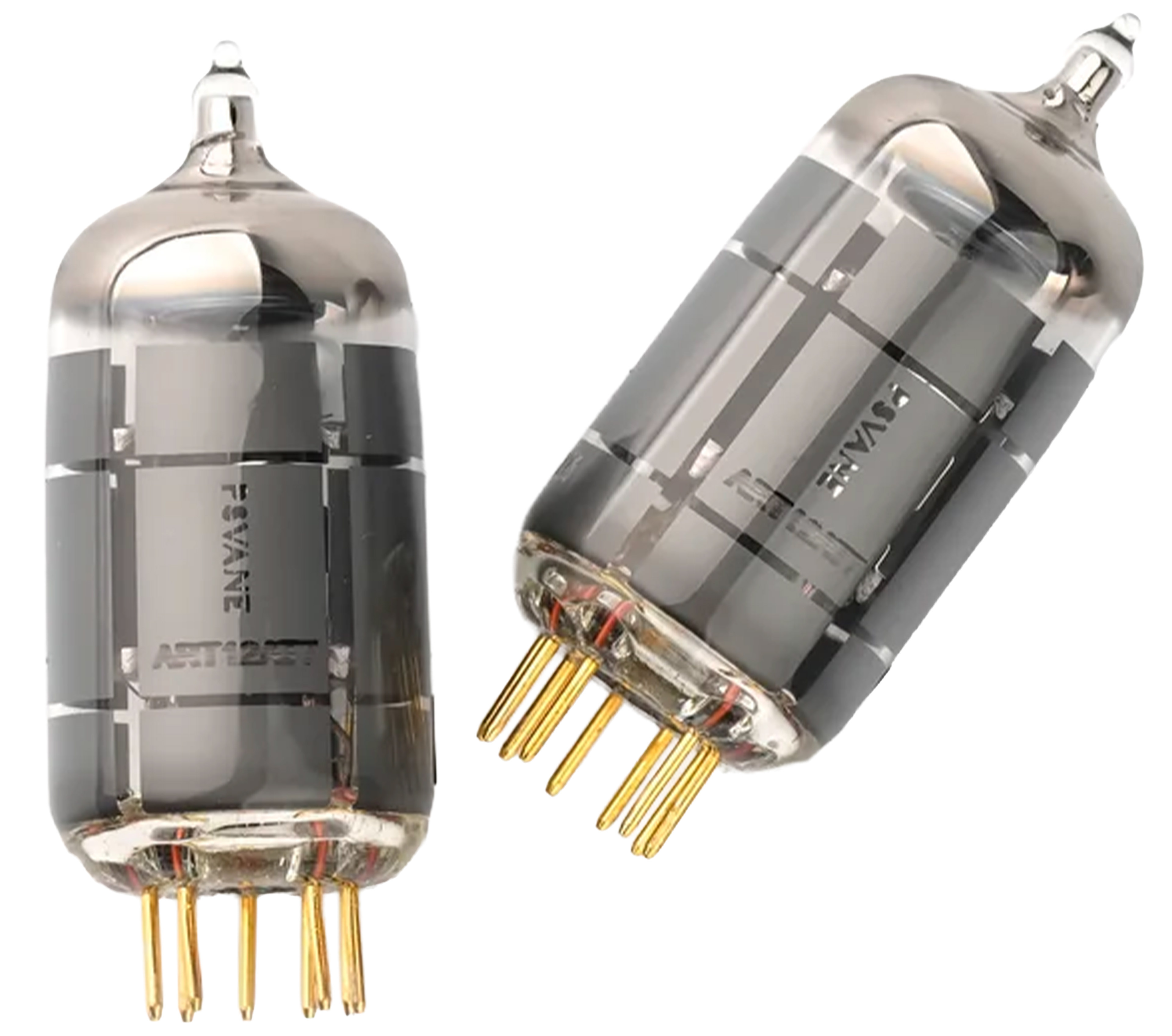

PSVane ART TIII 12AT7 Double Triode Tube (Matched Pair)

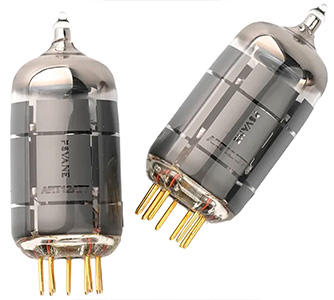

PSVANE ART TIII 12AT7: Front view

The PSVane ART TIII 12AT7 are high-end double triode power tubes offering exceptional audio performance with a typically analog sound. This version of the 12AT7 tubes features a grey composite functional coating on its internal structure for more stable operation. In addition, they undergo careful burn-in by PSVane.

PSVane ART TIII 12AT7: 24h burn-in

To ensure stable voltage and temperature, the PSVane ART TIII 12AT7 undergo rigorous quality control and a burn-in of at least 24 hours before leaving the factory.

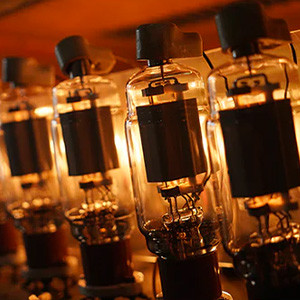

PSVANE ART TIII 12AT7: Burn-in

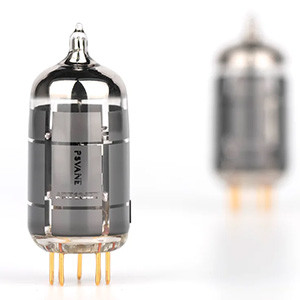

PSVANE ART TIII 12AT7: Front view

PSVane ART TIII 12AT7: Grey composite functional coating

The PSVane ART TIII 12AT7 introduces a grey composite functional coating on the internal structure. Its high thermal emissivity promotes heat transfer from the electrodes to the glass envelope, while its active surface adsorbs residual gases and contaminant molecules released during operation. This dual action limits localized heating and gas ionization, helping to preserve the internal vacuum and stabilize plate current, transconductance and gain. It thus provides a more stable operating basis, with less background noise and drift, without aiming to directly alter the tonal signature of the tube.

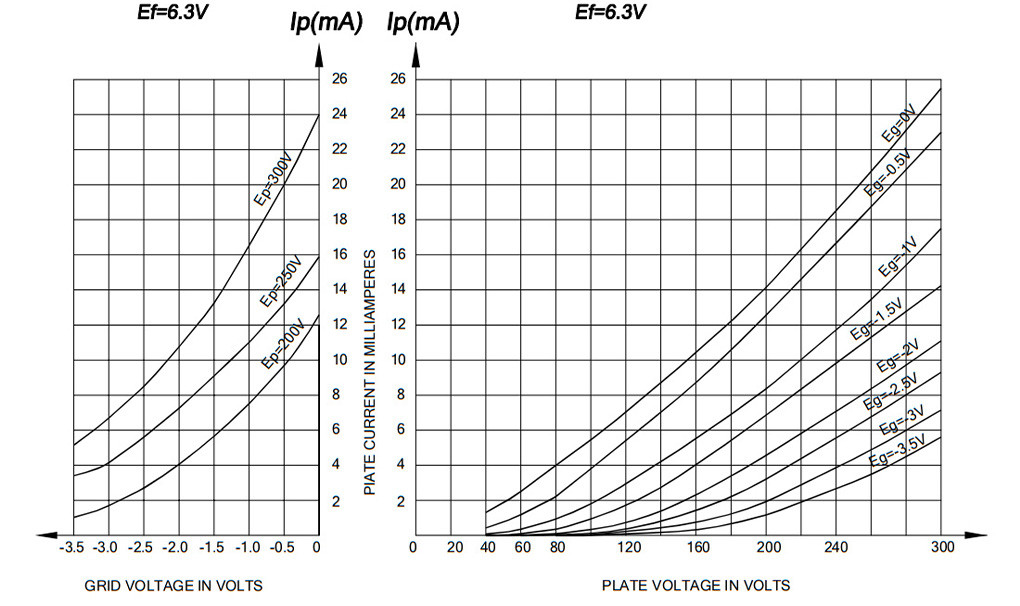

PSVANE ART TIII 12AT7: Measurement

Technical specifications

Specifications
Product typePower tube
Tube typeDouble triode
Number of pins9
Filament heating
Filament heating voltage (Uh)6.3V / 12.6V
Filament heating current (Ih)300mA / 150mA
Limit values
Anode voltage (Ua)300V
Anode dissipation (Wa)1W
Cathode current (Ik)8mA
Grid voltage (Ug)-50V
Control grid external resistance (Rg)2,2MΩ
Cathode voltage (Uk)180V
Cathode resistance (Rk)150KΩ
Capacitances
Grid / cathode capacitance (Cg/k)1.6pF / 1.6pF
Anode capacitance (Ca)0.33pF / 0.33pF
Grid / anode capacitance (Cg/a)1.7pF / 1.7pF
Static parameters
Anode voltage (Ua)250V
Grid voltage (Ug)-2V
Anode current (Ia)1.2mA
Mutual conductance (S)1.6mA/V
Internal resistance (Ri)62.5kΩ
Amplification factor (μ)100
General

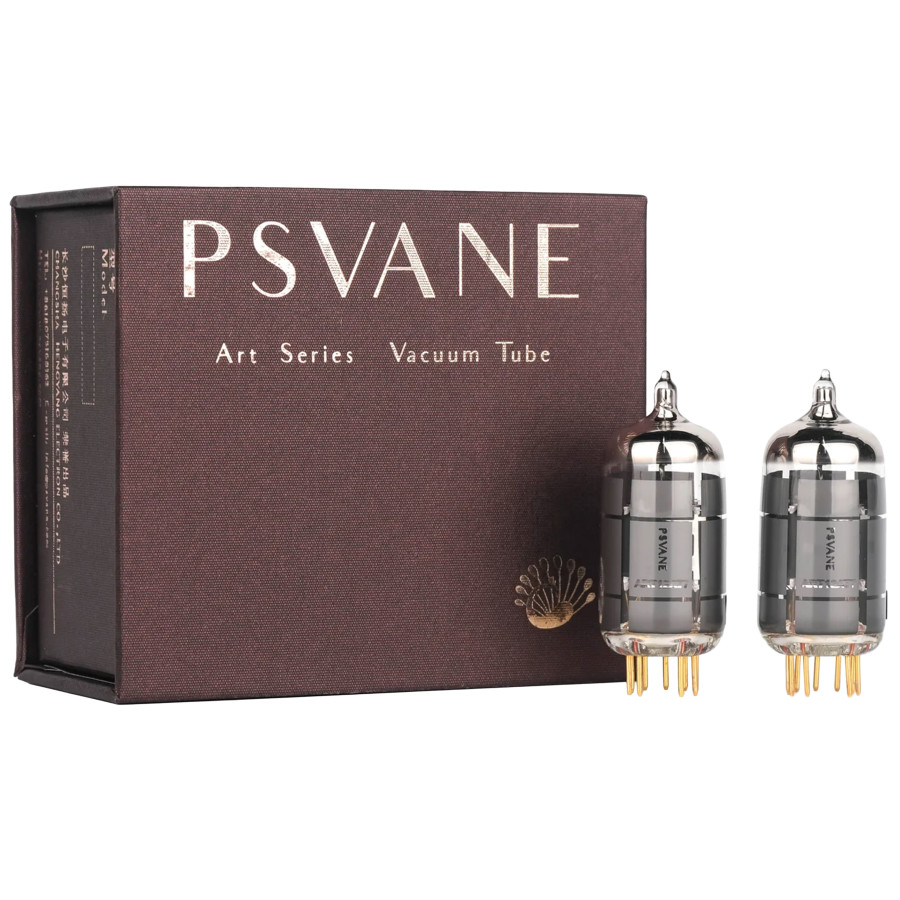

PackageSold by pair

Data sheet
Contacts number9
Tube typeDual Triode
