Speaker Driver Tweeter AMT 40W 4 Ohm 90dB 2500Hz - 30kHz

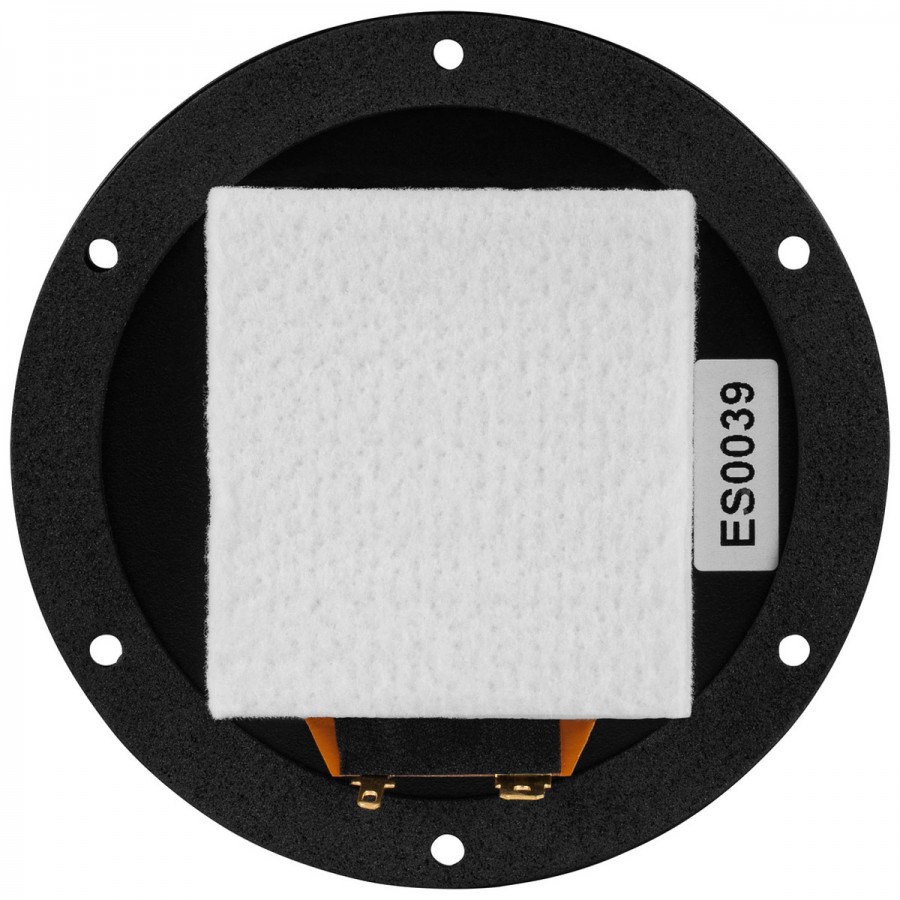

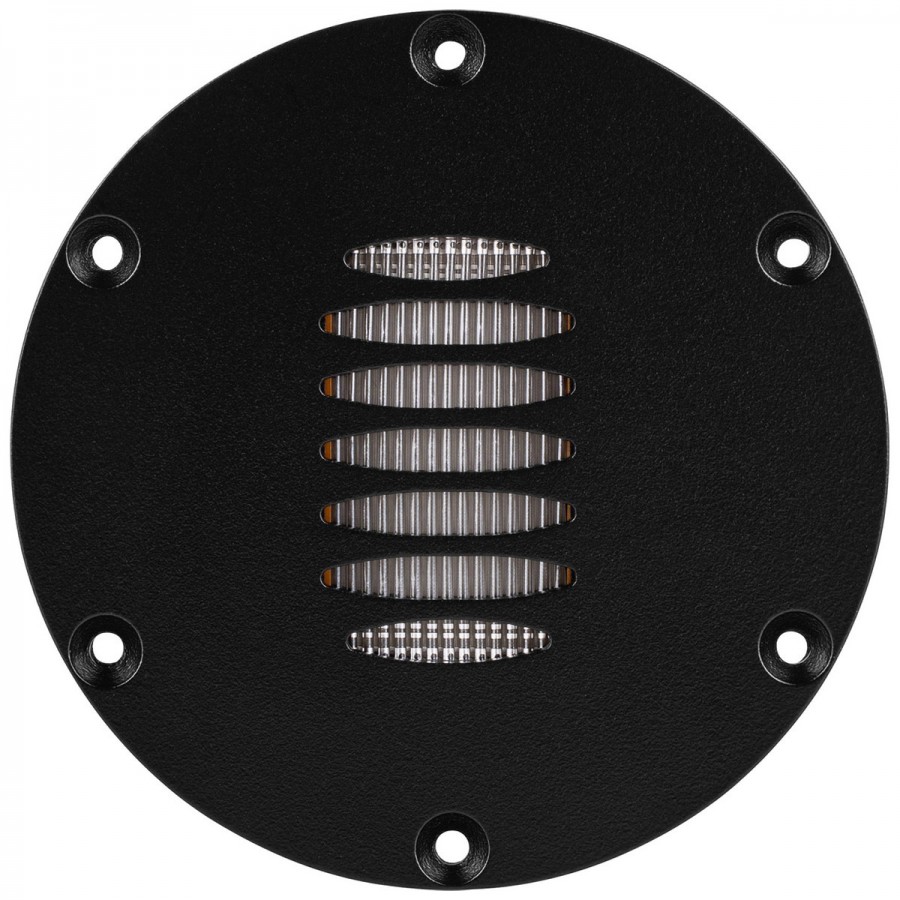

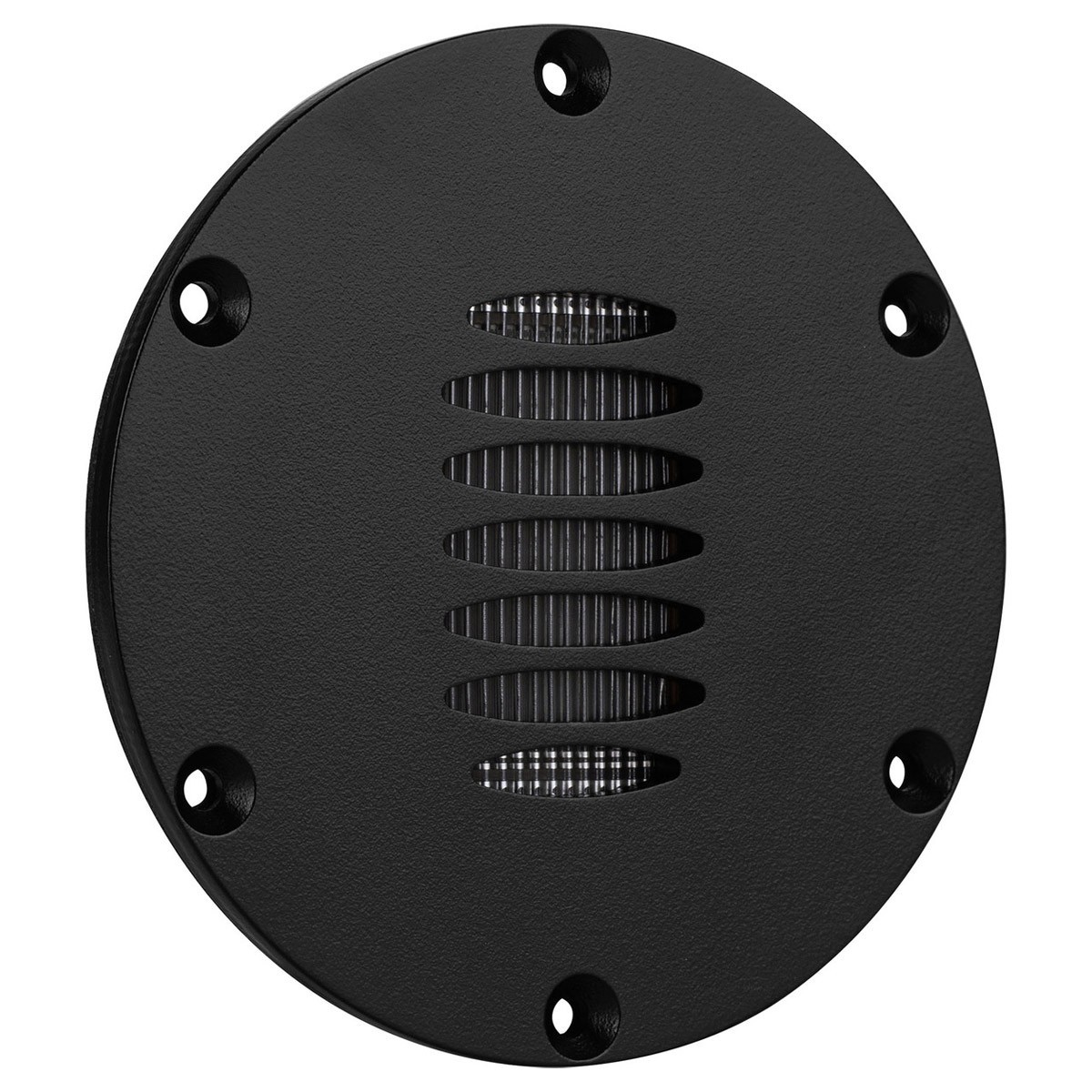

Thanks to a cancelled project, the new ES104AMT-4 Dayton Audio tweeter from the Esoteric Series is available at an incredibly low price. This tweeter uses a large pleated polymer diaphragm driven by a powerful neodymium motor to deliver high output, low distortion and excellent transient response. With its open, damped design, the ES104AMT-4 is an ideal choice for open and dipole speaker systems.
Dayton Audio's AMT (Air Motion Transformer) tweeters use the revolutionary transducer technology of the original Heil Air Motion Transformer to deliver ultra crisp, detailed and dynamic highs. The pleated ribbon diaphragm of an AMT provides a large dispersion area in a compact chassis for extremely high efficiency and better power handling.
Specifications | |
---|---|
Speaker driver type | Tweeter AMT |
Power handling | RMS : 40W |
Impedance | 4 Ohm |
Frequency response | 2500Hz - 30kHz |
Sensitivity | 90dB 2.83V/1m |
Thiele-Small Parameters | |
---|---|
DC Resistance (Re) | 4.1 Ohm |
Mechanical quality coefficient (Qms) | 29.1 |
Surface area of cone (Sd) | 12.6cm² |
Mounting informations | |
---|---|
Overall external diameter | 104.9mm |
Depth | 20mm |
Number of mounting holes | 6 |
Speaker Power (W RMS) | 40.0 |
Speaker Type | AMT Tweeter |
Impedance (Ω) | 4 |
Loudspeaker diameter (mm) | N/A |
Diaphragm type | N/A |
Efficiency / Sensitivity (dB) | 90.0 |
Max Linear Excursion (Xmax) (mm) | N/A |
Lowest frequency (Hz) | 2500 |
Highest frequency (Hz) | 30000 |
