HiVi SD1.1-A Speaker Driver Dome Tweeter Shielded 15W 5 Ohm 91dB Ø2.5cm

HiVi SD1.1-A Tweeter à Dôme Blindé 25mm
Average votes for this product
4.0 / 5

By buying this product you get 2 loyalty points

Yes, notify me when available !
Reference : 3795
New product

24,17 €tax excl.

Including 0,25 € for green tax
Available on order

- +

Produit garantie 2 ans
More info

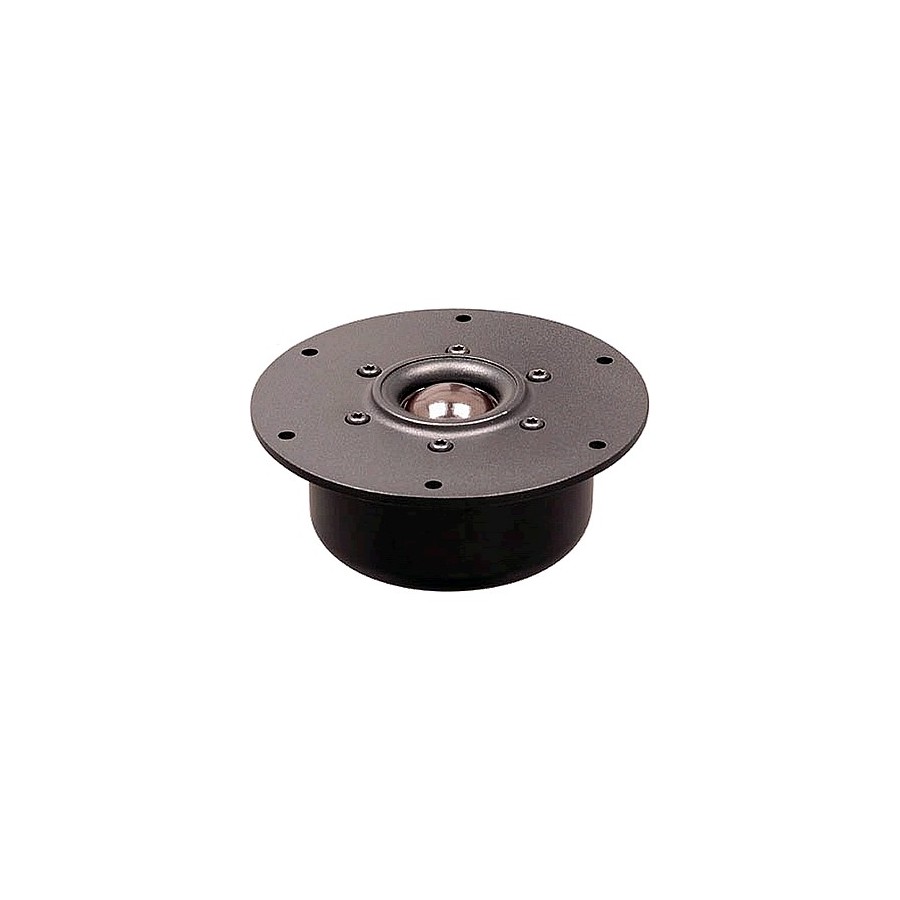

Integrated with HiVi's home theater range, the SD1.1-A tweeter is distinguished mainly by its semi transparent transparent dome surrounded by a ring of shock absorbing material.

It is capable of a linear frequency response up to 20Khz and demonstrates a level of realism and appreciable clarity.

Moving coil of25mm diameter cooled with ferrofluid

Double magnetic circuit fully armored allowing the unit to be used in a Multimedia or Home Theater configuration

Chassis in aluminum alloymachined to perfection


  • Nominal Impedance:5Ω
  • Resonant Frequency: 1200Hz
  • Rated Power:15W
  • Sensitivity (2.83v / 1m): 91dB
  • Resistance DC:/ Strong>4.6Ω
  • Diameter Coil: 25mm
  • Mounting Type:Aluminum
  • Number of Layers:2
  • Composition Magnetic Circuit:Double Ferrites Armored
  • Magnetic Shielding:/ Strong>Yes
  • Recommended Cut-Off Frequency -3dB: 2000Hz
  • Weight:1.0Kg

HiVi SD1.1-A:Dimensions

HiVi SD1.1-A:Frequency Response

HiVi SD1.1-A:Impedance Curve

Data sheet
Speaker Power (W RMS)15
Speaker TypeRibbon tweeter
Impedance (Ω)5
Loudspeaker diameter (cm)25
Efficiency / Sensitivity (dB)91
