IFI AUDIO GEMINI3.0 USB 3.0 Cable Isolated Power/Audio Quad Shields RFI Filter 0.7m

Transformateur torique 650VA
This high-end USB Audio cable features a separate data section and power section as well as high-quality shielding and solid interference mitigation for outstanding audio performance.

No customer reviews yet, login to write a review.

By buying this product you get 45 loyalty points


Yes, notify me when available !
Reference : 12366
New product

455,00 €tax incl.

379,17 € tax excl.
Including 0,01 € for green tax
Available on order

- +

Produit garantie 2 ans

Accessories


More info

IFI Audio Gemini3.0

2x USB-A (Audio + Power) to 1x USB-B 3.0 Cable 0.7m

Ifi Audio Gemini3.0 Câble USB

The new Gemini3.0, an updta of the excellent Gemini

Standard USB cables include both the power cable and the section carrying the data. A method absolutely avoid HiFi, it obviously affecting the quality of the restored signal, especially if each part is insufficiently isolated from others.

The Gemini3.0 completely corrects this problem.

Like its predecessor, the Gemini3.0 transports audio and power via two separate cables to isolate the different signals and not degrade them.

The cable incorporates OFHC copper conductors to maximize transfer quality. In addition, it benefits from high quality manufacturing with parallel low inductance mounting and quadruple shielding to protect the signal from RFI and EMI noise and thus ensure the highest quality transmission.

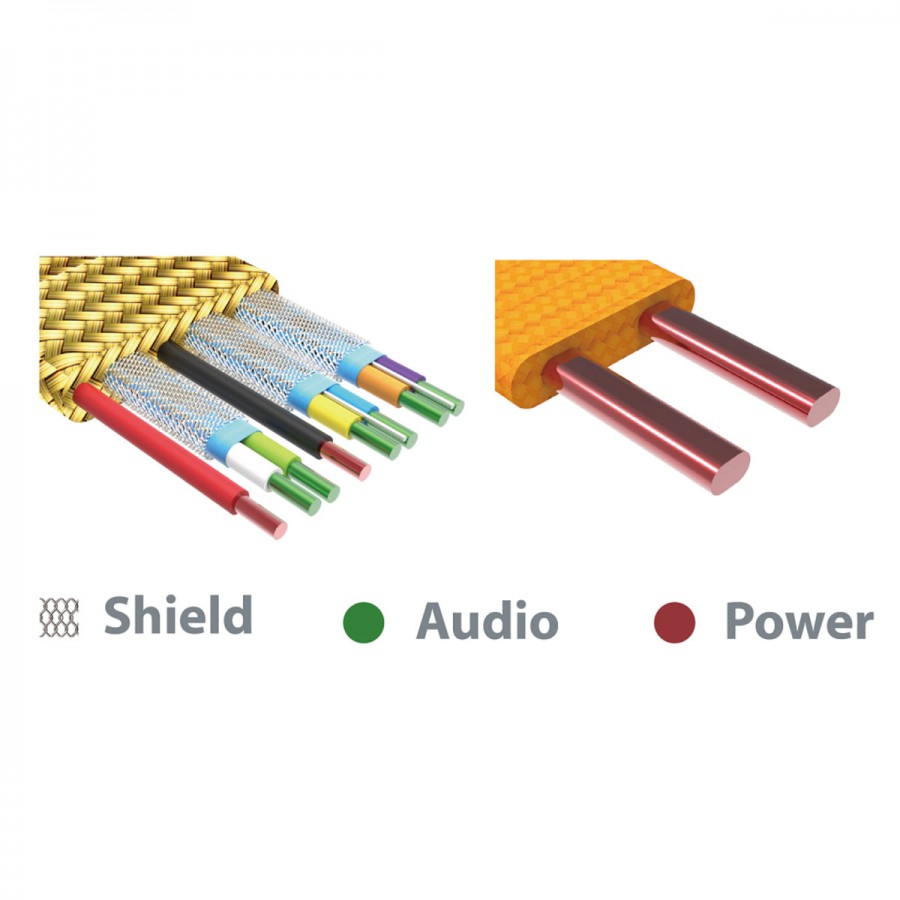

construction câble USB classique

In a classic cable, the power and audio signals are confined in a single shield, insufficient to protect each signal from interference.

construction câble USB Ifi Audio Gemini 3.0

In the Gemini 3.0 USB cable, the audio and power signals are individually transferred thanks to a suitable shielding that minimizes interference.

With its machined connectors and RF3 filter design, Ifi Audio announces a new reference for the USB Audio cable.

Ifi Audio Gemini3.0 USB3.0

USB 3.0 Standard

Unlike its predecessor, the Gemini3.0 incorporates USB 3.0 connectors to ensure a much higher transfer speed. This new standard allows the audio signal to pass without disruption and gain quality.

Ifi Audio Gemini3.0

Gemini difference

Like the original Gemini, the Gemini3.0 power cable incorporates a larger cable section. In addition, its separate double-connector design ensures maximum conductivity and maximum signal quality.

Ifi Audio Gemini3.0

Thought from end to end

The cable is not the only point of passage of the signal, Ifi Audio integrates to its product connectors of high quality. Thus, they also have an RF shield, machined in aeronautical grade aluminum. In addition, the contact is Gold plated, ensuring both excellent conductivity and durability.

Insérer texte alternatif ici

RF³ strenght

The Gemini3.0 incorporates a custom-made three-way RF metal-based RF noise attenuation system. Each has a different effect range to expand attenuated RF noise. More than that, the central system is adjustable and can be moved along the entire length of the cable to cancel the antenna effect of the cable, according to its integration. The other two noise attenuation systems shall be kept as close as possible to the ends of the cable.

Ifi Audio Gemini3.0
Ifi Audio Gemini3.0

A perfect USB combination

The Gemini3.0 combines perfectly with the iGalvanic3.0 and Micro and Nano USB 3.0 series products from Ifi Audio.

Thus, Galvanic 3.0 provides total galvanic isolation of USB3.0 / 2.0 signal and power supply.

The Micro / Nano USB3.0 ships a super regulator, ensuring very low noise (0.1uV / 0.5uV) and very low output impedance (around 0.00015 Ohm @ 1kHz and 0.00003 Ohm @ 100Hz DC) to maximize an impeccable USB connection.

Technical characteristics

USB Data
ConstructionMinimum inductance parallel construction
Conductors24 and 28AWG
Conductor materielHeavy OFHC continuous cast copper silver matrix
InsulationHD Polyethylene
ShieldingQuadruple-Shields
Impedance90 Ohms
ConnectorsIfi 'FINAL' USB
Insulation resistance100 MOhm
Tensile strength1500PSI
USB power
ConstructionMinimum inductance parallel construction
Conductors12 AWG
Conductor materialHeavy OFHC continuous cast copper
InsulationLinear Polyethylene (LPE)
Current rating30A
Length0.7m
Weigth150g

Data sheet
Length max.- of 1m
PlatingGold-plated
Conducteurs SéparésOui
BlindageOui
ConnecticMale
