IFI AUDIO MERCURY 3.0 USB 3.0 Cable Isolated Power/Audio Quad Shields RFI Filter 1m

IFI AUDIO MERCURY3.0 USB 3.0 Cable Isolated Power/Audio Quad Shields RFI Filter 1m
Unlike standard USB cables, the Mercury3.0 has the feature of a quad shield, allowing it both to enjoy protection against EMI / RFI interference but above all to completely separate audio and power signals.

No customer reviews yet, login to write a review.

By buying this product you get 26 loyalty points


Reference : 12718
New product

269,00 €tax incl.

224,17 € tax excl.
Including 0,01 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Ifi Audio Mercury3.0

USB-A / USB-B 3.0 Cable Quad Shielding Power / Audio Isolated

Ifi Audio Mercury3.0 Câble USB 3.0
shield et usb 3.0

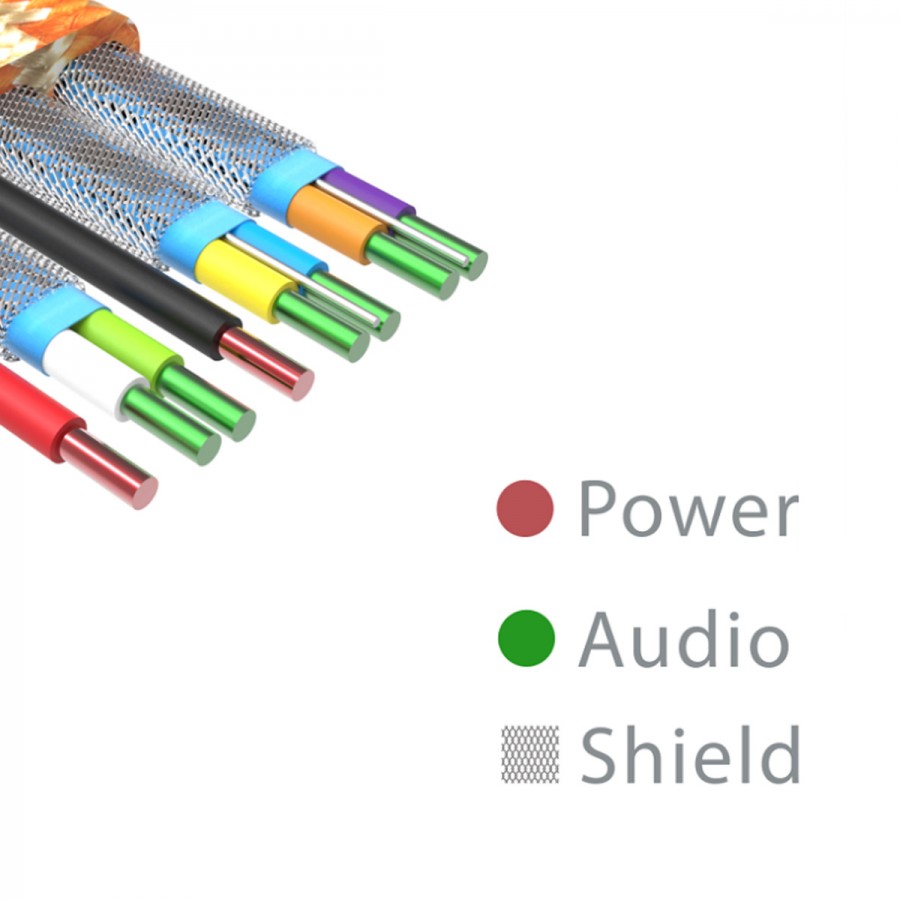

Quadruple shields and USB 3.0

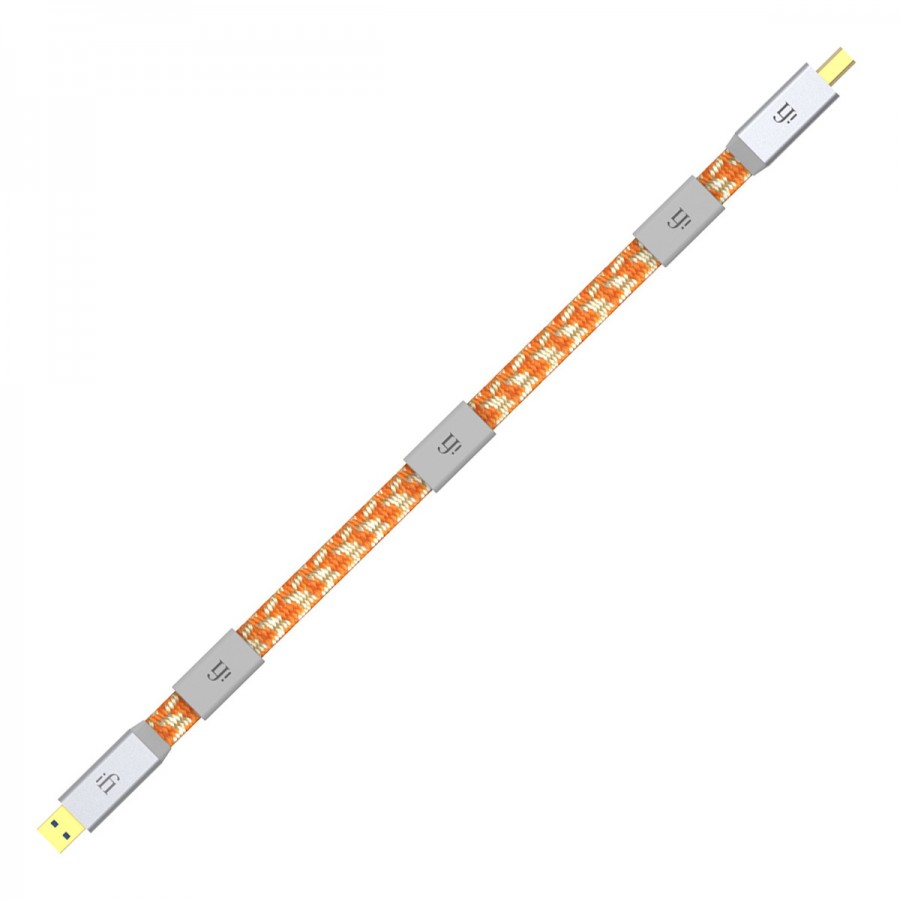

Mercury3.0 also incorporates a triple RF noise attenuation system based on custom metal oxide ceramic. Each has a different effect range to widen attenuated RF noise. More than that, the central system is adjustable and can be moved over the entire length of the cable to cancel the antenna effect of the cable, depending on its integration. The other two noise attenuation systems must be kept as close as possible to the ends of the cable.

RF3

RF3 Strength

Mercury3.0 also incorporates a triple RF noise attenuation system based on custom metal oxide ceramic. Each has a different effect range to widen attenuated RF noise. More than that, the central system is adjustable and can be moved over the entire length of the cable to cancel the antenna effect of the cable, depending on its integration. The other two noise attenuation systems must be kept as close as possible to the ends of the cable.

Connecteurs haute qualité ifi audio mercury3.0

High quality throughout the linee

EFinally, the cable connectors have been specially designed to provide the cable with end-to-end RF shielding. With an aluminum body and gold plated contacts, this cable offers great durability.

Technical characteristics

Specifications
Length1m
Connectors typeMale USB-A 3.0 to Male USB-B 3.0
ConstructionMinimal inductance parallel construction
Conductors section24 AWG (0.205mm²) / 28 AWG (0.0810mm²)
Conductors materialHeavy OFHC continuous cast copper silver matrix
InsulationHD Polyethylene
ShieldingQuadruple shields
Impedance90Ω
Insulation resistance100 MΩ
Tensile strength1500PSI
Weight115g

Data sheet
Length (m)1.0
ShieldingYes
Section (mm²)0.0810
Section (mm²)0.205
ConnectorUSB-A
ConnectorUSB-B
Conductors material (Cable)Copper
