DAYTON AUDIO DC200-8 Classic Speaker Driver Woofer 60W 8 Ohm 87dB 29Hz - 3000Hz Ø20.5cm

DAYTON AUDIO DC200-8 Haut-Parleur Woofer 8 Ohm Ø20.3 cm (unité)
The DC200-8 8 Inch Speaker from Dayton Audio offers a great value for money in its range. It is designed to offer high performance while remaining very accessible.

Average votes for this product
5.0 / 5

By buying this product you get 3 loyalty points


Reference : 12627
New product

33,25 €tax excl.

Including 0,01 € for green tax
Available

- +

Shipping date: 23-09-2019.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

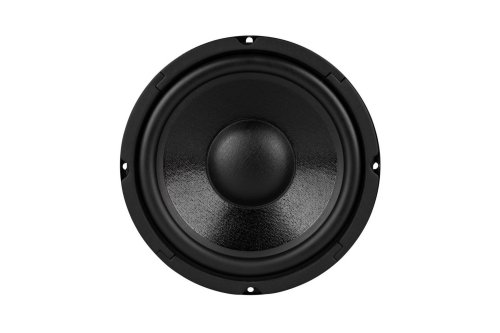

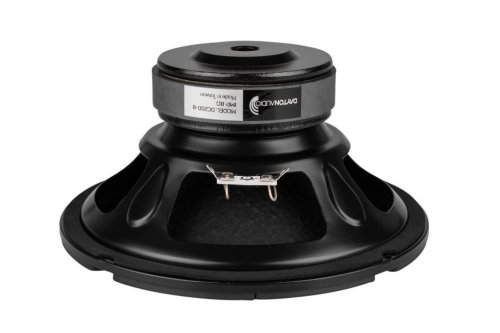

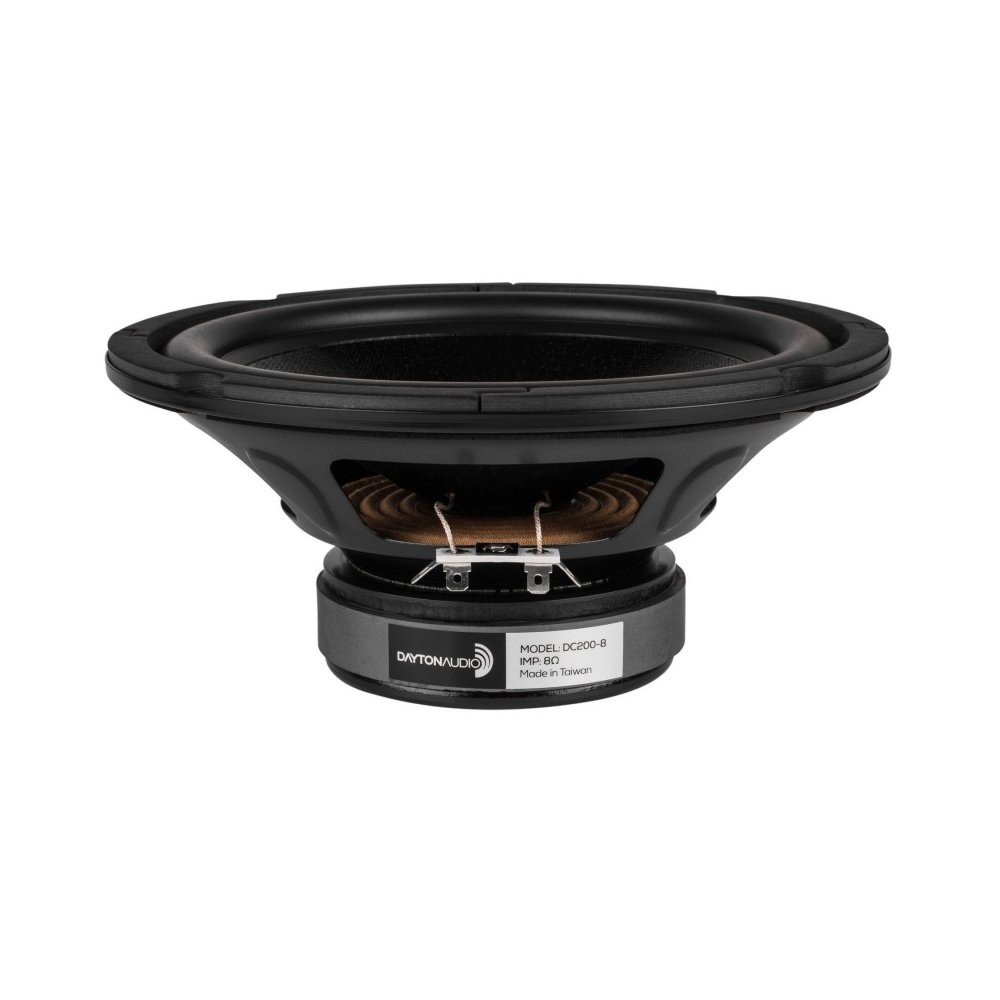

DC200-8 Classic 8-inch woofer - low frequencies with well-defined contours



The DC200-8 8 Inch Speaker from Dayton Audio offers a great value for money in its range. It is designed to offer high performance while remaining very affordable. Its classic and efficient construction incorporates a non-pressed treated paper cone, a voice coil ASV, a ventilated motor structure (vented woofer) and a rubber surround for a good rendering of low frequencies.



Ideal for building a speaker or improving an existing device



The DC200-8 Speaker will fit a variety of uses. It is especially effective for repairing or upgrading an existing device. Its dimensions make it an ideal candidate to upgrade or replace the speaker of some popular models, such as Bose 301, Pionner CS-33a or even Advent Heritage.

Those who are most interested in the speaker construction part will be pleasantly surprised by the responsive response of low frequencies. A round sound with a beautiful presence that will ideally complement a medium-sized installation (living room / bedroom). Above average performance at the right price makes Dayton Audio's DC200-8 loudspeaker an obvious choice for fast and efficient construction.



Specifications
Speaker TypeWoofer
PowerRMS : 60 Watts
Max : 120 Watts
Impedance8 Ohm
DimensionsØ205 mm  x 93.5 mm
Weight3.5 lbs
Frequency response29 - 3000 Hz
Sensibility87 dB 2.83V/1m
Coil Diameter3.5 cm
Resonance Frequency30.3 Hz
Nominal Diameter8 Pouces / 20.3 cm
Resistance DC (Re)6.41 Ohm
Coil Inductance (Le)2.32 mH
Electromagnetic Q (Qes)0.49
Mecanical Q (Qms)3.06
Total Q (Qts)0.42
Diaphragm Mass Inc. Airload (Mms)36.1g
Mechanical Compliance of Suspension (Cms)0.77 mm/N
Surface Area Of Cone (Sd) 211.2 cm²
Maximum Linear Excursion (Xmax)4.5 mm

Data sheet
Speaker Power (W RMS)60
ShieldingYes
ShieldingNo
Speaker TypeWoofer
Impedance (Ω)8
Loudspeaker diameter (cm)205
Diaphragm typePaper
Efficiency (dB)87
Xmax (mm)4.5
StructureMetal
Lowest frequency29
Highest frequency3000
