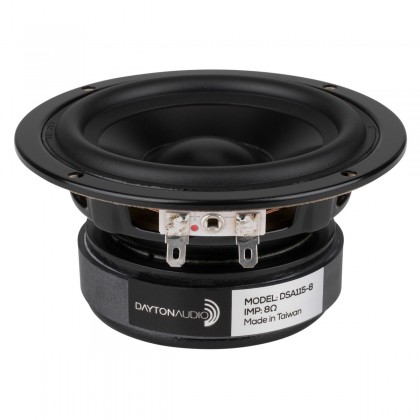

DAYTON AUDIO DSA115-8 Speaker Driver Woofer / Midbass Aluminium 35W 8 Ohm 86dB 63Hz - 11kHz Ø10.2cm

DAYTON AUDIO DSA115-8 Speaker Driver Woofer / Midbass Aluminium 35W 8 Ohm 86dB 63Hz - 11kHz Ø10.2cm
This DSA115-8 bass/low-midrange driver supports a power of 35W RMS (70W max) for an impedance of 8 Ohm. It is capable of reproducing a frequency range from 63Hz to 11kHz. Its motor ensures low distortion and its aluminium diaphragm and rubber suspension provide precise sound reproduction and high durability.

Average votes for this product
5.0 / 5

By buying this product you get 3 loyalty points


Reference : 13685
New product

35,90 €tax incl.

29,92 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 26-04-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Dayton Audio DSA115-8

Speaker Driver Woofer / Midbass Aluminium 35W 8 Ohm 86dB 63Hz - 11kHz Ø10.2cm

Haut-Parleur de Grave / Bas Médium Aluminium 35W 8 Ohm 86dB 63Hz - 11kHz Ø10.2cm

Dayton Audio's Designer Series has been developed to provide affordable and high-performance speakers. Their careful design ensures that each loudspeaker manages its full rated power by reaching low frequencies without exceeding its linear excursion capacity. They are carefully optimized to provide a very good sound reproduction and can be integrated in many types of boxes and with a wide variety of loudspeaker combinations.

This DSA115-8 bass/low-midrange driver supports a power of 35W RMS (70W max) for an impedance of 8 Ohm. It is capable of reproducing a frequency range from 63Hz to 11kHz. Its motor ensures low distortion and its aluminium diaphragm and rubber suspension provide precise sound reproduction and high durability.

Technical characteristics

Specifications
Speaker driver typeWoofer / Midbass
Nominal diameterØ10.2cm (4")
PowerRMS : 35W
Max : 70W
Impedance8 Ohm
Frequency response63Hz - 11kHz
Sensitivity86.1dB 2.83V/1m
Voice coil diameterØ2.54cm
Magnet weight312g
Thiele-Small Parameters
Resonant frequency (Fs)63.25Hz
DC Resistance (Re)5.9 Ohm
Voice coil inductance (Le)0.63mH
Mechanical quality coefficient(Qms)2
Electromagnetic quality coefficient (Qes)0.53
Total quality coefficient (Qts)0.42
Compliance equivalent volume (Vas)0.14 ft³
Mechanical compliance of suspension (Cms)0.94mm/N
Force factor (BL)5.44Tm
Diaphrahm mass inc. airload (Mms)6.7g
Max linear excursion (Xmax)4.1mm
Surface area of cone (Sd)54.1cm²
Material
ConeAluminium
SurroundRubber
Voice coil wireCopper
Voice coil formerAluminium
BasketSteel
MagnetFerrite
Mounting informations
Total external diameter115.6mm (4.55")
Cutout diameter93.8mm (3.69")
Depth54.6mm (2.15")
Number of fixation holes4
Optimal Cabinet Size (Measured with BassBox 6 Pro)
Sealed volume0.05ft³
Sealed F3119Hz
Vented volume0.14ft³
Vented F362Hz

Data sheet
Speaker Power (W RMS)35.0
Speaker TypeWoofer
Speaker TypeMidbass
Impedance (Ω)8
Loudspeaker diameter (mm)102.0
Diaphragm typeAluminium
Efficiency / Sensitivity (dB)86.0
Max Linear Excursion (Xmax) (mm)4.1
Lowest frequency (Hz)63
Highest frequency (Hz)11000
