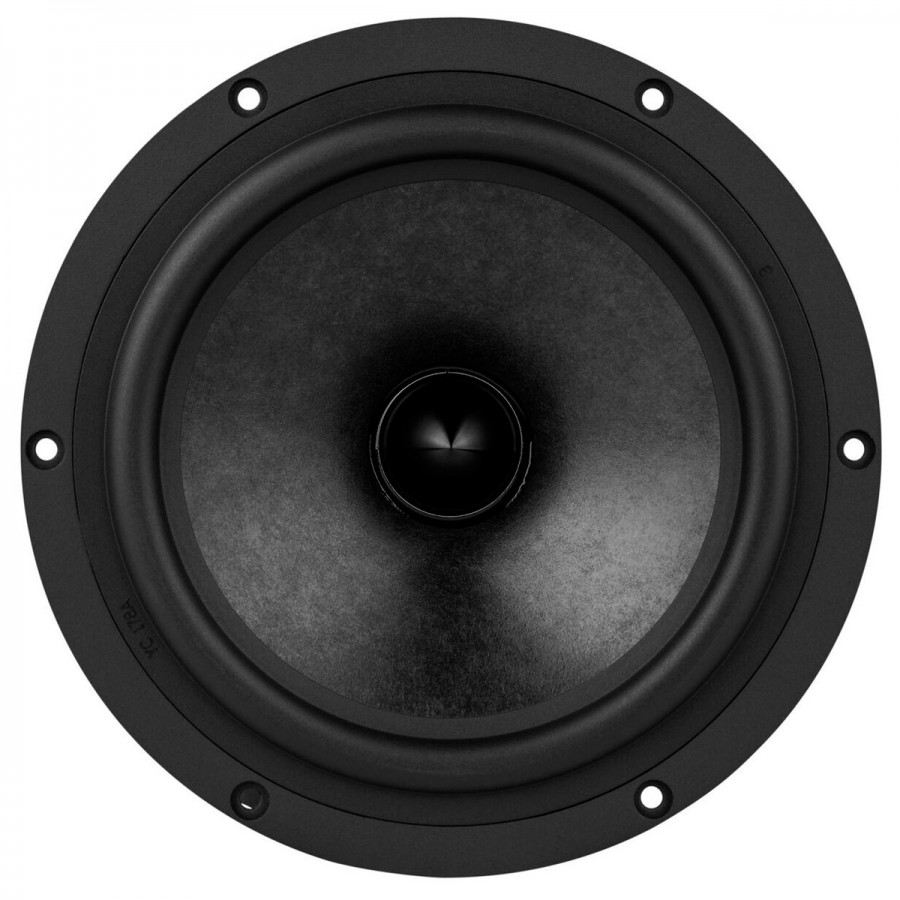

Speaker Driver Woofer Paper 80W 4Ω 93dB 35Hz - 5500Hz Ø20.3cm
Dayton Audio's Reference Series paper-diaphragm drivers combine state-of-the-art distortion performance. They also offer a more linear frequency response and smoother high-frequency attenuation, allowing for extended bandwidth and easier crossover integration.
The diaphragm of this RS225P-4A loudspeaker benefits from a special design, combining natural pulp, synthetic Kevlar and fiberglass to create an advanced non-woven fiber composite, offering the perfect combination for a smooth, natural and detailed sound reproduction.
Specifications | |
---|---|
Speaker driver type | Woofer |
Nominal diameter | Ø203mm (8") |
Power | RMS : 80W Max : 120W |
Impedance | 4Ω |
Frequency response | 35Hz - 5500Hz |
Sensitivity | 92.9dB @ 2.83V/1m |
Voice coil diameter | Ø38.6mm (1.52") |
Weight | 2.72kg |
Thiele-Small Parameters | |
---|---|
Resonant frequency (Fs) | 37.7Hz |
DC Resistance (Re) | 3.3Ω |
Voice coil inductance (Le) | 0.51mH |
Mechanical quality coefficient (Qms) | 1.85 |
Electromagnetic quality coefficient (Qes) | 0.48 |
Total quality coefficient (Qts) | 0.38 |
Compliance equivalent volume (Vas) | 45.8L |
Mechanical compliance of suspension (Cms) | 0.71mm/N |
Force factor (BL) | 6.4Tm |
Moving mass of diaphragm (Mmd) | 25g |
Maximum linear excursion (Xmax) | 6mm |
Surface area of cone (Sd) | 213.8cm² |
Materials | |
---|---|
Cone material | Paper / Kevlar |
Surround material | Rubber |
Frame material | Cast Aluminum |
Magnet material | Ferrite |
Mounting informations | |
---|---|
Total external diameter | Ø223mm (8.78") |
Cutout diameter | Ø183.9mm (7.24") |
Depth | 88.9mm (3.5") |
Bolt circle diameter | 209mm (8.23") |
Number of mounting hols | 6 |
optimum cabinet size (Measured with BassBox 6 Pro High Fidelity) | |
---|---|
Sealed volume | 12.743L (0.45ft.³) |
Sealed F3 | 83Hz |
Vented volume | 27.467L (0.97ft.³) |
Vented F3 | 49Hz |
Speaker Power (W RMS) | 80.0 |
Speaker Type | Woofer |
Impedance (Ω) | 4 |
Loudspeaker diameter (mm) | 203.0 |
Diaphragm type | Paper |
Diaphragm type | Kevlar |
Efficiency / Sensitivity (dB) | 93.0 |
Max Linear Excursion (Xmax) (mm) | 6.0 |
Lowest frequency (Hz) | 35 |
Highest frequency (Hz) | 5500 |
