By buying this product you get 16 loyalty points

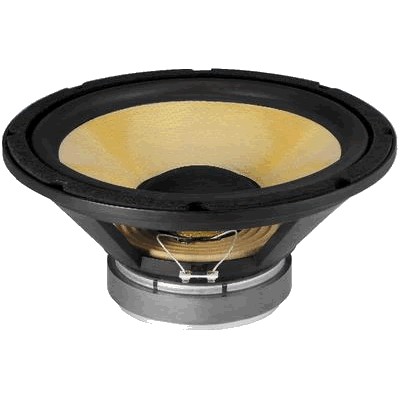

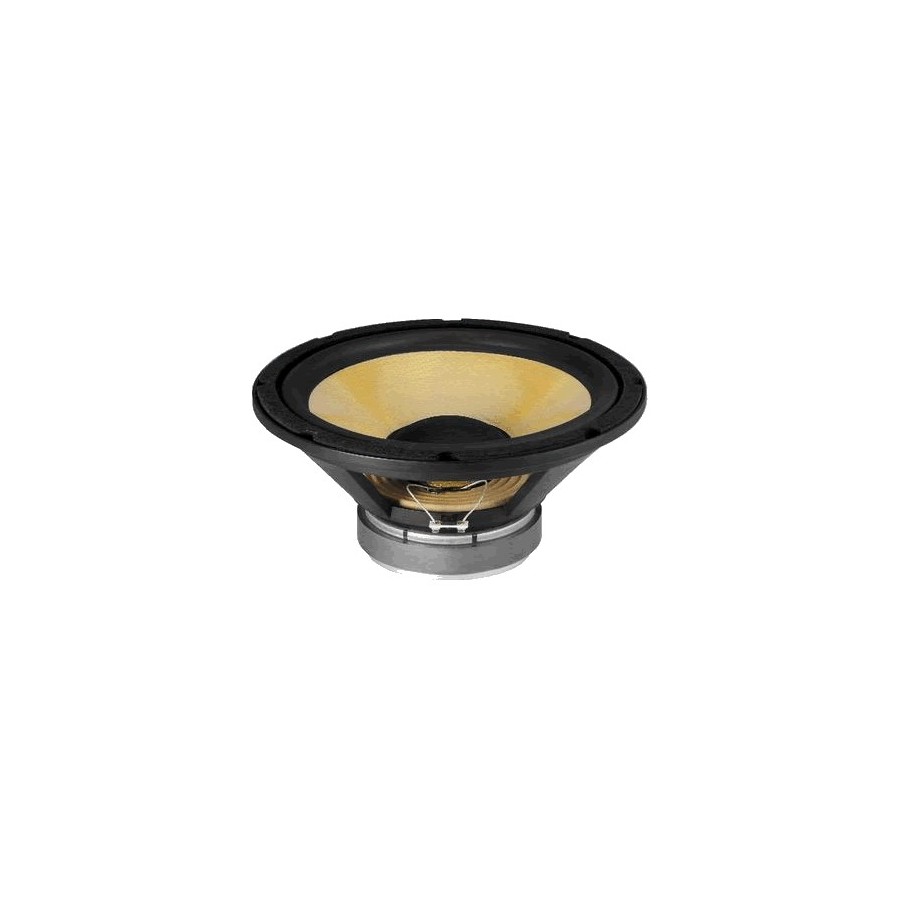

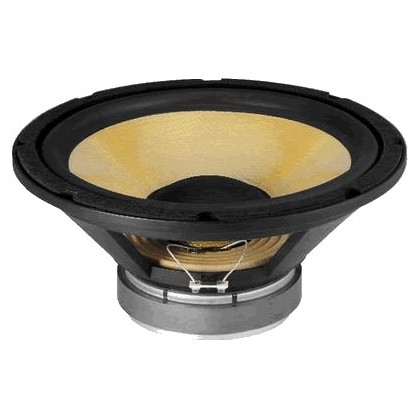

High quality Kevlar diaphragm speakers for extreme deep bass and midrange applications. 200 W MAX , 8 Ω Hi-Fi bass driver Kevlar fiber diaphragm, long-stroke molded aluminum bowl, for 3-way systems, close or bass-reflex. For all types of Hi-Fi and high-end uses. | |
Speakers Speakers | |||
Impedance (Z) | 8 Ω | ||
Resonance Frequencye (fs) | 22 Hz | ||
Maximum bandwidth | f3-2200 Hz | ||
Maximum power | 200 W MAX | ||
Rated power (P) | 120 W RMS | ||
Average sound pressure (1 W / 1 m) | 90 dB | ||
Compliance susp. (Cms) | 0.81 mm / N | ||
Moving mass (Mms) | 65 g | ||
Mechanical overvoltage. (Qms) | 4.15 | ||
Electrical overvoltage (Qes) | 0.36 | ||
Fact. total surge (Qts) | 0.33 | ||
Volume equ. (VAS) | 250 l | ||
DC resistance. (Re) | 6.2 Ω | ||
Force factor (BxL) | 12.5 Tm | ||
Inductance coil (The) | 1.5 mH | ||
Coil diameter | 65.5 mm | ||
Coil holder | glass fibers | ||
Linear Excursion (X MAX ) | ± 6.5 mm | ||
Transmitting surface (Sd) | 496 cm 2 | ||
Magnet Weight | 42.7 ± 2.8 oz. | ||
Weight | 5.4 kg | ||
Speaker Power (W RMS) | 120.0 |
Speaker Type | Woofer |
Impedance (Ω) | 8 |
Loudspeaker diameter (mm) | 300.0 |
Diaphragm type | Kevlar |
Efficiency / Sensitivity (dB) | 90.0 |
Max Linear Excursion (Xmax) (mm) | 6.5 |
Lowest frequency (Hz) | N/A |
Highest frequency (Hz) | 2200 |
