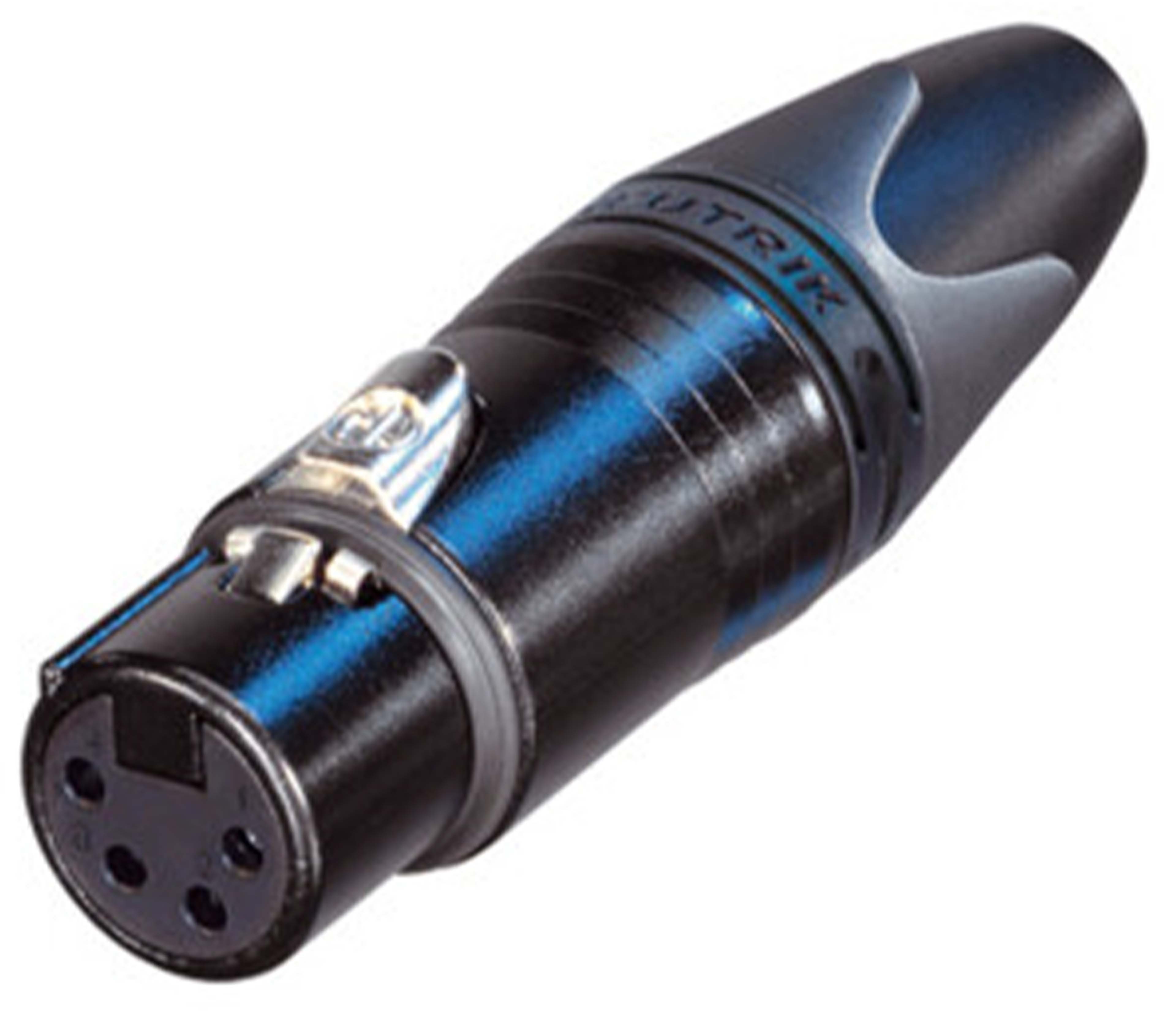

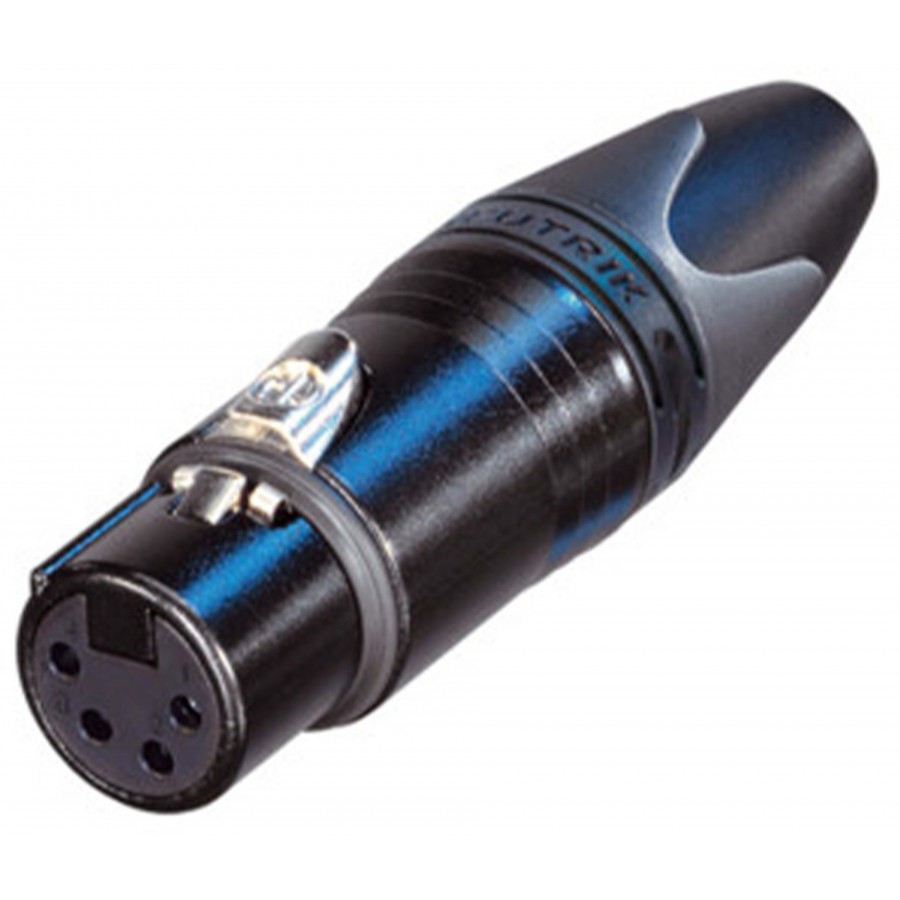

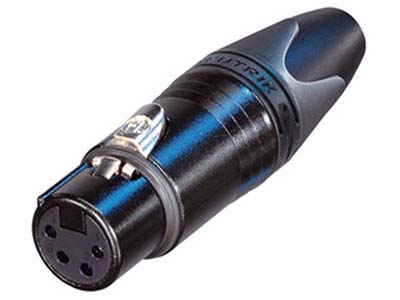

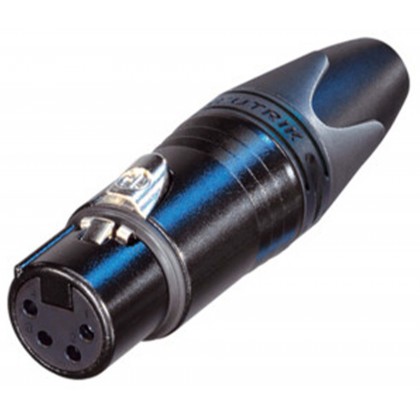

NEUTRIK NC4FXX-BAG 4 Pole Female XLR Connector (Unit)

The Neutrik NC4FXX-BAG is a 4-pole female XLR cable connector designed for audio, broadcast, low-voltage power supply, and technical link applications requiring a reliable and durable connection. Part of the XX series, it incorporates the design improvements that built Neutrik’s reputation: simplified assembly, improved mechanical strength, and optimized contact integrity. It features a die-cast zinc housing with black KTL finish, silver-plated brass contacts (2µm Ag over 2µm Ni), and a robust latch locking system. Its solder connection accepts conductors up to 1.5mm² (16AWG) and cables from 3.5 to 8mm in diameter. The chuck-type strain relief system provides excellent pull-out resistance while securely holding the cable in place. Electrically, it supports up to 10A per contact, a rated voltage below 50V, contact resistance ≤ 3mΩ, inter-contact capacitance ≤ 7pF, and insulation resistance > 10GΩ. Compliant with IEC 61076-2-103, rated IP40 and UL94 V-0, it operates in a temperature range from -30°C to +80°C. This model is a reference solution for the manufacture or maintenance of demanding professional cables.
