VIBORG CM203G Male XLR Connector (Unit)

New
This Viborg CM203G 3-pole male XLR socket features exemplary design thanks to the use of premium materials. The socket contacts are made of pure copper to ensure excellent audio signal conductivity. These contacts also benefit from a triple plating of OFC copper, silver, and rhodium. As silver is the best electrical conductor, it maximizes the transmission performance of the socket, while rhodium protects the contacts against corrosion, significantly extending their service life.

No customer reviews yet, login to write a review.

By buying this product you get 2 loyalty points


Yes, notify me when available !
Reference : 22029
New product

26,90 €tax incl.

22,42 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Viborg CM203G Male XLR Socket Pure Copper OFC Copper / Silver / 3μ Gold Plated (Unit)

VIBORG CM203G


This Viborg CM203G 3-pole male XLR socket features exemplary design thanks to the use of premium materials. The socket contacts are made of pure copper to ensure excellent audio signal conductivity. These contacts also benefit from a triple plating of OFC copper, silver, and rhodium. As silver is the best electrical conductor, it maximizes the transmission performance of the socket, while rhodium protects the contacts against corrosion, significantly extending their service life.

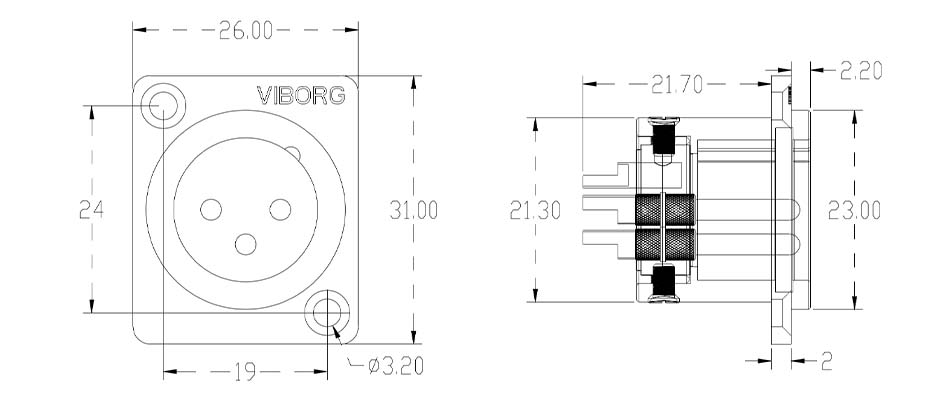

Dimensions VIBORG CM203G

Technical Specifications

Specifications
Product typeXLR socket
GenderMale
Number of poles3 poles
Contact materialPure copper
Contact platingOFC Copper
Silver
3μ Gold
Body materialBrass + polished finish + gold plating
InsulationPTFE
Acceptable conductor diameterØ2mm
Dimensions26 x 31 x 20mm
Outer diameter21.5mm
Depth22mm
General
Packaging1x Viborg CM203G

Data sheet
Max cable diameter (mm)2.0
Mounting typeTo weld
ConnecticMale
Contacts number3
Max panel thickness (mm)N/A
ConnectorXLR
Contacts Material (Connector)Copper
Contacts Plating (Connector)Gold
Contacts Plating (Connector)Copper
Contacts Plating (Connector)Silver
