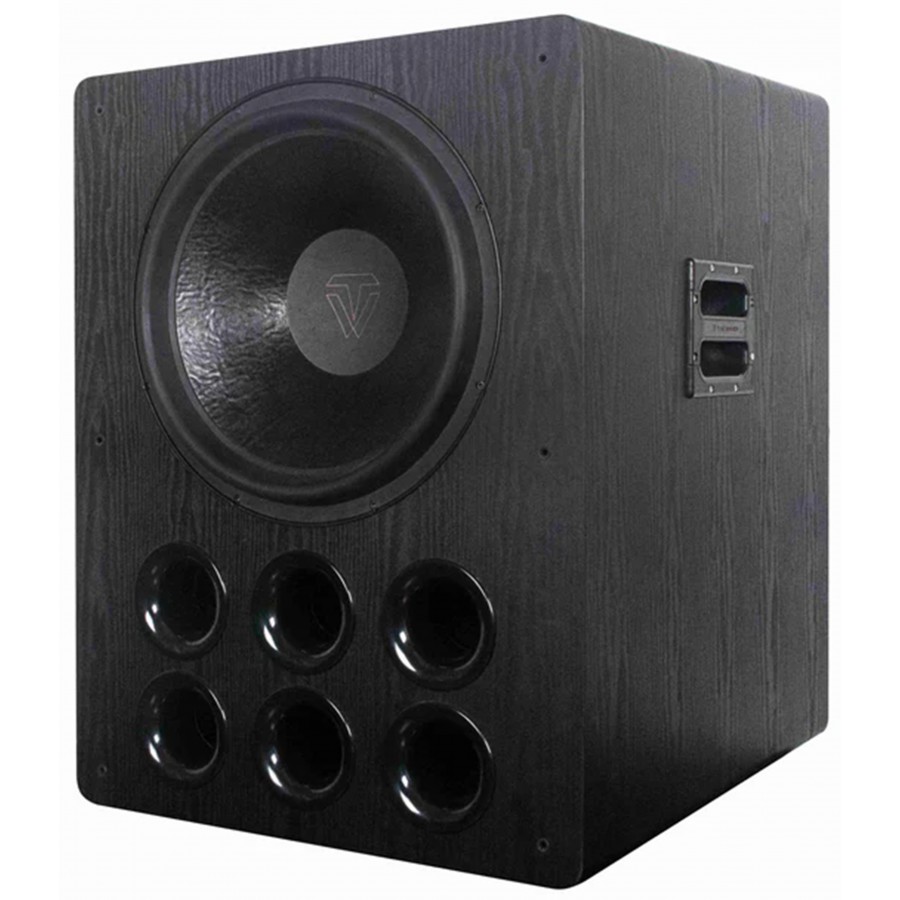

TONEWINNER SW-D9000 Active Subwoofer

New
The Tonewinner SW-D9000 active subwoofer is a bass reflex subwoofer equipped with a 45.72cm driver for an RMS power of 1500W under 3Ω, and can reach 8000W at peak. It offers numerous options such as crossover frequency adjustment, 7-band equalisation, volume control and 0°-180° phase inversion. Six vents on the front panel improve bass response. In terms of inputs, you can choose between an RCA line input or two other inputs: single-ended RCA LFE and balanced XLR. Furthermore, the SW-D9000 also offers an LFE output.

No customer reviews yet, login to write a review.

By buying this product you get 319 loyalty points


Yes, notify me when available !
Reference : 20896
New product

3 199,00 €tax incl.

2 665,83 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Tonewinner SW-D9000 Active Subwoofer 1500W 3 Ohm 11Hz - 200Hz Ø45.72cm

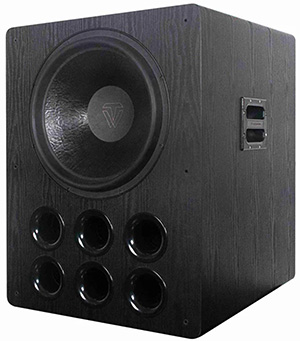

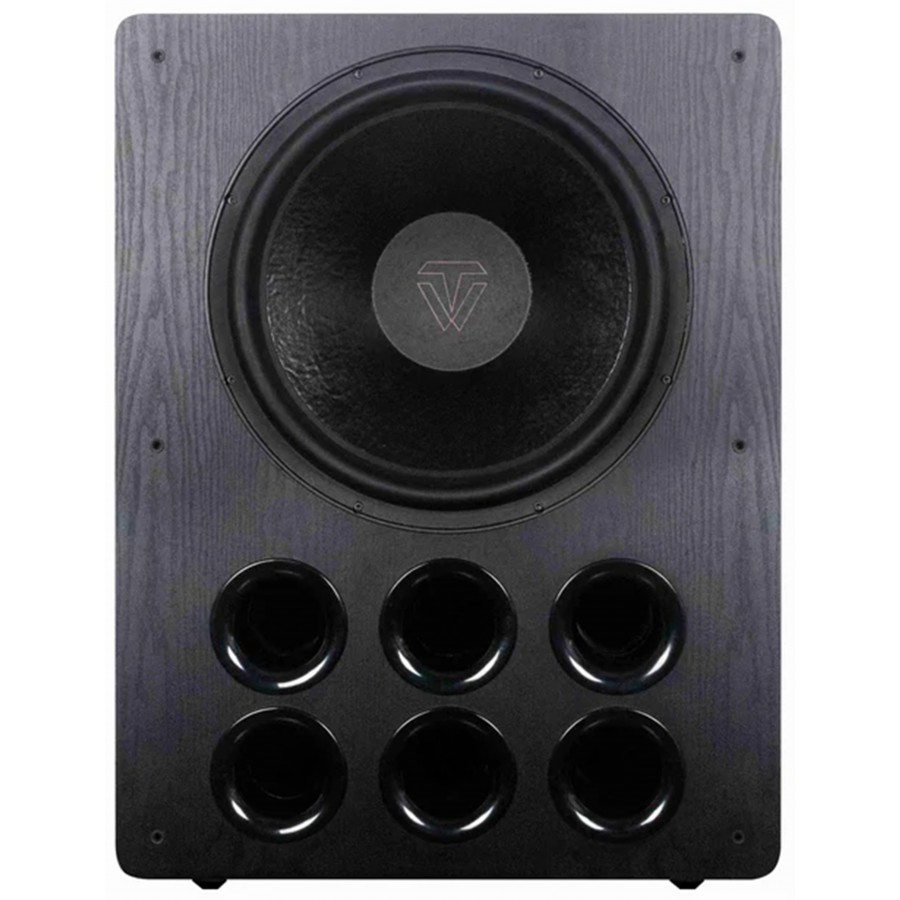

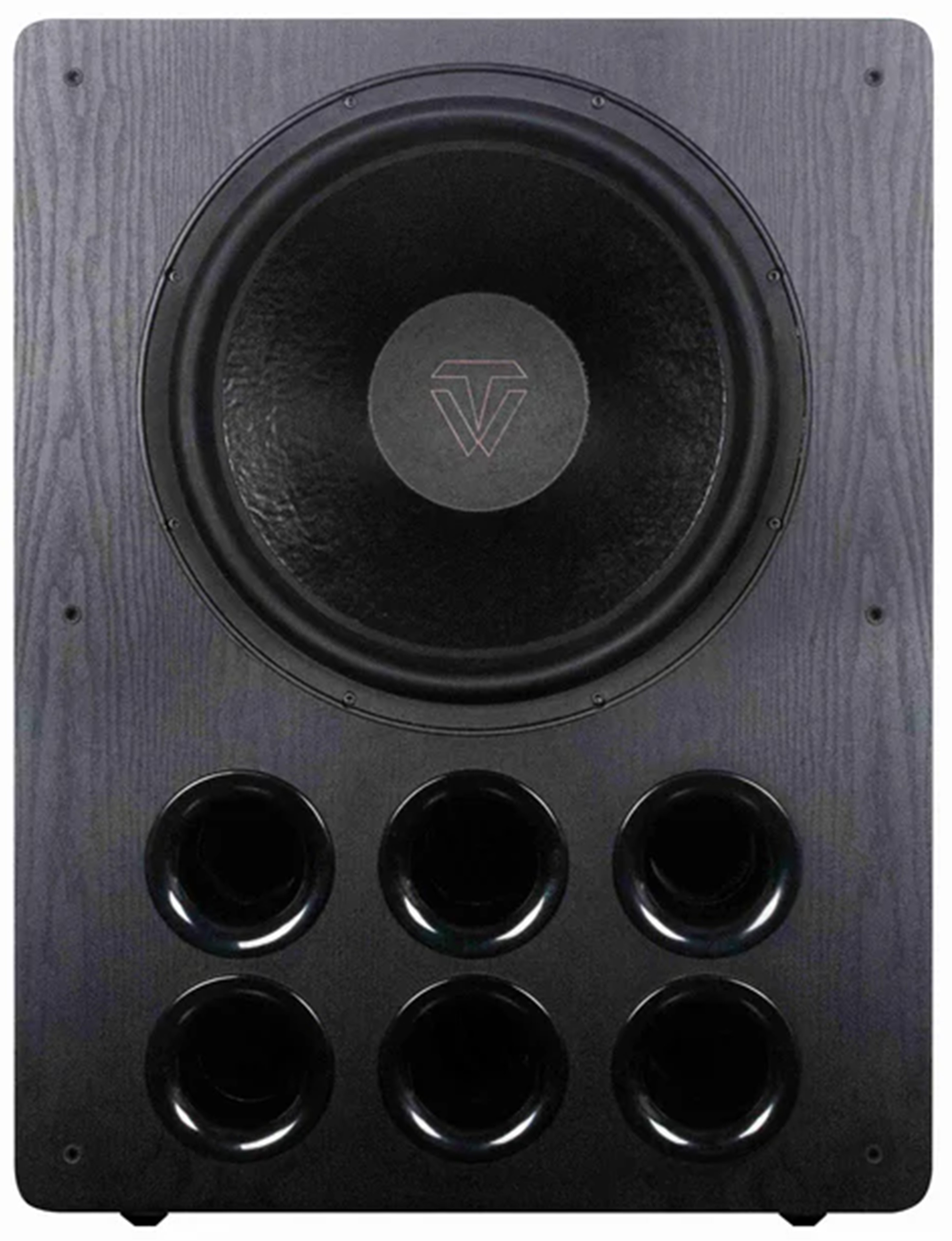

Tonewinner SW-D9000 : Front view


The Tonewinner SW-D9000 active subwoofer is a bass reflex subwoofer equipped with a 45.72cm driver for an RMS power of 1500W under 3Ω, and can reach 8000W at peak. It offers numerous options such as crossover frequency adjustment, 7-band equalisation, volume control and 0°-180° phase inversion. Six vents on the front panel improve bass response. In terms of inputs, you can choose between an RCA line input or two other inputs: single-ended RCA LFE and balanced XLR. Furthermore, the SW-D9000 also offers an LFE output.

Tonewinner SW-D9000 : Ø45.72 cm driver

In order to deliver powerful bass, the SW-D9000 has been equipped with an impressive 45.72cm diameter driver coupled with a 115mm voice coil and a dual magnet circuit. This configuration allows you to get the most out of the 1500W Class D amplification, ensuring powerful and dynamic bass reproduction, capable of reaching frequencies as low as 11Hz.

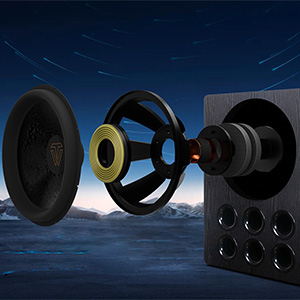

Tonewinner SW-D9000 : driver detail

Tonewinner SW-D9000 : Numerous adjustment options

Thanks to the Tonewinner app available on Android and iOS, the SW-D9000 offers 7-band equalisation settings, crossover frequency adjustment and phase inversion, allowing you to perfectly tailor your subwoofer's performance to your listening environment and usage.

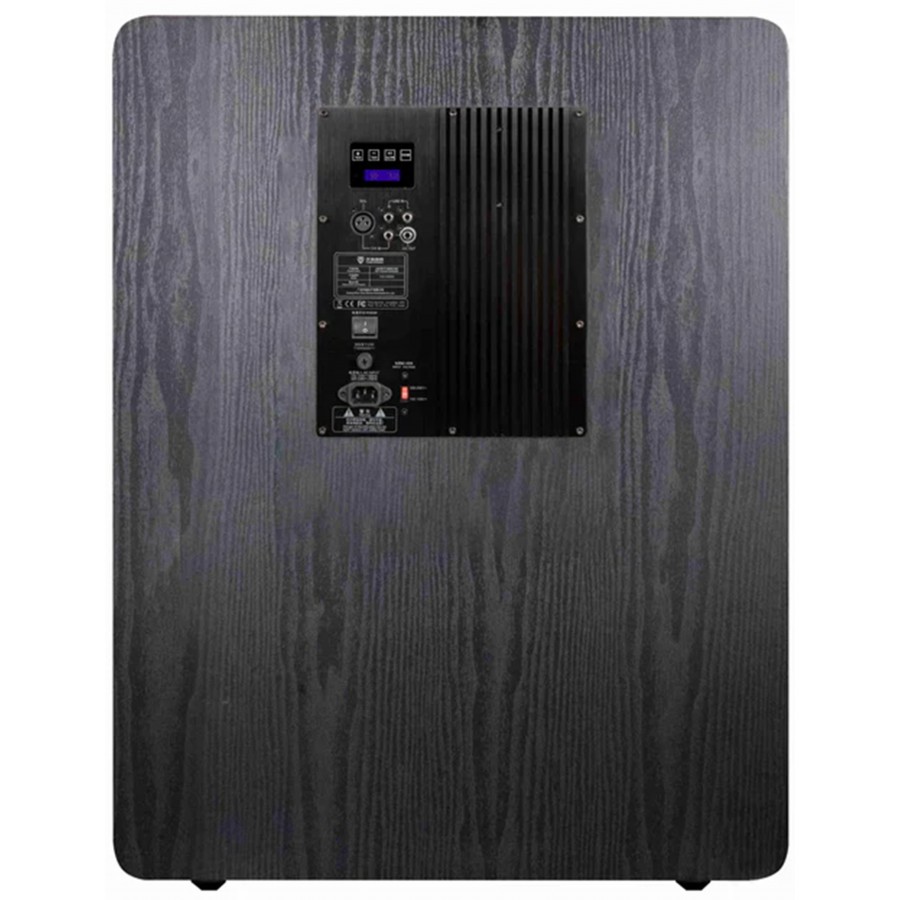

Tonewinner SW-D9000 Overview

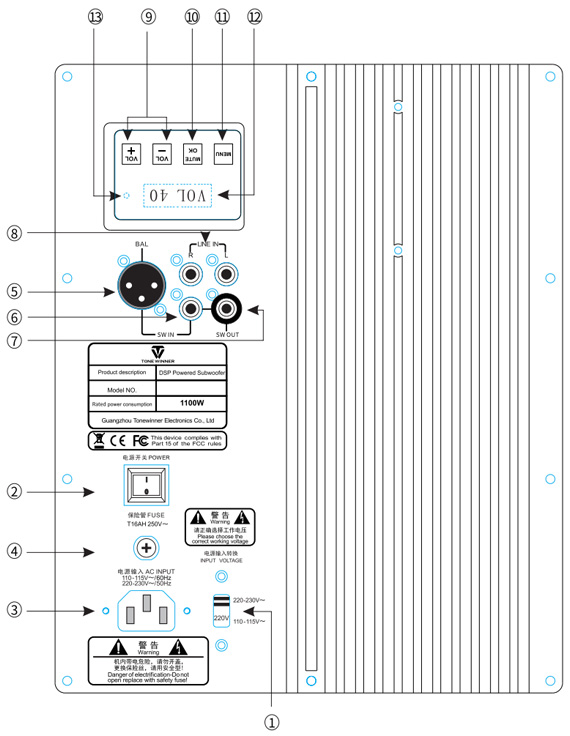

Tonewinner SW-D9000 : rear panel diagram
1Power supply voltage switch
2Power switch
3Power socket
4Fuse
5Sub XLR input
6Sub RCA input
7Sub output
8RCA line input
9Volume control
10Mute function / Confirm button
11Menu button
12LCD Screen

Technical characteristics

Specifications
Product typeActive subwoofer
Driver diameterØ45.72cm
Amplification typeClass D
Power outputRMS : 1500W
Max : 8000W
Frequency response11Hz - 200Hz
Phase setting0 - 180°
Impedance3Ω
DSP / EQ
Inputs1x LFE XLR
1x LFE RCA
1x RCA stereo line in
Output1x LFE RCA
General
Dimensions630 x 695 x 832mm
Weight87kg
ColorBlack
PackageVendu à l'unité
