Aluminium Chassis for 502DAC / 502DAC Pro / Raspberry Pi 3 for Network Audio Player
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.
Aluminum Case for Raspberry Pi 3 / 502DAC / 502DAC Pro for Network Audio Player

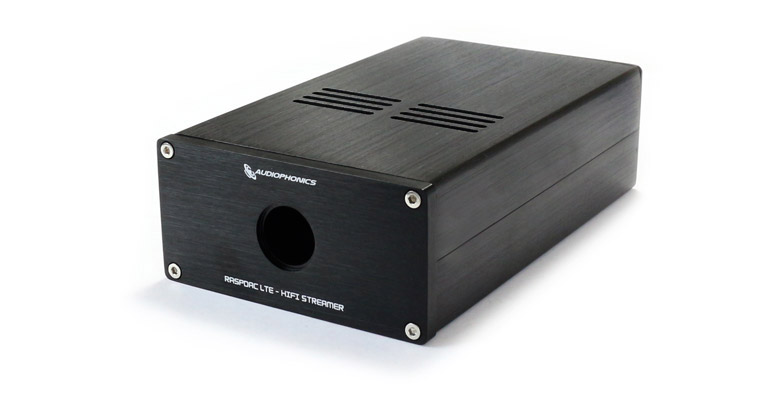

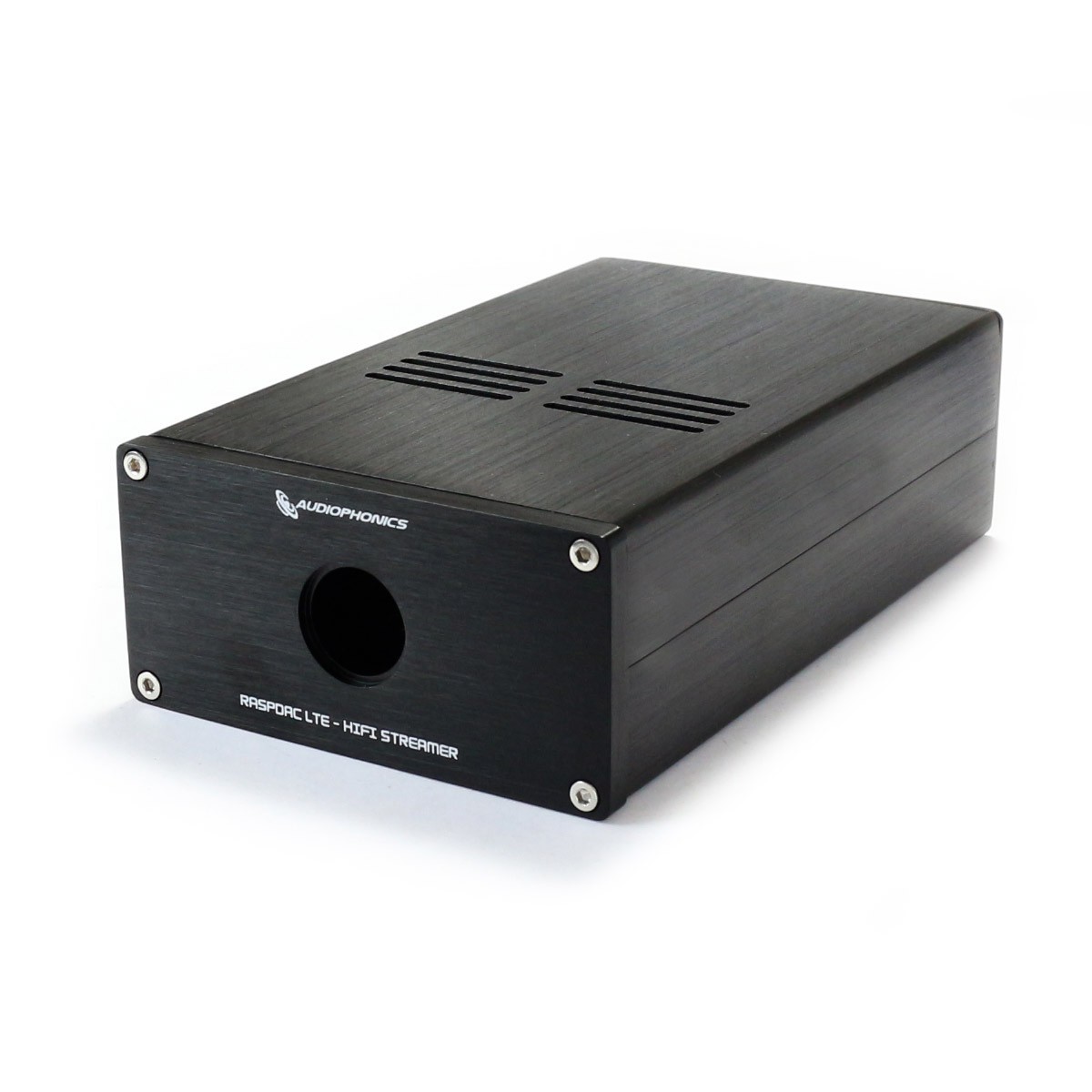

Audiophonics offers a new version of its case 100% Aluminum black, designed to accommodate the Raspberry Pi 3 couple and the 502DAC or 502DAC Pro converter.
Ready to host your network drive

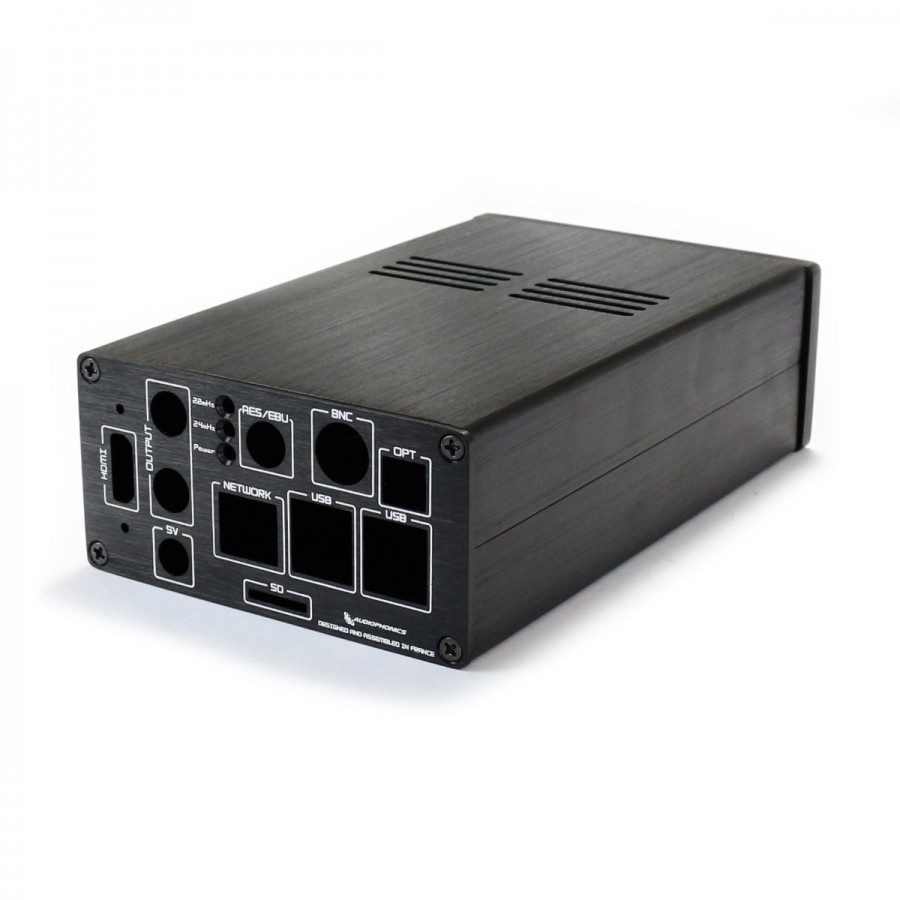

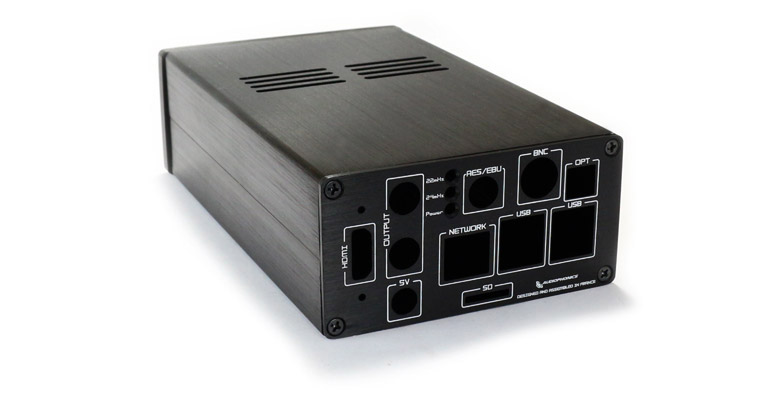

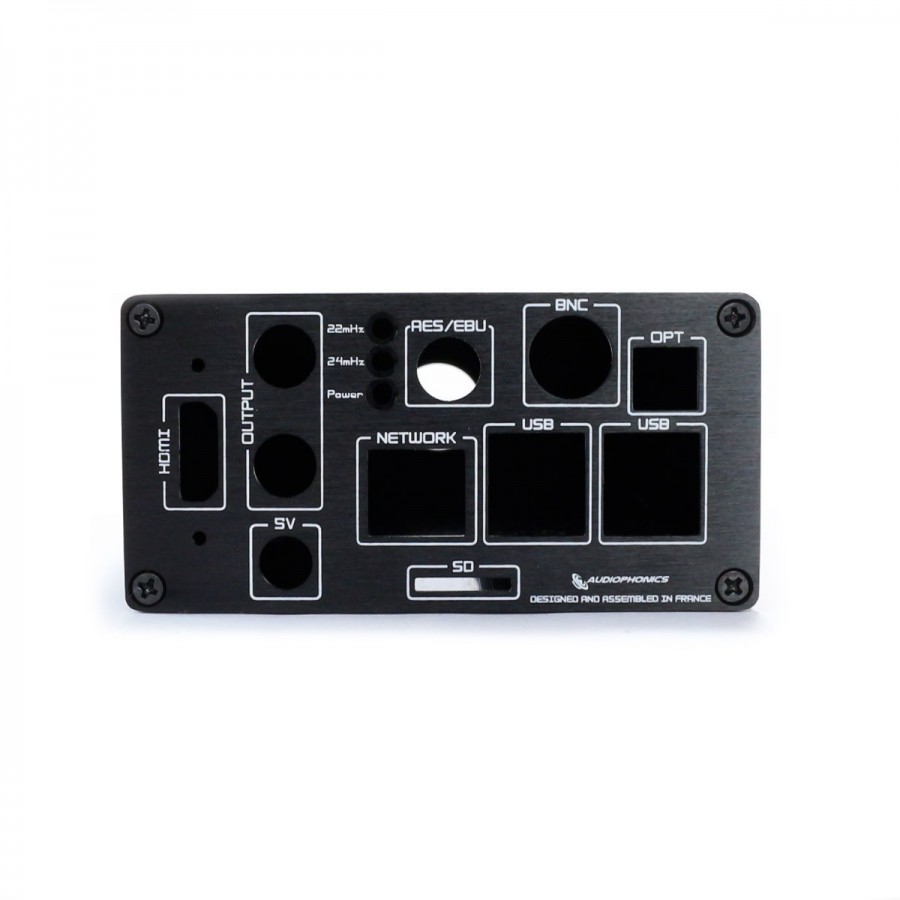

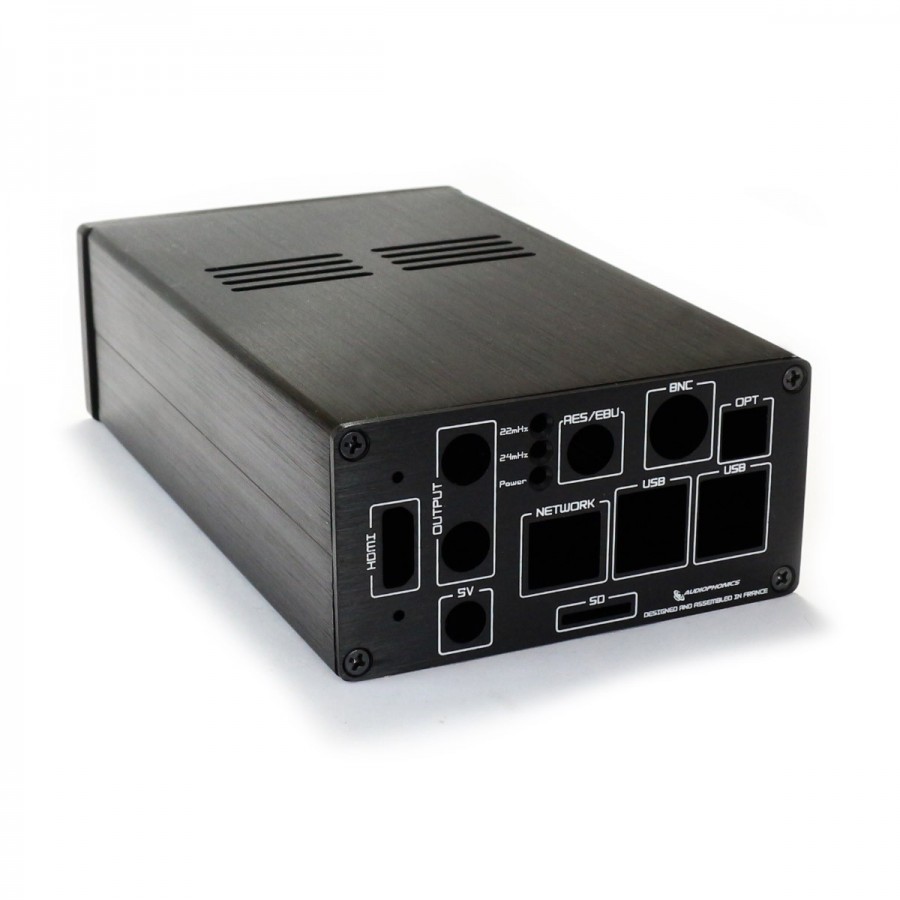

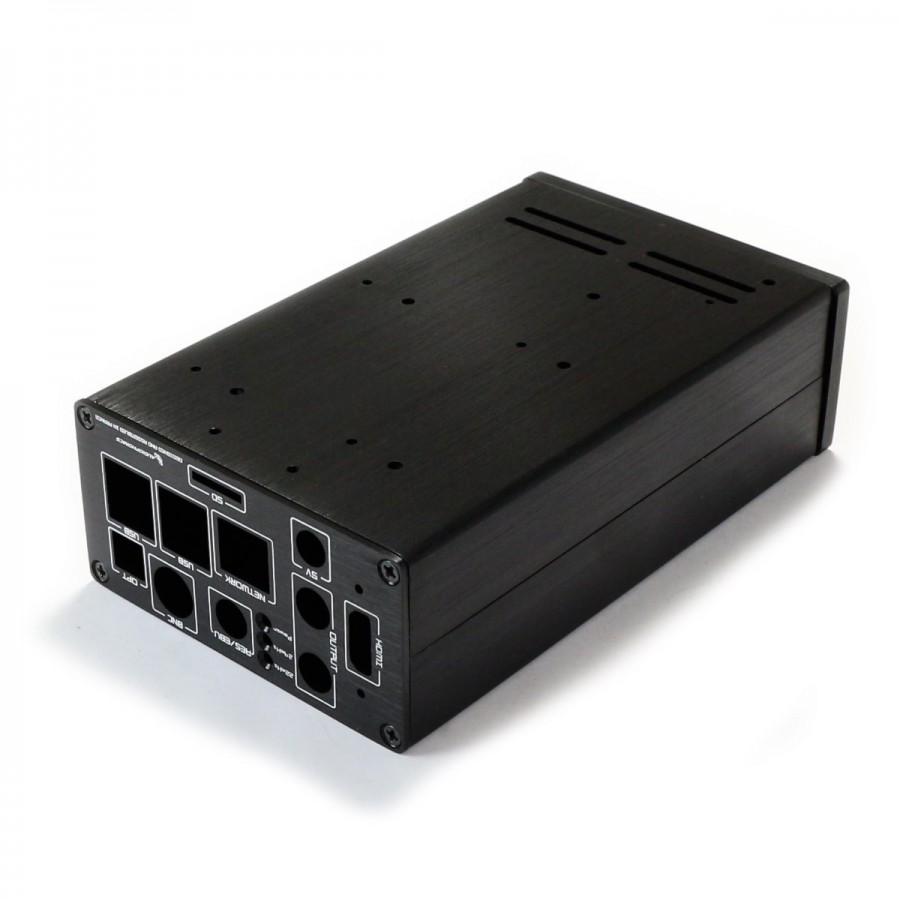

The housing has all the necessary holes to accommodate your Raspberry Pi 3 and your 502DAC / 502DAC Pro and enjoy their inputs and outputs. It also includes holes for offsetting the Raspberry Pi 3's HDMI and Micro SD connectors. In addition, the rear panel already has drill-related markings to simplify connections.
This product contains only the aluminium housing. The Pi 3 raspberries and the 502DAC / 502DAC Pro are sold separately.
This product is only compatible with the Raspberry Pi 3. It is not compatible with Raspberry Pi 4.
Although this product has dedicated holes for the Raspberry Pi 3 and 502DAC / 502DAC Pro, it can also be used in other DIY Audio projects
Specifications
| RPI3 / 502DAC / 502DAC Pro Connectors | |
|---|---|
| HDMI (15.5 * 6mm) | 1x |
| RCA Stereo (2x 10mm ⌀) | 1x |
| DC (8mm ⌀) | 1x |
| AES / EBU (10mm ⌀) | 1x |
| Ethernet RJ45 (15 * 13.5mm) | 1x |
| Micro SD (15 * 2mm) | 1x |
| USB (2x 15 * 16mm) | 4x |
| Optical (10 * 10mm) | 1x |
| BNC (13mm ⌀) | 1x |
| Miscellaneous | |
|---|---|
| Material100% Brushed anodized aluminum | |
| Color | Black |
| Marking Connectors | |
| Dimensions | 102 x 167 x 50mm |
| Weight | 446g |
| Holes and markings for status LEDs | Power / 22mHz / 24mHz |
| Enclosure hardware supplied | |
