Aluminium Housing for I-Sabre V4 DAC / Raspberry Pi 3 / OLED Screen

Aluminium chassis for I-Sabre V2 / V3 DAC & Raspberry Pi 3 / Pi 2 B for OLED

This 100% Aluminium case has been designed by AUDIOPHONICS to receive the Raspberry Pi 2 or Pi 3 Model B & the Audiophonics DAC I-Sabre V2 or V3 ES9023. This model has all the markings on the back side. It has all the inputs/outputs necessary for its connection

No customer reviews yet, login to write a review.

By buying this product you get 4 loyalty points


Reference : 11720
New product

49,90 €tax incl.

41,58 € tax excl.
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product


More info

I-Sabre / Raspberry Pi Case

Aluminium Housing for I-Sabre V4 DAC / Raspberry Pi 3 / OLED Screen

Boîtier Aluminium pour I-Sabre DAC V2 / V3 & Raspberry Pi 3 / Pi 2 B pour OLED

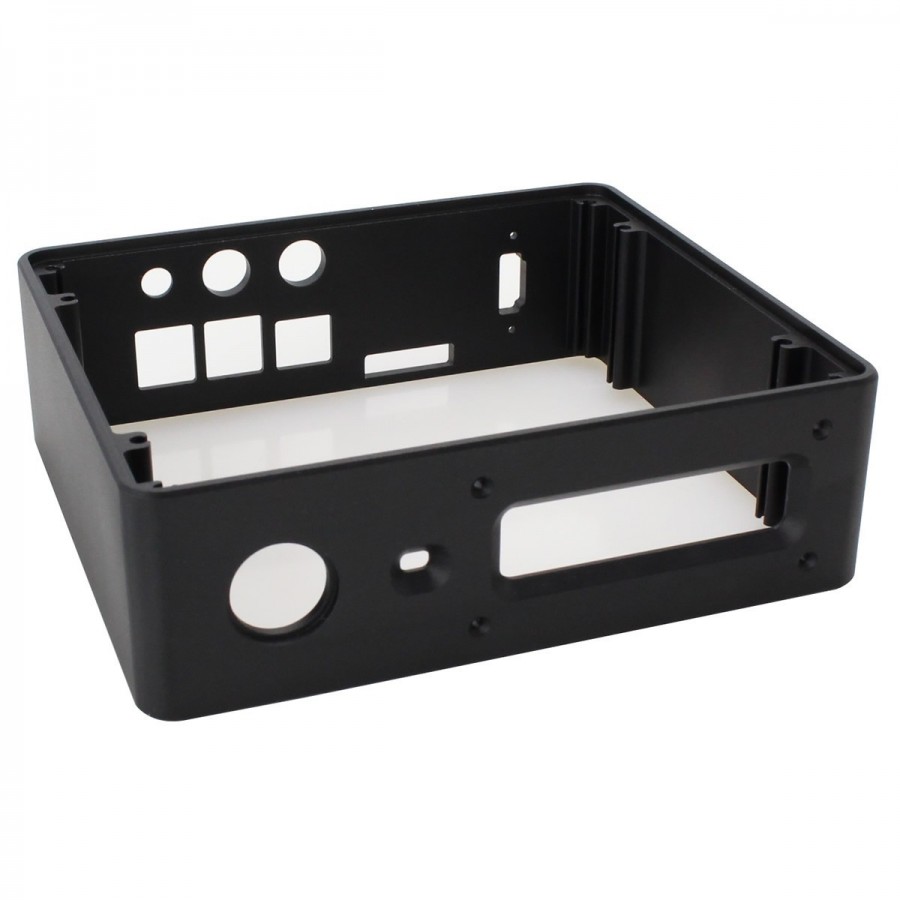

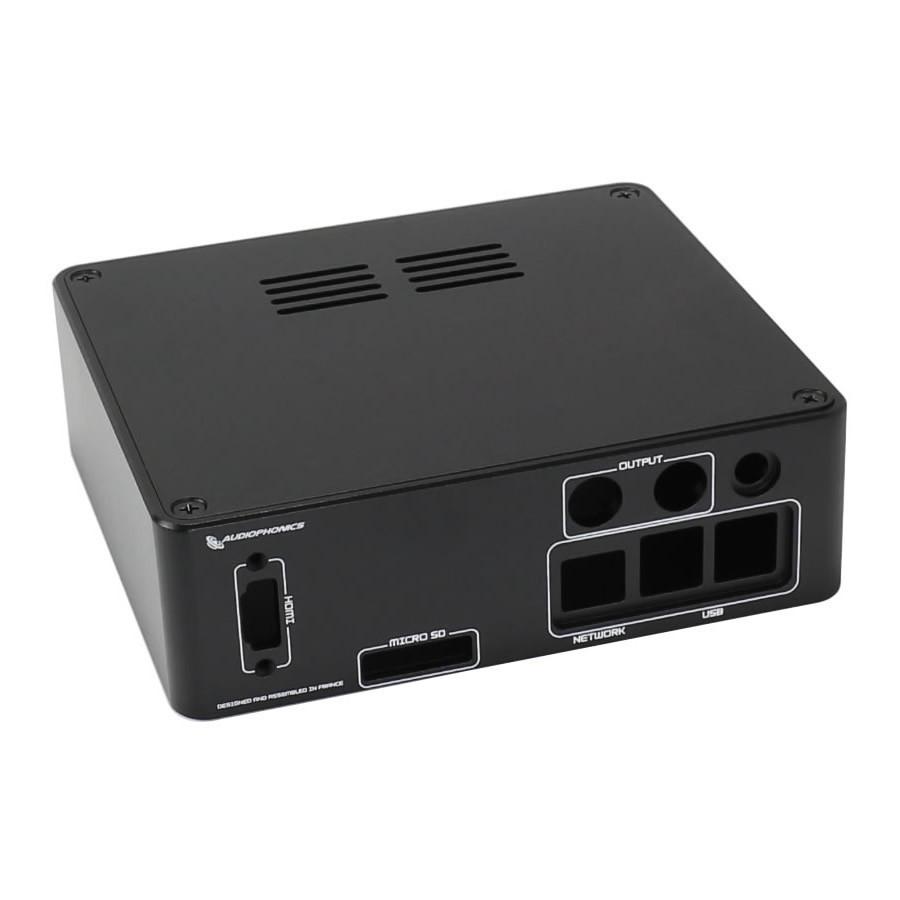

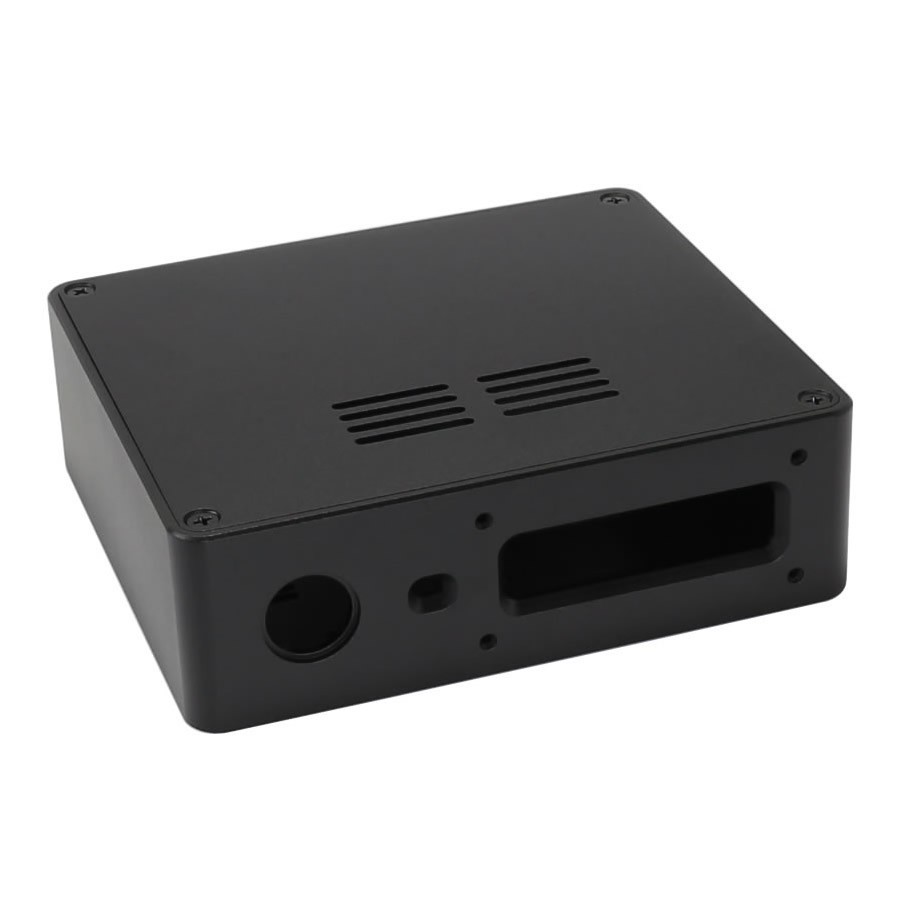

This 100% Aluminium case has been designed by AUDIOPHONICS to receive the Raspberry Pi 2 or Pi 3 Model B & the Audiophonics DAC I-Sabre V4 ES9023. This model has all the markings on the back side. It has all the inputs/outputs necessary for its connection, its power supply (5.5/2.5mm DC jack), drilling for the POWER button, a drilling for HDMI offset, a slot for micro SD card offset, a dedicated drilling for an infrared receiver, as well as a slot for OLED display. It has been designed to give you the efficiency of your Raspberry Pi in a high quality audio environment. Thanks to this particularly robust and elegant housing, you have a high-performance audio solution that offers an excellent price-quality ratio.

Technical characteristics

Specifications
Product typeI-Sabre / Raspberry Pi case
Material100% Anodized Aluminium
SerigraphyBack panel
Dimensions160 x 140 x 50mm
Screen dimensions65 x 16mm (Standard HD44782 16x2)
Screen fixation holes spacing75 x 31mm
Weight0.8kg
Available drilling holes1x IR
1x Micro SD Slot
1x RJ45
4x USB-A
1x HDMI (fixation holes spacing : 27mm)
1x Stereo RCA output (ø 12mm)
1x Jack DC 5.5/2.5mm input (ø 9mm)
1x On/Off switch (ø 19mm)
PackageCase
Screws (only for the case)

Note: housing delivered bare. Raspberry Pi and DAC I-Sabre sold separately.


Data sheet
ColorBlack
MaterialMetal
