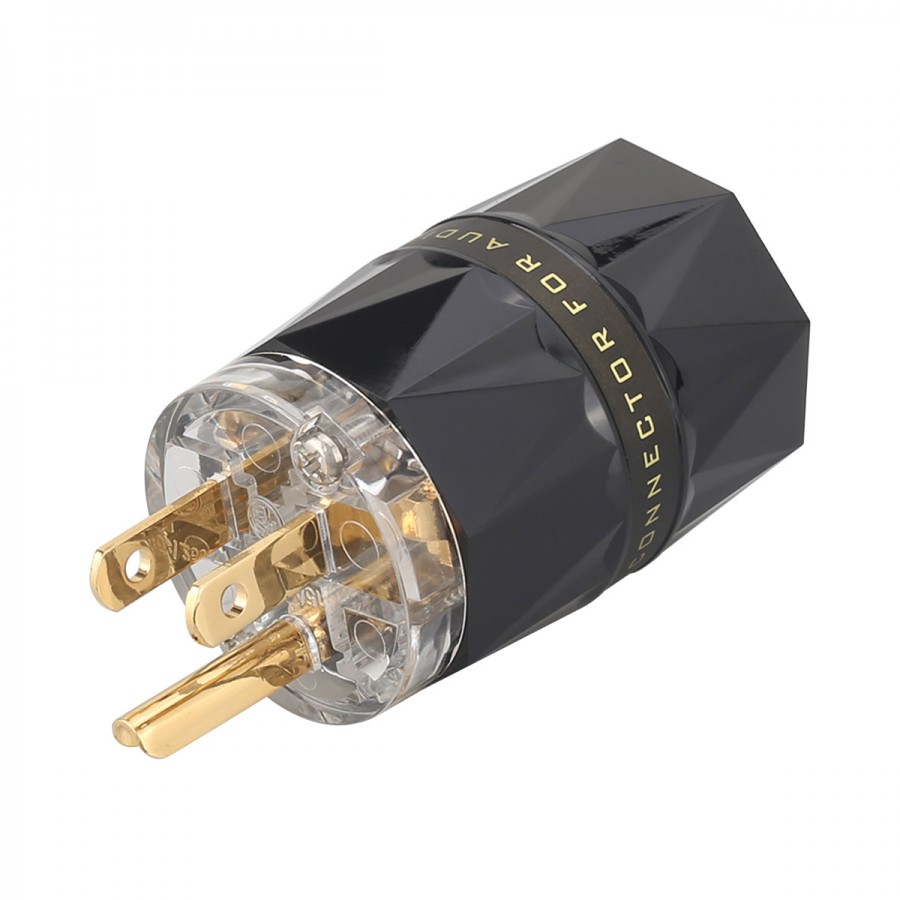

VIBORG VM503G Power Connector US Type B NEMA 5-15 Pure Copper Plated Silver / Gold 24k Ø19mm

VIBORG VM503G Power Connector Type B Pure Copper Plated Silver / Gold 24k Ø19mm
The Viborg VM503G Type B power connector offers excellent design quality and will allow you to design high-end mains cables to properly power your HiFi system. The connector's contacts are made of pure Copper, a material that provides excellent electrical conductivity.

No customer reviews yet, login to write a review.

By buying this product you get 2 loyalty points


Reference : 15744
New product

23,90 €tax incl.

19,92 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 15-10-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Viborg VM503G

Power Connector Type B Pure Copper Plated Silver / Gold 24k Ø19mm

Viborg VM503G Connecteur secteur type b Cuivre Pur Plaqué Argent / Or 24k Ø19mm

The Viborg VM503G Type B power connector offers excellent design quality and will allow you to design high-end mains cables to properly power your HiFi system. The connector's contacts are made of pure Copper, a material that provides excellent electrical conductivity. These contacts benefit from a triple plating of OFC Copper, Silver and 24k Gold to maximize conductivity while improving their resistance to oxidation.

The body of the connector is made of Bayer-2805 Polycarbonate. The conductors are simply inserted into the connector by means of a screw system that holds the conductors firmly in place.

Technical characteristics

Specifications
Product typeType B power connector
Contacts materialPure copper
Contacts platingOFC Copper
Silver
24k Gold
 Body and contacts support materialPolycarbonate Bayer-2805
Mouting typeTo screw (hex screws)
Max conductor diameterØ8mm
Min/Max cable diameterØ6mm / Ø19mm
Voltage / Current125V 15A
Total dimensions77 x Ø40mm
ColorBlack

Data sheet
Max cable diameter (mm)19.0
Mounting typeTo screw
ConnecticMale
ConnectorType B (NEMA)
Contacts Material (Connector)Copper
Contacts Plating (Connector)Silver
Contacts Plating (Connector)Gold
Rated current (A)15.0
