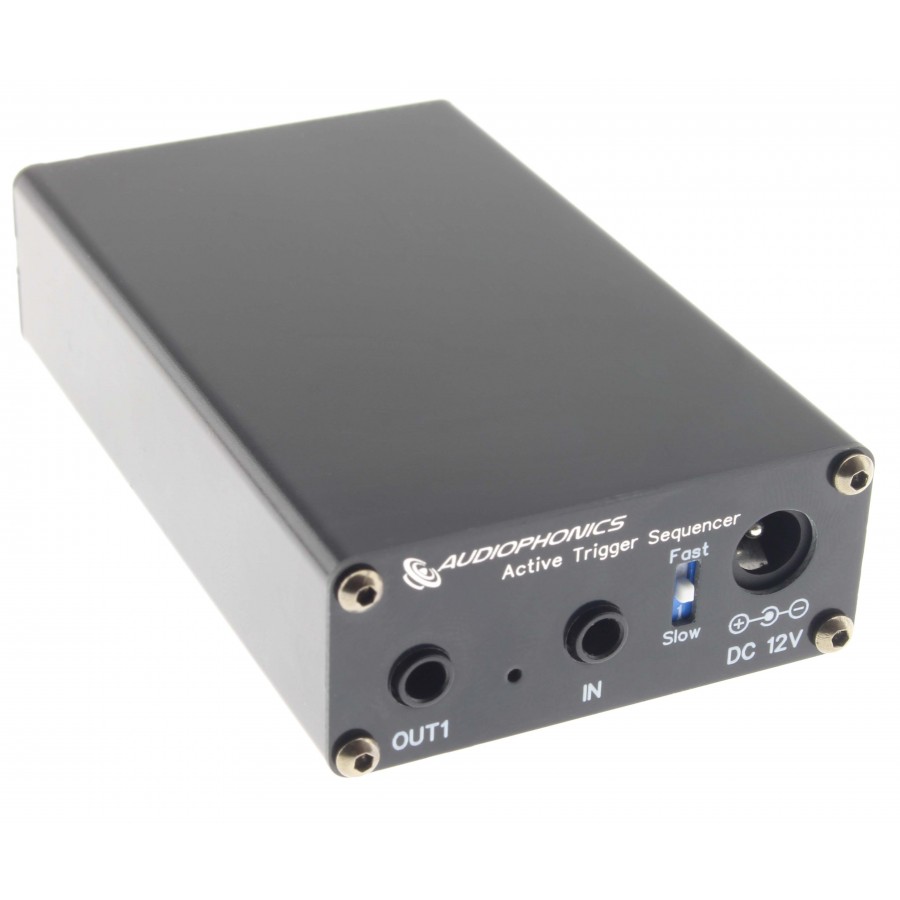

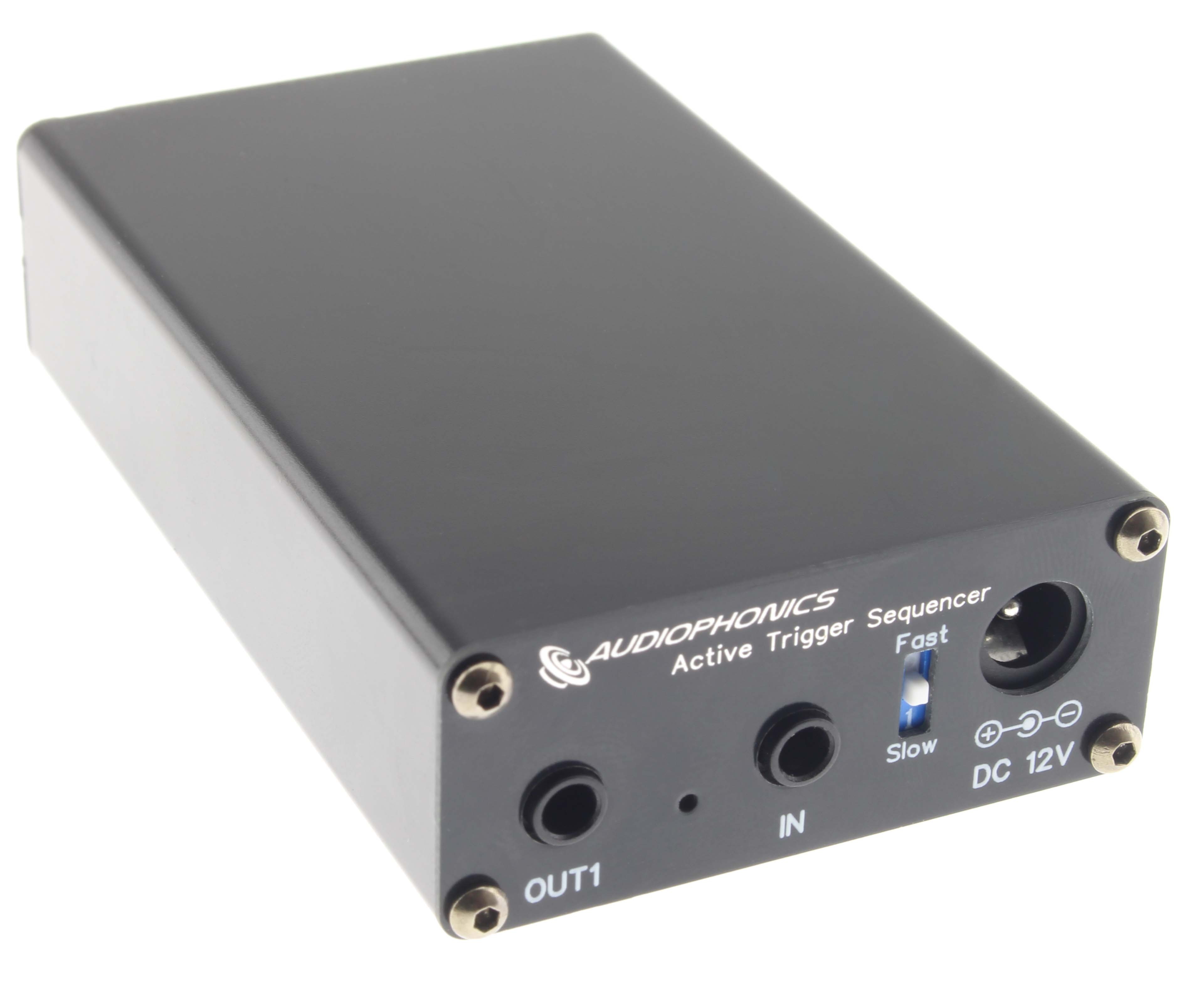

AUDIOPHONICS Active Trigger Sequencer 1 IN / 4 OUT 12V

New
This active trigger sequencer is hand-assembled in our Audiophonics workshop. It avoids plocks and current peaks in order to switch on and off a chain of several Hi-Fi devices.

No customer reviews yet, login to write a review.

By buying this product you get 2 loyalty points


Yes, notify me when available !
Reference : 20930
New product

24,90 €tax incl.

20,75 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product


More info

Audiophonics Active Trigger Sequencer1 IN / 4 OUT 12V

Photo du Audiophonics Trigger Séquenceur Actif


This active trigger sequencer is hand-assembled in our Audiophonics workshop. It avoids plocks and current peaks in order to switch on and off a chain of several Hi-Fi devices. It features two operating modes: SLOW/FAST, depending on the desired effect. To avoid plocks and current peaks, it's best to use the SLOW mode. To simply avoid a current peak, FAST mode is sufficient.

This active sequencer trigger also has two other advantages:

    • Even if you input 5V, you can output 12V on all outputs.
    • Output current is also boosted. While your source device delivers a low current via its trigger out connector, the active trigger sequencer delivers a current that depends on its power supply. For example, the supplied power supply delivers a current of 1A, so you'll find 250mA per trigger output. If you need more, you can go up to 1A per trigger output by changing the power supply. In this case, opt for a 12V 4A power supply. This can be used, for example, to power LED lighting or a home cinema screen.

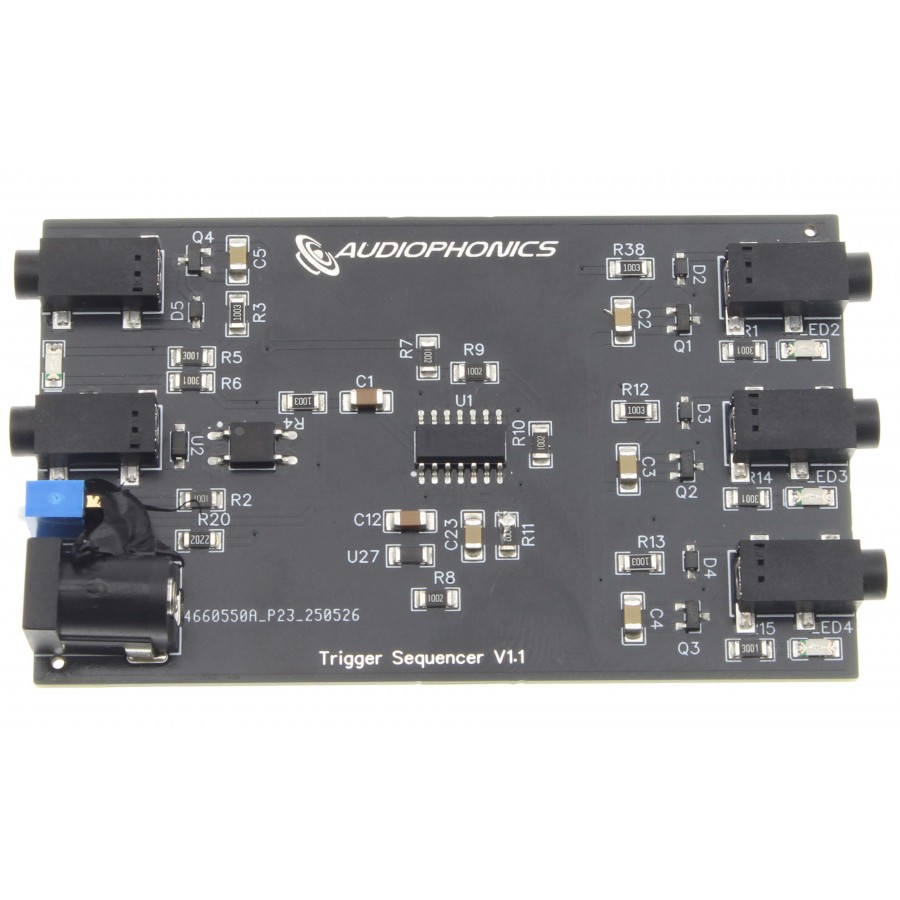

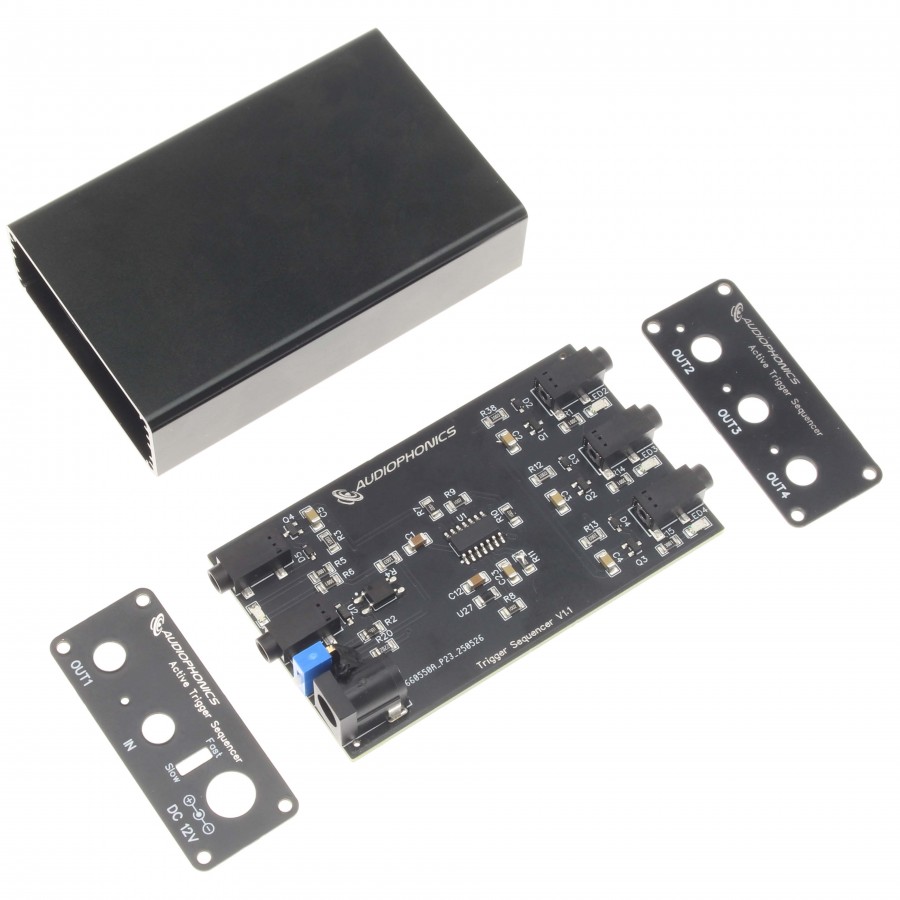

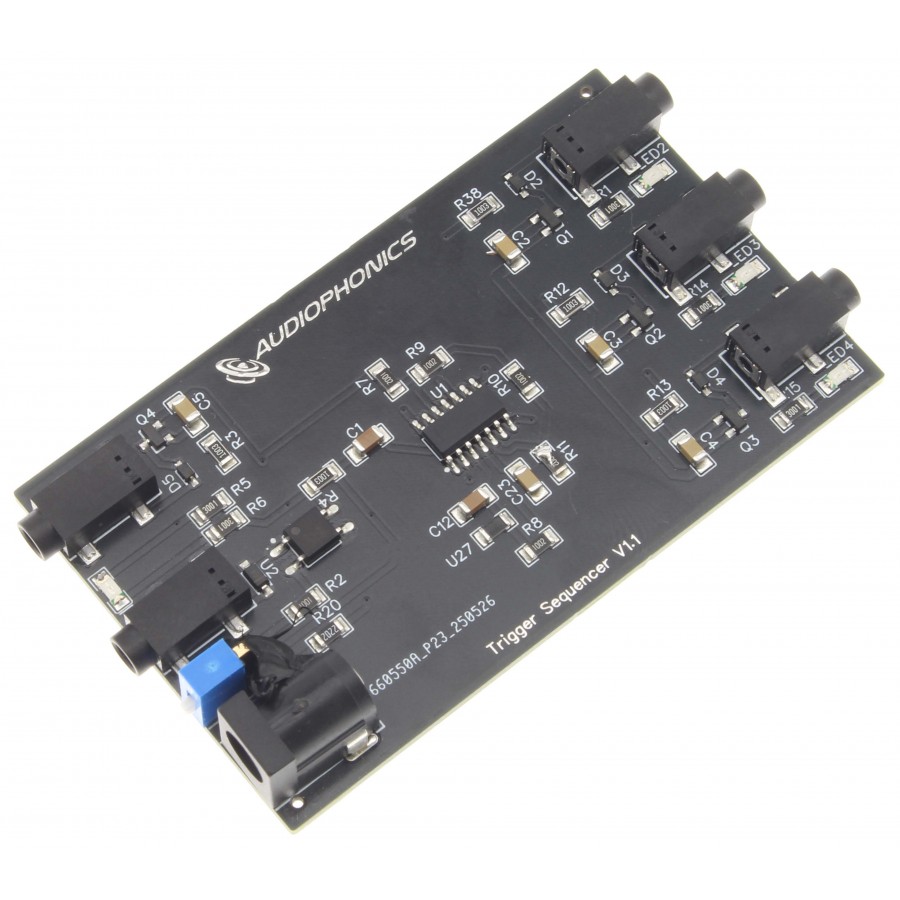

L'intérieur du Audiophonics Trigger Séquenceur Actif

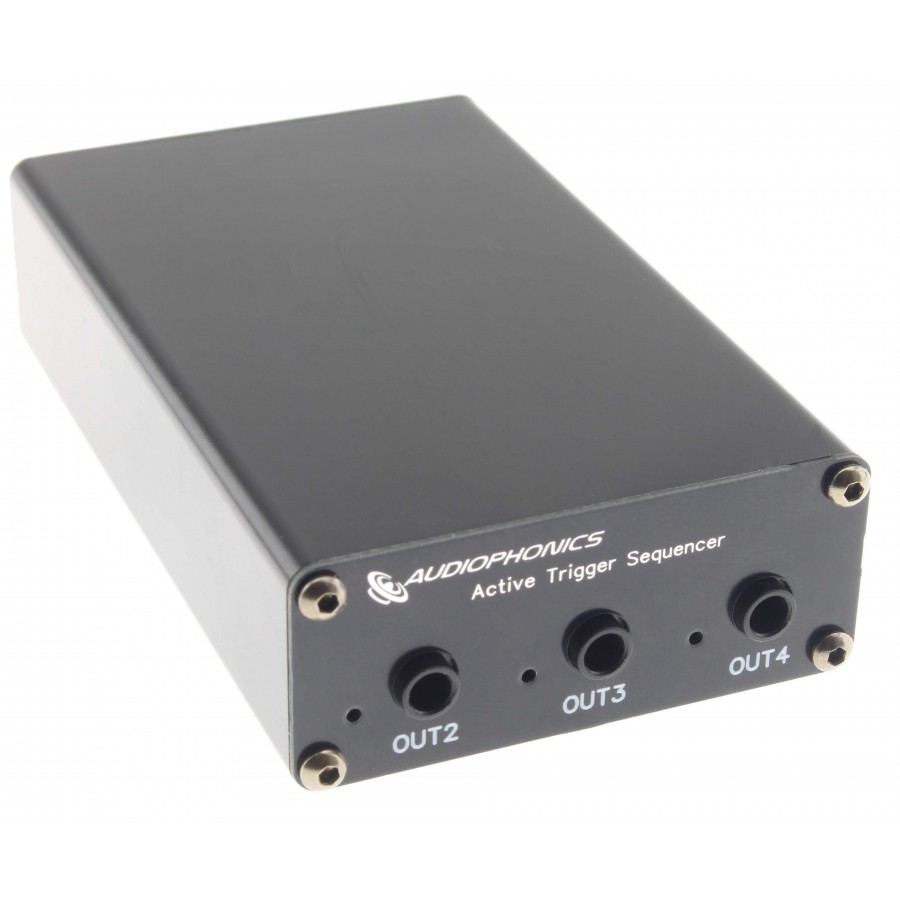

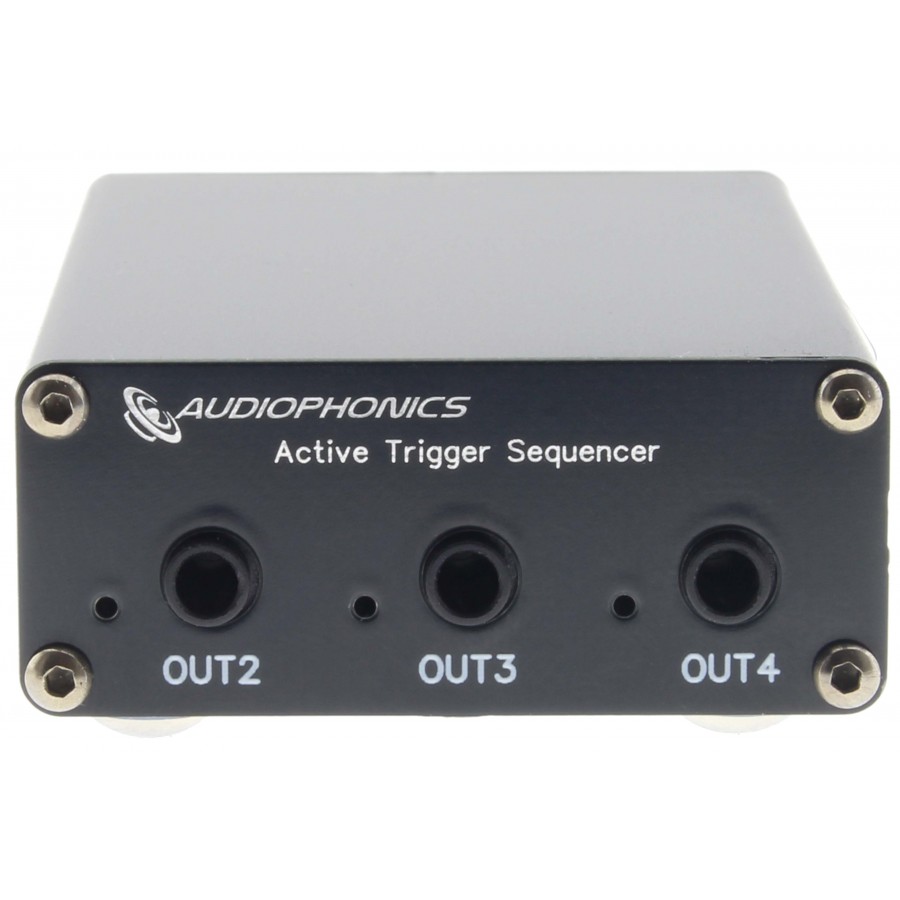

Audiophonics active trigger sequencer overview

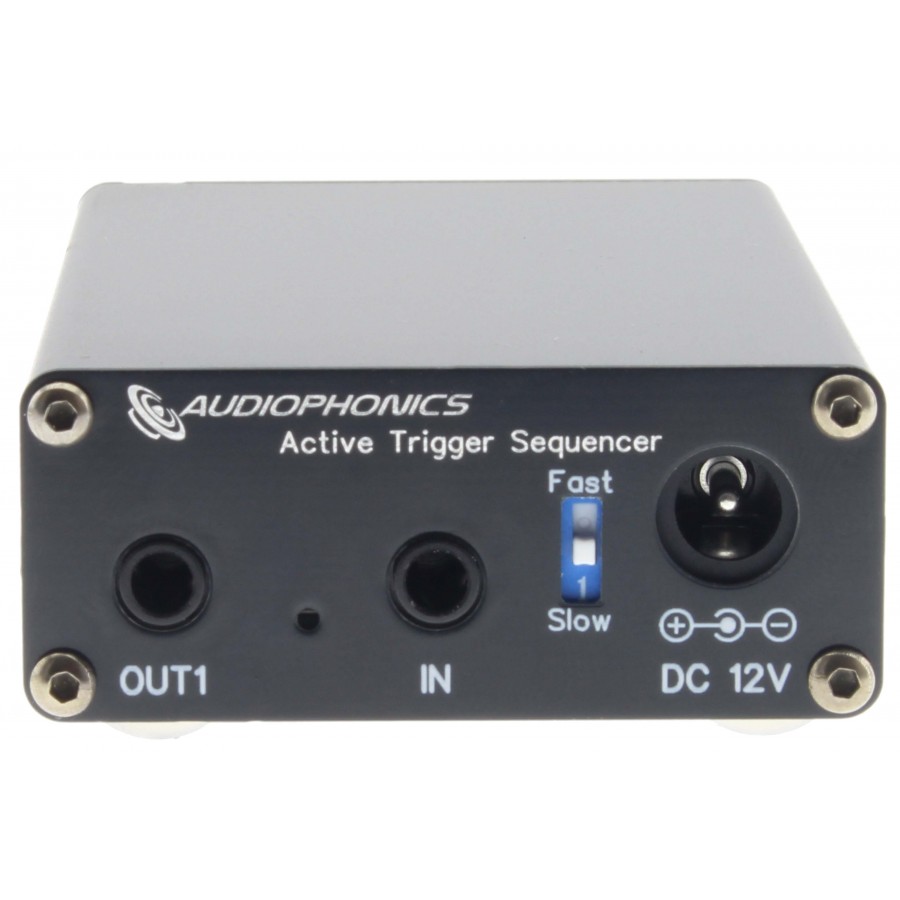

Aperçu du Trigger Séquenceur Actif Audiophonics
1Trigger input 3.5mm jack 2V-20V
2#1 Trigger output jack 3.5mm 12VV
3#2 Trigger output jack 3.5mm 12V
4#3 Trigger output jack 3.5mm 12V
5#4 Trigger output jack 3.5mm 12V
6SLOW/FAST mode switch
712V power supply

Sequence times

Trigger output #1 starts instantly in any operating mode. In SLOW mode, #2 will activate 2 seconds later, followed by #3 and #4 at intervals of 1 second each. In FAST mode, outputs #2 #3 #4 will each activate at 300 millisecond intervals.

Sequence time diagram

Technical characteristics

Specifications
Product typeTrigger sequencer
Input1x 3.5mm jack 2V-20V trigger input
Outputs4x 3.5mm  jack 12V trigger output
Operating modeSLOW/FAST
Sequence timingSLOW: 2sec - 1 sec - 1 sec
FAST: 300ms - 300ms - 300ms
General
Alimentation12V via jack DC
Dimensions80 x 50 x 25cm
Weight65g
ColorBlack

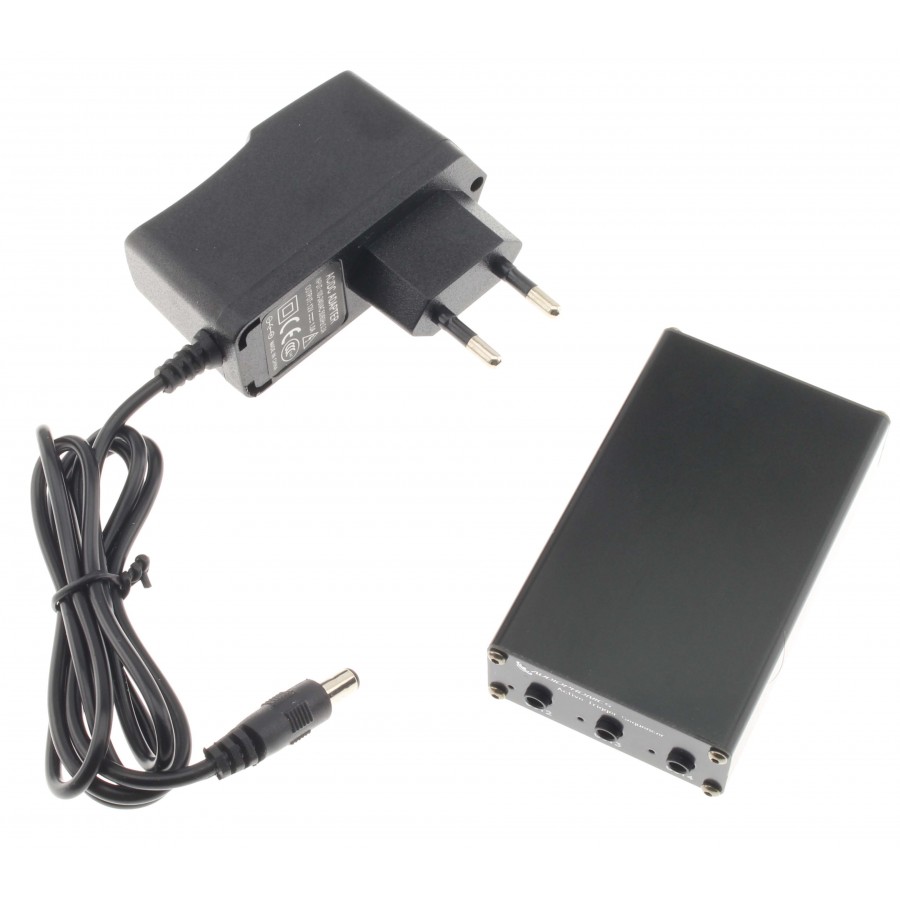

Package1x Audiophonics trigger active sequencer
1x 12V 1A power adapter
