IAN CANADA LIFEPO4 MINI PRO Battery Power Supply Module 3.3V
By buying this product you get 14 loyalty points
![[GRADE B] MATRIX ELEMENT P2 Power Amplifier Class D Stereo 2x230W / Mono 1x850W 4 Ohm](https://www.audiophonics.fr/62087-thumb_default/matrix-element-p2-power-amplifier-class-d-stereo-2x230w-mono-1x850w-4-ohm.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.

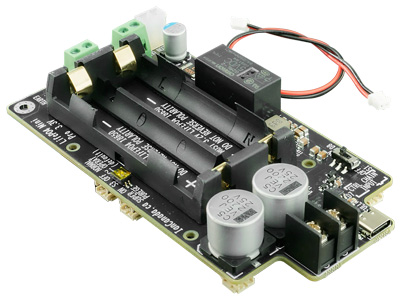

Ian Canada LifePO4MiniPro Battery Power Supply Module 3.3V
The Ian Canada LifePO4Mini Pro 3.3V is a well-designed, next-generation pure power supply module. It has many new features and is a major step forward from the current LifePO4 Mini series.
The LifePO4Mini Pro 3.3V uses four 18650 batteries in parallel to achieve a maximum capacity of 8000mAh with extremely low output ESR. Thanks to the USB-C PD (Power Delivery) protocol, 12V/9V fast charging mode is activated when a compatible USB AC adapter is connected. In addition, a Super-Pure mode (UPS mode) is introduced for the first time to enable it to function as an ultra-pure power supply without AC/DC input for noise-sensitive applications.
Furthermore, since this is a purely passive power supply, there is no feedback or active components involved. The sound quality of sensitive audio applications such as low-jitter clock oscillators, DACs, FIFOs, and many other circuits will benefit from this LifePO4Mini Pro power supply.
Thanks to this new state-of-the-art LifePO4Mini Pro 3.3V power supply, many high-end digital audio DIY projects can be carried out in a more professional manner.
18650 LifePO4 batteries are sold separately.
Be careful not to reverse the direction of the batteries.
Key features:
- 8000mAh (4x 18650 LifePO4 batteries).
- Current capacity of 12A continuous and 50A dynamic.
- Actual output ESR measurement @ 1kHz: 6.1mOhm (fuse bypass) / 8.9mOhm (with default 12A fuse).
- In “Pure-Mode,” the outputs are completely isolated from the input. There is no ground loop.
- Can be powered by a 6-12V AC or USB-C DC power supply.
- USB-C PD 9V/12V protocol for fast charging.
- Super-Pure Mode (UPS): Can provide pure battery output even without mains power.
- Rewritable fuse with very low ESR: no need to replace fuses.
- Independent low ESR output connectors for positive and negative terminals.
- Internal and external on/off switch.
- Input (isolated) and output of the ON/OFF control chain.
- SYNC IN/OUT charging (isolated).
- Low-current (100mA) 5V AUX output to provide an additional 5V output.
- 3.3V output.
- Can be upgraded to a hybrid supercapacitor/battery power supply when used with a UcConditionerPro 3.3V or UcHybrid.
- Has both switched and continuous outputs.
- Protection mode to prevent battery depletion or low output voltage.
- Four-layer printed circuit board design with two additional layers for low ESR and high current and additional shielding.
- More compact design.
- The mounting screw positions are compatible with Raspberry Pi-sized circuit boards (HAT).
- Precision manufacturing.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Battery power supply module |
| Batteries | 4x 18650 2000mAh LifePO4 (sold separately) |
| Supply voltage | 6-12V AC or 5V DC via USB |
| Output voltage | 3.3V |
| Output current | 12A continuous 50A dynamic |
| ESR @ 1kHz | 6.1mOhm (fuse bypass) 8.9mOhm (with 12A fuse as standard) |
| Power input connector | USB-C |
| USB protocol | USB-PD (Power Delivery) |
| Chargin sync | In / Out |
| ON/OFF control chain | In / Out |
| Auxiliary output | 5V 100mA |
| General | |
|---|---|

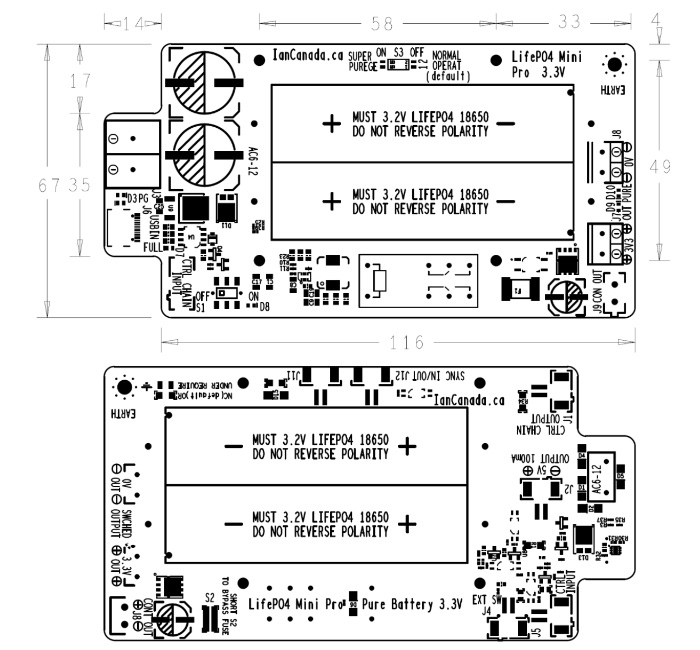

| Dimensions | 130 x 67mm |
| Mounting holes spacing | 58 x 52mm |
| Input | Screw terminals |
| Input | USB |
| Output | Screw terminals |
| Output voltage (V) | 3.3 |
| Output current (A) | 240.0 |
| Input voltage (V) | 9.0 |
| Input voltage (V) | 5.0 |
| Input voltage (V) | 12.0 |
| Power Supply | Battery |
