JANTZEN AUDIO Gold plated Binding posts 20mm (Pair)

JANTZEN AUDIO Gold plated Binding posts 25mm (Pair)

Average votes for this product
5.0 / 5

By buying this product you get 1 loyalty point


Reference : 9734
New product

11,90 €tax incl.

9,92 € tax excl.

- +

Shipping date: 21-02-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

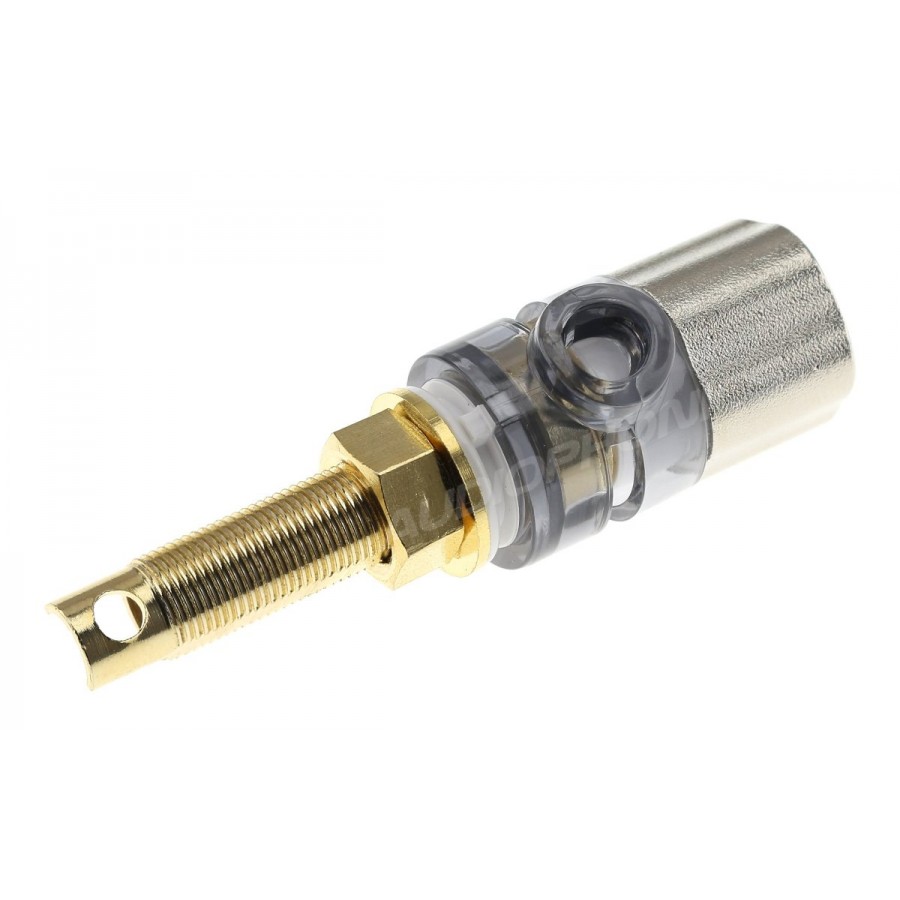

Jantzen Audio Speaker terminals 20mm

Gold-plated / sold by 2 units (red + white)




These terminal blocks are designed for mounting on boxes and enclosures with a thickness of 20mm or less. The connectors are gold plated to ensure excellent conduction of the audio signal.

They can receive a bare speaker cable via a screw-in insert, allowing cable conductors up to ⌀5mm - as well as audio banana plugs (4mm).

The end piece intended to be connected to the loudspeaker is connected by soldering.

Specifications
TypeSpeaker terminals
ContactsGold6plated
FinishNickel
Max panel thickness20mm
Max cable diameter4 mm
Accepts banana plugsYes (4mm)
Fixation (towards speaker)Solder
Fixation (towards amplifier)scew / banana plug
MarkingsColor : white + red
Screw Thread8.8 mm
Max length70 mm
Max width22 mm
Screw length33 mm

Data sheet
Mounting typeTo weld
ConnecticFemale
Max panel thickness (mm)20.0
Accepts Banana PlugsYes
ConnectorSpeaker terminal
Contacts Material (Connector)Copper Alloy
Contacts Plating (Connector)Gold

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
4 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Superbe et pratique à l'usage
Excellent produit, avec une qualité de conception et de construction exemplaire.
Attention ce sont des borniers aux dimensions pour le moins généreuses à réserver aux enceintes de moyennes supérieures et grosses.
Je recommande pleinement
 (0)
 (0)
This review has been posted for JANTZEN AUDIO Gold plated Binding posts 20mm (Pair)
Note :
 5/5
Date :
Vraiment superbe sans se ruiner!
 (0)
 (0)
This review has been posted for JANTZEN AUDIO Gold plated Binding posts 20mm (Pair)
Note :
 5/5
Date :
Very good
Very good binding posts for it's price, well very good in any terms. Accepts bare wire, forks and bananas. Has a good soldering option for internal wire and has good insulation. Might feel a bit loose parts when not installed in place, but are solid after they've been put together and tightened. Have bought them already several pairs and will buy more in future.
 (0)
 (0)
This review has been posted for JANTZEN AUDIO Gold plated Binding posts 20mm (Pair)
Note :
 5/5
Date :
Quality binding posts
Very good and robust looking binding post and heavy in weight.
These Jantzen will not be my last .
 (3)
 (0)
This review has been posted for JANTZEN AUDIO Gold plated Binding posts 20mm (Pair)
