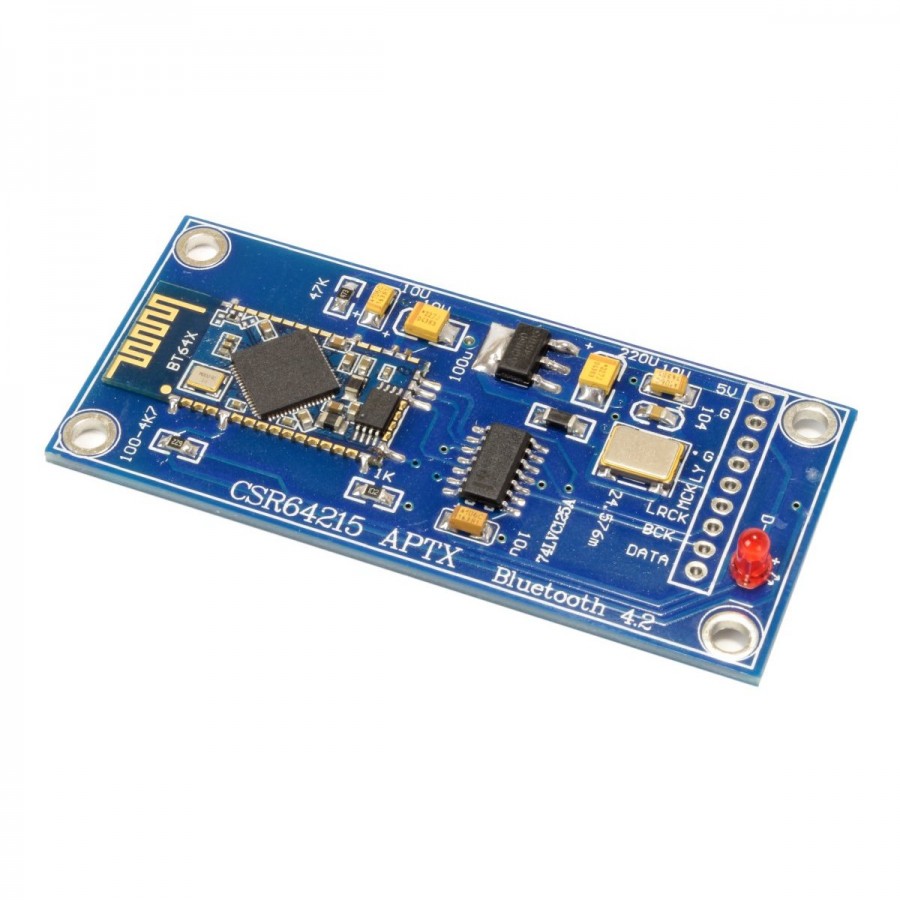

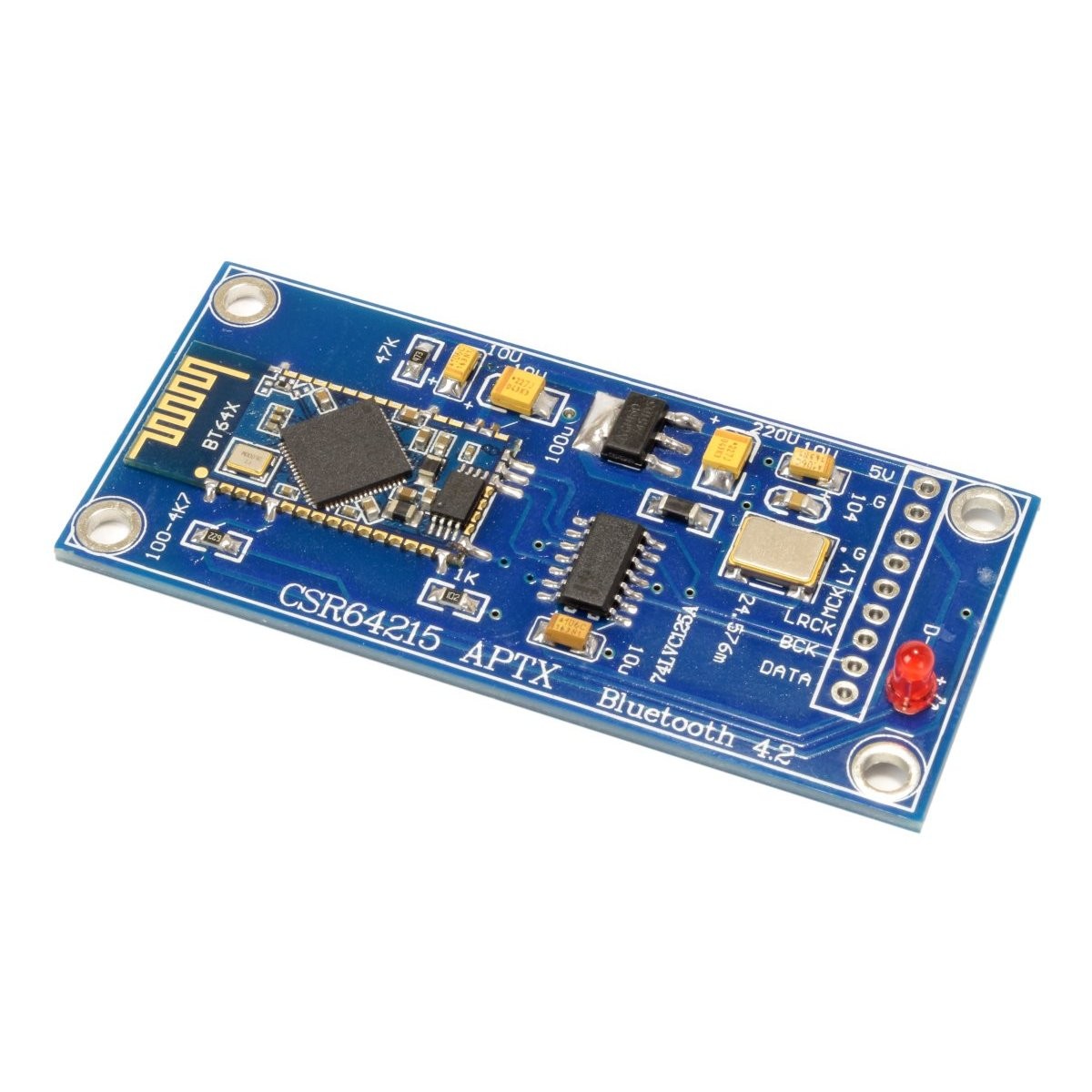

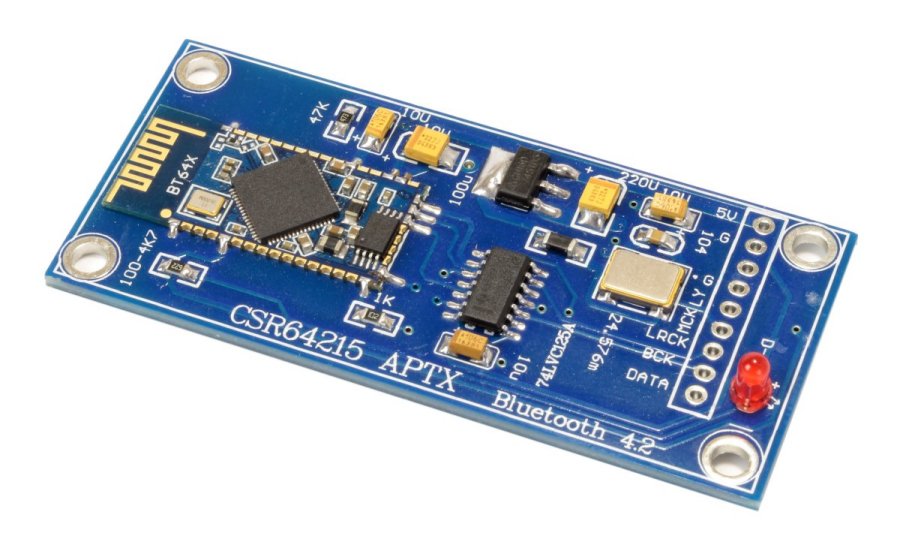

Bluetooth Receiver CSR64215 4.2 aptX to I2S

Bluetooth Receiver CSR64215 4.2 to I2S
This module provides your audio installation with Bluetooth 4.2 connectivity. Its embed technology Apt-X allows it to receive audio streams with an almost insignificant loss rate

Average votes for this product
5.0 / 5

By buying this product you get 1 loyalty point


Reference : 12666
New product

14,08 €tax excl.

Including 0,01 € for green tax

- +

Shipping date: 13-07-2020.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

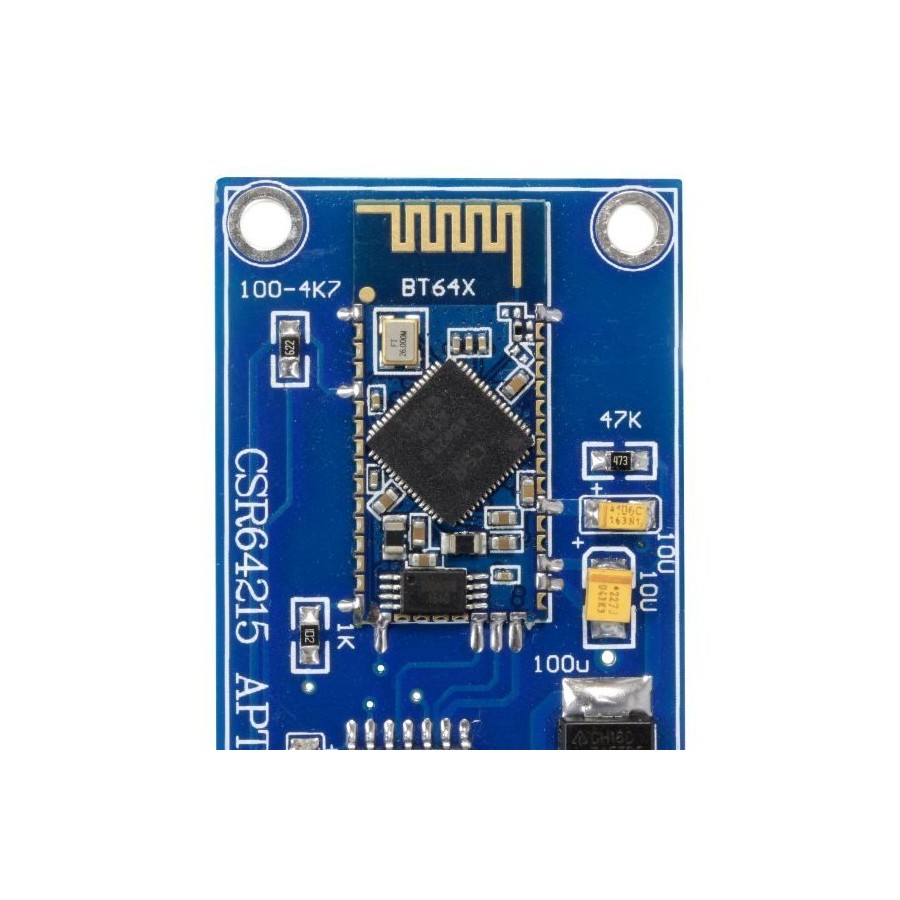

Module bluetooth CSR64215

bluetooth module output I2S

This module provides your audio installation with Bluetooth 4.2 connectivity. Its embed technology Apt-X allows it to receive audio streams with an almost insignificant loss rate. This encoding / decoding technology is automatic, which means the card will automatically adjust the compression transfer depending on the audio file type. This minimizes the loss to an almost imperceptible level of FLAC.

Conversely, when an already compressed audio file is submitted, this Bluetooth Module automatically detects and adapts to not to apply additional compression. MP3 files less than 350kb / s will thus be transmitted as is without any treatment so as not to denature the audio definition.

Bluetooth optimized for DAC 100mHz (ESS Sabre)

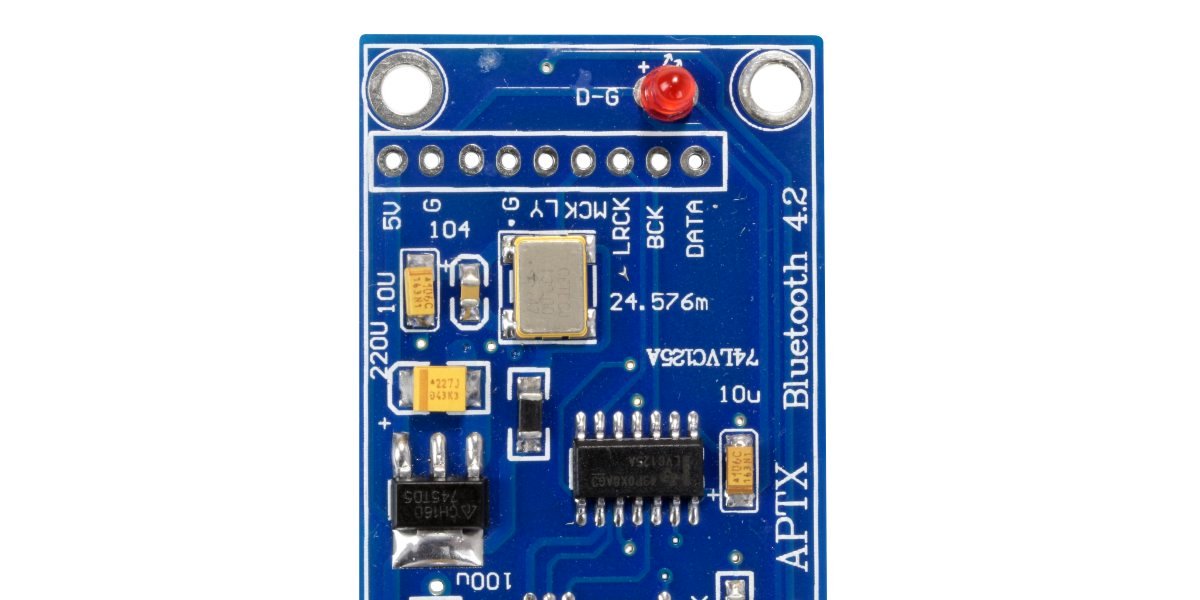

i2s output bluetooth CSR64215 modulus

The Bluetooth module is equipped with an I2S output with a 100 mHz fixed MLCK (compatible ESS 9018, 9028, 9038), so it can connect directly to a  Sabre DAC equiped with this kind of input in order to enjoy both wireless connectivity and high-quality conversion.

The output MCK (MasterClock) supplied with 5V enables it to significantly reduce jitter for a result well above the ordinary Bluetooth connectivity.

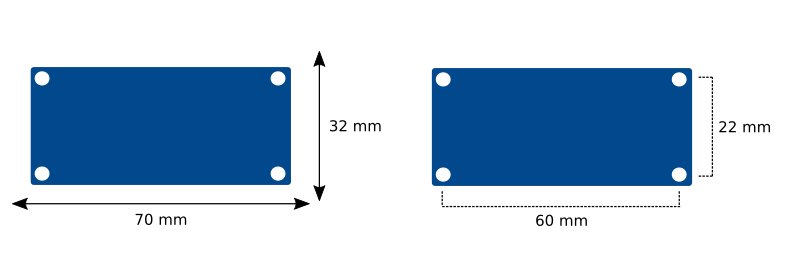

Size and spacing Bluetooth Module

Specifications
Typebluetooth receiver
Version4.2
ChipCSR64215
InputBluetooth (wireless)
OutputI2S (MLCK fixed at 100mhz)
AlimentationDC 5V
DimensionsL: 32 x H : 70 x D : 3.5 mm
Weight10 g
spacing22 mm x 60 mm

Data sheet
InputBluetooth
OutputI2S LVDS via HDMI
Components / ChipCSR64215
