TINYSINE AUDIO-B PLUS TWS Bluetooth Audio Receiver Module TWS aptX Stereo / Double Mono

AUDIO-B PLUS Bluetooth Audio Receiver Module TWS aptX
If you want to build a Bluetooth amplifier simply and stream your music from your smartphone, then the TinySine AudioB Plus module is an excellent choice. Its particularity is to be able to pair two modules together in TWS mode to enjoy a dual mono system.

Average votes for this product
5.0 / 5

By buying this product you get 1 loyalty point


Reference : 12869
New product

19,90 €tax incl.

16,58 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 19-03-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Audio-B Plus TWS

Bluetooth Audio Receiver Module TWS aptX

Module Récepteur Audio Bluetooth TWS aptX

The special feature of this module: the TWS mode

On this AudioB Plus module the TWS mode has been activated. So, if you wish, you can use two AudioB Plus modules to create a dual mono system. You'll enjoy the audio quality of this type of editing while still having the convenience of Bluetooth transmission.

In TWS mode, depending on use, configuration may be required. You will find in the "Download" tab of this page a tutorial as well as the GigaControl management application for Android.

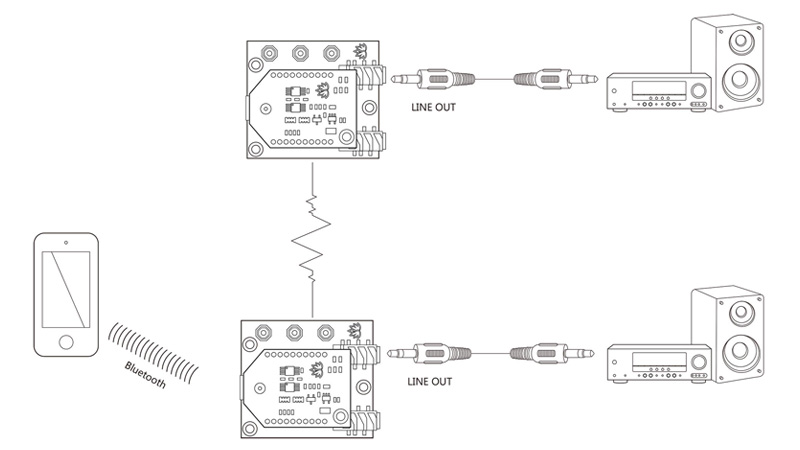

Connection diagram: two modules connected in TWS mode

If you want to build a simple Bluetooth amplifier and stream your music from your smartphone, then the TinySine AudioB Plus module is an excellent choice. This wireless receiver is based on a Bluetooth 4.2 CSRA64215 chip and also has a 3.5mm Jack input and output to connect to your audio system. As a result, you can stream and control your music directly from your smartphone while enjoying the sound qualities of your audio system.

In addition, the integrated Bluetooth chip supports aptX technology. This allows a more stable transmission and a better synchronization of the signals, ensuring a very good audio reproduction.


Mounting diagram

If you want to use Bluetooth mode, make sure the line input is not connected.

Technical characteristics

Specifications
Bluetooth versionBluetooth 4.2
Integrated technologiesaptX, TWS
InputsBluetooth
Line input Jack 3.5mm
OutpuJack 3.5mm Line Output
Reception distance10-15m
Power supplyFemale Micro USB - 5V DC
Dimensions42 x 37 x 11mm

Data sheet
InputBluetooth
InputJack 3.5mm
OutputJack 3.5mm

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
bitz
Works.
But beware, the aux in is a simple (mechanical) switch on the aux plug. This is different than the i2s module from tinysine. Works only on the module, you can't use a extention cable.
 (0)
 (0)
This review has been posted for TINYSINE AUDIO-B PLUS TWS Bluetooth Audio Receiver Module TWS aptX Stereo / Double Mono
Note :
 5/5
Date :
EXCELLENT !!!
Vraiment très bien, je ne l'utilise que mono récepteur. (pas en TWS). néanmoins très bien, avec une connexion ultra rapide et simple (je ne l'ai pas renommé). Le niveau sortie ligne est très bon (plus de sauce qu'avec mon précédent JAB 2). la qualité audio est parfaite . je recommande vivement.
 (0)
 (0)
This review has been posted for TINYSINE AUDIO-B PLUS TWS Bluetooth Audio Receiver Module TWS aptX Stereo / Double Mono

TINYSINE AUDIO-B PLUS TWS Bluetooth Audio Receiver Module TWS aptX Stereo / Double Mono
If you want to build a Bluetooth amplifier simply and stream your music from your smartphone, then the TinySine AudioB Plus module is an excellent...
