The SHANLING CD50 is a CD player designed for playback of CD, CD-R and CD-RW discs, while integrating a Cirrus Logic CS43198 digital-to-analog converter and a dual SGM8262 headphone amplifier. Its transport mechanism equipped with an HD850 laser ensures precise CD playback with support for gapless playback, while its 2.2-inch color display and front-panel buttons provide direct access to the device's settings and functions, which can also be controlled using the supplied remote control. The CD50 features an RCA analog output that can be used as a Line Out or preamplifier output, as well as coaxial and optical digital outputs. For headphone listening, it offers two outputs, a 3.5mm single-ended jack and a 4.4mm balanced jack, the latter delivering up to 830mW at 32Ω, compared to 210mW at 32Ω for the 3.5mm output. With its compact 188 × 205 × 53mm chassis and a weight of approximately 1.6kg, the Shanling CD50 provides a complete and space-saving solution for enjoying your CD collection with a line output or headphone listening.

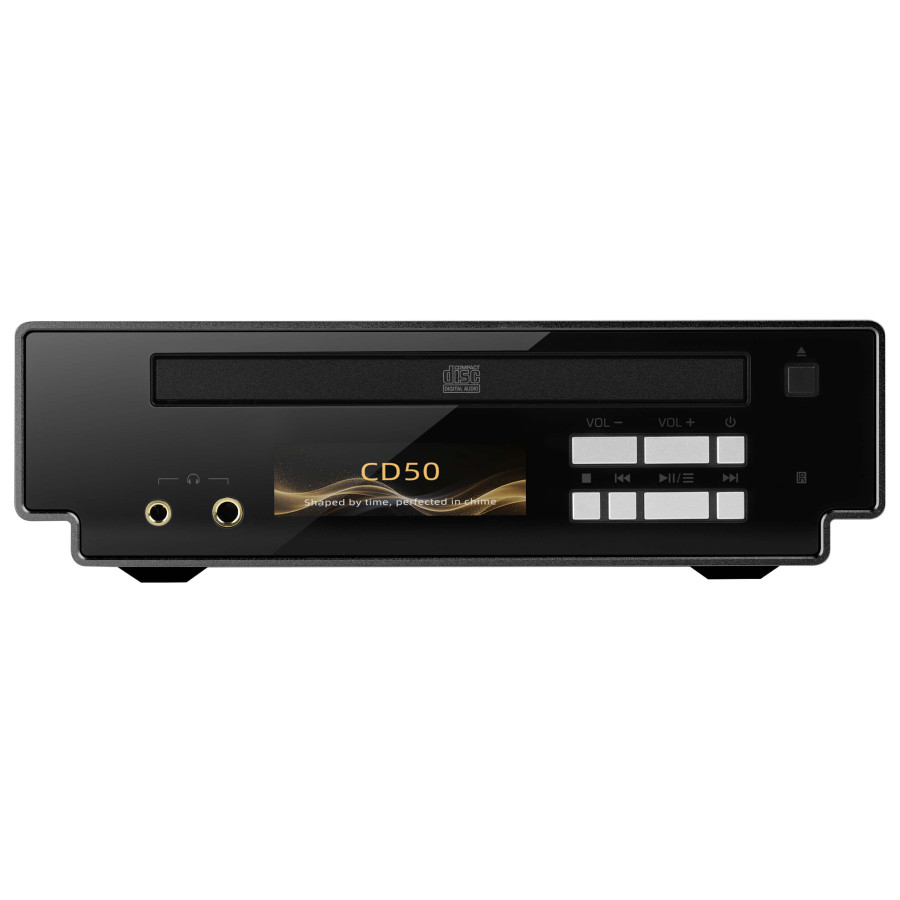

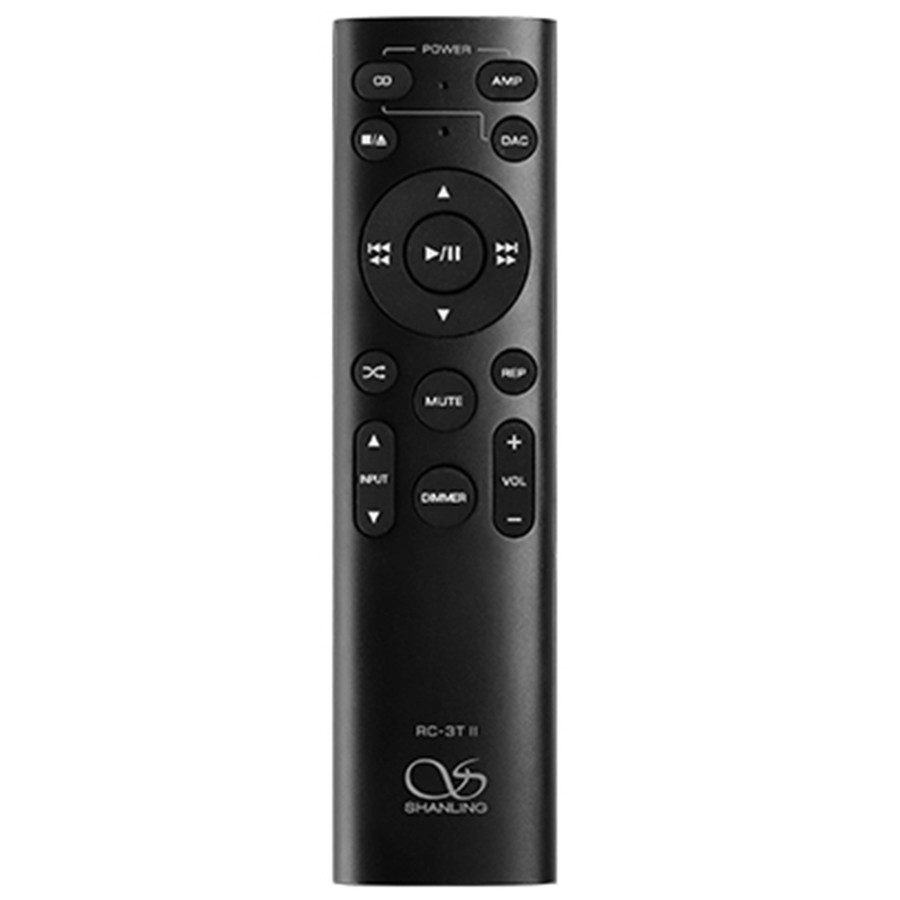

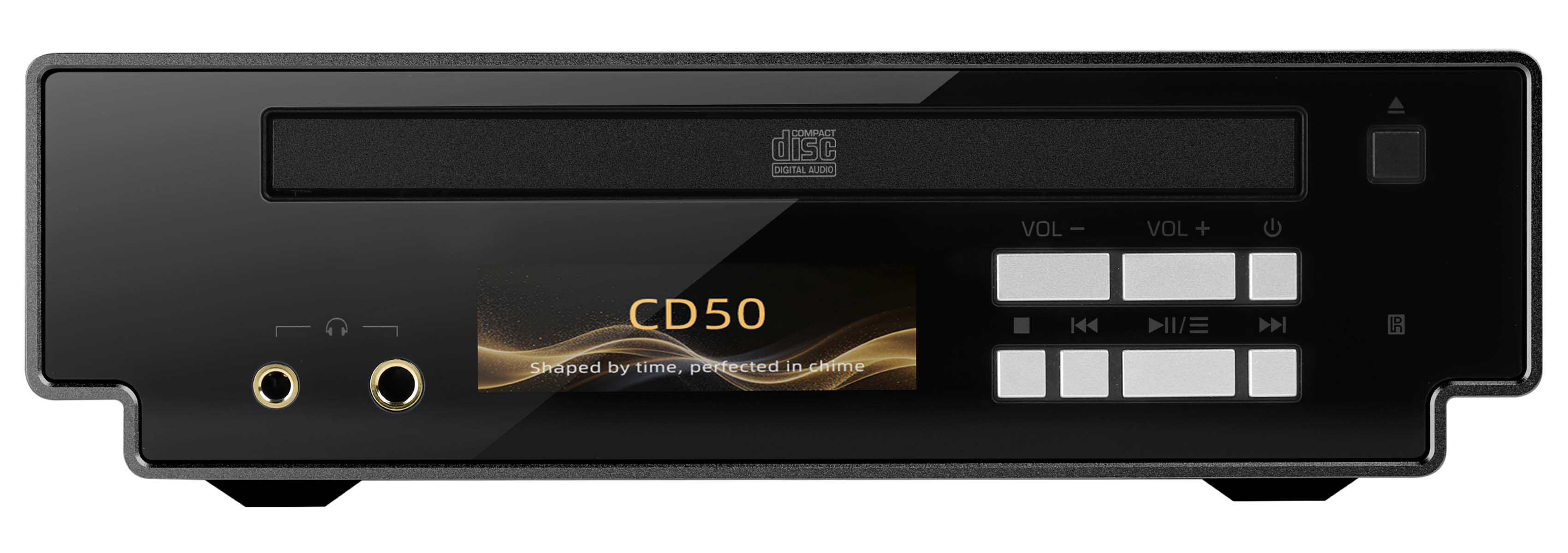

The Shanling CD50 features a CD playback mechanism equipped with an HD850 laser and supports CD, CD-R and CD-RW discs. It also supports gapless playback, ensuring continuity between tracks when the original recording contains no silence between them. The device features a 2.2-inch display accompanied by front-panel control buttons, with a remote control also allowing it to be operated from a distance.

The CD50's digital-to-analog conversion is handled by a Cirrus Logic CS43198 chip. Its RCA output delivers a level of 2.6Vrms, with a frequency response from 20Hz to 20kHz (-0.4dB), THD+N of 0.002%, a dynamic range and signal-to-noise ratio of 124dB, as well as an output impedance of 100Ω. For integration into different systems, the player also features coaxial and optical digital outputs, allowing the signal to be transmitted to a DAC or another digital audio device.


| 1 | CD Slot |
| 2 | 3.5mm Headphone Output |
| 3 | 4.4mm Headphone Output |
| 4 | Display |
| 5 | Control Panel |
| 6 | RCA Line / Preamplified Output |
| 7 | Toslink Optical Output |
| 8 | Coaxial SPDIF Output |
| 9 | USB-A Port for Updates |
| 10 | 100-240V AC 50/60Hz Power Input |
Technical Specifications
| Specifications | |
|---|---|
| Product Type | CD Player |
| Mechanism | Sanyo HD850 |
| DAC Chip | CS43198 |
| Op-Amp | 2x SGM8262 |
| Input | CD |
| Output | 1x RCA 1x Toslink Optical 1x Coaxial SPDIF 1x 3.5mm Headphone Output 1x 4.4mm Balanced Headphone Output |
| Supported CD Formats | CD / CD-RW / CD-R |
| Gapless Playback | |
| Digital Output Sampling Rates | Up to PCM 24bit 192kHz and DSD DOP64 |
| RCA Output | |
|---|---|
| Output Level | 2.6Vrms |
| Frequency Response | 20Hz-20kHz (-0.4dB) |
| THD+N | 0.002% |
| Dynamic Range | 124dB |
| 3.5mm Headphone Output | |
|---|---|
| Output Power | 210mW @ 32 ohms |
| Frequency Response | 20Hz-20kHz (-0.4dB) |
| THD+N | 0.002% |
| Channel Separation | 64dB @ 32 ohms |
| Dynamic Range | 124dB |
| SNR | 124dB |
| Noise Floor | 116dB (<1.5uV) |
| Output Impedance | 1 ohm |
| 4.4mm Headphone Output | |
|---|---|
| Output Power | 830mW @ 32 ohms |
| Frequency Response | 20Hz-20kHz (-0.4dB) |
| THD+N | 0.002% |
| Channel Separation | 105dB @ 32 ohms |
| Dynamic Range | 126dB |
| SNR | 126dB |
| Noise Floor | 112dB (<2.5uV) |
| Output Impedance | 1 ohm |
| General | |
|---|---|
| Power Supply | 100-240V AC 50/60Hz |
| Dimensions | 188 x 205 x 53mm |
| Weight | 1.6kg |
| Color | Black |
| Package Contents | 1x SHANLING CD50 CD Player 1x Remote Control 1x Power Cable |
