SHANLING CD50 CD Player Silver

New
The SHANLING CD50 is a CD player designed for playback of CD, CD-R and CD-RW discs, while integrating a Cirrus Logic CS43198 digital-to-analog converter and a dual SGM8262 headphone amplifier.

No customer reviews yet, login to write a review.

By buying this product you get 29 loyalty points


Yes, notify me when available !
Reference : 22483
New product

299,00 €tax incl.

249,17 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

SHANLING CD50 CS43198 SGM8262 CD Player Silver

SHANLING CD50

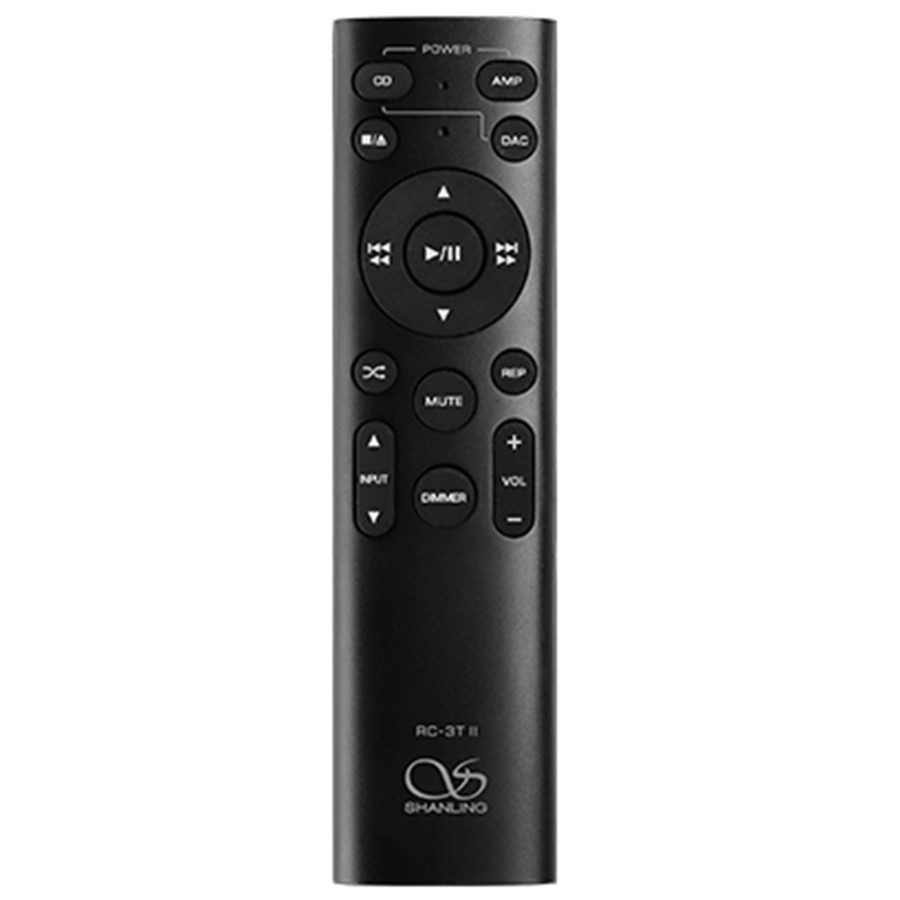

The SHANLING CD50 is a CD player designed for playback of CD, CD-R and CD-RW discs, while integrating a Cirrus Logic CS43198 digital-to-analog converter and a dual SGM8262 headphone amplifier. Its transport mechanism equipped with an HD850 laser ensures precise CD playback with support for gapless playback, while its 2.2-inch color display and front-panel buttons provide direct access to the device's settings and functions, which can also be controlled using the supplied remote control. The CD50 features an RCA analog output that can be used as a Line Out or preamplifier output, as well as coaxial and optical digital outputs. For headphone listening, it offers two outputs, a 3.5mm single-ended jack and a 4.4mm balanced jack, the latter delivering up to 830mW at 32Ω, compared to 210mW at 32Ω for the 3.5mm output. With its compact 188 × 205 × 53mm chassis and a weight of approximately 1.6kg, the Shanling CD50 provides a complete and space-saving solution for enjoying your CD collection with a line output or headphone listening.

SHANLING CD50: HD850 CD Mechanism and Gapless Playback

The Shanling CD50 features a CD playback mechanism equipped with an HD850 laser and supports CD, CD-R and CD-RW discs. It also supports gapless playback, ensuring continuity between tracks when the original recording contains no silence between them. The device features a 2.2-inch display accompanied by front-panel control buttons, with a remote control also allowing it to be operated from a distance.

SHANLING CD50: HD850 CD Mechanism and Gapless Playback

SHANLING CD50: Cirrus Logic CS43198 DAC and Multiple Outputs

The CD50's digital-to-analog conversion is handled by a Cirrus Logic CS43198 chip. Its RCA output delivers a level of 2.6Vrms, with a frequency response from 20Hz to 20kHz (-0.4dB), THD+N of 0.002%, a dynamic range and signal-to-noise ratio of 124dB, as well as an output impedance of 100Ω. For integration into different systems, the player also features coaxial and optical digital outputs, allowing the signal to be transmitted to a DAC or another digital audio device.

SHANLING CD50: Cirrus Logic CS43198 DAC and Multiple Outputs

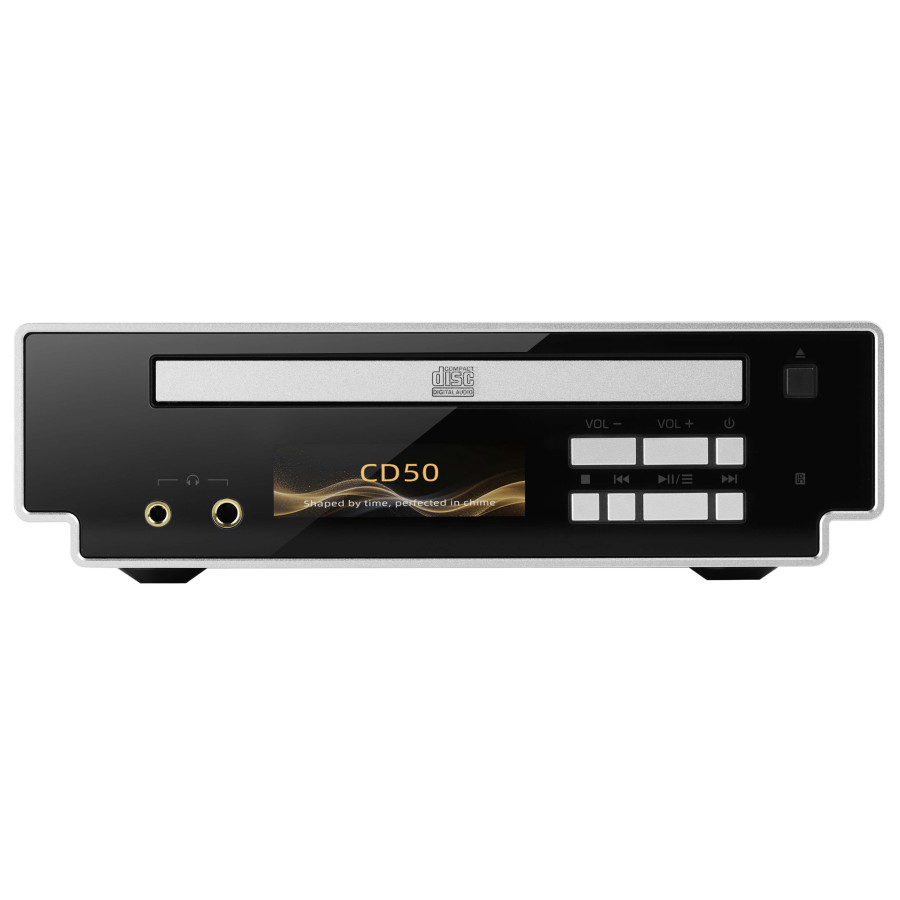

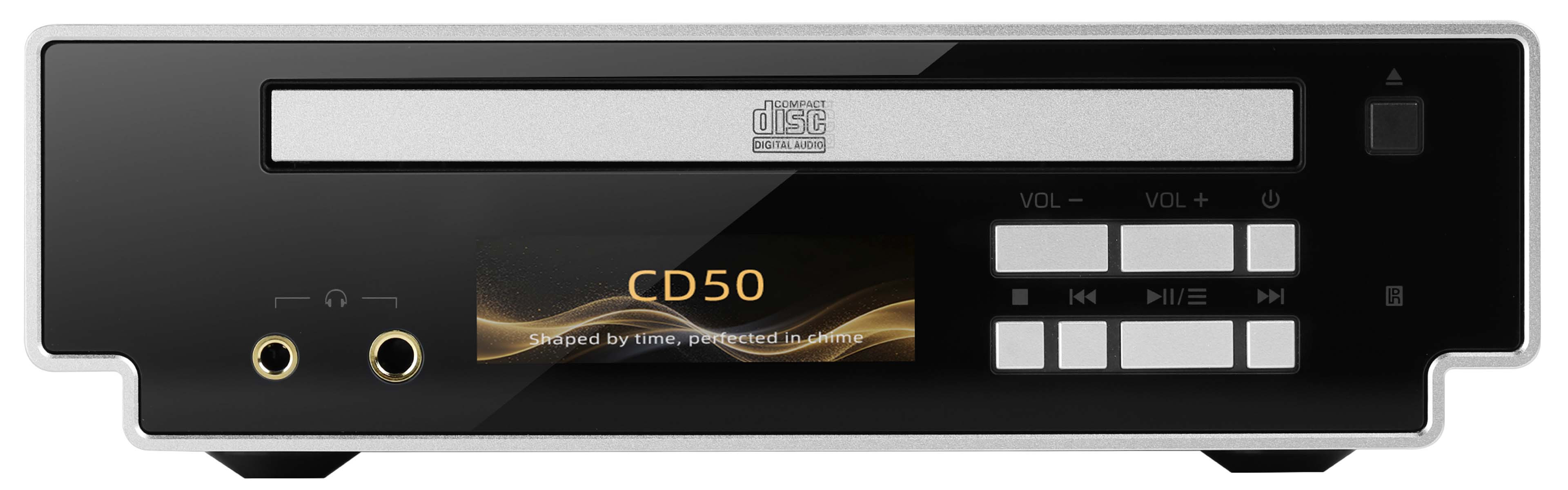

Overview of SHANLING CD50

Overview of the SHANLING CD50
1CD Slot
23.5mm Headphone Output
34.4mm Headphone Output
4Display
5Control Panel
6RCA Line / Preamplified Output
7Toslink Optical Output
8Coaxial SPDIF Output
9USB-A Port for Updates
10100-240V AC 50/60Hz Power Input

Technical Specifications

Specifications
Product TypeCD Player
MechanismSanyo HD850
DAC ChipCS43198
Op-Amp2x SGM8262
InputCD
Output1x RCA
1x Toslink Optical
1x Coaxial SPDIF

1x 3.5mm Headphone Output
1x 4.4mm Balanced Headphone Output
Supported CD FormatsCD / CD-RW / CD-R
Gapless Playback
Digital Output Sampling RatesUp to PCM 24bit 192kHz and DSD DOP64
RCA Output
Output Level2.6Vrms
Frequency Response20Hz-20kHz (-0.4dB)
THD+N0.002%
Dynamic Range124dB
3.5mm Headphone Output
Output Power210mW @ 32 ohms
Frequency Response20Hz-20kHz (-0.4dB)
THD+N0.002%
Channel Separation64dB @ 32 ohms
Dynamic Range124dB
SNR124dB
Noise Floor116dB (<1.5uV)
Output Impedance1 ohm
4.4mm Headphone Output
Output Power830mW @ 32 ohms
Frequency Response20Hz-20kHz (-0.4dB)
THD+N0.002%
Channel Separation105dB @ 32 ohms
Dynamic Range126dB
SNR126dB
Noise Floor112dB (<2.5uV)
Output Impedance1 ohm
General
Power Supply100-240V AC 50/60Hz
Dimensions188 x 205 x 53mm
Weight1.6kg
ColorSilver
Package Contents1x SHANLING CD50 CD Player
1x Remote Control
1x Power Cable
