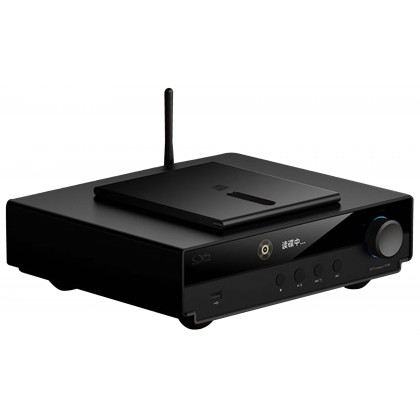

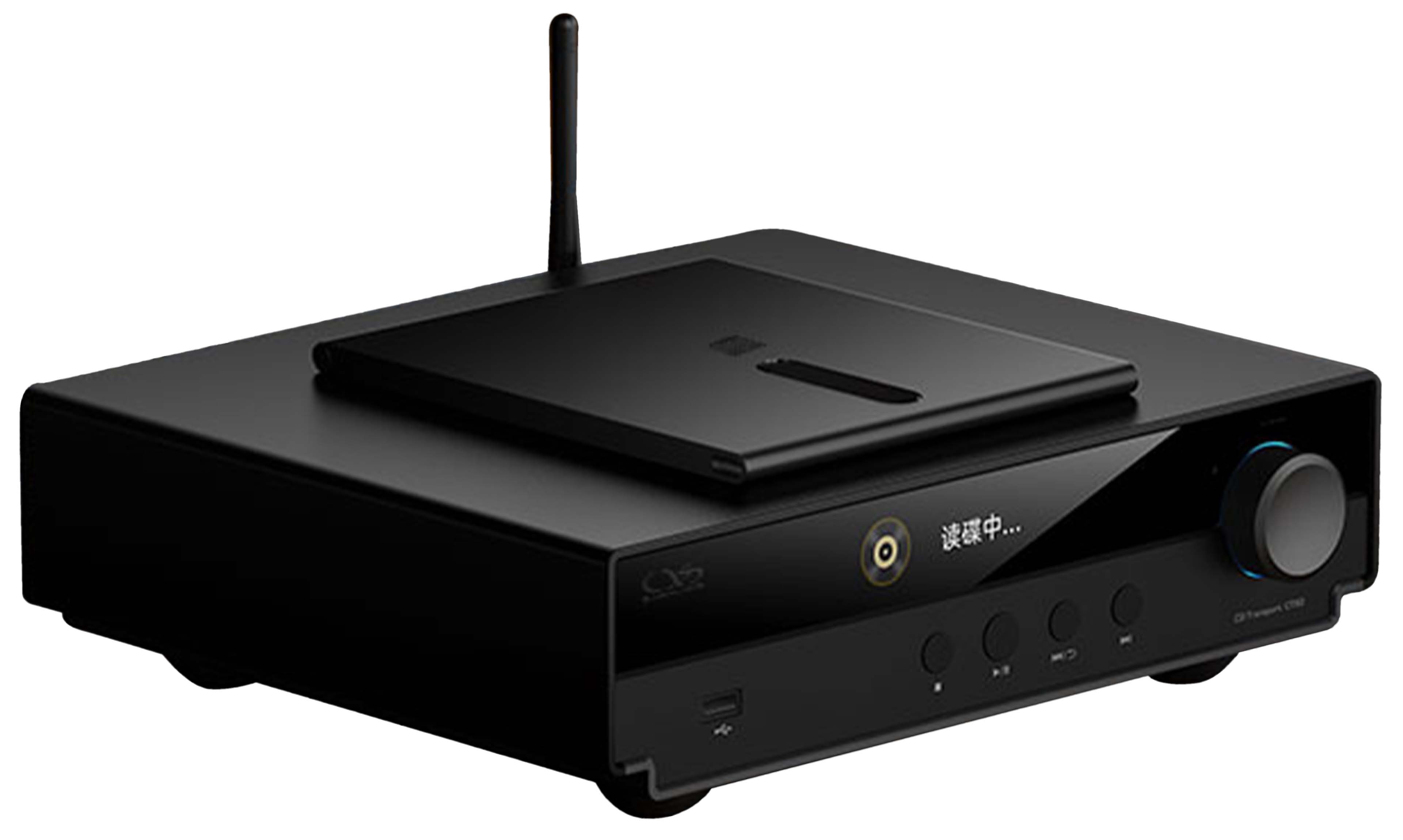

SHANLING CT90 CD Transport MQA-CD Black
By buying this product you get 89 loyalty points
Shanling CT90 Transport Bluetooth 5.0 LDAC 32-bit 768kHz DSD512 MQA-CD Black

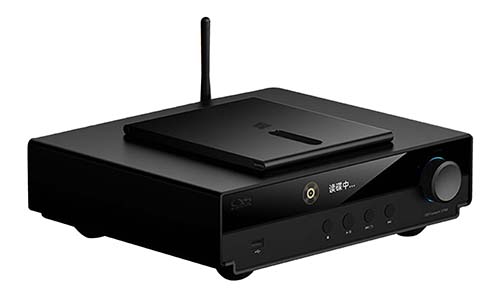

The Shanling CT90 is a high-fidelity CD transport. It is based on a Sanyo DA11 playback system and a SAA7826 decoder for the most faithful reproduction. It supports high-resolution streams up to PCM 32bit 768kHz, DSD512, and MQA-CD with upsampling. In addition, it features Bluetooth 5.0 with support for high-resolution AAC, SBC, aptX, aptX HD, and LDAC codecs. The modern Eddict Player app also allows you to fully control the CT90. In terms of connectivity, there is a USB-B transport input, as well as numerous digital outputs, including an I2S LVDS output via HDMI. A BNC input also offers the possibility of using an external clock. The whole unit is powered by a 35W linear power supply consisting of an audiophile-grade toroidal transformer.
Shanling CT90: MQA-CD support
The Shanling CT90 supports the MQA format with various options. It offers full support (4x), basic support (2x), and an MQA source mode to adapt to the DAC that would come next in the audio chain.
| MQA INDICATOR | |
|---|---|
| MQA type | LED indicator |
| MQA | Green |
| MQA Studio | Blue |
| MQA rendering | Purple |
Shanling CT90: Dedicated upsampling chip
With its dedicated CT7302 upsampling chip, the CT90 can adapt the signal to almost any PCM or DSD DAC.
Please note that upsampling is not available on the USB output. Upsampling is possible via I2S up to PCM 32bit 768 kHz and DSD512, but also via AES/EBU or coaxial SPDIF up to PCM 24bit 192 kHz and DSD DoP64.

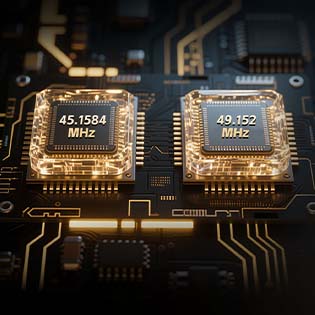

Shanling CT90: Audiophile clocks
The CT90 uses two 45MHz / 49MHz oscillators to radically optimize jitter and deliver a highly accurate digital signal.
Shanling CT90 : Bluetooth 5.0
The Shanling CT90 features a Bluetooth input and supports high-definition AAC, SBC, aptX, aptX HD, and LDAC codecs for fast, high-quality wireless playback.

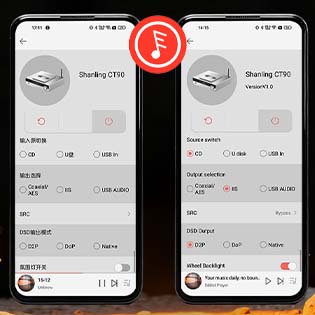

Shanling CT90 : Eddict Player App
Available on Android and iOS, the Eddict Player app lets you control the CT90 for simplified playback of your discs or files thanks to an ergonomic and practical interface.

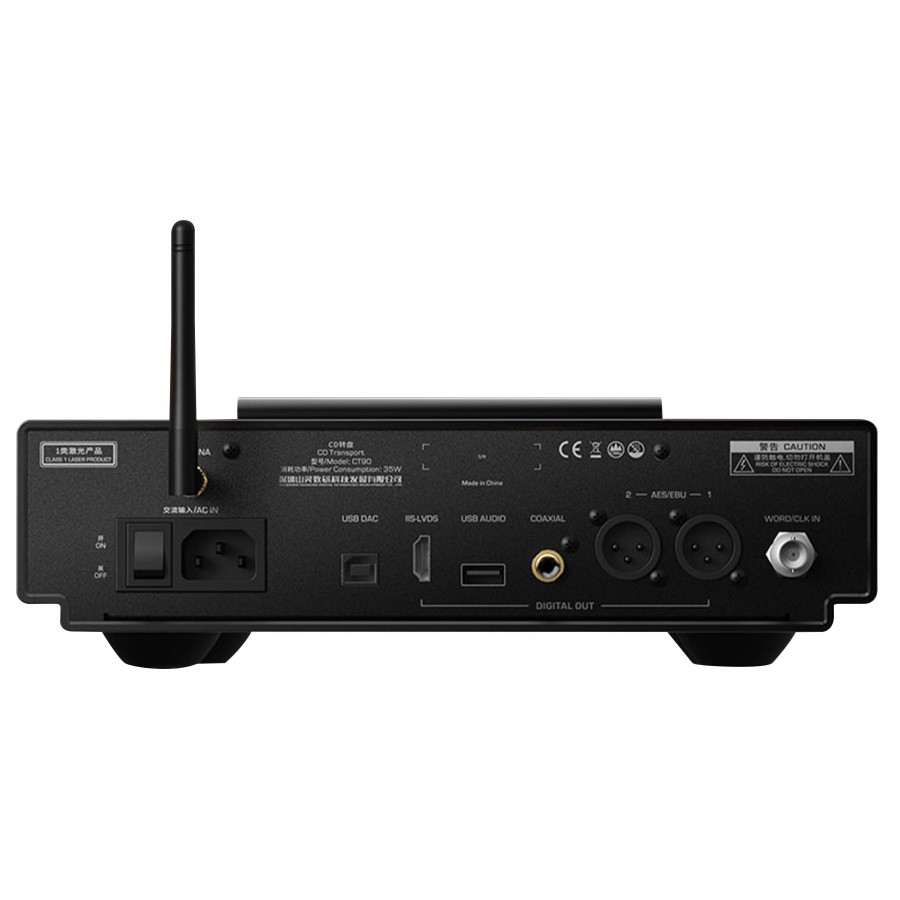

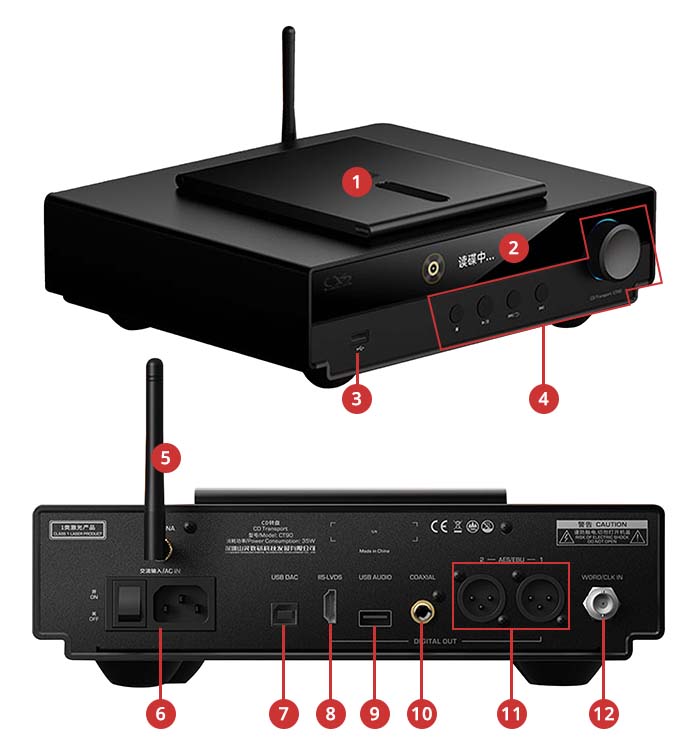

Shanling CT90 overview
| 1 | CD holder |
| 2 | 4.8-inch screen |
| 3 | USB-A Host |
| 4 | Control buttons |
| 5 | Bluetooth antenna |
| 6 | IEC mains power supply |
| 7 | USB-B input |
| 8 | I2S LVDS output via HDMI |
| 9 | USB-A output |
| 10 | Coaxial output |
| 11 | 2x AES/EBU output |
| 12 | BNC connector for external clock |
Technical characteristics
| Specifications | |
|---|---|
| Product type | CD transport |
| Reading system | DA11 read head + SA7826 servo |
| Compatible disc formats | CD, CD-R, CD-RW |
| Inputs | CD 1x USB-B 1x USB-A (HOST) Bluetooth |
| Outputs | 1x I2S LVDS via HDMI 1x USB-A 1x Coaxial 2x AES/EBU |
| Other exemple | BNC for external clock |
| Supported sampling rate | USB: up to PCM 32bit 768 kHz, DSD up to DSD512 (upsampling not supported) I2S: PCM up to 32bit 768 kHz, DSD up to DSD512 Coaxial and AES/EBU: PCM up to 24bit 192kHz, DSD DoP64 |
| Supported Bluetooth codecs | AAC, SBC, AptX, AptX HD et LDAC |
| USB Drive audio format support | DSD (.iso*, .dsf, .dff) *Please note: does not support DST encoded in ISO files ISO/DXD/APE/FLAC/WAV/AIFF/AIF/DTS/MP3/WMA/AAC/OGG/ALAC/MP2/M4A/AC3/M3U/M3U8/OPUS |
| GÉNéral | |
|---|---|
| Power supply | 100-240V AC |
| Dimensions | 28 x 23 x 9.1cm (including top cover and feet) |
| Weight | 3.5kg |
| Color | Black |
| Package | 1x Shanling CT90 1x AC power cable |
