Shanling EC ZERO T MAX Portable Battery-Powered R2R CD Player JAN6418 AD8397 Bluetooth 5.3 32bit 768kHz DSD512
The Shanling EC ZERO T MAX is a portable battery-powered audiophile CD player that also functions as a high-resolution USB DAC and Bluetooth 5.3 transmitter. It combines Shanling's proprietary R2R digital architecture with an analog output stage featuring dual Raytheon JAN6418 vacuum tubes, complemented by a headphone amplifier based on AD8397 operational amplifiers. This design delivers a warm and detailed musical presentation from both CDs and external digital sources. In USB DAC mode, the EC ZERO T MAX supports PCM streams up to 32bit / 768kHz as well as DSD512, while its Bluetooth 5.3 transmission is compatible with aptX Adaptive, aptX, and SBC codecs. It features a balanced 4.4mm headphone output delivering up to 1300mW into 32Ω, as well as a single-ended 3.5mm output delivering 330mW into 32Ω, complemented by 4.4mm and 3.5mm line outputs for seamless integration into a HiFi system. Its Philips CD mechanism with anti-vibration design, 1.68" IPS color display, JRC analog volume control, and integrated 5500mAh battery providing up to 8 hours of playback make the Shanling EC ZERO T MAX a comprehensive audiophile solution for enjoying CDs and digital sources both on the go and at home.

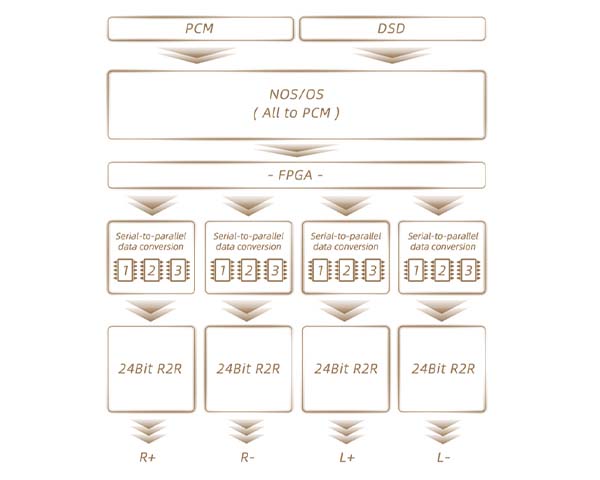

Shanling EC ZERO T MAX: R2R Architecture Combined with Dual JAN6418 Tubes
The Shanling EC ZERO T MAX combines a proprietary R2R DAC with an analog output stage built around two genuine Raytheon JAN6418 subminiature vacuum tubes. This combination delivers a natural and organic sound while maintaining excellent precision and resolution. The headphone stage is based on AD8397 operational amplifiers capable of efficiently driving both in-ear monitors and demanding audiophile headphones, delivering up to 1300mW into 32Ω via the balanced 4.4mm output.
Shanling EC ZERO T MAX: CD Player, High-Resolution USB DAC and Bluetooth 5.3 Transmission
Much more than a portable CD player, the EC ZERO T MAX can also be used as a high-resolution USB DAC supporting PCM up to 32bit / 768kHz and DSD512. Its Bluetooth 5.3 connectivity enables wireless audio transmission with support for aptX Adaptive, aptX, and SBC codecs. It therefore serves as a versatile audio source capable of playing both CDs and audio files from a computer, smartphone, or tablet while transmitting the audio stream to Bluetooth speakers or headphones.

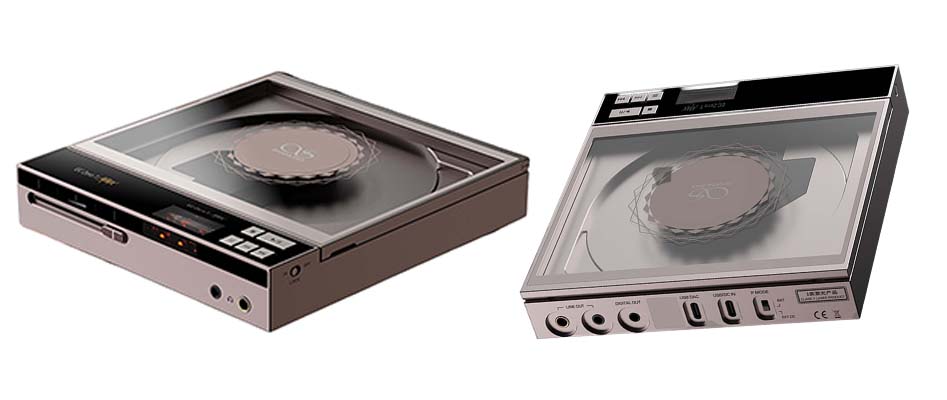

Shanling EC ZERO T MAX: Comprehensive Connectivity and Portable Audiophile Design
The Shanling EC ZERO T MAX offers extensive connectivity, including single-ended 3.5mm and balanced 4.4mm headphone outputs, rear-panel line outputs complemented by a 3.5mm SPDIF output, as well as a USB-C input dedicated to USB DAC operation.
Its Philips CD mechanism features an optimized anti-vibration design to ensure stable disc playback, while its 1.68" IPS display, JRC analog potentiometer, and rechargeable 5500mAh battery providing up to 8 hours of playback ensure comfortable operation both on the move and as part of a home HiFi system.
Technical Specifications
| Specifications | |
|---|---|
| Product Type | CD Player |
| Input | CD 1x USB-C DAC Input |
| Outputs | 1x 3.5mm Single-Ended Headphone Output 1x 4.4mm Balanced Headphone Output 1x 3.5mm Single-Ended Line Output 1x 4.4mm Balanced Line Output 1x Coaxial / Optical SPDIF Output Bluetooth |
| DAC | 24-bit R2R |
| USB DAC Support | PCM up to 32bit 768kHz DSD up to DSD512 |
| Display | 1.68" LCD |
| Digital Filter | NOS OS |
| Bluetooth Version | 5.3 |
| Supported Bluetooth Transmission Codecs | aptX Adaptive aptX SBC |
| Frequency Response | 20Hz-40kHz (-0.5dB) (USB DAC) 20Hz-20kHz (-0.5dB) (CD) |
| CD Ripper | |
| Gapless Playback | |
| 3.5mm Single-Ended Headphone Output | |
|---|---|
| Output Power (Transistor Mode) | Low Gain: 37mW @ 32Ω High Gain: 361mW @ 32Ω High Gain (External Power): 361mW @ 32Ω |
| Output Power (Tube Mode) | Low Gain: 39mW @ 32Ω High Gain: 361mW @ 32Ω High Gain (External Power): 361mW @ 32Ω |
| THD+N | 0.02% (Transistor) 1% (Tube) |
| Dynamic Range | 115dB |
| Channel Separation | 79dB |
| Signal-to-Noise Ratio (SNR) | 115dB |
| Noise (Low Gain) | 110dB |
| Output Impedance | 0.4Ω |
| 4.4mm Balanced Headphone Output | |
|---|---|
| Output Power (Transistor Mode) | Low Gain: 211mW @ 32Ω High Gain: 1300mW @ 32Ω High Gain (External Power): 1300mW @ 32Ω |
| Output Power (Tube Mode) | Low Gain: 151mW @ 32Ω High Gain: 1162mW @ 32Ω High Gain (External Power): 1162mW @ 32Ω |
| THD+N | 0.02% (Transistor) 1% (Tube) |
| Dynamic Range | 116dB |
| Channel Separation | 103dB |
| Signal-to-Noise Ratio (SNR) | 116dB |
| Noise (Low Gain) | 107dB |
| Output Impedance | 0.7Ω |
| 3.5mm Single-Ended Line Output | |
|---|---|
| Output Level (Transistor Mode) | 2.12Vrms |
| Output Level (Tube Mode) | 1.8Vrms |
| Frequency Response | 20Hz-40kHz (-0.5dB) |
| THD+N | 0.02% (Transistor) 1% (Tube) |
| Signal-to-Noise Ratio (SNR) | 115dB |
| 4.4mm Balanced Line Output | |
|---|---|
| Output Level (Transistor Mode) | 4.2Vrms |
| Output Level (Tube Mode) | 3.6Vrms |
| Frequency Response | 20Hz-40kHz (-0.5dB) |
| THD+N | 0.02% (Transistor) 1% (Tube) |
| Signal-to-Noise Ratio (SNR) | 117dB |
| General | |
|---|---|
| Power Supply | 5V / 2A |
| Dimensions | 158 x 150 x 28mm |
| Weight | 669g |
| Color | Silver |
| Package Contents | 1x Shanling EC Zero T 1x USB-A to USB-C Cable |
