SMSL PL150 CD Player CS43198 Black

New
The SMSL PL150 is a CD player based on a CS43198 DAC chip, a Philips mechanism and a PLL (Phase Locked Loop) circuit for high-quality playback and conversion of your favorite CDs.

No customer reviews yet, login to write a review.

By buying this product you get 15 loyalty points


Yes, notify me when available !
Reference : 20923
New product

159,00 €tax incl.

132,50 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

SMSL PL150 Lecteur CD CS43198 Black

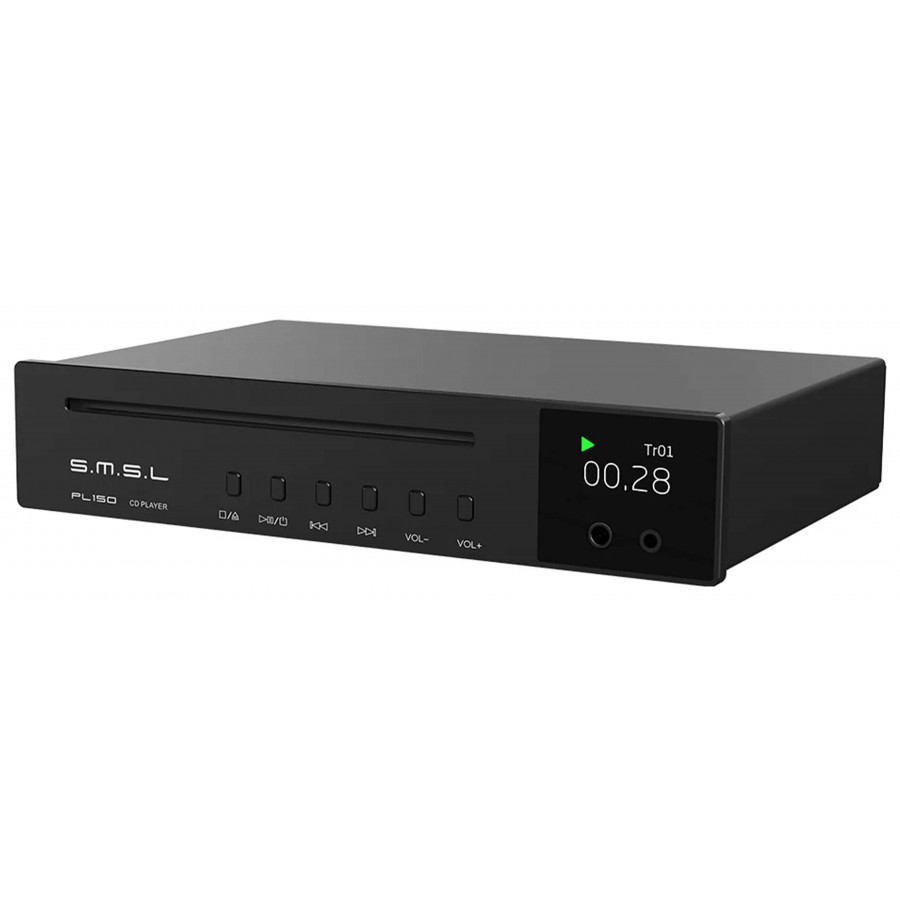

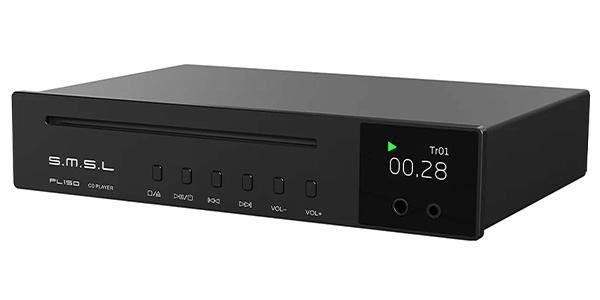

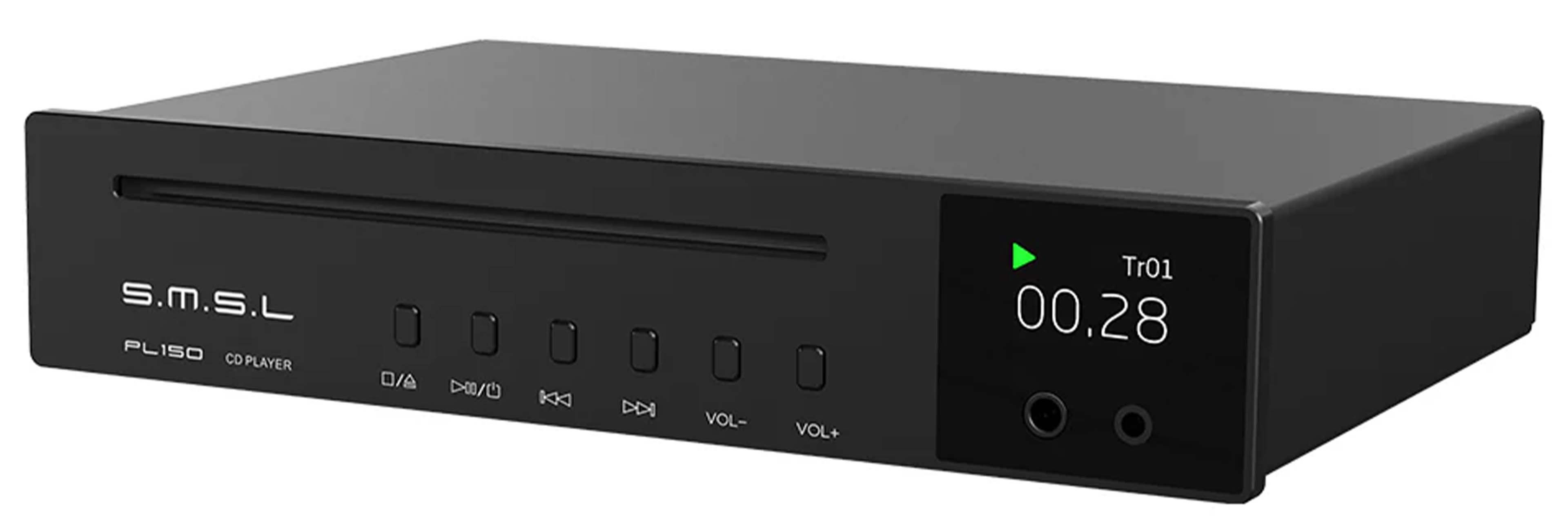

Photo of SMSL PL150


The SMSL PL150 is a CD player based on a CS43198 DAC chip, a Philips mechanism and a PLL (Phase Locked Loop) circuit for high-quality playback and conversion of your favorite CDs. Versatile, it reads both standard CDs (Ø12cm) and mini CDs (Ø8cm), and supports numerous formats: CD, CD-R, CD-RW and MP3 CD. Connections include an analog RCA output, and two bit-perfect SPDIF coaxial and Toslink optical outputs. There are also two headphone outputs on the SMSL PL150's front panel, as well as an attractive color display and various control buttons. The balanced 4.4mm jack and 3.5mm jack headphone outputs deliver up to 2x60mW @ 32 ohm, and are accompanied by a 75-step volume control for a pleasant listening experience. The user experience is further enhanced by IR remote control. All in all, the PL150 is a versatile and, above all, high-performance device that will brighten up your music library.

SMSL PL150: A CS43198 DAC chip

The PL150's CS43198 DAC chip is a low-power audio converter offering superior audio performance. It ensures clear, optimal reproduction on all the device's outputs.

Photo of CS43198 DAC chip

SMSL PL150: Bit-perfect outputs

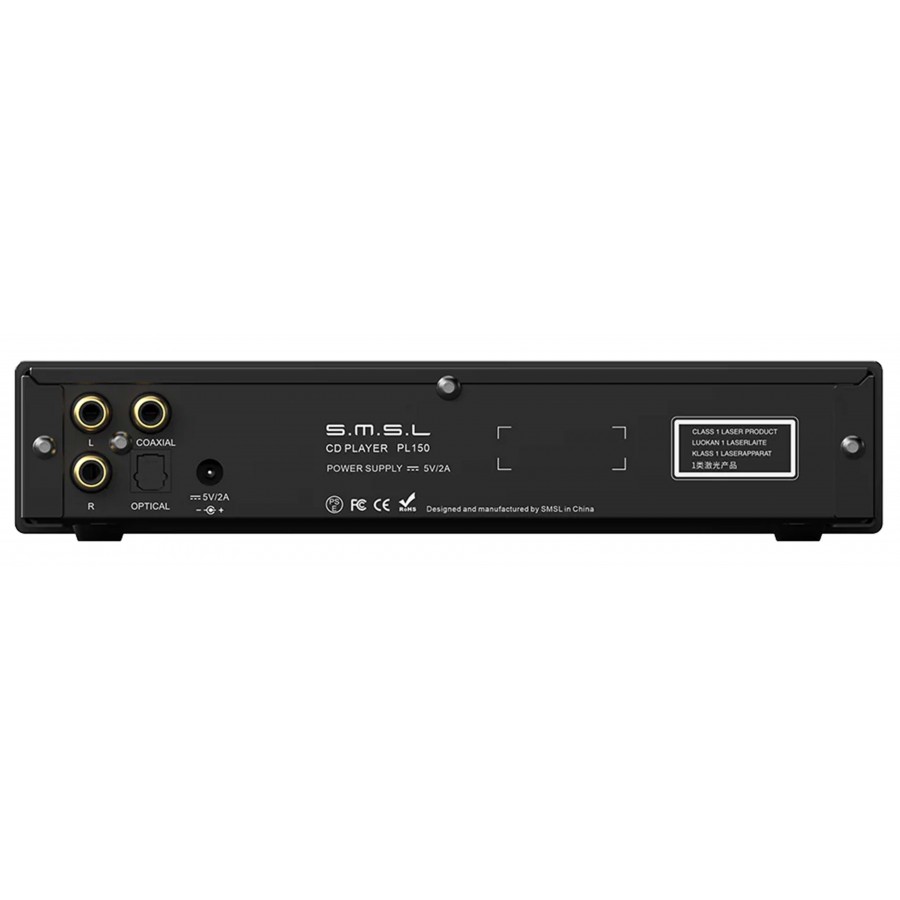

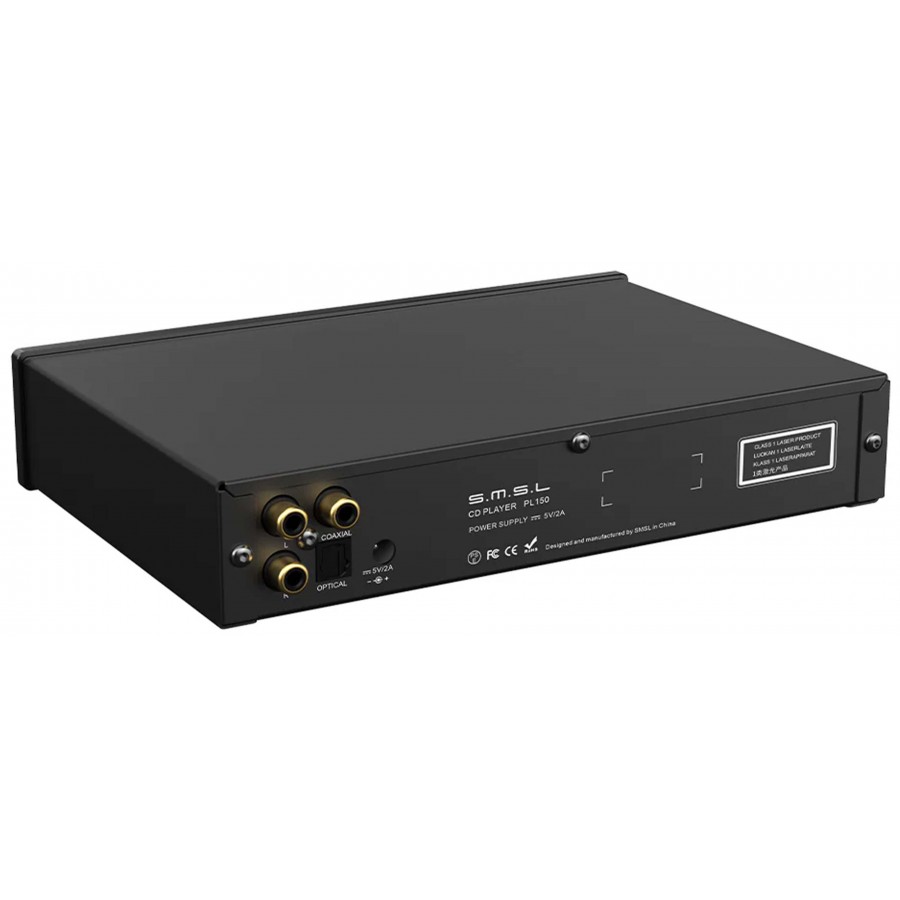

On the rear panel of the SMSL PL150, SPDIF coaxial and Toslink optical outputs bypass any analog distortion for connection to a DAC or integrated amplifier. These outputs bring out the most authentic details and dynamics emanating from CD media.

PL150 Bit-perfect outputs
SMSL PL150 headphone outputs

SMSL PL150: Balanced 4.4mm jack and single-ended 3.5mm jack headphone outputs

Capable of driving two headphones simultaneously, the 4.4mm jack and 3.5mm jack outputs deliver up to 2x 60mW of power at 32 ohms. They also feature a 75-step volume control for precise sound level adjustment.

SMSL PL150: Mechanical stabilization

The SMSL PL150 features highly efficient shock absorbers to withstand vibration and harsh environments.

The mechanical stabilization of the SMSL PL150

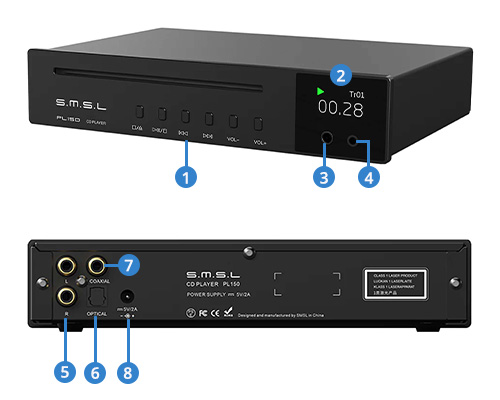

SMSL PL150 overview

SMSL PL150 overview
1Control buttons
2Screen
3Balanced 4.4mm headphone output
4Single-ended 3.5mm headphone output
5RCA output
6Toslink optical output
7Coaxial output
8Alimentation 5V 2A via jack DC

Technical charcacteristics

Specifications
Product typeCD player
DAC chipCS43198
MechanismPhilips
InputCD
Outputs1x RCA output
1x Toslink optical output
1x Coaxial output

Balanced 4.4mm jack headphone output
Single-ended 3.5mm jack headphone output
Supported CD formatsCD / CD-R / CR-RW / CD MP3
Supported CD sizesStandard Ø12cm
Mini Ø8cm
Headphone output power60mW sous 32 ohm
THD+N0.001%
SNR110dB
General
Power5V 2A
Energy consumption4W
Standby : 0.1W
Dimensions205 x 42.8 x 144.7mm
Weight1.145kg
Package1x SMSL CD player
