XDUOO CDM10 Portable CD Player DAC

New
The xDuoo CDM10 is a portable audiophile CD player that also features a high-resolution USB DAC function. Designed around a fully balanced architecture, it incorporates two Cirrus Logic CS43198 digital-to-analog converters paired with a dual Raytheon JAN6418 tube output stage, allowing instant switching between a neutral and detailed solid-state sound signature or the warmer, richer harmonic character of tubes.

No customer reviews yet, login to write a review.

By buying this product you get 46 loyalty points


Yes, notify me when available !
Reference : 22067
New product

469,00 €tax incl.

390,83 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

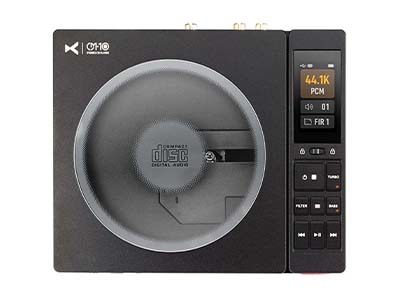

xDuoo CDM10 Portable CD Player DAC with JAN6418 Tubes and Battery 2x CS43198 32bit 384kHz DSD256

XDUOO CDM10

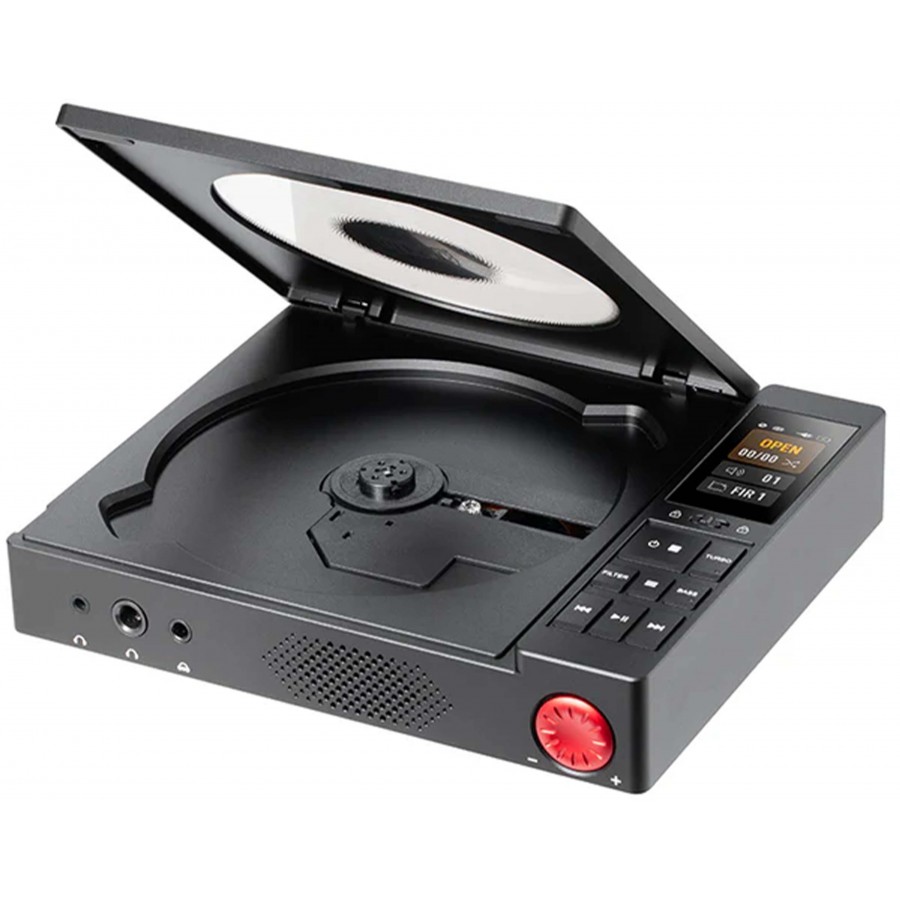

The xDuoo CDM10 is a portable audiophile CD player that also features a high-resolution USB DAC function. Designed around a fully balanced architecture, it incorporates two Cirrus Logic CS43198 digital-to-analog converters paired with a dual Raytheon JAN6418 tube output stage, allowing instant switching between a neutral and detailed solid-state sound signature or the warmer, richer harmonic character of tubes. Compatible with CD, CD-R, and CD-RW discs, it benefits from a proprietary high-precision reading mechanism combined with a dual anti-vibration isolation system to ensure stable, jitter-free playback. The CDM10 also supports PCM streams up to 32bit / 384kHz, DSD256, and 8x MQA decoding when used in USB DAC mode. Its headphone amplification section delivers up to 1087mW into 32Ω through its balanced 4.4mm output and 632mW into 32Ω through its 3.5mm and 6.35mm single-ended outputs. It also offers particularly comprehensive connectivity, including three headphone outputs as well as Coaxial S/PDIF and Optical Toslink digital outputs, plus a stereo RCA line output. Its 1.9" TFT color display, selectable 2x/4x upsampling functions, 0/+6dB gain settings, 0/+6dB Bass Boost, integrated 6000mAh lithium battery, and robust aluminum alloy chassis with tempered glass window make it a complete audiophile solution equally suited to portable and desktop use.

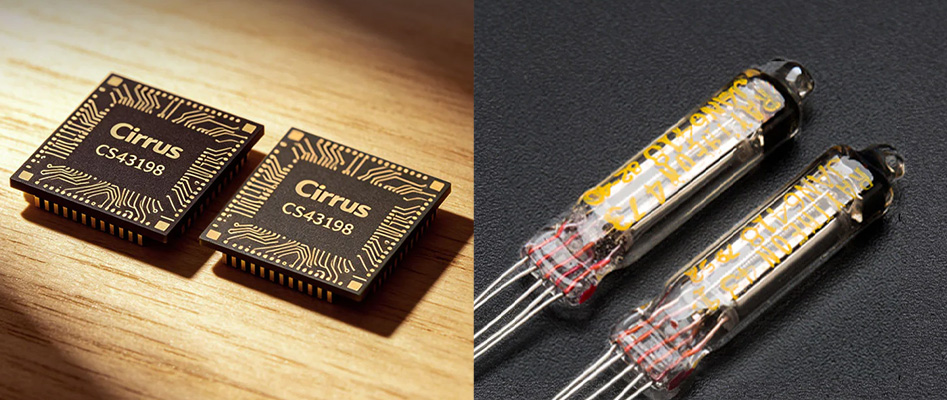

xDuoo CDM10: Dual CS43198 DACs and Dual JAN6418 Tube Stage

The CDM10 is based on two Cirrus Logic CS43198 DACs configured in a balanced 4-channel architecture to provide a signal-to-noise ratio of up to approximately 130dB and exceptionally detailed sound reproduction. Its analog stage uses two genuine Raytheon JAN6418 tubes mounted on a specially designed circuit to eliminate microphonic effects. A simple button allows instant switching between Transistor mode, emphasizing neutrality, precision, and transparency, and Tube mode, delivering a smoother, warmer, and more organic presentation.

XDUOO CDM10: Dual CS43198 DACs and Dual JAN6418 Tube Stage

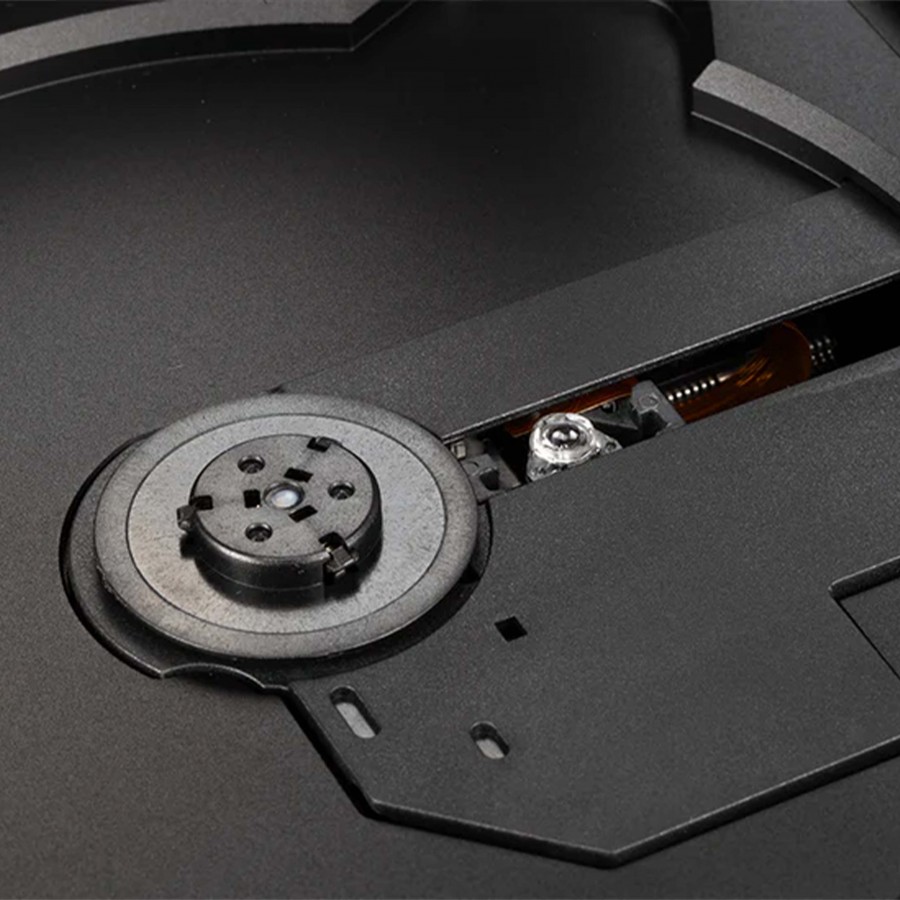

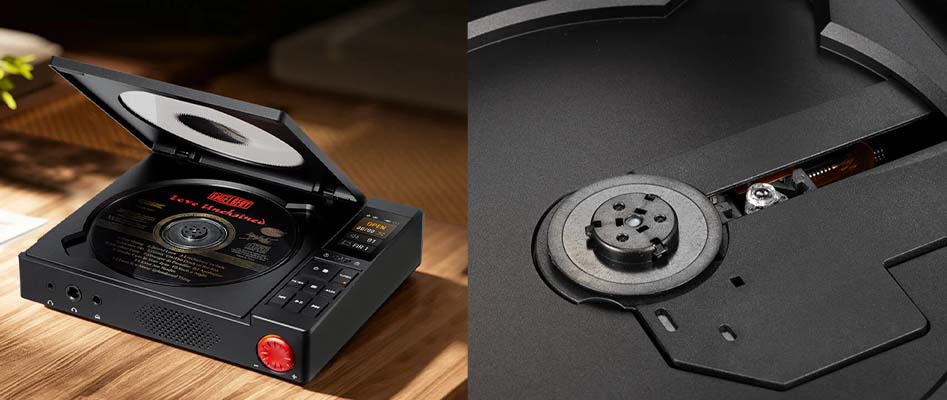

xDuoo CDM10: Proprietary CD Mechanism and High-Resolution Playback

The player uses a CD mechanism specifically developed by xDuoo, featuring an optimized servo system, fast error correction, and broad compatibility with CD, CD-R, and CD-RW discs. A dual isolation system combining electronic buffering and mechanical damping effectively reduces vibration and jitter. The CDM10 also offers selectable 2x or 4x upsampling to improve high-frequency smoothness and soundstage coherence. In USB DAC mode, it supports PCM streams from 44.1kHz to 384kHz up to 32-bit, DSD64 to DSD256, and MQA decoding up to 8x.

XDUOO CDM10: Proprietary CD Mechanism and High-Resolution Playback

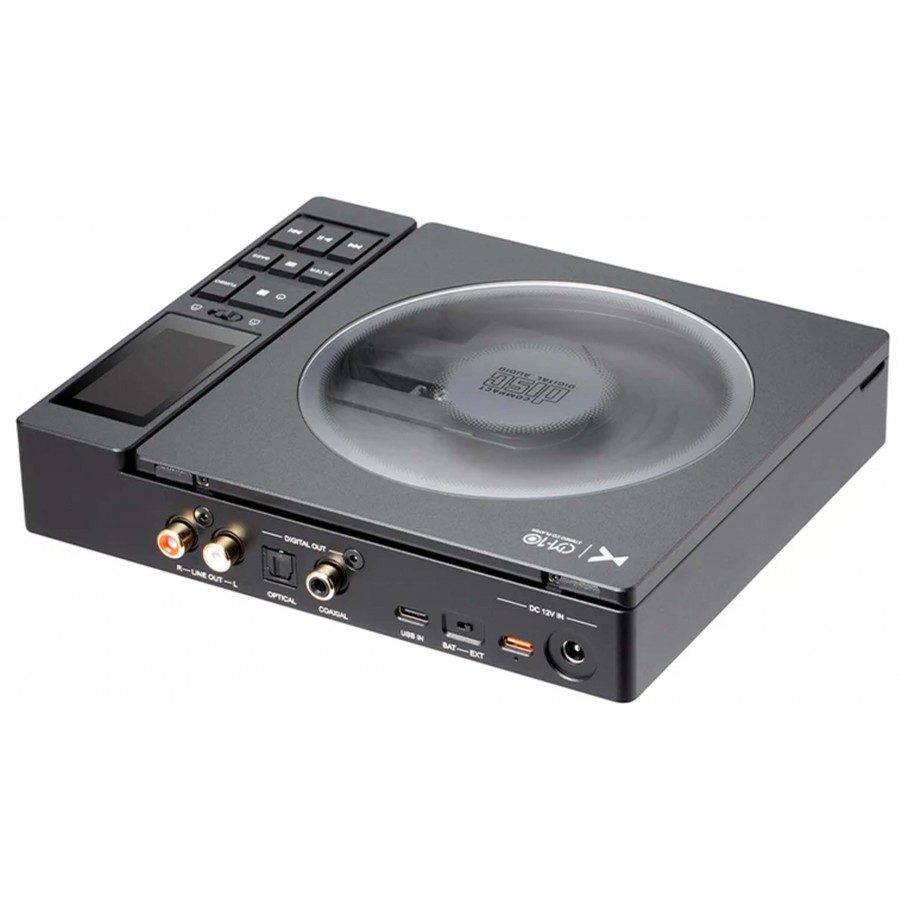

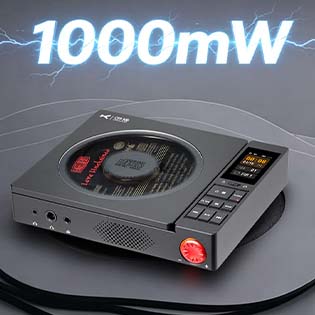

xDuoo CDM10: Powerful Headphone Amplification and Comprehensive Connectivity

Thanks to its proprietary current-boosting circuit, the CDM10 delivers up to 1087mW into 32Ω via its balanced 4.4mm output, with an SNR of 119dB, THD+N of only 0.0013%, and crosstalk better than 103dB. The 3.5mm and 6.35mm single-ended outputs deliver up to 632mW into 32Ω with an SNR of 117dB. A 2Vrms stereo RCA line output enables integration into a Hi-Fi system, while the Coaxial and Optical digital outputs allow connection to an external DAC.

XDUOO CDM10: Powerful Headphone Amplification and Comprehensive Connectivity

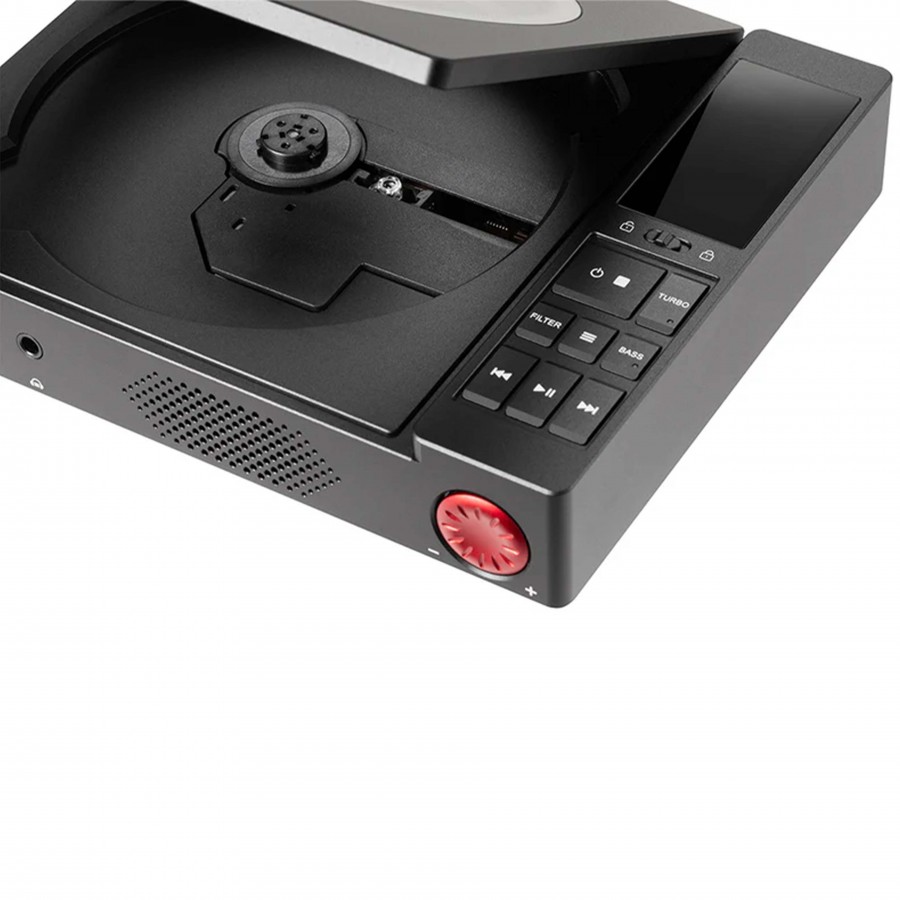

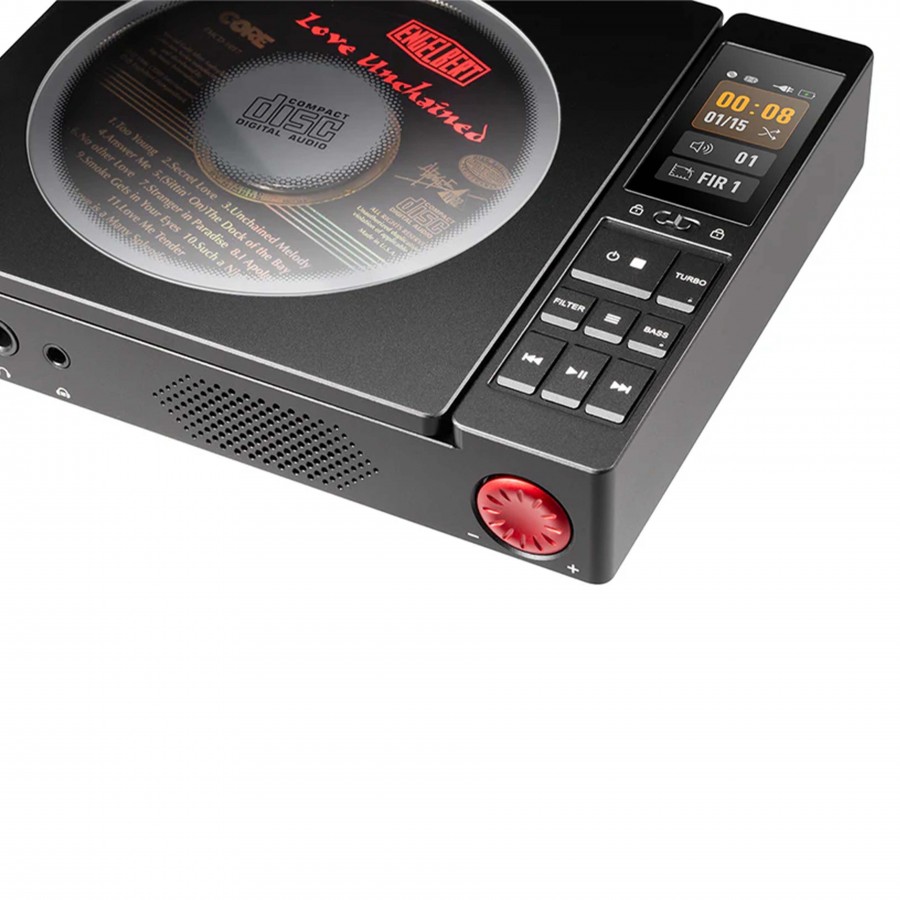

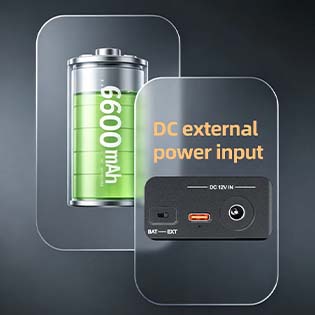

XDUOO CDM10: User Interface and Hybrid Power Supply

xDuoo CDM10: User Interface and Hybrid Power Supply

The xDuoo CDM10 combines a built-in 6000mAh lithium battery with an external 12V / 2A DC power supply, offering great flexibility of use. The battery enables portable listening, while mains power ensures optimal stability and maximum performance during desktop operation. The device also features a 1.9" TFT color display providing clear playback and settings information. Convenient functions such as automatic shutdown and programmable sleep mode further enhance everyday user comfort.

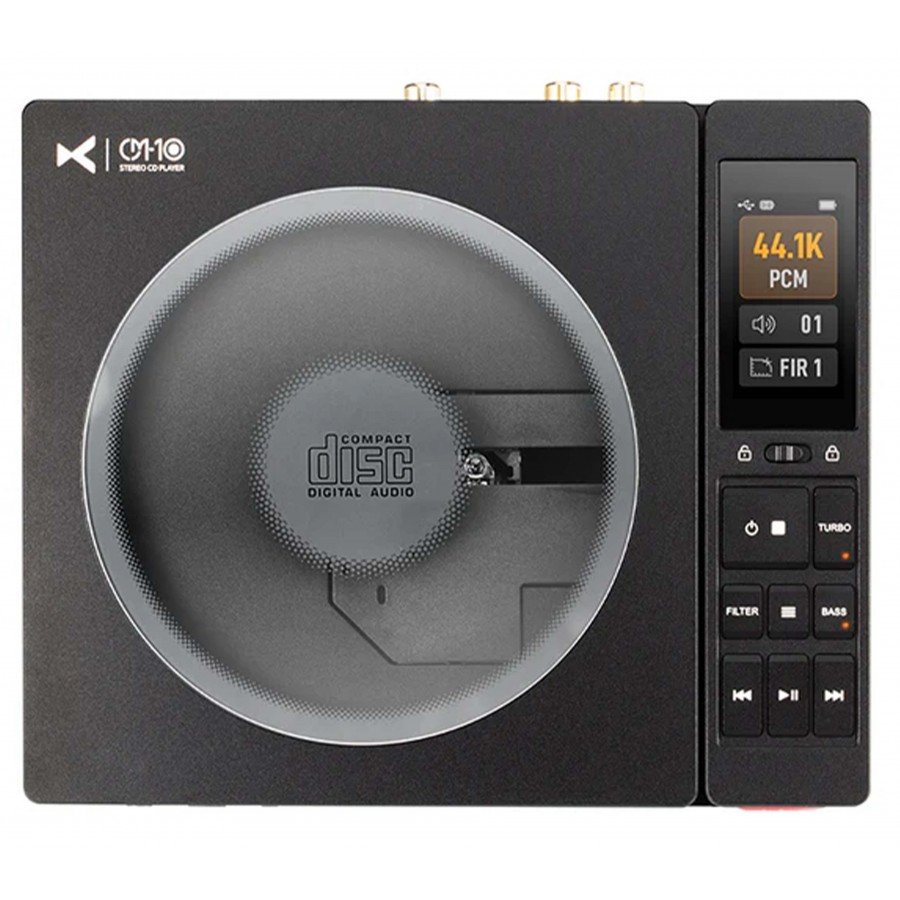

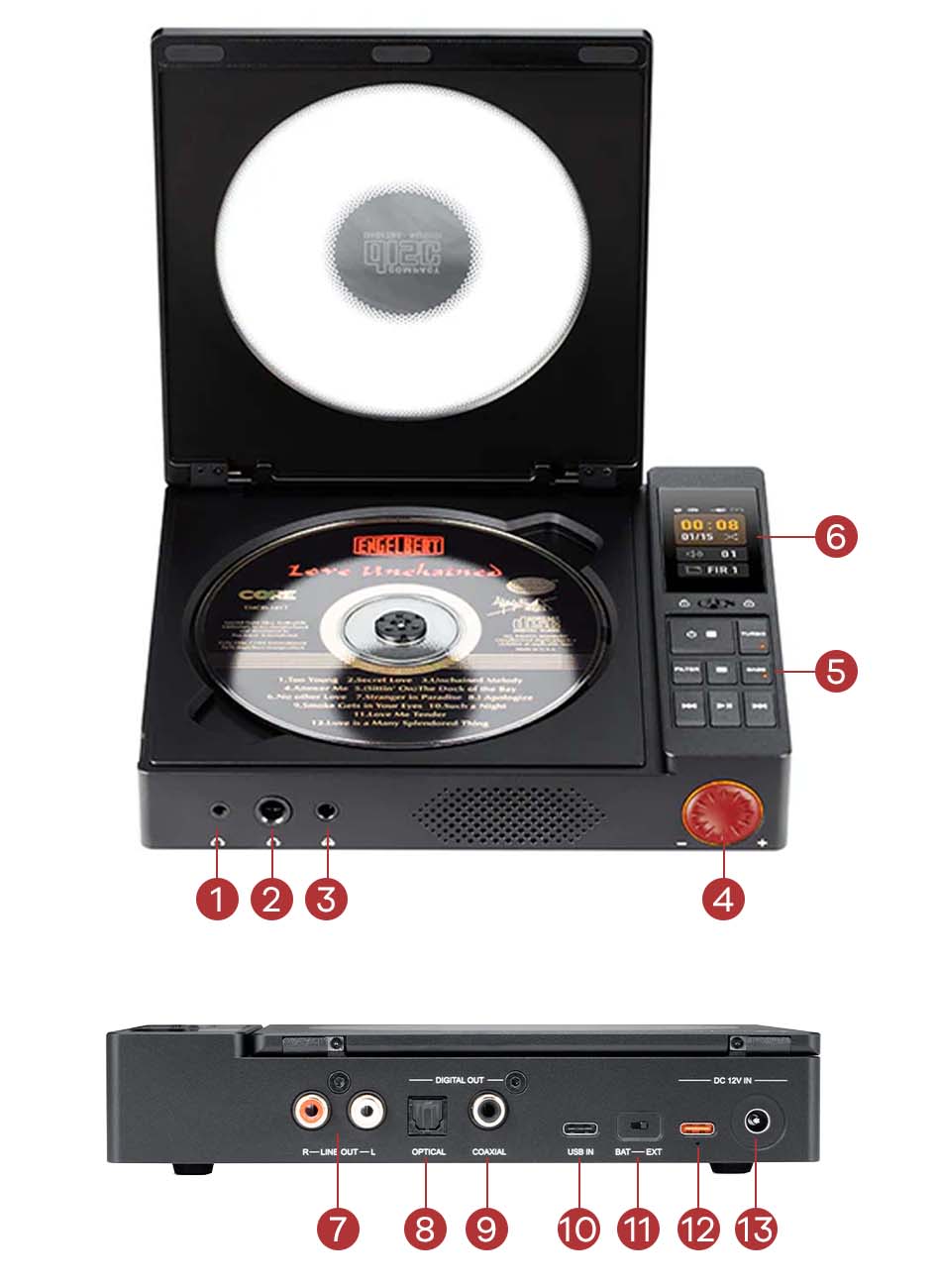

xDuoo CDM10 Overview

XDUOO CDM10 Overview
13.5mm headphone output
26.35mm headphone output
34.4mm headphone output
4Volume control
5Control buttons
6Display screen
7RCA line output
8Toslink optical output
9Coaxial output
10USB DAC input
11BAT/EXT power selector
12USB-C charging/power port
13DC jack charging/power port

Technical Specifications

Specifications
Product TypePortable CD Player DAC
DAC Chips2x CS43198
TubesJAN6418
InputsCD
1x USB-C DAC
Outputs1x RCA Output
1x Toslink Optical Output
1x Coaxial SPDIF Output

1x 3.5mm headphone output
1x 6.35mm headphone output
1x 4.4mm balanced headphone output
Operating ModesTube Mode
Transistor Mode
CD FormatsCD, CD-R, CD-RW
Supported Sampling RatesCD: 16bit 44.1kHz
USB-C: 32bit 384kHz, DSD256, MQA x8
UpsamplingSelectable 2× / 4×
Headphone Output Power4.4mm balanced jack: 1087mW @ 32Ω | SNR 119dB | THD+N 0.0013% | Crosstalk >103dB
3.5mm/6.35mm Jack: 632mW @ 32Ω | SNR 117dB | THD+N 0.0019% | Crosstalk >70dB
RCA Line Output Level2.0Vrms | 20Hz–20kHz (±0.5dB)
Gain0 / +6dB
Bass Boost0 / +6dB
Display1.9-inch TFT Color Display
Battery3.7V / 6000mAh Lithium
General
Power Supply12V DC via USB-C or DC Jack
Charging TimeFast Charge: 3h
Standard Charge: 5h
Battery LifeCD Playback: approx. 7h
USB DAC: approx. 12h
Dimensions18.3 x 15.9 x 3.7cm
Weight0.86kg
Package Contents1x xDuoo CDM10
1x USB-A to USB-C Cable
