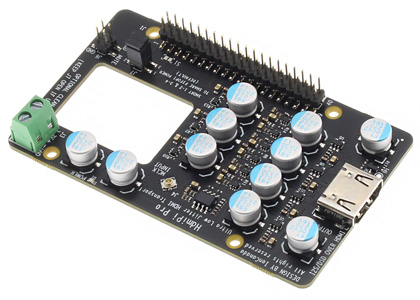

Ian Canada HdmiPi Pro

Ultra Low Jitter I2S LVDS HDMI Interface 32bit 1536kHz DSD1024

Ian Canada HdmiPi Pro Interface I2S LVDS HDMI Ultra Faible Jitter 32bit 1536kHz DSD1024

Ian Canada's HdmiPi Pro is an I2S/DSD interface module via HDMI. It is the first solution to use a discrete 1bit LVDS driver to achieve the best HDMI signal quality and lowest noise levels. The module also incorporates the highly regarded 1bit discrete secondary reclockers (similar to ReClockPi) to ensure very low jitter. All in all, the HdmiPi Pro is the ultimate I2S HDMI interface for audiophiles looking to improve the sound quality of an external DAC.

  • Discrete 1bit LVDS driver for best possible LVDS signal quality and very low noise.
  • Integrated discrete 1bit secondary reclocking stage.
  • Improved power supply filtering.
  • LDO-free design allows the use of a 3.3V battery or supercapacitor power supply for improved power performance.
  • Optimized impedance control for high speed LVDS signals.
  • Four layer PCB with dedicated shielding layers to eliminate EMI noise.
  • Ultra-low noise metal film resistors to ensure the lowest possible noise level.
  • PCM signals supported up to 1536kHz.
  • Native DSD signals supported up to DSD1024.

The HdmiPi Pro operates in SYNC clock mode and therefore must be paired with a FifoPiMa, FifoPiQ7 or FifoPiQ3 to operate (sold separately).

Ian Canada HdmiPi Pro Interface I2S LVDS HDMI Ultra Faible Jitter 32bit 1536kHz DSD1024

Technical characteristics

Specifications
Product typeI2S interface
InputGPIO
OutputI2S LVDS via HDMI
Supported sampling ratesPCM up to 32bit 1536kHz
DSD up to DSD1024
General
Supply voltage3.3V
Dimensions95 x 56.5mm
Mounting holes spacing58 x 49mm

Data sheet
InputGPIO
OutputI2S LVDS via HDMI
Max sampling rate1536kHz
Max sampling rateDSD1024
Interface chipNC
