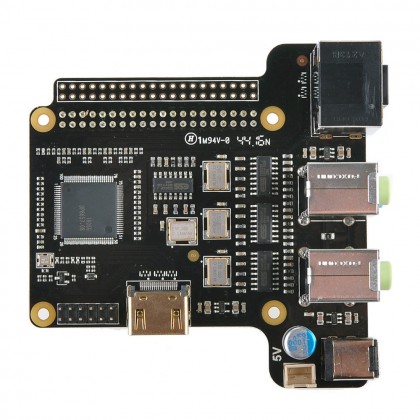

SUPTRONICS ST6000 DAC ES9023x4 HDMI 24Bit / 192kHz 7.1CH for Raspberry Pi

ST6000 DAC ES9023x4 HDMI I2S 24Bit / 192kHz 7.1CH for Raspberry Pi

No customer reviews yet, login to write a review.

By buying this product you get 6 loyalty points

Reference : 11849
New product

65,83 €tax excl.

Including 0,04 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.

More info

Discover this exceptional DAC ST6000, equipped with ESS Saber ES9023 chips that can decode signals up to 24Bit / 192kHz. The unique feature of this DAC is its ability to be driven by Raspberry Pi SANS driver,directly via the HDMI port, and to be compatible Home Cinema 7.1CH.

This digital-to-analog converter with unprecedented functions is ideal for transforming your Raspberry Pi 3 / Pi 2 into a true home theater player.
Equipped with 4 ESS SABER ES9023 chips, 4 Ultra Low Jitter clocks, and 4 3.5mm Jacks, this DAC 7.1Ch will offer you a musical, dynamic and rich in micro details.

Intended for the many open source software solutions dedicated to audio playback, it allows a simpler implementation than ever for an incomparable result and very high performance.

The ideal power supply for this ES9023 DAC is available as accessories: Power adapter Power supply 100-240V to 5.1V 4A.


  • Home Theater Compatible: 7.1 channels
  • 4x DAC ESS Saber ES9023: Each DAC uses its own ultra low jitter clock
  • Supported Sampling Rates: Up to 24Bit / 192kHz
  • Signal to noise ratio: 112dB
  • Level of spellie: 2V RMS
  • Texas Instruments Ultra-Low Voltage Regulator
  • Inputs: HDMI / GPIO Raspberry Pi
  • Outputs: 4x Jack 3.5mm / HDMI / Optical toslink
  • DC input on 5.5 / 2.1 mm Jack for power supply
  • Audio formats supported HDMI: LPCM 2 / 5.1 / 7.1CH / Dolby Digital 2 ~ 5.1CH / DTS 2 ~ 5.1CH / Dolby Digital Plus / Dolby TrueHD // Li>
  • Supported Audio Formats Optical: LPCM 2CH / Dolby Digital 2 ~ 5.1CH / DTS 2 ~ 5.1CH
  • Fed the Raspberry Pi

Compatibilities Open Source solutions:

  • OSMC: Stereo 2.0 / 5.1Ch Surround / 7.1Ch Surround
  • Openelec: Stereo 2.0 / 5.1Ch Surround / 7.1Ch Surround
  • Moode Audio: Stereo 2.0
  • Raspbian: Stereo 2.0
  • Rune Audio: Stereo 2.0
  • PiCorePlayer: Stereo 2.0
  • Max2Play: Stereo 2.0

Dimensions / Packaging:

  • Supplied in 5V / 4A: power supply available in accessories
  • Supplied with 8 screws and 4 spacers M2.5 for fixing it on the Raspberry Pi (HAT format), as well as the gold-plated HDMI offset
  • Mounting Hole Distance (HAT): 50x58mm
  • PCB Dimensions: 122x90x90mm
  • Weight: 76g
  • Color PCB: black

DAC 7.1Ch pour Raspberry

Data sheet
Mounting typeTo connect
