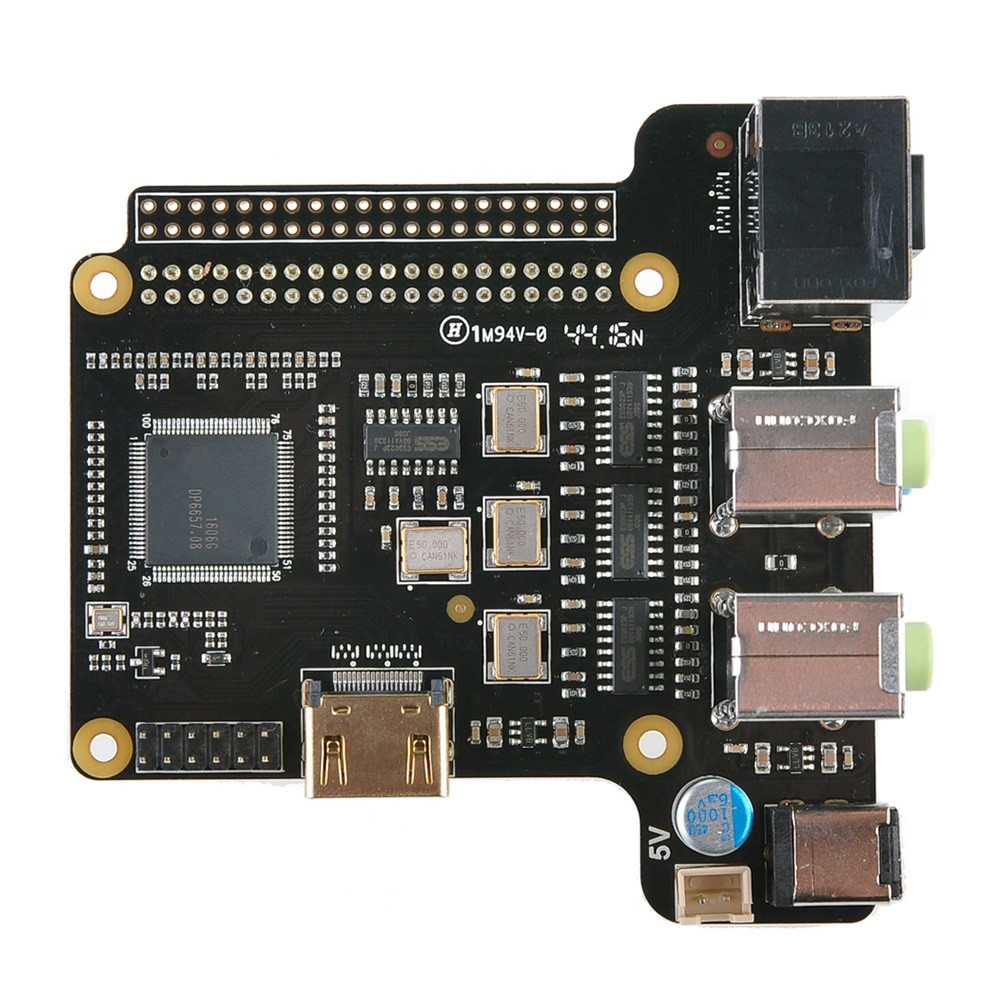

Discover this Home Cinema and Car Audio-oriented DAC ST6000K, equipped with ESS SABRE ES9023 chips that can decode signals up to 24Bit / 192kHz. The unique feature of this DAC is its ability to be driven by Raspberry Pi SANS driver, directly via the HDMI port, and to be compatible with 8 channels.

Contrary toDAC ST600 7.1Ch which offers 8 distinct mono channels, this DAC 8Ch offers 4 identical stereo outputs.

This digital-to-analog converter with unprecedented functions is ideal for transforming your Raspberry Pi 3 / Pi 2 into a true home theater player.
Equipped with 4 ESS SABRE ES9023 chips, 4 Ultra Low Jitter clocks, and 4 3.5mm Jacks, this DAC 8Ch will offer you a musical, dynamic and rich in micro details.

Intended for the many open source software solutions dedicated to audio playback, it allows a simpler implementation than ever for an incomparable result and very high performance.

The ideal power supply for this ES9023 DAC is available as accessories: Power adapter Power supply 100-240V to 5.1V 4A.

Technical characteristics :

  • CompatibleHome cinema andCar Audio: 8 channels
  • 4x DAC ESS SABRE ES9023: Each DAC uses its own ultra low jitter clock
  • Supported Sampling Rates: Up to 24Bit / 192kHz
  • Signal to noise ratio: 112dB
  • Output Level: 2V RMS
  • Texas Instruments Ultra-Low Voltage Regulator
  • Inputs: HDMI / GPIO Raspberry Pi
  • Outputs: 4x Jack 3.5mm / HDMI / Optical toslink
  • DC input on 5.5 / 2.1 mm Jack for power supply
  • Audio formats supported HDMI: Dolby Digital Plus / Dolby TrueHD / DTS-HD Master Audio Supported Audio Formats Optical: LPCM 2CH / Dolby Digital 2 ~ 5.1CH / DTS 2 ~ 5.1CH
  • Fed the Raspberry Pi

Compatibilities Open Source solutions:

  • OSMC: 8-channel audio output
  • Openelec: 8-channel audio output
  • Moode Audio: 8-channel audio output
  • Raspbian: 8-channel audio output
  • Rune Audio: 8-channel audio output
  • PiCorePlayer: Stereo 2.0
  • Max2Play: Stereo 2.0

Dimensions / Packaging:

  • Supplied in 5V / 4A: power supply available in accessories
  • Supplied with 8 screws and 4 spacers M2.5 for fixing it on the Raspberry Pi (HAT format), as well as the gold-plated HDMI offset
  • Mounting Hole Distance (HAT): 50x58mm
  • PCB Dimensions: 122x90x90mm
  • Weight: 76g
  • Color PCB: black
