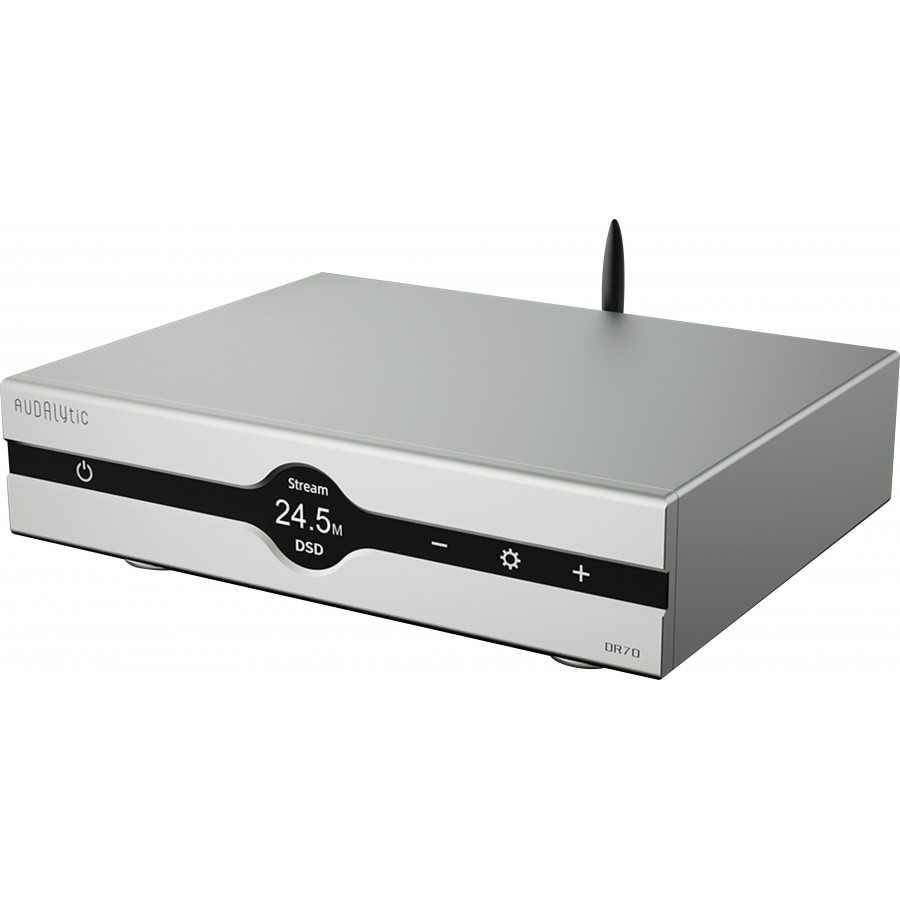

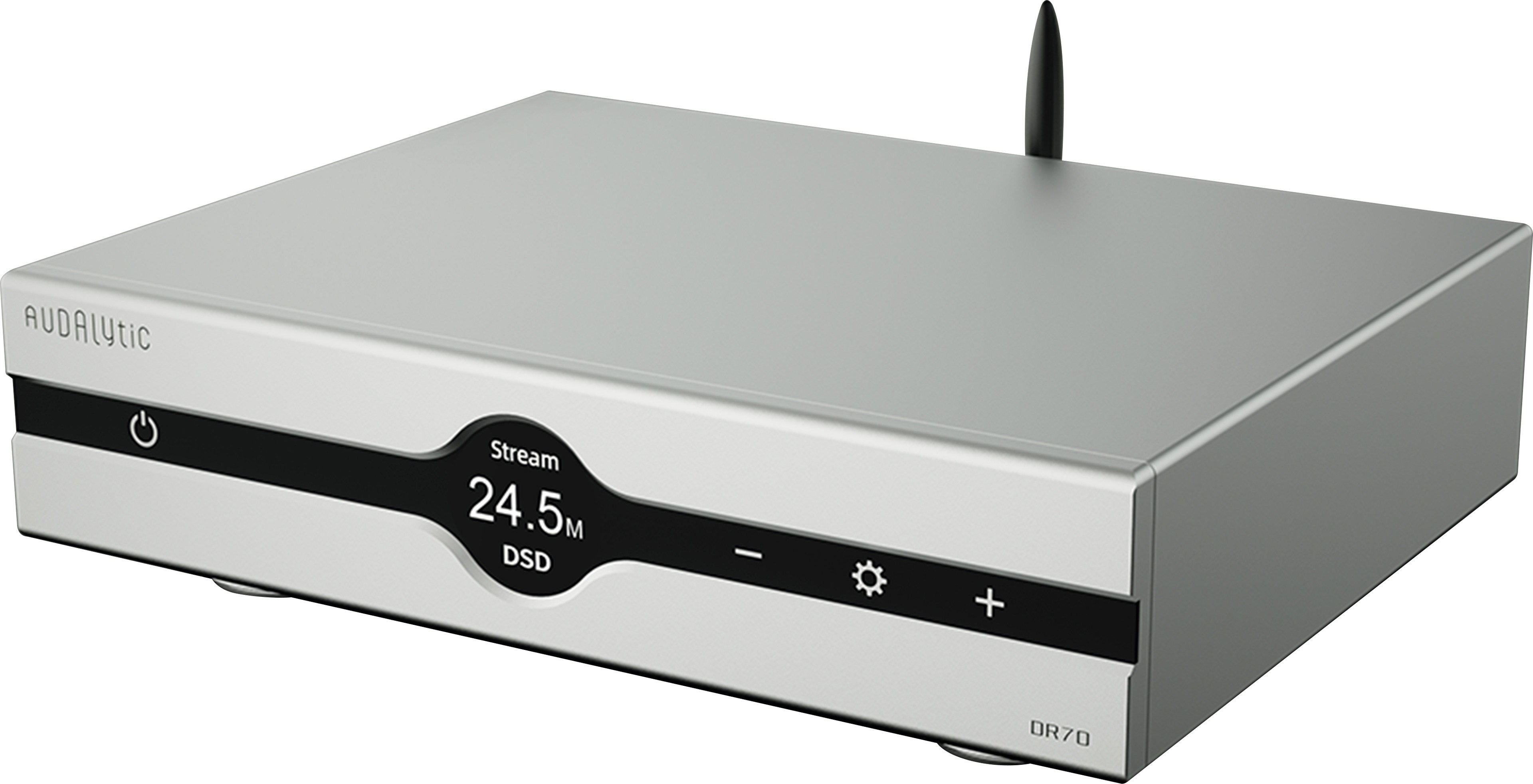

Audalytic DR70 R2R DAC Bluetooth 5.0 32bit 768kHz DSD512 Silver

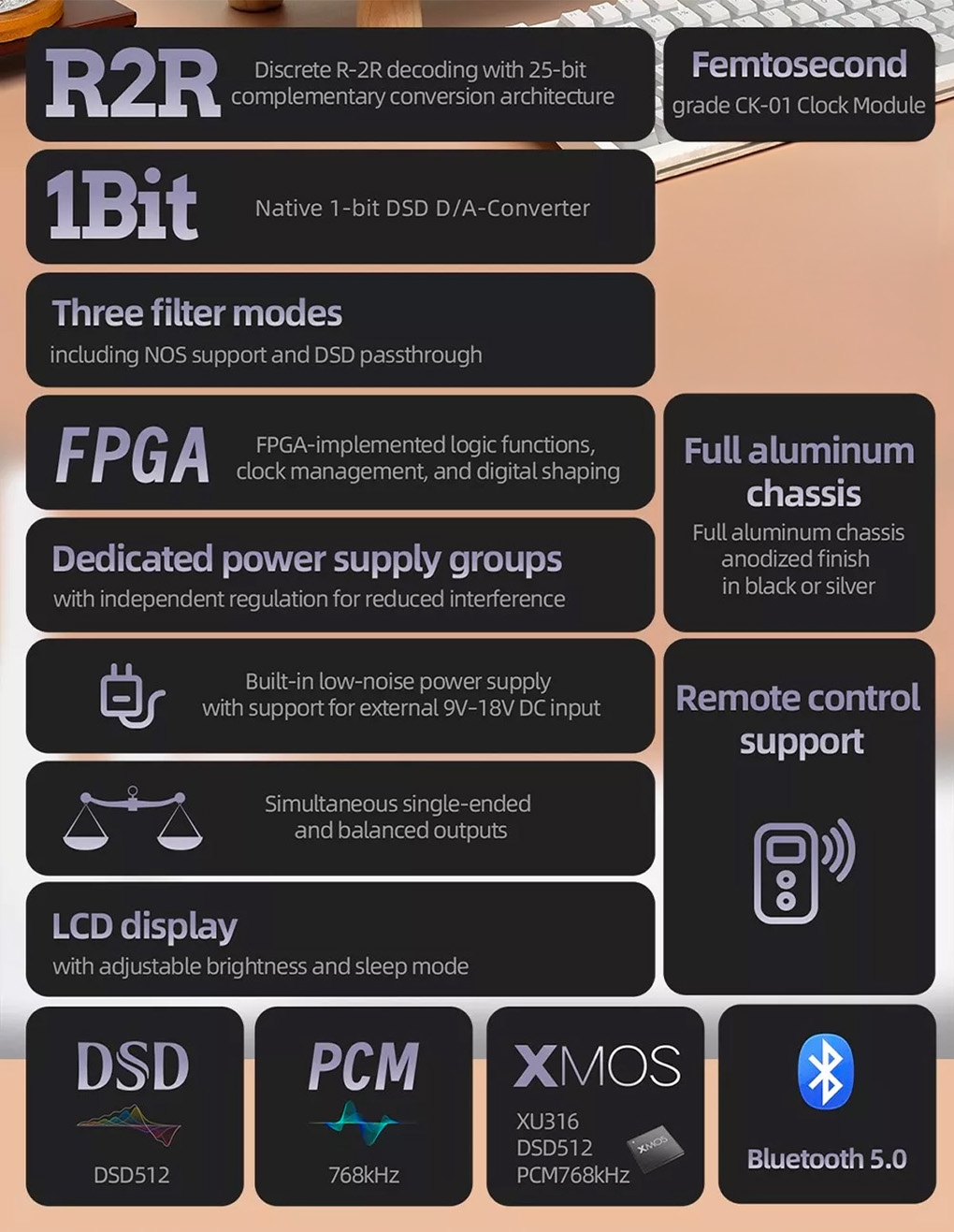

The Audalytic DR70 is a high-end DAC designed for demanding audiophiles, combining a discrete R2R architecture with extended compatibility with high-resolution audio formats. Developed by Gustard, this model stands out with its R2R module, its native 1bit DSD converter and its dedicated FPGA, all synchronized by a CK-01 femtosecond oscillator for sound reproduction of exceptional precision and musicality. Whether listening to music via USB, coaxial, optical or Bluetooth 5.0, the DR70 establishes itself as a versatile and high-performance solution, suitable for home audio systems or high-end headphones.
Audalytic DR70: Discrete R2R architecture and native DSD conversion

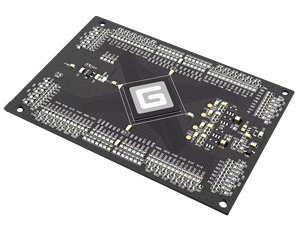

The core of the DR70 is based on a discrete R2R module, providing PCM conversion of remarkable purity, without digital artifacts. For DSD formats, the DR70 integrates a native 1bit converter, capable of handling DSD64 to DSD512 streams without intermediate conversion to PCM, thus preserving the integrity of the original signal. This approach ensures a natural timbre, extended dynamics and resolution of micro-details, even on the most demanding recordings.

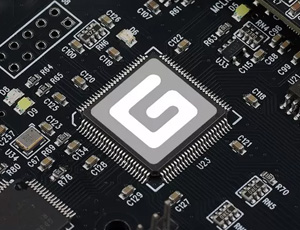

Audalytic DR70: FPGA & Clock
The custom FPGA of the DR70 manages signal processing logic, clock management and seamless switching between PCM and DSD modes, while the CK-01 femtosecond oscillator reduces jitter to an imperceptible level, improving stereo imaging accuracy and soundstage depth.
Audalytic DR70: Extended Connectivity and Integrated Streaming
The DR70 easily connects to all your sources:
- USB (XMOS XU316): Supports PCM streams up to 32bit 768kHz and native DSD up to DSD512, as well as DoP64 to DoP256.
- Coaxial / Optical: Compatible with PCM streams up to 24bit 192kHz and DSD DoP64.
- Bluetooth 5.0: Integrates LDAC (24bit / 96kHz), aptX, AAC and SBC codecs for high-resolution wireless listening.
This versatility allows integration of the DR70 into various configurations, whether a wired system or a wireless setup.

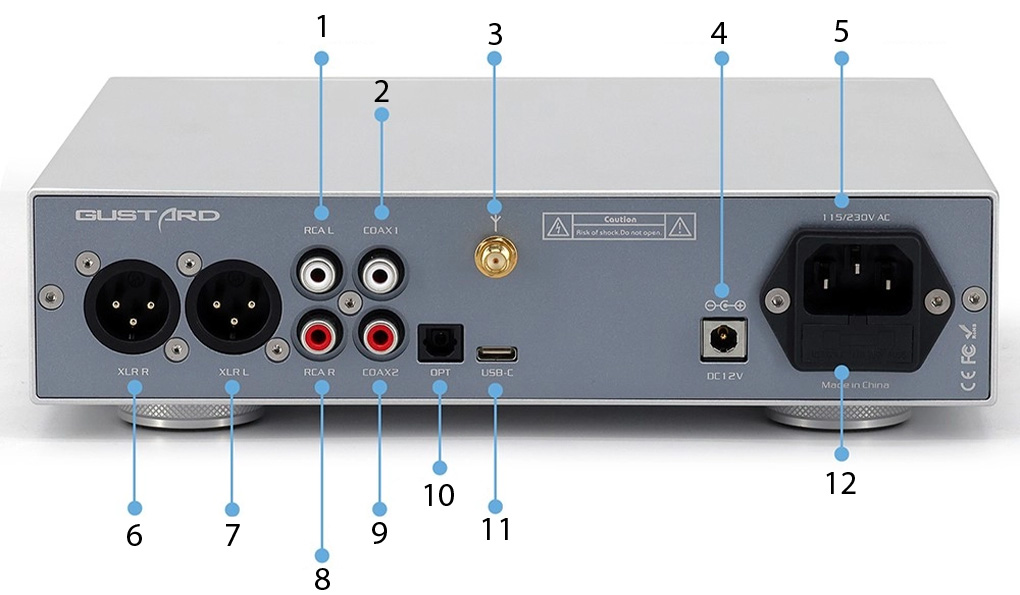

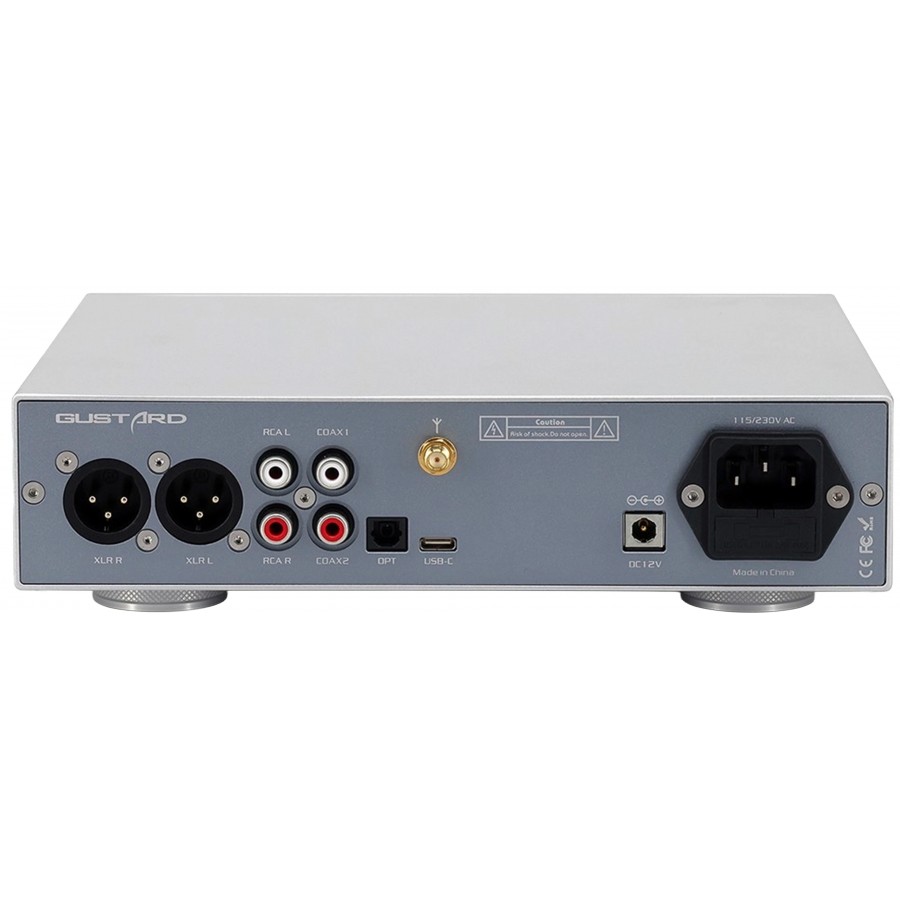

| 1 | Unbalanced RCA output (left channel) |
| 2 | Coaxial input |
| 3 | Bluetooth antenna |
| 4 | 12-18V DC power connector |
| 5 | 110-220V AC power connector |
| 6 | Balanced XLR output (right channel) |
| 7 | Balanced XLR output (left channel) |
| 8 | Unbalanced RCA output (right channel) |
| 9 | Coaxial input |
| 10 | Optical Toslink input |
| 11 | USB-C input |
| 12 | Fuse |

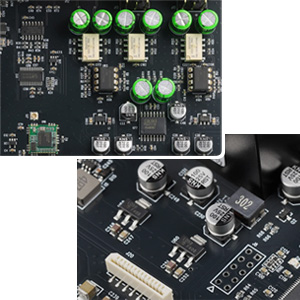

Audalytic DR70: Analog outputs and Power supply
The DR70 offers simultaneous RCA (2Vrms) and XLR (4Vrms) outputs, both at fixed level, for optimal compatibility with preamplifiers or active speakers. The output impedance is around 100Ω, ensuring a stable connection with most equipment.

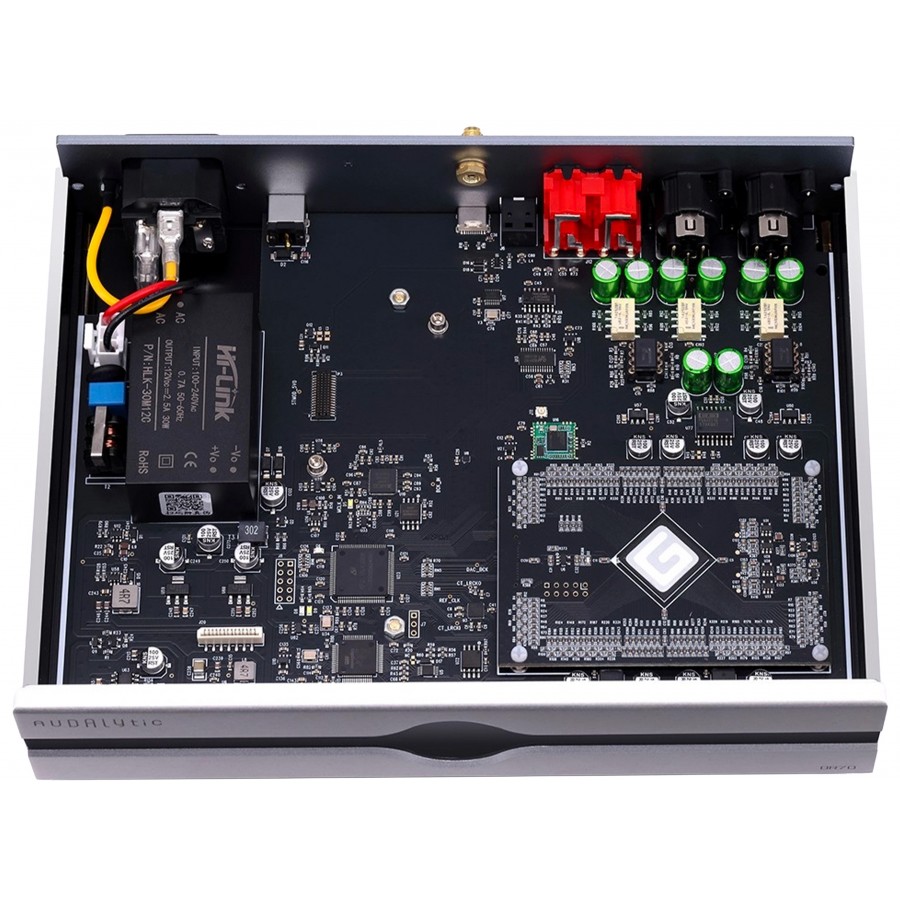

The low-noise internal power supply is designed to minimize interference, but the DR70 also accepts an external 12-18V DC power supply for users wishing to further optimize performance.

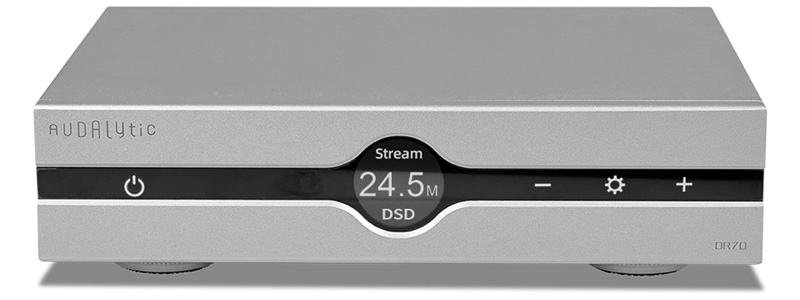

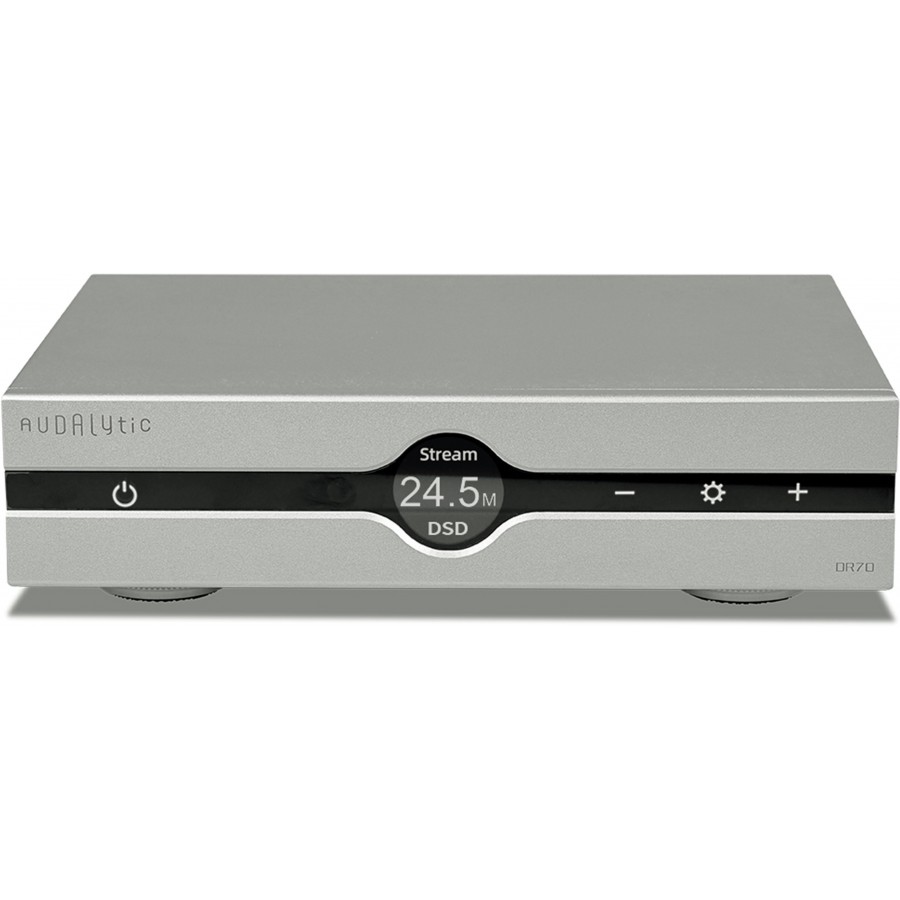

Audalytic DR70: Design and Ergonomics
The anodized aluminum chassis of the DR70 combines robustness and elegance. An LCD screen with adjustable brightness and an infrared remote control facilitate everyday use. The DR70 is compact and lightweight, integrating discreetly into any audio environment.
Technical specifications
| Specifications | |
|---|---|
| Product type | DAC |
| Inputs | Bluetooth 5.0 1x USB-C 2x Coaxial 1x Optical Toslink |
| Outputs | 1x Single-ended stereo RCA output 1x Balanced stereo XLR output |
| Supported sample rates | USB: PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DoP256 Coaxial / Optical: PCM up to 24bit 192kHz, DSD DoP64 |
| Supported Bluetooth codecs | SBC, AAC, aptX, LDAC |
| USB compatibility | Windows 7/8/10/11 macOS Linux |

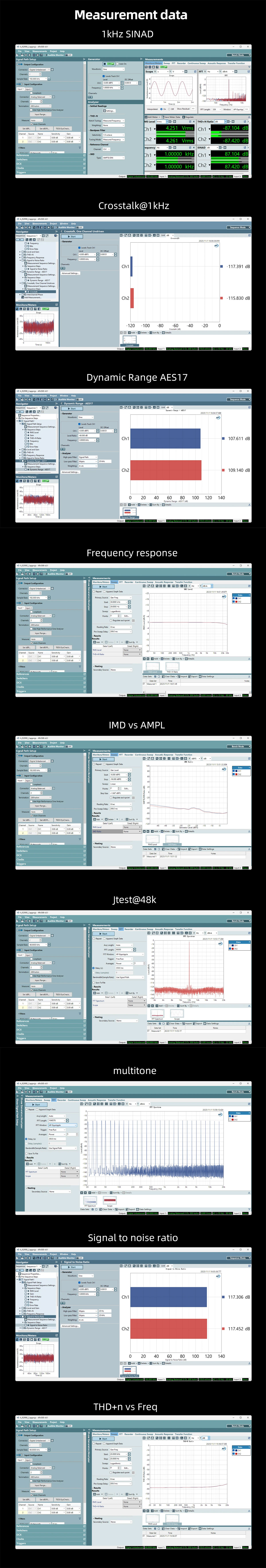

| Frequency response | 20Hz-20kHz (±0.2dB, OS mode) |
| Dynamic range | > 111dB |
| Crosstalk | -125dB @ 1kHz |
| THD+N | ≤ 0.004% @ 1kHz |
| IMD | ~ 0.009% @ -2dBFS |
| Output level | RCA: 2Vrms XLR: 4Vrms |
| Output impedance | 100Ω |
| General | |
|---|---|
| Power supply | AC 115V / 230V, 50/60Hz |
| Power consumption | 10W |
| Dimensions (excluding feet and connectors) | 220 x 170 x 50mm |
| Weight | 1.5kg |
| Color | Silver |
| Package | 1x Audalytic DR70 1x Power cable |
| Input | Bluetooth |
| Input | USB |
| Input | Optical |
| Input | SPDIF |
| Output | XLR |
| Output | RCA |
| DAC / ADC Chip | R2R LADDER DAC |
| Max sampling rate | 768kHz |
| Max sampling rate | DSD512 |
| Color | Silver |
| Networking | No |
| Remote Control | Yes |
