FIIO K13 DAC R2R Headphone Amplifier Silver

New
The FiiO K13 is a versatile device that acts as both a DAC and headphone amplifier. Digital-to-analogue conversion is handled by a balanced R2R resistor network, supporting files up to PCM up to 32bit 384kHz and DSD256. For its amplification stage, the K13 uses OPA1642 and TPA6120A chips in a balanced arrangement for a total output power of up to 2x2400mW under 32Ω.

No customer reviews yet, login to write a review.

By buying this product you get 31 loyalty points


Yes, notify me when available !
Reference : 21176
New product

319,00 €tax incl.

265,83 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

FiiO K13 DAC R2R Headphone Amplifier 32bit 384kHz DSD256 Silver

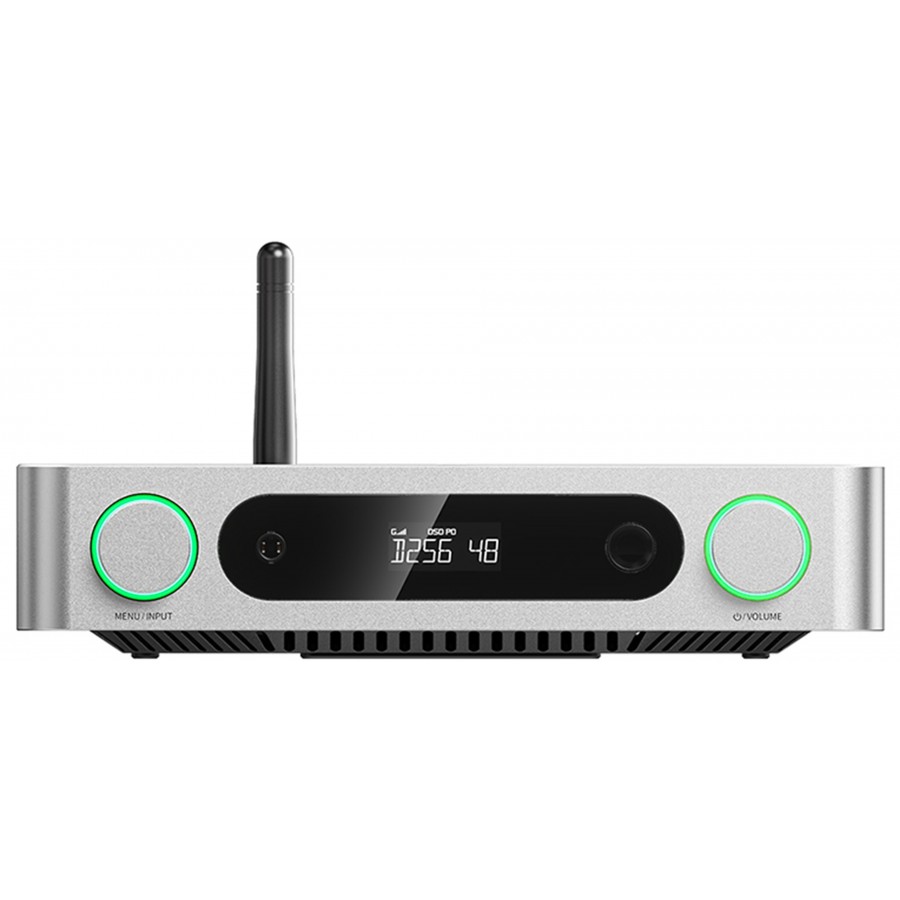

FiiO K13 : Front view


The FiiO K13 is a versatile device that acts as both a DAC and headphone amplifier. Digital-to-analogue conversion is handled by a balanced R2R resistor network, supporting files up to PCM up to 32bit 384kHz and DSD256. For its amplification stage, the K13 uses OPA1642 and TPA6120A chips in a balanced arrangement for a total output power of up to 2x2400mW under 32Ω.

FiiO K13: R2R DAC

For its digital-to-analogue conversion stage, FiiO has developed an R2R ladder resistor network to offer 100% analogue conversion. Thus, the K13 incorporates a 24-bit R2R DAC using 48 precision resistors per channel, all in a fully balanced structure, ensuring self-correction of errors between channels while offering a better dynamic range.

FiiO K13 : 2R2 DAC

FiiO K13: NOS/OS mode

The K13's R2R DAC also features NOS (Non-Oversampling) and OS (Oversampling) modes. OS mode allows you to increase your data stream up to a sampling rate of 384kHz, making it easier to apply digital filters that eliminate unwanted artefacts associated with the conversion process. The result is a clearer, but smoother sound.

NOS mode, on the other hand, takes the opposite approach by retaining the file's original sampling rate, thus not applying the same post-conversion filters. The result is certainly less precise, but also more raw and organic.

FiiO K13 : R2R circuit diagram
FiiO K13 : 10-band equaliser

FiiO K13: 10-band equaliser

For its K13, FiiO has developed a 10-band equaliser, taking advantage of the technological platform offered by the XMOS XU316 USB interface. This allows you to customise the frequency response with excellent precision, as well as export, import, share and save equalisation curves. Whether you choose to use the recommended settings or share your own settings online with other enthusiasts, it is very easy to access them, either through the FiiO Control app or the online version.

FiiO K13: Balanced amplification of 2400mW+2400mW

The entire audio chain, including the R2R DAC, low-pass filter, volume control, and headphone amplifier, utilises fully balanced signal processing for excellent interference elimination, minimal distortion, and high dynamic range. The amplifier circuit also includes gain control and POP noise elimination for a robust and reliable audio experience. As a result, the K13 is capable of delivering robust amplification of 2400mW+2400mW into 32Ω.

FiiO K13 : Internal circuit diagram

FiiO K13: Low-noise power supply

The integrated 30W switching power supply is protected by nickel-plated alloy shielding, which significantly improves its anti-interference capabilities and ensures a cleaner power supply. Furthermore, a total of 18 low-dropout regulators coupled with ELNA RA3 capacitors ensure that every component of the K13 receives a perfectly stable, artefact-free power supply.

Finally, the K13 also has an external DC power input, allowing you to connect it to an external linear power supply of your choice if you wish.

FiiO K13 : Power supply

FiiO K13: A stylish aesthetic

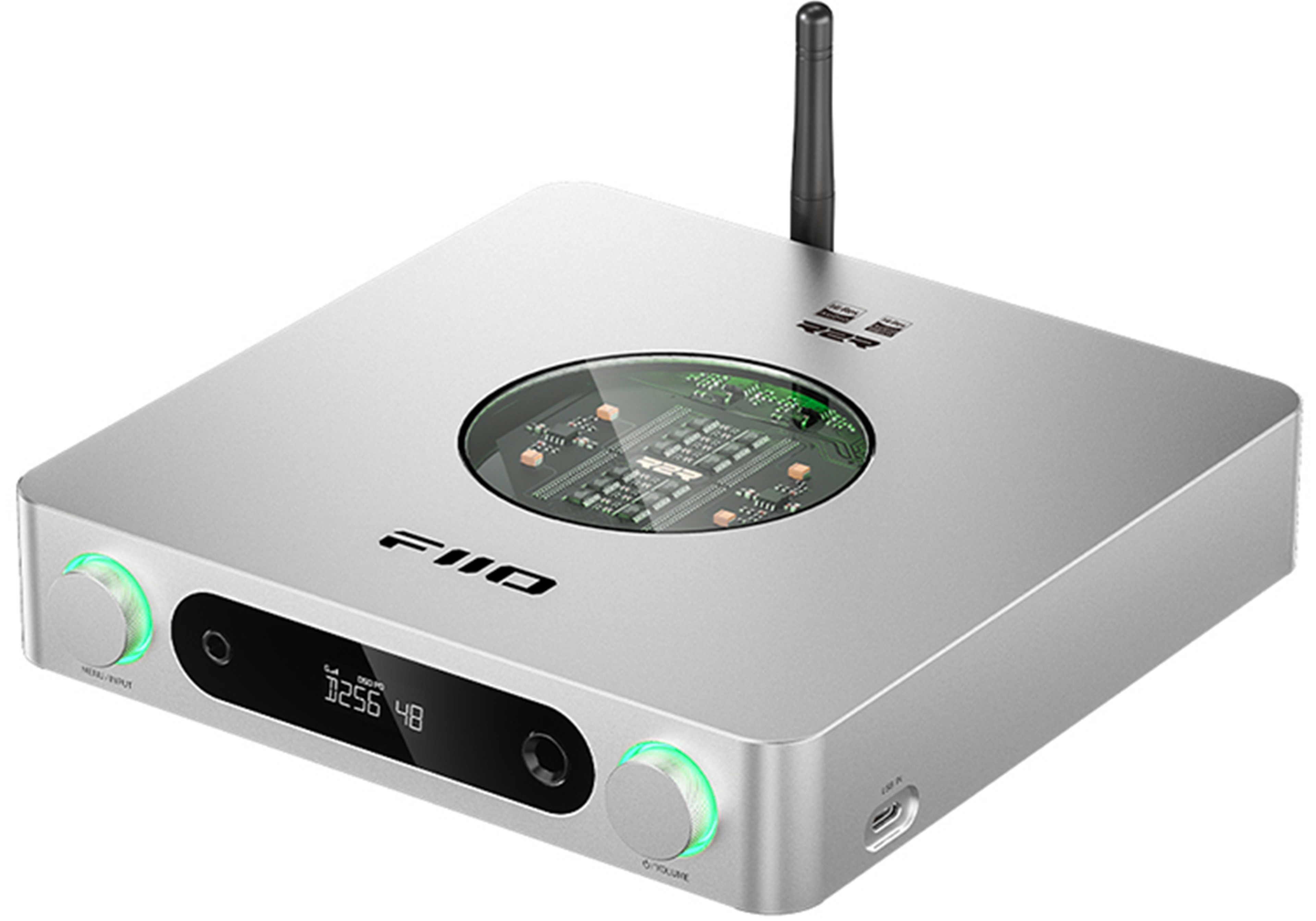

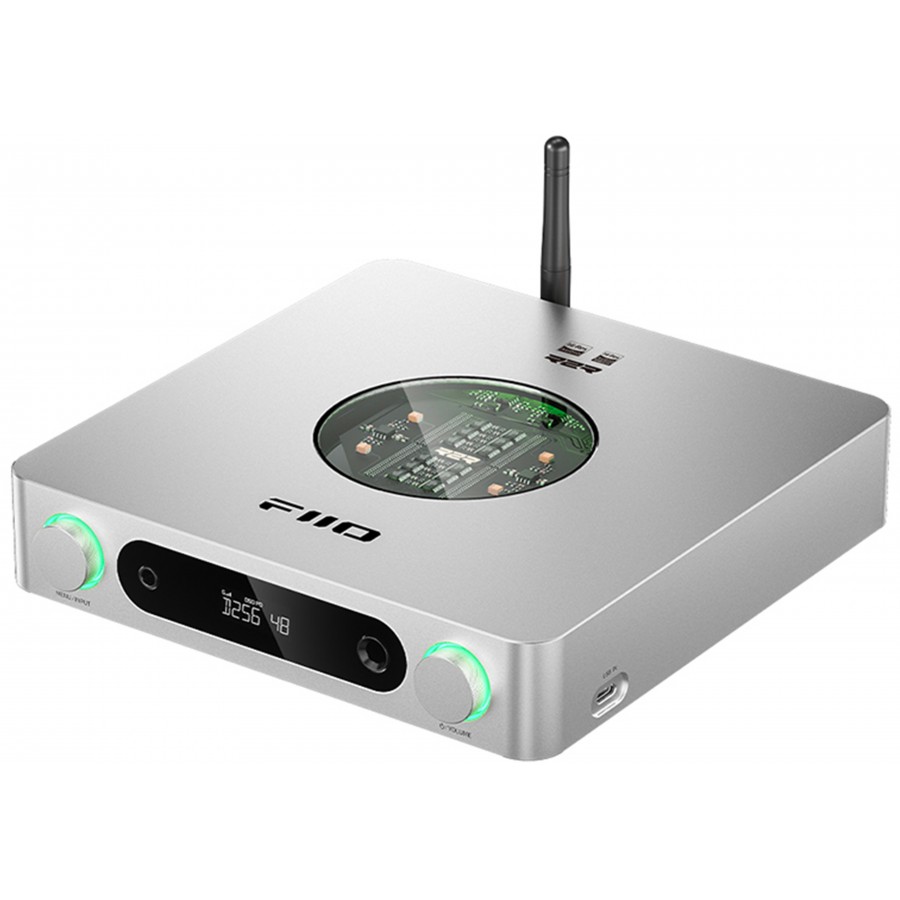

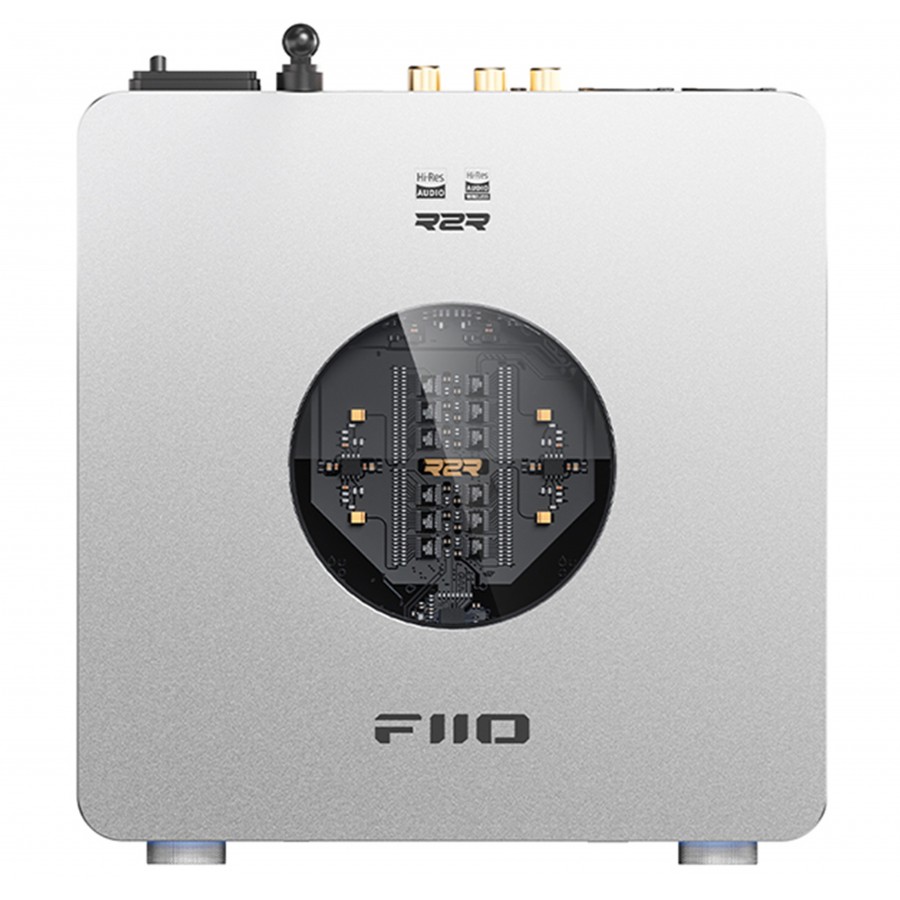

Furthermore, in addition to its technical excellence, the K13 also boasts a minimalist and classy aesthetic that is truly stunning. It features an aluminium chassis that reveals the R2R circuit, coupled with a customisable RGB system that highlights the dials and illuminates the internal circuitry.

The front panel receives a high-contrast HD LCD screen that has been specially treated to prevent burn-in, allowing clear display of information such as sampling rate, volume, gain, and output mode.

FiiO K13 : in use
FiiO K13 : Bluetooth 5.4

FiiO K13: Bluetooth 5.4

For maximum convenience, the K13 features a Bluetooth 5.4 chip, allowing you to play your favourite tracks wirelessly thanks to support for LDAC, AAC and SBC codecs.

FiiO K13: Three adjustable gain levels

In order to offer maximum compatibility with most headphones and IEMs on the market, the K13 features three different gain settings, each with a specific volume control curve.

FiiO K13 : Volume control curve

Technical characteristics

Specifications
Product typeDAC and headphone amplifier

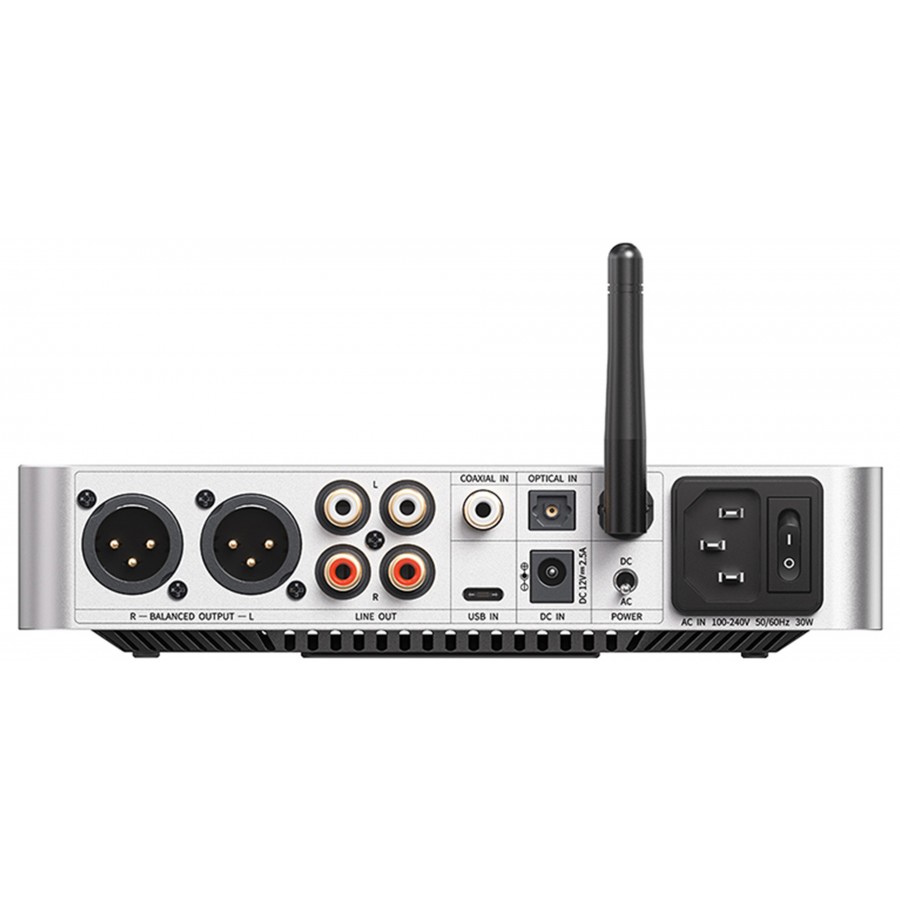

Inputs1x Coaxial
1x Optical Toslink
1x USB-C
Bluetooth 5.4
Outputs1x Single-ended stereo RCA
1x Balanced stereo XLR
1x Balanced 4.4mm headphone jack output
1x Single-ended 6.35mm headphone jack output
MicrocontrollerESP32-S3
DACR2R 24bit
USB interfaceXMOS XU316
Volume control chipNJW1195AV
Headphone amplification2x OPA1642
2x TPA6120A
Supported sampling ratesUSB: PCM up to 32bits 384kHz, DSD up to DSD256
Coaxial : PCM up to 24bits 192kHz, DSD64
Optical Toslink : PCM 24bits 192kHz
Single-ended output power≥ 1220mW + 1220mW @ 32Ω (high gain)
≥ 150mW + 150mW @ 300Ω (high gain)
Balanced output power≥ 2400mW + 2400mW @ 32Ω (high gain)
≥ 600mW + 600mW @ 300Ω (high gain)
Frequency response20Hz-80kHz
Signal-to-noise ratio (SNR)≥ 116dB
Noise floorSingle-ended : < 5μV
Balanced : < 8μV
Total harmonic distortion more noise (THD+N)≈ 0.0173%
Output impedanceSingle-ended : < 0.7Ω
Balanced : < 1Ω
ScreenLCD
Supported Bluetooth codecsLDAC
AAC
SCB
General
Power supply100-240V~50/60Hz AC
12V DC 2.5A
Dimensions210 x 188 x 42mm
Weight980g
ColorSilver
Package1x FiiO K13
1x Remote control
1x Power cord
1x USB-C to USB-A cable
1x 3.5mm to 6.35mm jack adapter

Data sheet
InputSPDIF
InputBluetooth
InputUSB
InputOptical
OutputRCA
OutputBluetooth
OutputUSB
OutputXLR
DAC / ADC ChipR2R LADDER DAC
Max sampling rateDSD256
Max sampling rate384kHz
ColorSilver
ClassN/A
NetworkingNo
Remote ControlYes
