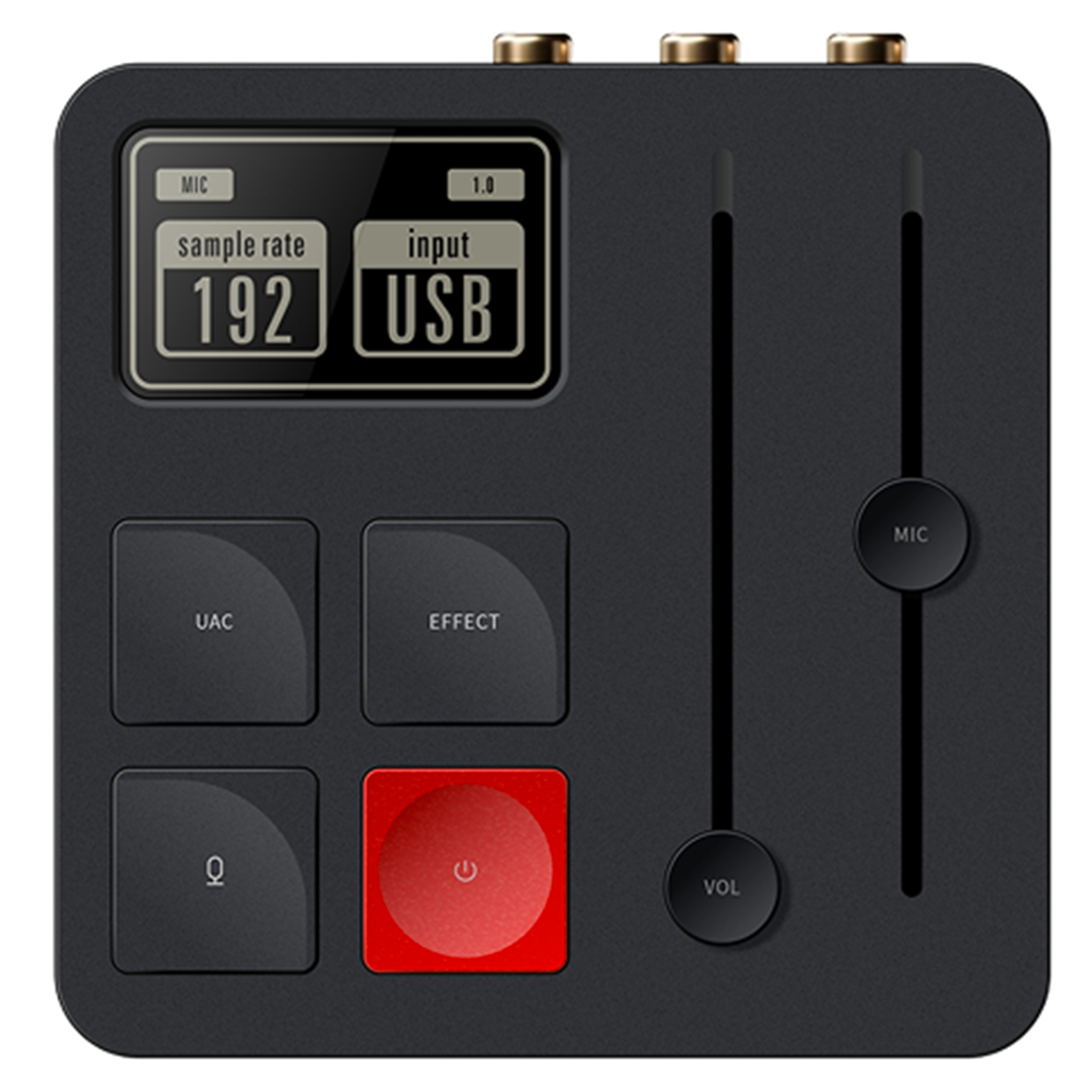

LYREMAN AUDIO-1 DAC Headphone Amplifier

The Lyreman Audio-1 combines an ES9039Q2M DAC with a headphone amplification stage based on the TPA6120A2 chip. It supports PCM streams up to 32bit 768kHz and DSD512, while its 3.5mm headphone output delivers a power of 320mW + 320mW into 32Ω.

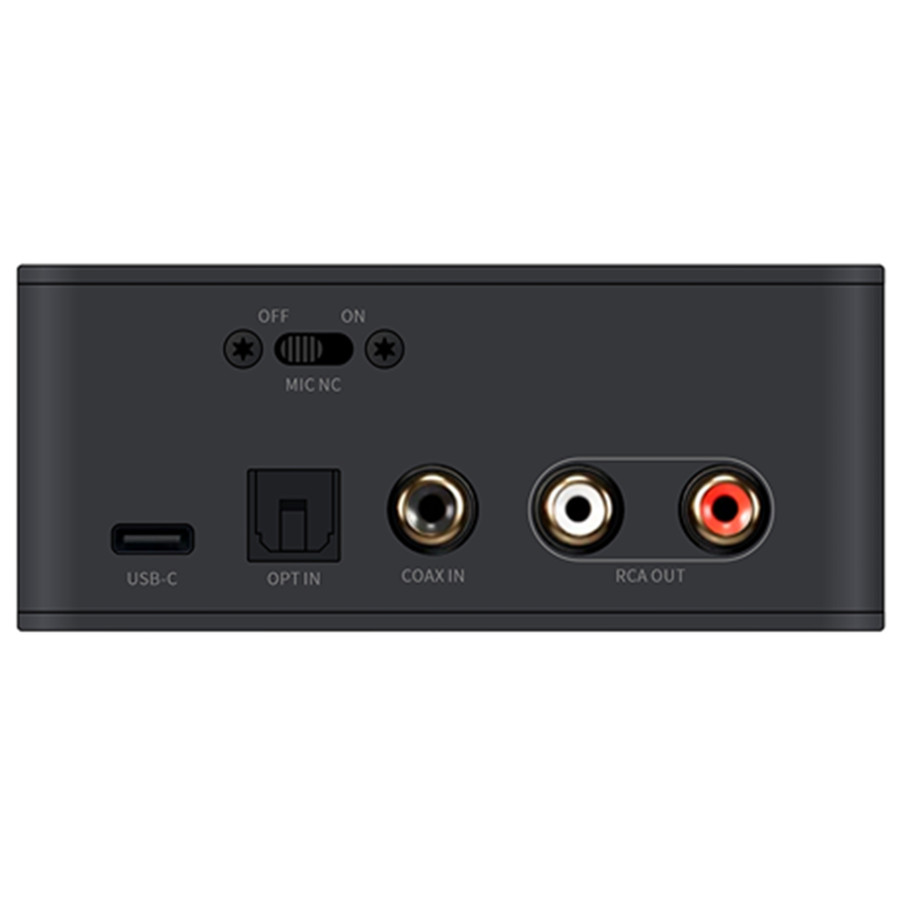

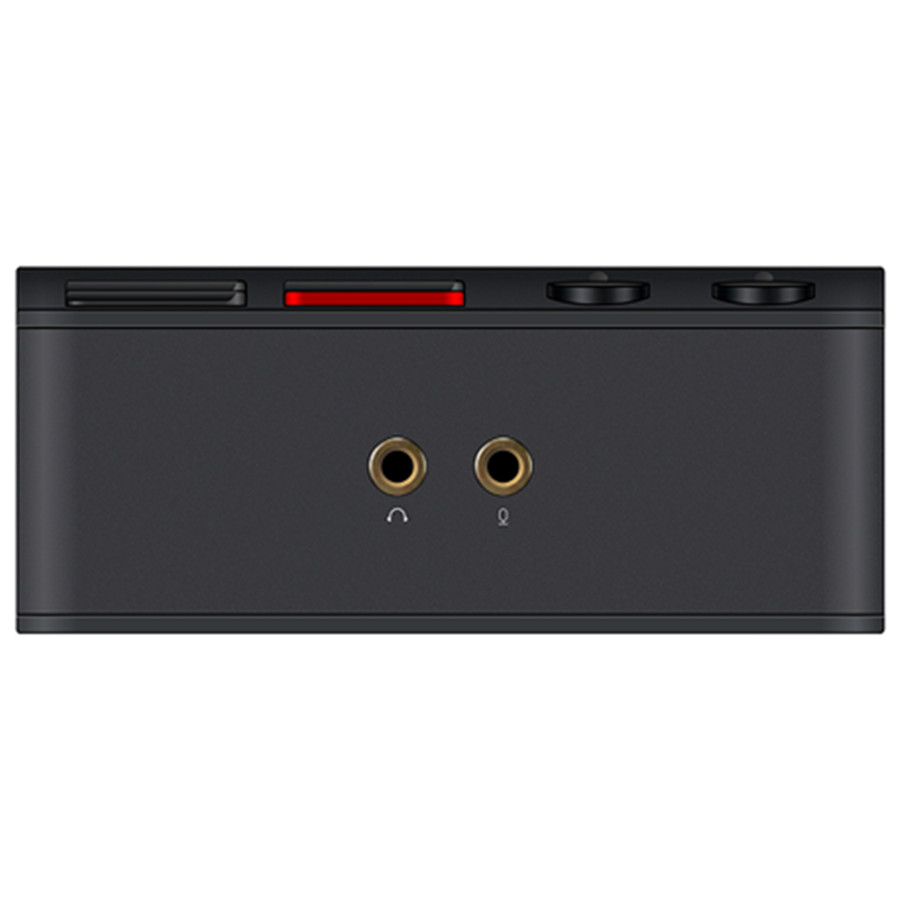

Its frequency response from 20Hz to 20kHz (±0.06dB), its total harmonic distortion more noise of 0.0004% and its signal-to-noise ratio of 123dB specify the stated performance. The optical and coaxial inputs accept digital sources, while the stereo RCA outputs transmit the signal to an amplifier or audio system. The 3.5mm microphone input completes this connectivity for desktop integration, in a 95 × 95 × 40 mm format.
