TOPPING E70 VELVET DAC AK4499EX XMOS XU316 Bluetooth 5.1 aptX Adaptive LDAC 32bit 768kHz DSD512 Black

TOPPING E70 DAC AK4499EX XMOS XU316 Bluetooth 5.1 aptX Adaptive LDAC 32bit 768kHz DSD512 Black
With the E70 Velvet, Topping offers a new version of the excellent E70 DAC featuring the new AK4499EX high-end digital-to-analog conversion chip from AKM. For the rest, it takes the excellent technical basis of its elder brother, combining a careful design and high-end components for exceptional sound performance with smart and practical features, such as Bluetooth, a 12V trigger or an adaptable output level.

Average votes for this product
3.0 / 5

By buying this product you get 49 loyalty points


Reference : 17118
New product

499,00 €tax incl.

415,83 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 25-04-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Topping E70 Velvet

DAC AK4499EX XMOS XU316 Bluetooth 5.1 aptX Adaptive LDAC 32bit 768kHz DSD512 Black

Topping E70 Velvet DAC AK4499EX XMOS XU316 Bluetooth 5.1 aptX Adaptive LDAC 32bit 768kHz DSD512 Noir

With the E70 Velvet, Topping offers a new version of the excellent E70 DAC featuring the new AK4499EX high-end digital-to-analog conversion chip from AKM. For the rest, it takes the excellent technical basis of its elder brother, combining a careful design and high-end components for exceptional sound performance with smart and practical features, such as Bluetooth, a 12V trigger or an adaptable output level

Topping E70 Velvet DAC AK4499EX XMOS XU316 Bluetooth 5.1 aptX Adaptive LDAC 32bit 768kHz DSD512 Noir

AKM AK4499EX DAC

The Topping E70 Velvet embeds within its digital/analog conversion stage the brand new DAC chip from AKM, the AK4499EX, the new flagship of the manufacturer. This converter benefits from a switched resistor architecture using the proprietary VelvetSound technology. It uses the latest high quality conversion technologies to provide the most vivid and realistic sound reproduction possible.

Topping E70 Velvet DAC AK4499EX XMOS XU316 Bluetooth 5.1 aptX Adaptive LDAC 32bit 768kHz DSD512 Noir
Topping E70 Velvet DAC AK4499EX XMOS XU316 Bluetooth 5.1 aptX Adaptive LDAC 32bit 768kHz DSD512 Noir

A state-of-the-art I/V conversion circuit

The E70 Velvet uses the excellent I/V conversion circuitry implemented by its big brother. It is designed to ensure low distortion and low noise, while taking up less space. It is here pushed to its limits to allow the DAC to reveal its full potential.

Bluetooth 5.1

Equipped with a Qualcomm QCC5125 Bluetooth 5.1 receiver chip, the E70 Velvet lets you stream your music remotely directly from your smartphone or tablet. It also supports the high-resolution transmission codecs aptX, aptX HD, aptX Adaptive and LDAC, guaranteeing high-quality playback over Bluetooth. In addition, the E70 Velvet bypasses the conversion stage of the Bluetooth receiver to use the much more powerful AK4499EX DAC in order to provide the most faithful sound reproduction possible.

Topping E70 Velvet DAC AK4499EX XMOS XU316 Bluetooth 5.1 aptX Adaptive LDAC 32bit 768kHz DSD512 Noir
Topping E70 Velvet DAC AK4499EX XMOS XU316 Bluetooth 5.1 aptX Adaptive LDAC 32bit 768kHz DSD512 Noir

XMOS XU316 USB Interface

The USB input of the Topping E70 Velvet is associated with a latest generation XMOS XU316 interface with custom Thesycon driver. This powerful interface supports high resolution audio streams, up to PCM 32bit 768kHz and DSD512, for a very high quality listening.

Trigger 12V

The E70 Velvet features a 12V trigger with active (trigger output) and passive (trigger input) control. With only a single 3.5mm Jack cable, the E70 Topping can be switched on and off in sync with your other equipment with a 12V trigger interface.

Topping E70 Velvet DAC AK4499EX XMOS XU316 Bluetooth 5.1 aptX Adaptive LDAC 32bit 768kHz DSD512 Noir

Selectable output modes

The E70 Velvet provides balanced XLR and single-ended RCA output. The input is selectable and allows to activate only one or both simultaneously. Moreover, Topping offers a smart feature, allowing you to adjust the level of these outputs according to your use and the desired integration. Thus, the level of the XLR output can be changed from 4V to 5V and the RCA output from 2V to 2.5V.

Topping E70 Velvet DAC AK4499EX XMOS XU316 Bluetooth 5.1 aptX Adaptive LDAC 32bit 768kHz DSD512 Noir

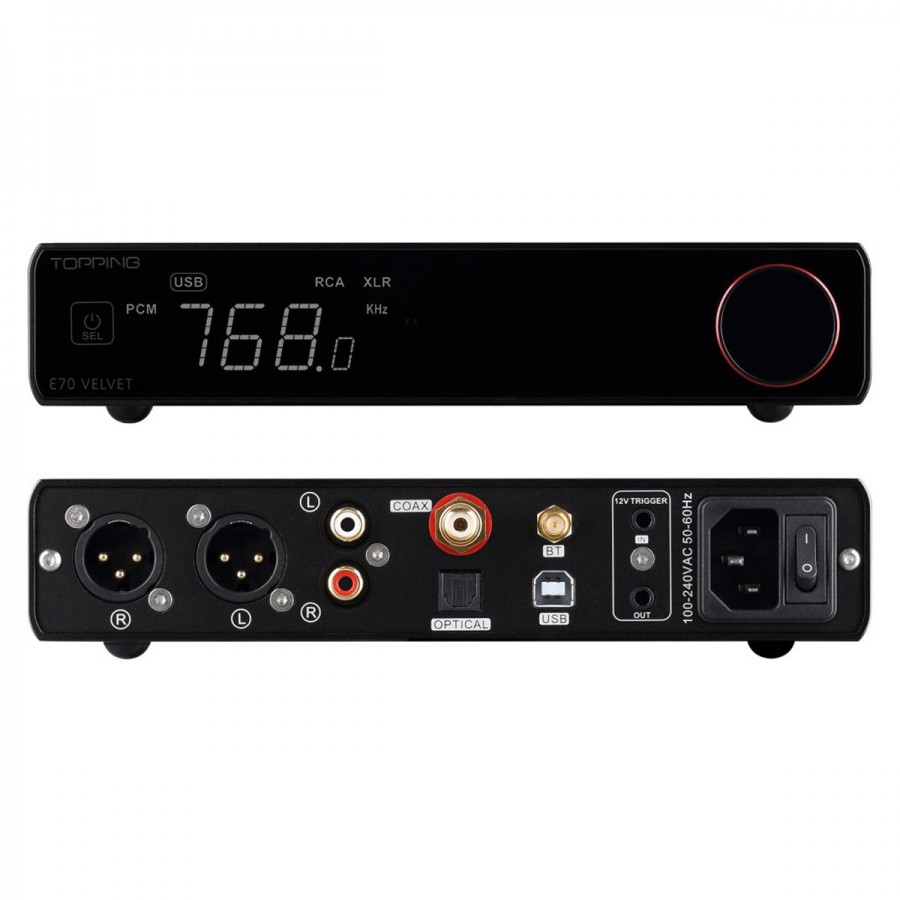

1ON-OFF / input selection button
2Screen
3Volume button
4Coaxial input
5Bluetooth antenna connector
612V trigger input
7Balanced XLR output
8Single-ended RCA output
9Optical Toslink input
10USB-B input
1112V trigger output
12Power supply input
13Power button

Technical characteristics

Specifications
Product typeDAC
InputsBluetooth 5.1
1x USB-B
1x Coaxial
1x Optical Toslink
Outputs1x Single-ended stereo RCA
1x Balanced stereo XLR
DAC chipAKM AK4499EX
Bluetooth receptionQCC5125
USB interfaceXMOS XU316
Supported Bluetooth codecsAAC
SBC
aptX
aptX HD
ptX LL
aptX Adaptive
LDAC
Supported sampling ratesUSB : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256
Optical / Coaxial : PCM up to 24bit 192kHz, DSD DoP up to DSD64
Measurements
DAC E70 Velvet parameters (line out / USB input @ 96kHz)
RCAXLR
THD+N (A-Weighted)< 0.00008% @ 1kHz< 0.00006% @ 1kHz
THD @ 90kBw (Non-Weighted)< 0.0002% @ 20Hz-20kHz< 0.0002% @ 20Hz-20kHz
SNR (A-Weighted)125dB131dB
Dynamic range @ 1kHz, A-Weighted125dB131dB
Frequency response20Hz-40kHz (±0.3dB)
20Hz-40kHz (±1.0dB)
20Hz-40kHz (±0.2dB)
20Hz-40kHz (±0.8dB)
Output level2.1Vrms @ 0dBFS (Mode 4V)
2.5Vrms @ 0dBFS (Mode 5V)
4.2Vrms @ 0dBFS (Mode 4V)
5Vrms @ 0dBFS (Mode 5V)
Noise (A-Weighted)< 1.3µVrms< 1.3µVrms
Channel crosstalk-130dB @ 1kHz-143dB à 1kHz
Channel balance0.3dB0.3dB
Output impedance50Ω100Ω
General
ColorBlack
Dimensions (L*P*H)200*138*44mm
Package1x Topping E70
1x Remote control
1x USB cable
1x Power cable
1x Bluetooth antenna

Data sheet
InputSPDIF
InputBluetooth
InputUSB
InputOptical
OutputRCA
OutputXLR
DAC / ADC ChipAK4499EX
Max sampling rateDSD512
Max sampling rate768kHz
ColorBlack
NetworkingNo
Remote ControlYes
