TOPPING D90SE Balanced DAC ES9038Pro 32bit 768kHz DSD512 MQA Black

TOPPING D90SE Balanced DAC ES9038Pro 32bit 768kHz DSD512 Black

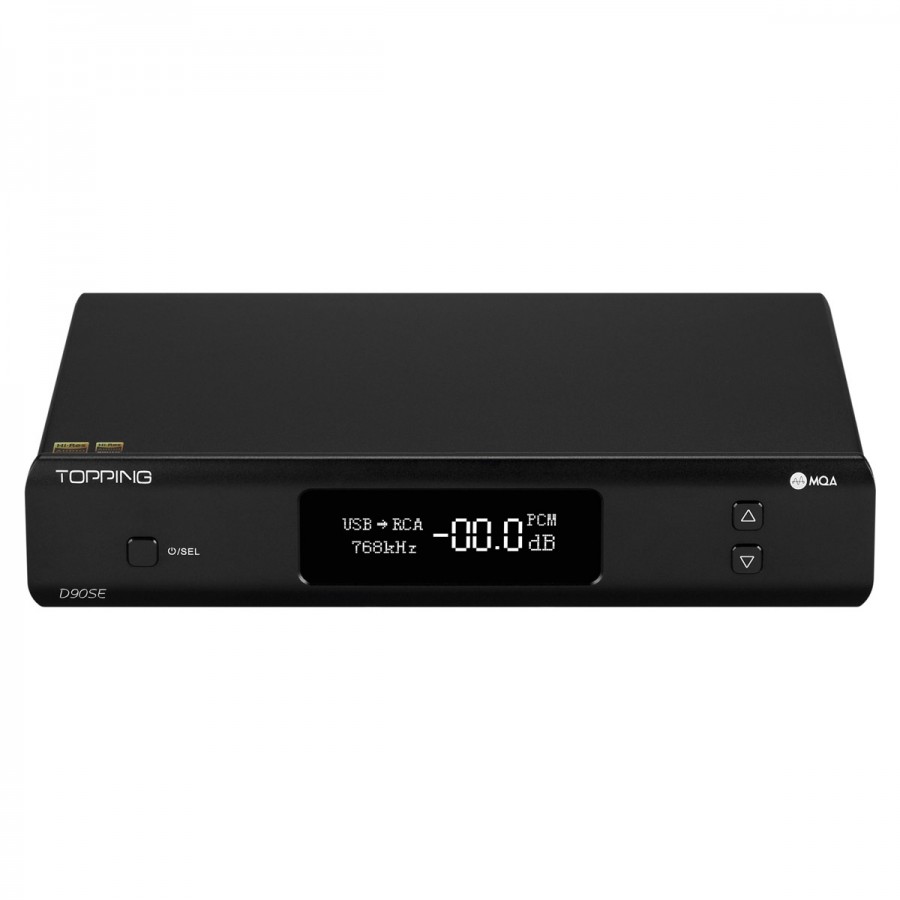

The Topping D90SE is a high-end DAC, benefiting from an intelligent and careful design for high performance. It features an ESS ES9038Pro conversion chip, an XMOS interface and an Altera Max II CPLD. The D90SE is also versatile, with a complete connectivity and an integrated Bluetooth receiver.

Average votes for this product
5.0 / 5

By buying this product you get 74 loyalty points


Reference : 15419
New product

749,17 €tax excl.

Including 0,04 € for green tax

- +

Shipping date: 27-10-2021.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Topping D90SE

Balanced DAC ES9038Pro 32bit 768kHz DSD512 Black

Topping D90SE DAC Symétrique ES9038Pro 32bit 768kHz DSD512 Noir

The Topping D90SE is a high-end DAC, benefiting from an intelligent and careful design for high performance. It features an ESS ES9038Pro conversion chip, an XMOS interface and an Altera Max II CPLD. The D90SE is also versatile, with a complete connectivity and an integrated Bluetooth receiver.

Topping D90SE DAC Symétrique ES9038Pro 32bit 768kHz DSD512 Noir

ES9038Pro DAC

The D90SE features an ESS Sabre ES9038Pro DAC chip, using the 32-bit HyperStream architecture to achieve an extremely high level of performance for incredibly accurate and transparent sound reproduction.

The D90SE performs independent I/V (current/voltage) conversion for the 8 channels of the ES9038Pro and then connects them in parallel. This technique allows for an ever increasing level of performance.

Topping D90SE DAC Symétrique ES9038Pro 32bit 768kHz DSD512 Noir
Topping D90SE DAC Symétrique ES9038Pro 32bit 768kHz DSD512 Noir
Topping D90SE DAC Symétrique ES9038Pro 32bit 768kHz DSD512 Noir

MQA Support

The D90SE supports the MQA (Master Quality Authenticated) format on its USB input, but also on its Coaxial, Optical and AES inputs. This format allows you to enjoy a quality as close as possible to the original recording of your music.

Bluetooth 5.0

Equipped with a Qualcomm CSR8675 chip, the D90SE offers Bluetooth 5.0 reception, convenient for remote music streaming directly from your smartphone. In addition, this chip supports the codecs aptX, aptX HD, aptX LL and LDAC, allowing to achieve a high quality sound in wireless.

Topping D90SE DAC Symétrique ES9038Pro 32bit 768kHz DSD512 Noir
Topping D90SE DAC Symétrique ES9038Pro 32bit 768kHz DSD512 Noir

XMOS XU216

The USB input of the D90SE uses a 2nd generation XMOS XU2013 16-core chip. This chip supports high sampling rates, up to 32bit 768kHz PCM and DSD512, as well as MQA. This chip is associated with a custom Thesycon driver.

Full connectivity

The D90SE benefits from a complete range of connectivity to adapt to all systems. We can find AES, USB-B, Optical, Coaxial, I2S LVDS via HDMI as well as Bluetooth 5.0 connectivity. For its outputs, the D90SE offers single-ended RCA and balanced XLR.

Topping D90SE DAC Symétrique ES9038Pro 32bit 768kHz DSD512 Noir Topping D90SE DAC Symétrique ES9038Pro

Switchable output

The D90SE offers a selectable output system. The audio stream can be routed to the XLR output, the RCA output or both. Moreover, it also allows to choose an output level. Thus, the XLR output can work in 4V or 5V and the RCA output in 2V or 2.5V.

Preamplifier function

In addition to the DAC mode with a fixed output level, the D90SE offers a DAC + preamplifier mode. In this mode, you can control the volume level. Thus, the D90SE can be directly associated with a power amplifier or active speakers.

Topping D90SE DAC Symétrique ES9038Pro 32bit 768kHz DSD512 Noir

CPLD Alter Max II

The Topping D90SE uses an Altera Max II CPLD to process the clock signal and thus optimize the quality of digital signals, significantly reducing jitter.

Topping D90SE review by Audio Science Review (Amir)

 It is not every day that every barrier we have seen in DACs gets shattered to new levels. We are seeing extreme attention to every aspect of this design to squeeze this much performance out of this ESS DAC. Just when we though the race was over, here comes one more over achiever! "
Test du Topping D90SE par Audio Science Review (Amir)

Technical characteristics

Specifications
Product typeBalanced DAC
Inputs1x USB-B
1x AES
1x Coaxial
1x Optical Toslink
1x I2S LVDS via HDMI
Bluetooth 5.0
Outputs1x Stereo RCA
1x Stereo XLR
DAC ChipESS ES9038Pro
USB interfaceXMOS XU216
Supported Bluetooth codecsSBC, AAC, aptX, aptX LL, aptX HD, LDAC
Supported sampling ratesPCM up to 32bit 768kHz
DSD up to DSD512
RCA Line out measurements @ USB, 96kHz
THD+N @ A-Weighting< 0.00007% @ 1kHz
THD @ No-Weighting, 90kBw< 0.0008% @ 20Hz-20kHz
SNR @ A-Weighting127dB @ 1kHz
Dynamic range @ A-Weighting127dB @ 1kHz
Frequency response20Hz-20kHz (±0.1dB)
20Hz-40kHz (±0.3dB)
Output level2.1Vrms @ 0dBFS (Mode 4V)
2.6Vrms @ 0dBFS (Mode 5V)
Noise @ A-Weighting< 1.3µVrms
Crosstalk-124dB @ 1kHz
Channel balance0.3dB
Output impedance100Ω
XLR Line out measurements  @ USB, 96kHz
THD+N @ A-Weighting< 0.00005% @ 1kHz
THD @ No-Weighting, 90kBw< 0.0003% @ 20Hz-20kHz
SNR @ A-Weighting134dB @ 1kHz
Dynamic range @ A-Weighting134dB @ 1kHz
Frequency response20Hz-20kHz (±0.1dB)
20Hz-40kHz (±0.3dB)
Output level4.2Vrms @ 0dBFS (Mode 4V)
5.2Vrms @ 0dBFS (Mode 5V)
Noise @ A-Weighting< 1.1µVrms
Crosstalk-139dB @ 1kHz
Channel balance0.3dB
Output impedance100Ω
General
Dimensions222 x 160 x 45mm
Package1x Topping D90SE Black
1x IR Remote control
1x USB cable
1x Bluetooth antenna
1x Power cable
Topping D90SE DAC Symétrique ES9038Pro 32bit 768kHz DSD512 Noir Topping D90SE DAC Symétrique ES9038Pro 32bit 768kHz DSD512 Noir Topping D90SE DAC Symétrique ES9038Pro 32bit 768kHz DSD512 Noir Topping D90SE DAC Symétrique ES9038Pro 32bit 768kHz DSD512 Noir

Data sheet
InputBluetooth
InputAES/EBU
InputUSB
InputOptical
InputI2S via HDMI
InputSPDIF
OutputXLR
OutputRCA
DAC / ADC ChipES0938PRO
Max sampling rate768kHz
Max sampling rateDSD512
ColorBlack
NetworkingNo
Remote ControlYes

Delivery
We deliver all of France, and internationally.
To discover the amount of the shipping costs, you just have to go in your shopping cart once the desired products added.
To discover our different services and delivery options, click on the following logos:
Colissimo - TNT - SoColissimo
Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Il a tout d'un grand !
Je cherchais un convertisseur "haut de gamme" pas trop encombrant et pas trop cher.
Je l'utilise principalement avec l'entrée USB et les sorties XLR reliées directement à un ampli de puissance PURIFI.
J'ai pu le comparer avec un Audio-gd nfb-11-38 équipé de la même puce. Un gain musical indéniable et un remarquable silence de fonctionnement.
Beaucoup de fonctions pratiques. Je me sers des sorties RCA reliées à un petit ampli Topping L30 pour une écoute occasionnelle au casque.
Simplement, les câbles secteur et USB d'origine sont à remplacer d'office !
