TRASAM DAC3 Balanced DAC ES9028Q2M 24bit/192kHz DSD128 XMOS

route DAC3 New

No customer reviews yet, login to write a review.

By buying this product you get 9 loyalty points


Reference : 14093
New product

99,17 €tax excl.

Including 0,04 € for green tax
Available

- +

Shipping date: 18-10-2019.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product


More info

Please take note that the power supply needed to operate this product is not included.
DAC3 needs a voltage of 12V and at least 1A to run correctly.

You can find a power supply suited for this appliccation (EU plug) by following this link.



DAC3 Trasam

DAC ES9028Q2M XMOS L6, USB3318 CS8416 192kHz / 24-bit DSD128

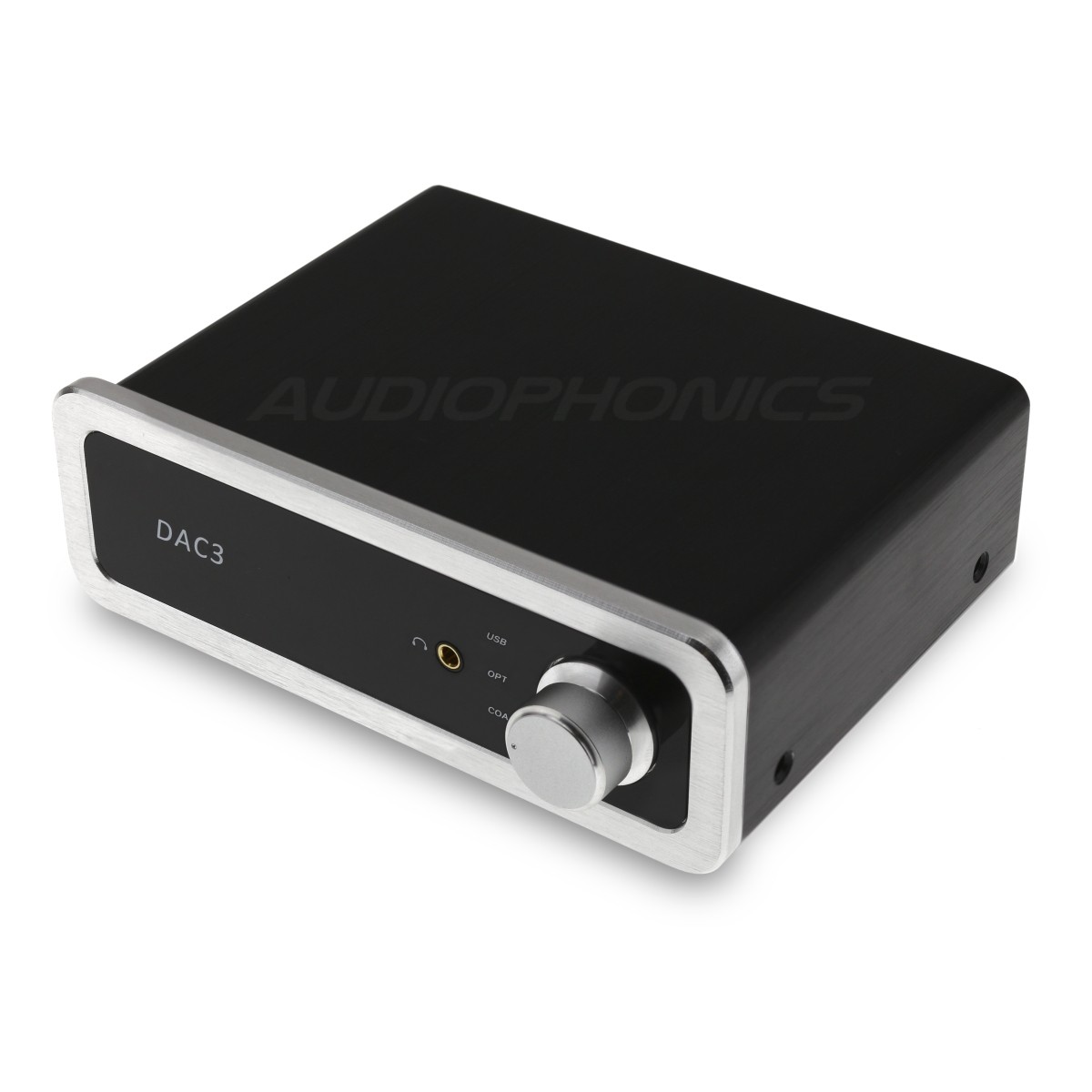

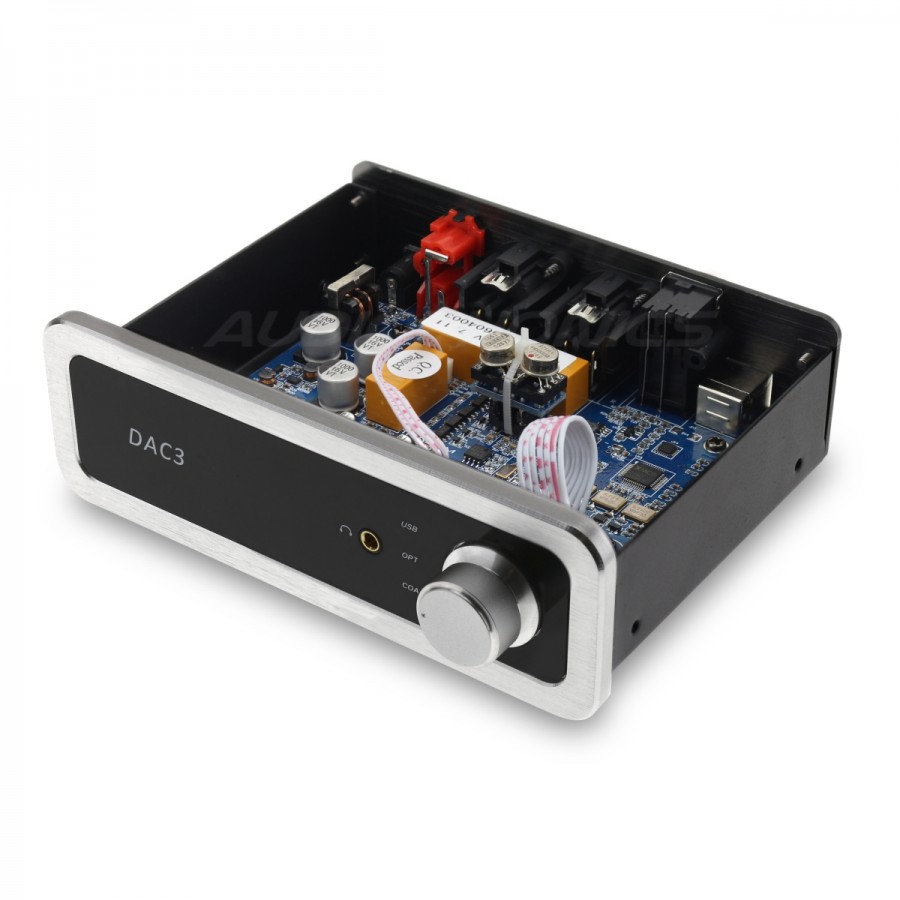

This compact and elegant DAC incorporates an ES9028Q2M chip and an output stage built around a pair of operational amplifiers OPA111. The device shines by its sound finesse as much as its ease of use: all its basic functions, from power on/off to source selection and volume control are accessible from a sober and stylish façade.

Ideal for small and medium sized installations, DAC3 can be connected to three sources at  the sale tule (Optical, Coaxial, USB) and switch from one to another with a single button touch. The DAC will be able to handle digital flow from TV, a media platform / game console and a streamer / computer to centralize the decoding process to a single amplifier or powered speakers.


XMOS USB and DAC SABRE ESS 9028Q2M

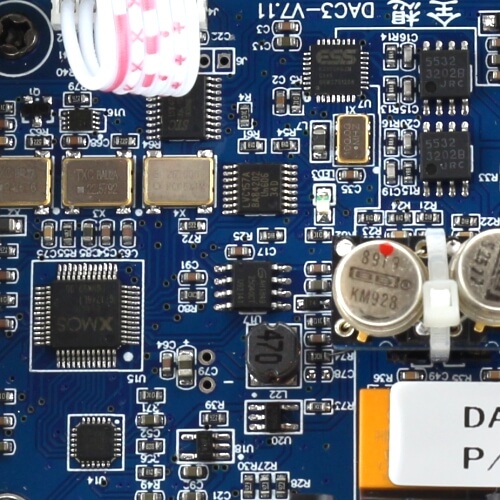

The DAC3 uses a ES9028Q2M chip and a USB XMOS interface, two reference components for high fidelity applications. They provide support for PCM audio formats up to 192kHz / 24-bit and DSD (native) up to DSD128.

The USB interface allows the use of the DAC as an external sound card connected directly to a computer or even a smartphone OTG compatible. A USB-B cable to micro-USB with USB-C optional adapter is supplied for this purpose.

Volume control and headphone output

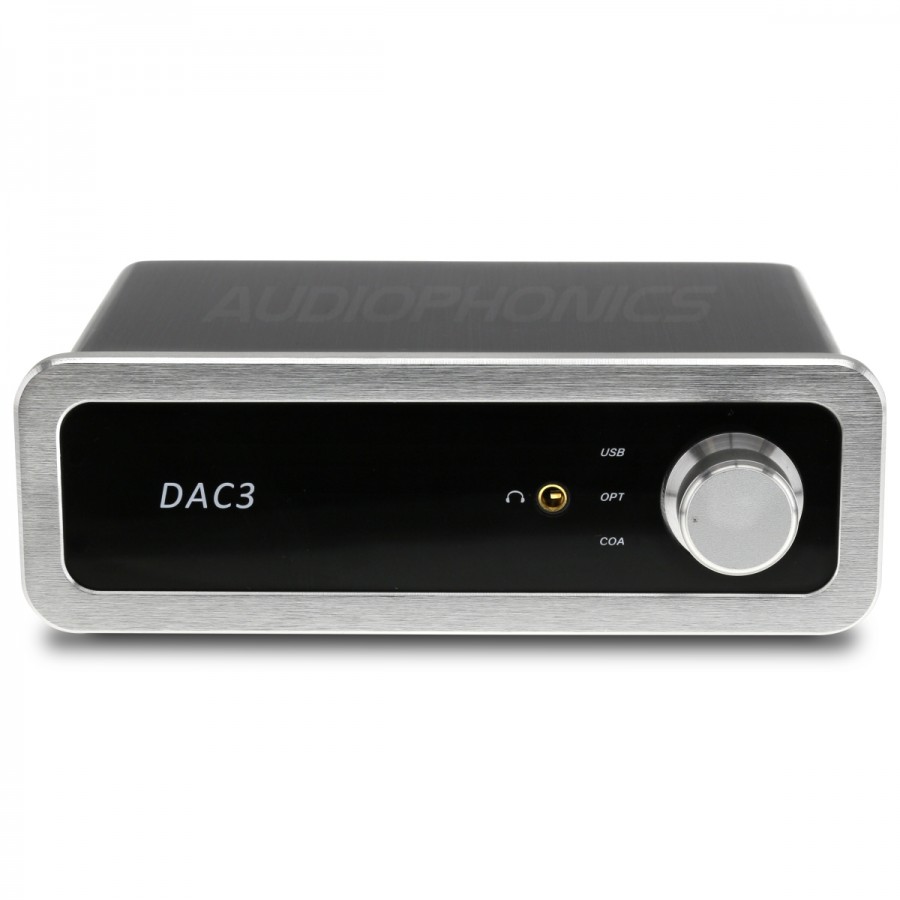

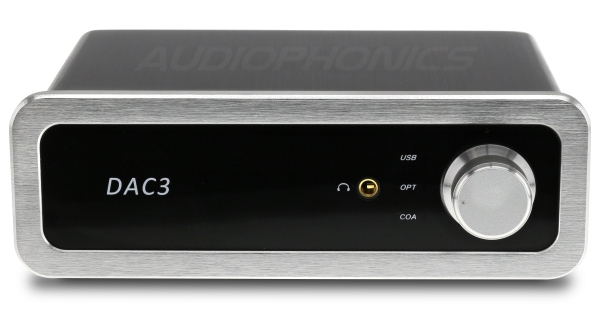

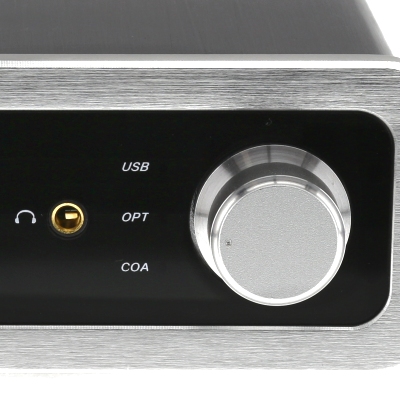

A rotary knob on the front panel allows you to control very easily the volume of the output signal.

The front panel also has a 3.5mm headphone jack connector. The latter is far from trivial, since the headset circuit benefits from the same treatment as the output stage and can thus drive headphones from 32 to 150Ω.


Fine output stage

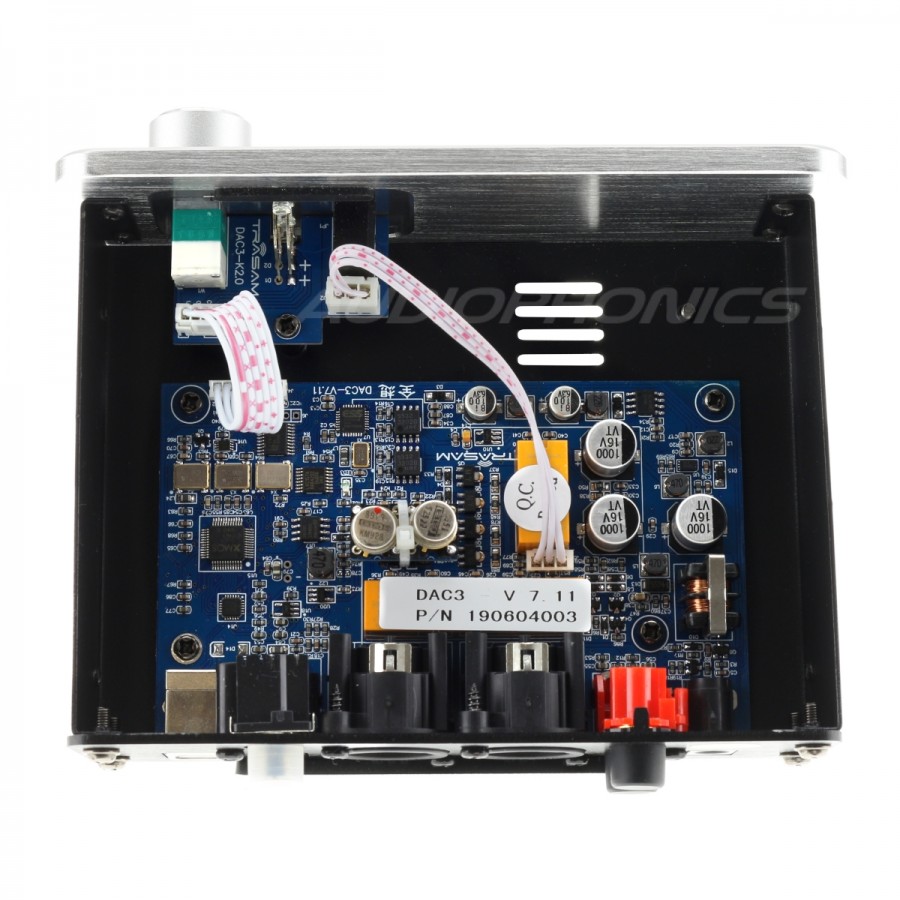

The DAC3 carries two high performance and low noise operational amplifiers OPA111 (FET) at the core of an output stage capable of delivering up to 5V with a very low distortion (<0.001%).

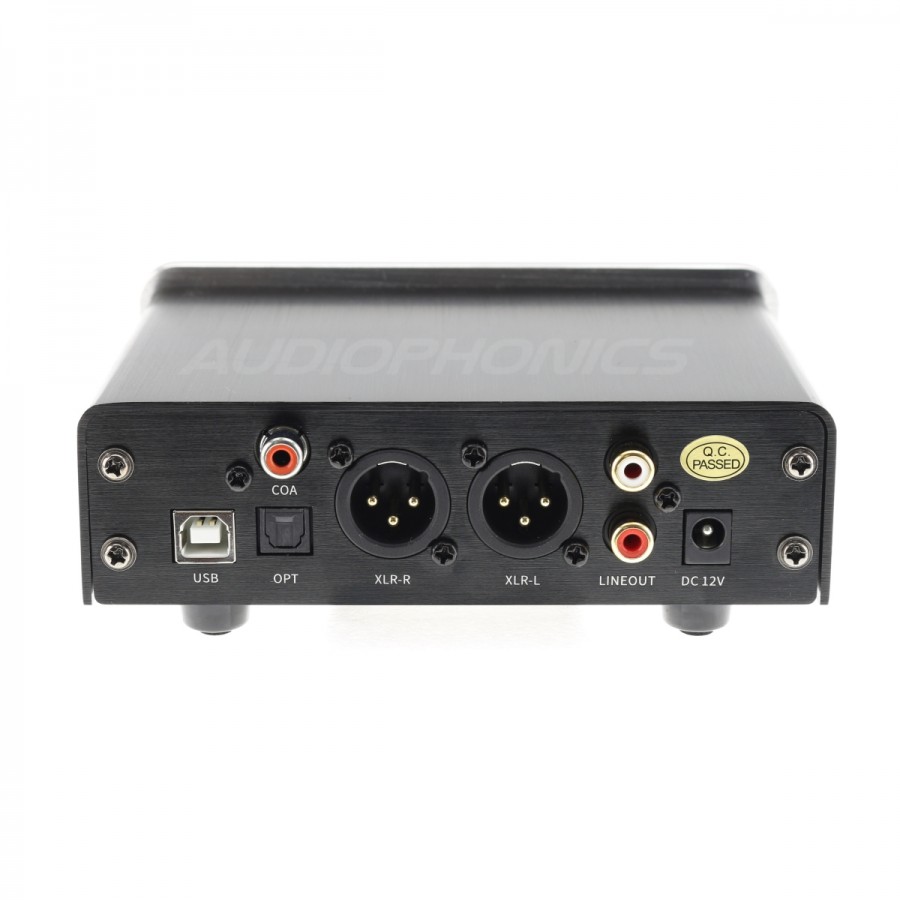

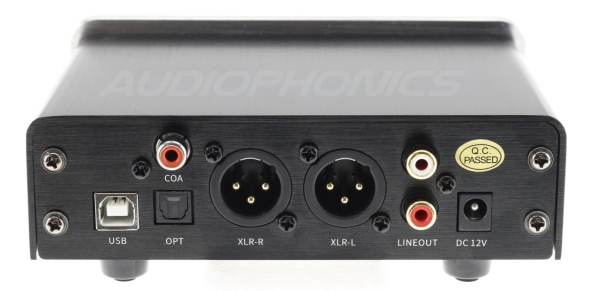

The unit provides an unbalanced output on RCA connector and a balanced output on XLR-3 connector. It can thus be used with advanced audiophile installations while remaining scalable.

Specifications
TypeDAC (digital to analog converter)
DAC chipES9028Q2M
USB interfaceXMOS L6
InputsOptical x1
Coaxial x1
USB x1
OutputsStereo RCA (unbalanced)
XLR-3 stereo (balanced)
Sampling rate supportedPCM: up to 192 kHz 24-bit
DSD: up DSD128 (native)
Dimensions145 x 50 x 110 mm
Weight540g
Package Contents
1xDAC3
1xUSB-A to USB-B cable 1.5m
1xUSB-B cord to Micro-USB 1m
1xMicro-USB female adapter to USB-C Male

Data sheet
InputUSB
InputOptical
InputSPDIF
OutputRCA
OutputXLR
DAC ChipES9028Q2M
Max sampling rate192kHz
Max sampling rateDSD128
MaterialAluminium
