ifi Audio iDAC2 Micro USB DAC / Headphone Amplifier Quad-DSD

The iDAC2 is a designated iDDD receiver and is a DAC / Headphone Amplifier that plays PCM formats up to 32bit 384kHz, DXD as well as Double-DSD128 and Quad-DSD256 files.
It has been designed for playing high quality digital audio files.

It features a Class A amplifier stage, Elna Japan Silmic II capacitors, TDK C0G capacitors, Vishay MELF resistors, Mosfet J-Fet and PNP bipolar transistor (intended for the iFI Audio Pro range coming soon ...).

It is equipped with the new iFi Audio "Super Regulator" technology, the new noise filter to clean the USB power supply.

Delivering up to 350mW under 16 Ohm, it is also a robust and powerful headphone amplifiers with high precision and a clean and balanced restitution.

It is compatible with all types of smartphones and tablets (iDevices or Android).

Features:/ Strong>

• USB-B 3.0 port (compatible with iPhone, iPad, and Android USB-OTG)

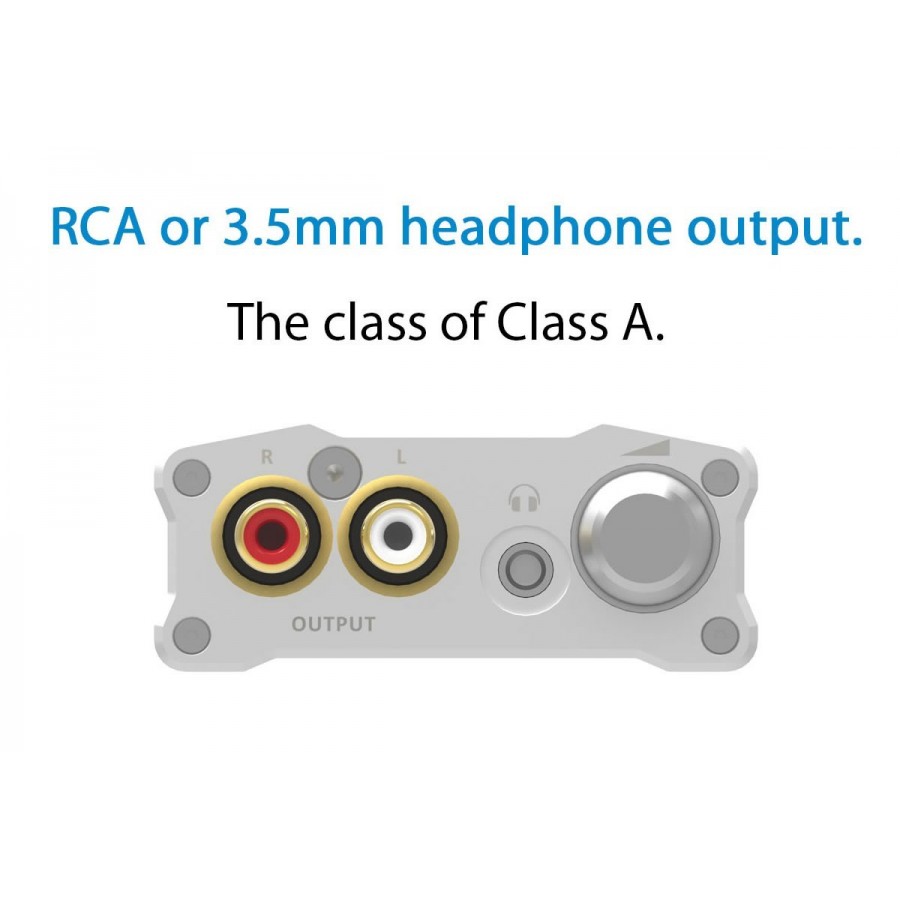

• Analog Audio Output RCA 2.1V
• S / PDIF RCA Coaxial Output (24bit 192kHz)
• Stereo Headphone Jack 3.5mm 3.5V max.
• Analog volume control
• PCM Digital Filters: Bit-Perfect / Minimum Phase / Standard
• DSD Analog Filters: Extreme / Extended / Standard
• DXD Analog Filter: Bit-Perfect Processing

• DAC :
• BURR-BROWN True Native
• High precision clock
• Ultra low jitter
• THD + N: <0.0025%
• SNR: 114dB
• Output Voltage:> 2.1V
• Output Impedance: <39 Ohm

• Headphone Amplifier :
• THD + N: <0.0025%
• SNR: 114dB
• Output impedance: <2 Ohm
• Output power: 350mW under 16 Ohm, 34mW under 300 Ohm

• USB powered
• Recognized natively on Linux and Mac iOS. Installation driver for Windows (Up to Win 8.1).
• Dimensions: 158x68x28mm
• Weight: 265g
