This product is available here: IFI AUDIO ZEN ONE SIGNATURE DAC.
DAC Burr Brown XMOS Bluetooth 5.0 32bit 384kHz DSD256 MQA
The iFi Audio Zen One Signature uses the DAC stage of the Zen DAC V2, while adding SPDIF inputs (optical and coaxial) to complement the USB port, as well as the Bluetooth technology of the Zen Blue V2. It takes advantage of this to add circuit improvements to offer a particularly complete and powerful product that will benefit your entire audio system.
The Zen One Signature is the first product in the Zen DAC series to support so many sample rates: PCM up to 32bit 384kHz, DSD up to DSD256, MQA 384kHz and Bluetooth up to 96kHz.
Thanks to its Qualcomm QCC5100 chip and in combination with iFi Audio's proprietary circuitry, the Zen One Signature is able to deliver a high-quality Bluetooth 5.1 music experience. In addition, it supports all current high-resolution transmission codecs: aptX, aptX Low Latency, aptX Adaptive and aptX HD, LDAC and HWA as well as LHDC are therefore supported.

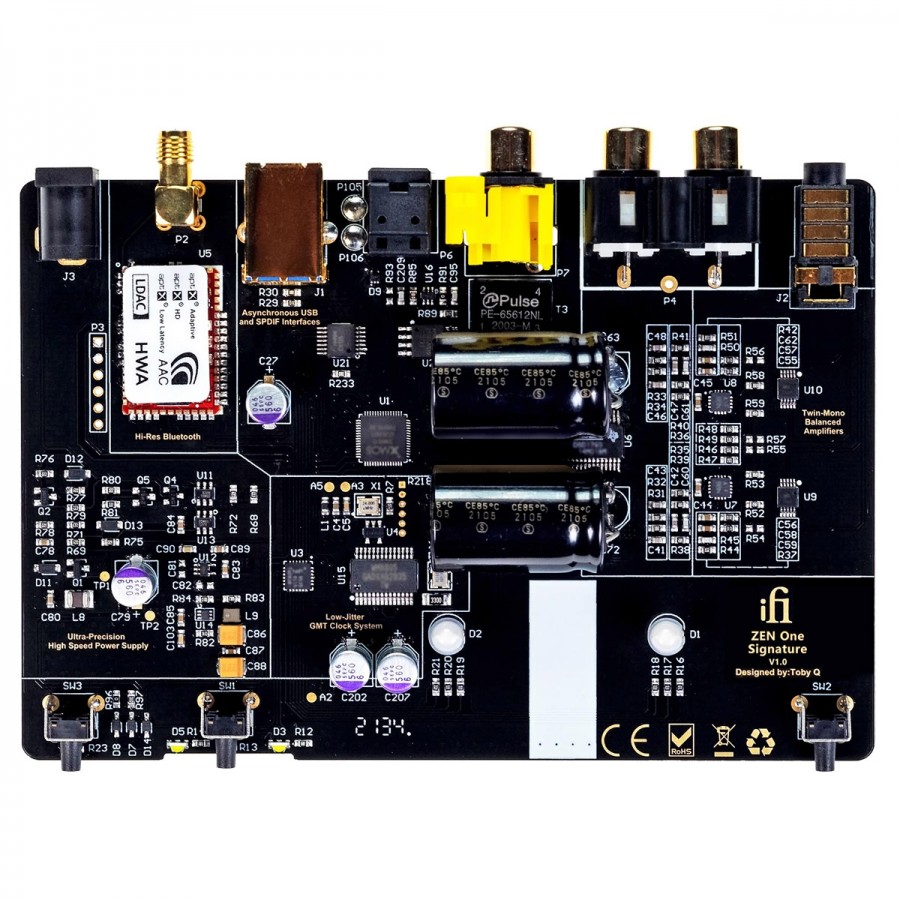

The Zen One Signature is packed with technology to deliver exceptional performance. It features a True Native Burr Brown DAC that supports high-resolution streams, a 16-core XMOS USB interface capable of decoding MQA, an improved femtosecond GMT clock and a custom digital filter to eliminate jitter, all accompanied by a complete set of connectivity.
The balanced circuit is the basic element of the Zen range. The Zen Signature One takes up this architecture by using high-end audio components in order to reduce the distortion level of the device as much as possible.
In addition, it proposes in analog output 4.4mm balanced jack and unbalanced stereo RCa. It can therefore be associated with most amplifiers, preamplifiers, headphone amplifiers or active speakers.
iFi Audio's Signature line always includes high-end components:
Specifications | |
---|---|
Product type | DAC |
DAC Chip | Burr Brown |
Inputs | 1x USB-B 3.0 1x Coaxial 1x Optical Toslink Bluetooth 5.1 |

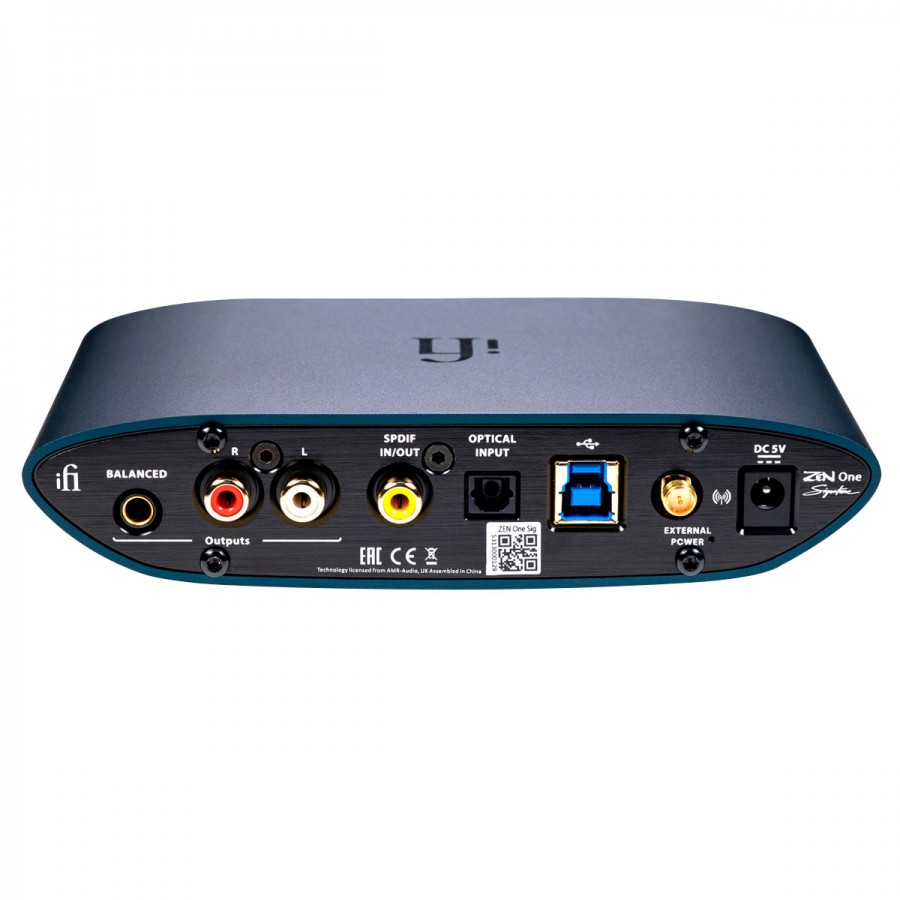

Outputs | 1x Single-ended stereo RCA 1x Balanced Jack 4.4mm 1x Coaxial |
Supported sampling rates | PCM up to 32bit 384kHz DSD up to DSD256 DxD up to 384kHz MQA |
Supported Bluetooth codecs | SBC, AAC, LHDC/HWA, aptX, aptX LL, aptX HD, aptX Adaptive, LDAC |
Bluetooth chip | Qualcomm QCC5100 |
Frequency response | 5Hz - 80kHz ±3dB |
Output level | Balanced : 4V Single-ended : 2V |
Output impedance | Balanced : ≤ 72Ω Single-ended : 36Ω |
SNR | -105dB(A) @ 0dBFS |
THD+N | < 0.002% @ 0dBFS |
General | |
---|---|
Supply voltage | 5VDC |
Consumption | No signal : ~0.7W Max signal : ~1W |
Dimensions | 158 x 100 x 35mm |
Weight | 485g |
Package | 1x iFi Audio Zen One Signature 1x Power supply 1x Bluetooth antenna 1x RCA cable 1x USB cable |
Input | USB |
Input | Optical |
Input | SPDIF |
Input | Bluetooth |
Output | RCA |
Output | Jack 4.4mm |
Output | Coaxial SPDIF |
DAC / ADC Chip | Burr Brown |
Max sampling rate | 384kHz |
Max sampling rate | MQA |
Max sampling rate | DSD256 |
Color | Black |
Networking | No |
Remote Control | No |
