SMSL D1 DAC

The SMSL D1 is a budget DAC based on high-quality components. Digital-to-analog conversion is performed by a USB XMOS XU-316 interface combined with a Rhom BD34352EKV chip, enabling it to achieve an SNR of 126dB while supporting high-resolution streams up to PCM 32bit 768kHz and DSD512.

Average votes for this product
4.4 / 5

By buying this product you get 7 loyalty points


Reference : 20843
New product

79,00 €tax incl.

65,83 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 03-06-2026.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

SMSL D1 DAC ROHM BD34352EKV XMOS XU316 32bit 768kHz DSD512

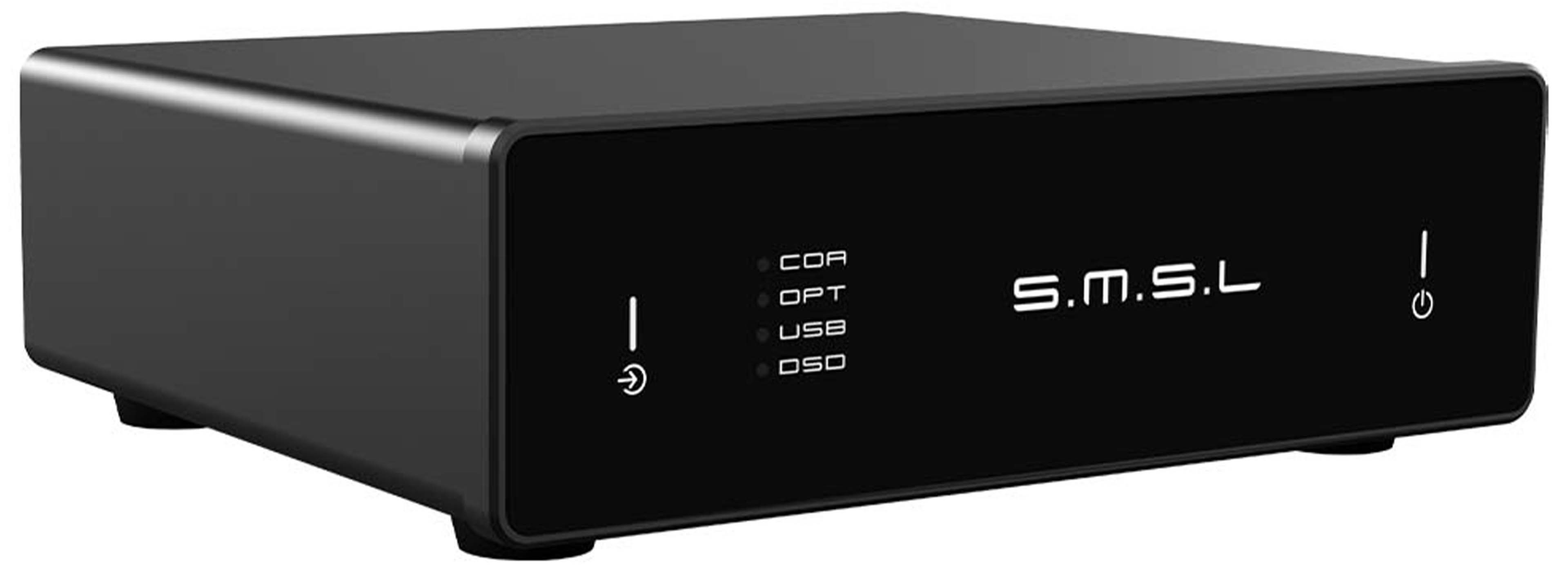

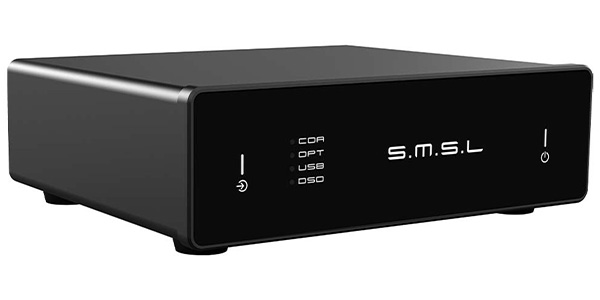

Photo du SMSL D1

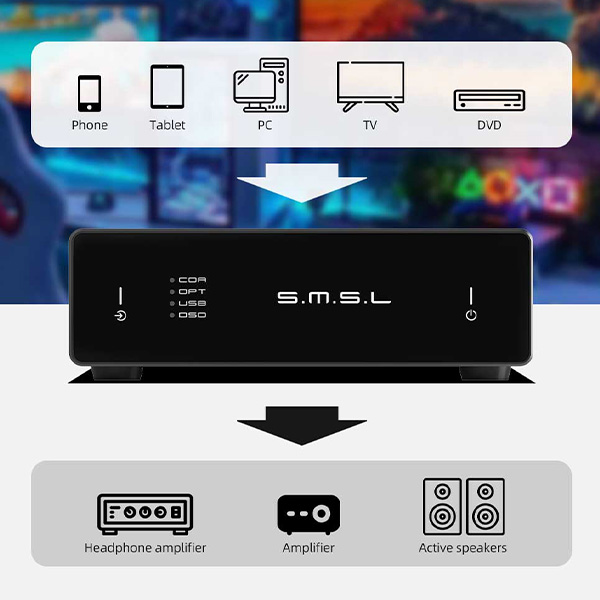

The SMSL D1 is a budget DAC based on high-quality components. Digital-to-analog conversion is performed by a USB XMOS XU-316 interface combined with a Rhom BD34352EKV chip, enabling it to achieve an SNR of 126dB while supporting high-resolution streams up to PCM 32bit 768kHz and DSD512. The USB-C input is complemented by a Toslink optical input and a coaxial SPDIF input, and the output is on an RCA connector. The SMSL D1 can be adapted to a variety of scenarios, whether you need to connect a source such as a computer, a smartphone via USB, or a DVD player, a TV via optical/SPDIF.

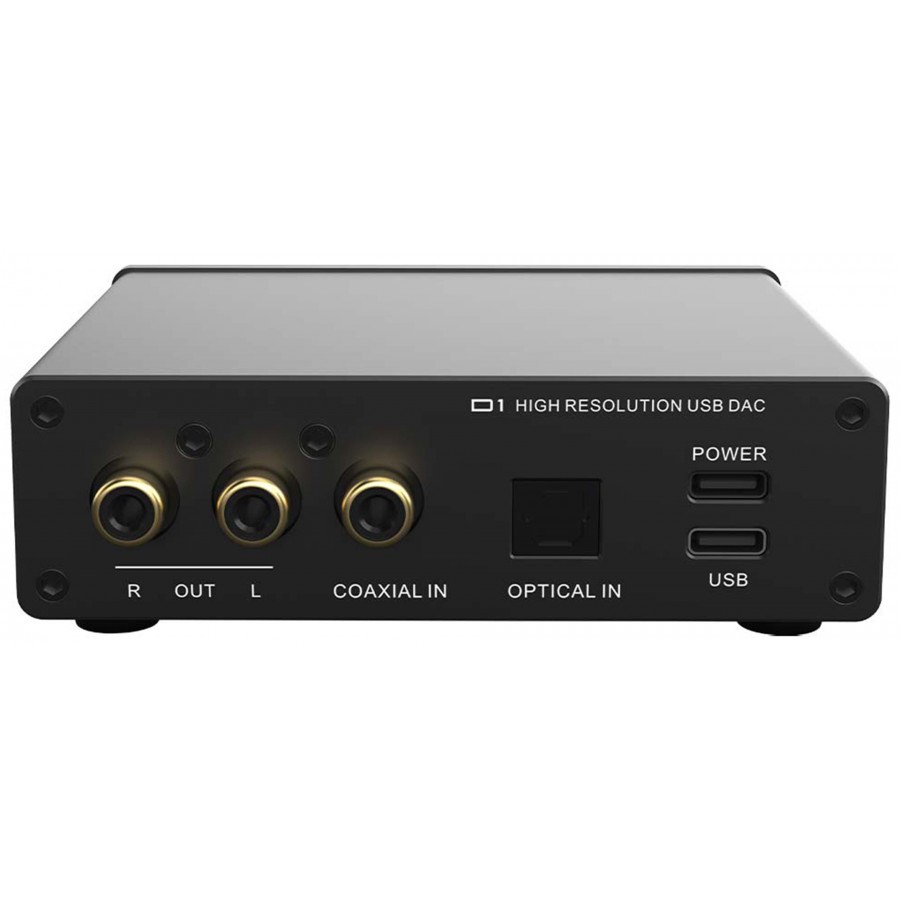

Les connexions du SMSL D1

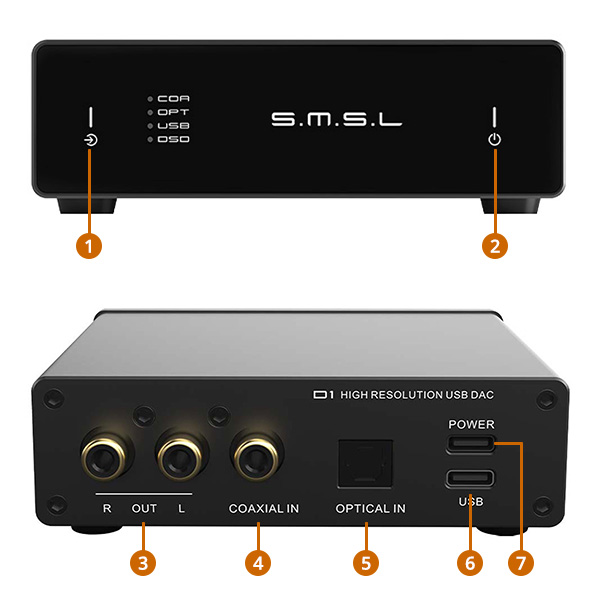

SMSL D1 overview

Aperçu du SMSL D1
1Touch input selector
2Touch power button
3RCA output
4Coaxial input
5Toslink optical input
6USB-C DAC input
7USB-C power port

Technical characteristics

Specifications
Product typeDAC
DAC chipROHM BD34352EKV
USB interfaceXMOS XU316
Inputs1x USB-C
1x Toslink optical
1x Coaxial
Outputs1x RCA output
Output level2Vrms
THD+N0.00038% (-108dB)
Dynamic range119dB
SNR119dB
Supported sample ratesUSB: PCM up to 32bit 768kHz, DSD up to DSD512
Toslink optical and coaxial: PCM up to 24bit 192kHz
USB transmissionAsynchronous
USB compatibilityWindows 7/8/8.1/10/11
Mac OS
Linux
General
Alimentation5V 1A via USB-C
Power consumption< 5W
Standby: < 0.1W
Dimensions101 x 33 x 90.1mm
Weight201.1g
ColorBlack
Package1x DAC SMSL D1

Data sheet
InputSPDIF
InputUSB
InputOptical
OutputRCA
DAC / ADC ChipROHM BD34301EKV
Max sampling rateDSD512
Max sampling rate768kHz
ColorBlack
NetworkingNo
Remote ControlNo

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
4.4 / 5
5 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 4/5
Date :
Smsl d1 connecté a lecteur cd en spdif
La hifi est beaucoup une question de marketting. Autant d un point de vue des mesures que des concepts marketing.
Je préfère le naturel d un dac pcm1793 avec opa2210 alimente avec son alimentation smps qui a rien d extraordinaire.
Le son est organique naturel et holographique très engageant.
Ce smsl d1 Röhm a plein de détails il a une meilleure spatialisation et une meilleur définition. Mais il est fatiguant et le rythme est plus stressé.
Je pense que la hifi moderne force trop sur le noise shaping pour avoir de bonnes mesures statiques au détriment de la precision temporelle. Les ampli class style purifi utilisent aussi un nosie shaping agressif pour obtenir des spec mais sûrement ils perdent en temporalité. Après ca donnes l imptession que les musiciens sont pas en rythme ou pas content de jouer. Et du coup en s ennuie.
 (0)
 (0)
This review has been posted for SMSL D1 DAC ROHM BD34352EKV XMOS XU316 32bit 768kHz DSD512
Note :
 3/5
Date :
Sibilance and harsh treble. Not good for piano and female voices
Floorstanding Elipson 1303, Firstwatt F5m DIY poweramp with Zen Mod iron pre amp. I do not consider my system very revealing but there is some difference compared to my other DACs. First of all the DAC sounds detailed in the high tones and has quite some weight in the mid and low tones for this price. It also has a good soundstage (is this because of the extra treble?). There is good seperation of instruments and voices.
Besides the detail in the high it is also very harsh. Piano and female voices can sound sharp, sound like clipping and piano can sound different to false. This is not due to the extra treble but a mistake in the device. In general it doesnt sound so organic when listening to natural music. I switched back to my Google Chromecast audio. A DAC which sounds slightly smooth, a little less detailed but realistic and doesnt have this sibilance problem. The piano and voices are just right. The soundstage is just a little bit smaller. p.s. It can be that this is a faulty device so I will ask Audiophonics if its possible to return it.
 (0)
 (1)
This review has been posted for SMSL D1 DAC ROHM BD34352EKV XMOS XU316 32bit 768kHz DSD512
Note :
 5/5
Date :
Belle surprise
L'intérêt des DAC plus chers réside principalement dans les options de connectivité, les fonctions, les télécommandes, les écrans, l'esthétique du boîtier. Ce petit DAC pas cher équipé de la puce ROHM BD34352EKV offre des qualités d'écoute surprenantes d'équilibre avec des aigus fins, des médiums superbes et un grave profond. Le son n'est pas projeté, l'image est large et profonde avec une localisation précise des musiciens. Mon système est composé d'un PC (Daphile) DAC SMSL D1, Préampli à tubes (DIY) / Bloc mono 845/211 (DIY) et d'une paire d'enceintes colonne Triangle
 (1)
 (0)
This review has been posted for SMSL D1 DAC ROHM BD34352EKV XMOS XU316 32bit 768kHz DSD512
Note :
 5/5
Date :
Très bien
Ayant in D300 SMSL Rohm ce petit Dac a un son analogue et très musical.
Pour un peit prix vous pouvez accéder à un DAC qui équivaut a des DAC beaucoup plus chers
Je le recommande vivement avec un bon preampli ils est excellent
 (1)
 (0)
This review has been posted for SMSL D1 DAC ROHM BD34352EKV XMOS XU316 32bit 768kHz DSD512
Note :
 5/5
Date :
Bon et pas Cher
Trois entrées , DSD sur USB mais pas de télécommande. Le son est doux et plutot precis, je le prefere à mon DAC actuel 3 fois plus cher mais de conception plus ancienne qui est plus neutre et peut parfois avoir quelques duretés sur certains enregistrements. Pour le prix si vous pouvez vous passer de télécommande c'est un bon choix.
 (1)
 (0)
This review has been posted for SMSL D1 DAC ROHM BD34352EKV XMOS XU316 32bit 768kHz DSD512
