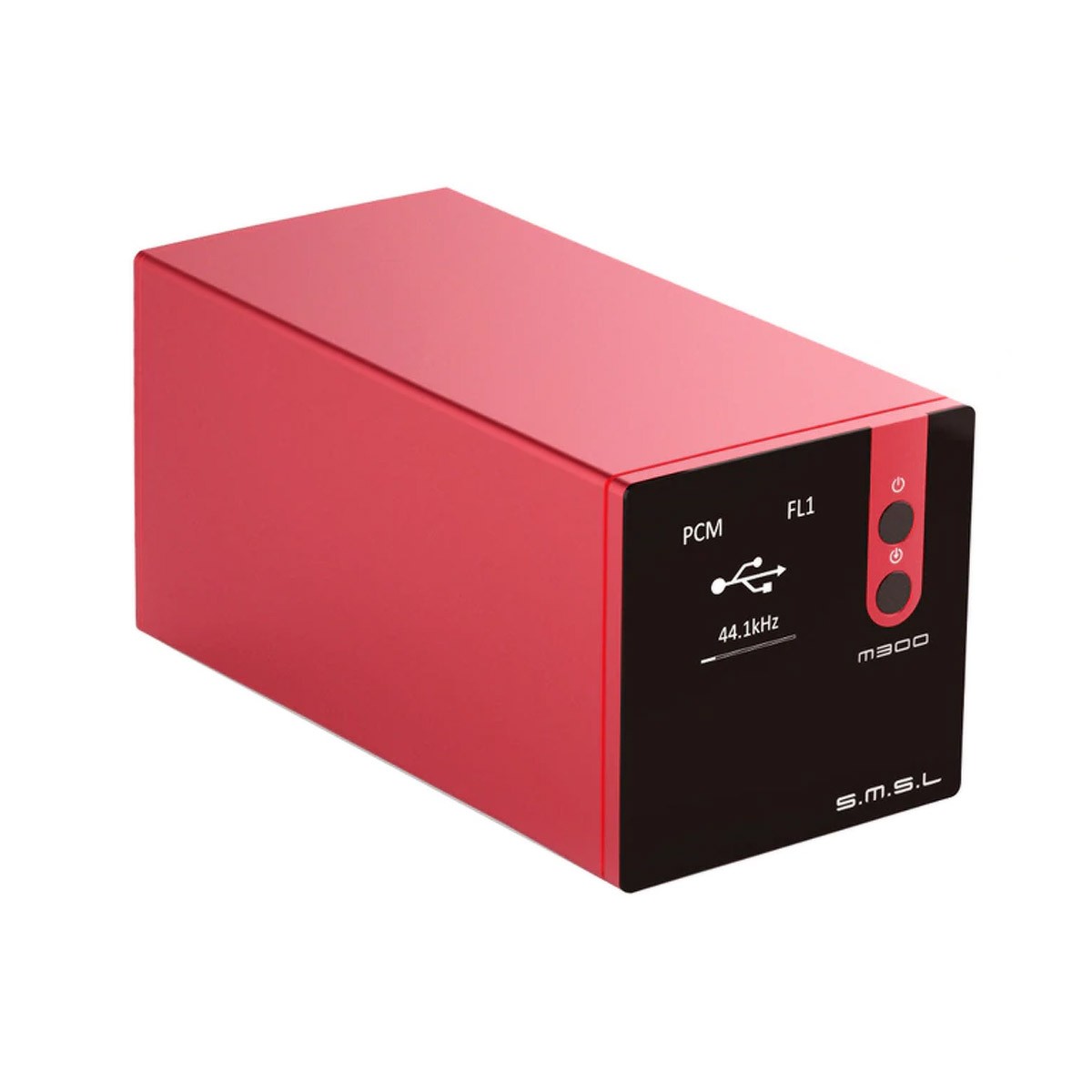

SMSL M300 DAC AKM AK4497 XMOS Dual NDK Clock 32bit 768kHz DSD512 Red

SMSL M300 DAC AKM AK4497 XMOS Dual NDK Clock 32bit 768kHz DSD512 Red
10%
The SMSL M300 is a powerful and compact DAC in an atypical format. Integrating high quality components, it is the perfect ally to offer your HiFi audio system a digital-to-analog converter capable of reproducing your audio files with both a beautiful transparency and an astonishing sound richness.

Average votes for this product
5.0 / 5


Reduced price!
Reference : 13975
New product
Limited special offer

207,50 €

-10%

186,75 €tax excl.

Including 0,04 € for green tax

- +

Last items in stock !

Shipping date: 28-05-2020.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product


More info

SMSL M300

DAC AKM AK4497 XMOS Dual NDK Clock 32bit 768kHz DSD512 Red

SMSL M300 DAC AKM AK4497 XMOS Double Horloge NDK 32bit 768kHz DSD512 Rouge

The SMSL M300 is a powerful and compact DAC in an atypical format. Integrating high quality components, it is the perfect ally to offer your HiFi audio system a digital-to-analog converter capable of reproducing your audio files with both a beautiful transparency and an astonishing sound richness.

AK4497 DAC & High-end components

The M300 is equipped with an AK4497EQ high-end DAC chip from AKM. The latter supports high sampling rates, in PCM up to 32bit 768kHz and in DSD up to DSD512. In addition, the chip uses the proprietary Velvet Sound architecture allowing it to provide a high SNR (128dB) and very low distortion (THD+N -116dB) for neutral and accurate reproduction, with a beautiful sound image.

This chip is combined with many quality components such as a second-generation XMOS USB interface, two ultra-low phase noise Japanese NDK clocks to significantly limit jitter on 44.1kHz / 48kHz and multiple frequencies, and finally a series of resistors and capacitors specially designed for audio use.

SMSL M300 DAC AKM AK4497 XMOS Double Horloge NDK 32bit 768kHz DSD512 Noir

Design, Screen & Connectivity

All components are integrated into a beautiful CNC machined Aluminium housing, both robust and allowing to limit interference that could degrade the audio signal. The front panel is covered with a tempered glass plate of the most beautiful effect and a 1.54" IPS screen, allowing you to display all the information related to the reading of your files (input, filter, sampling rate, read format...). The control is done simply with the two buttons on the front panel, allowing you to turn the device on/off, select an input, change the display color or choose an audio filter.

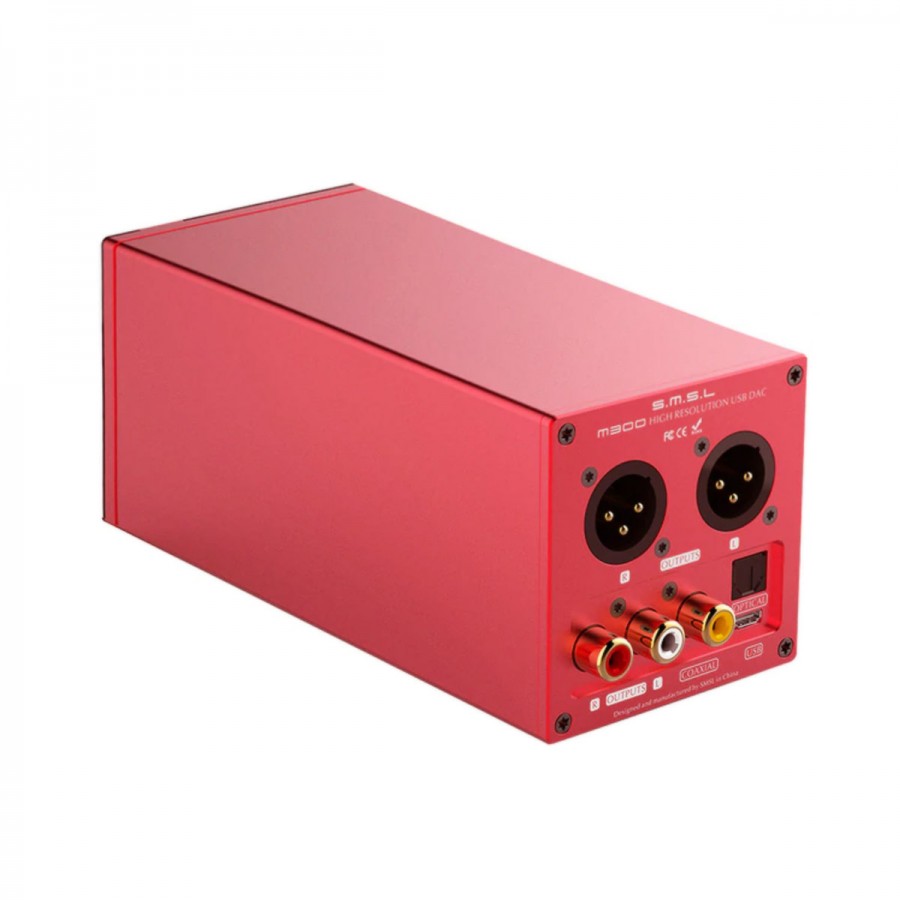

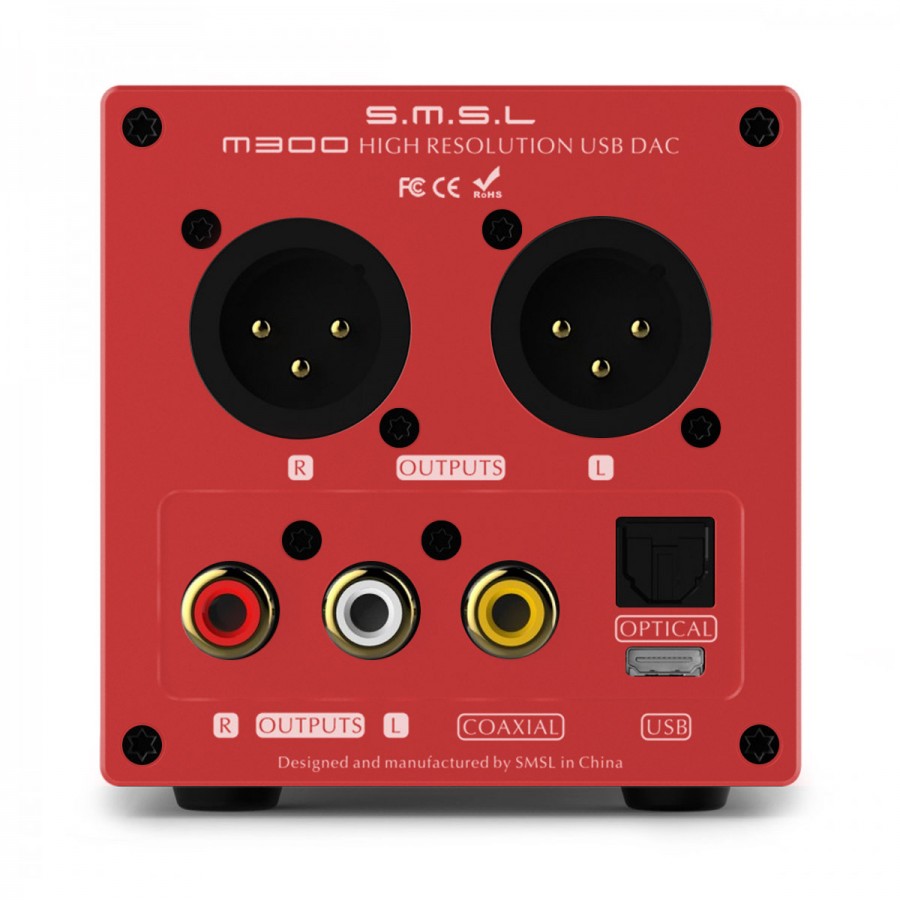

The back of the device contains all the connections. Toslink Optics, Micro USB (XMOS) and Coaxial are at the input. On the output side, the M300 offers either symmetrical XLR or asymmetrical RCA.

SMSL M300 DAC AKM AK4497 XMOS Double Horloge NDK 32bit 768kHz DSD512 Rouge
1Balanced XLR output
2Single ended RCA output
3S/PDIF Coaxial input
4Optical Toslink input
5Micro USB input
6Screen
7Sampling rate
8Power ON/OFF
Color selection
9Input selection
Filter selection

SMSL M300 review by Qobuz

" We really liked the fullness of the sound reproduction of the DAC S.M.S.L M300. The contribution of its various digital filters is interesting while preserving the excellent musical quality of this device. "
Test du SMSL M300 par Qobuz

Technical characteristics

Specifications
Product typeDAC
Inputs1x Micro USB XMOS
1x Optical Toslink
1x S/PDIF Coaxial
Outputs1x Single ended RCA
1x Balanced XLR
Output levelRCA : 2Vrms
XLR : 4Vrms
THD+N0.0004%
Dynamic rangeRCA : 120dB
XLR : 123dB
SNR116dB
USB compatibilityWindows 7 / 8 / 8.1 / 10
Mac OSX 10.6 or more
Linux
Sampling rate/ Bit depthUSB : Up to 32bit 768kHz / DSD512
Optique / Coaxial : Up to 24bit 192kHz
Specifications
Consumption1.8W
Standby consumption< 0.1W
Dimensions (WxHxD)70 x 70 x 160mm
Weight500g
ColorRed
Power supply sold separately5V 3A with micro-USB

Data sheet
InputUSB XMOS
InputSPDIF
InputUSB 2.0
InputMicro USB
InputOptical
OutputRCA
OutputXLR
DAC ChipAK4497EQ
Max sampling rateDSD512
Max sampling rate768kHz
ColorRed
